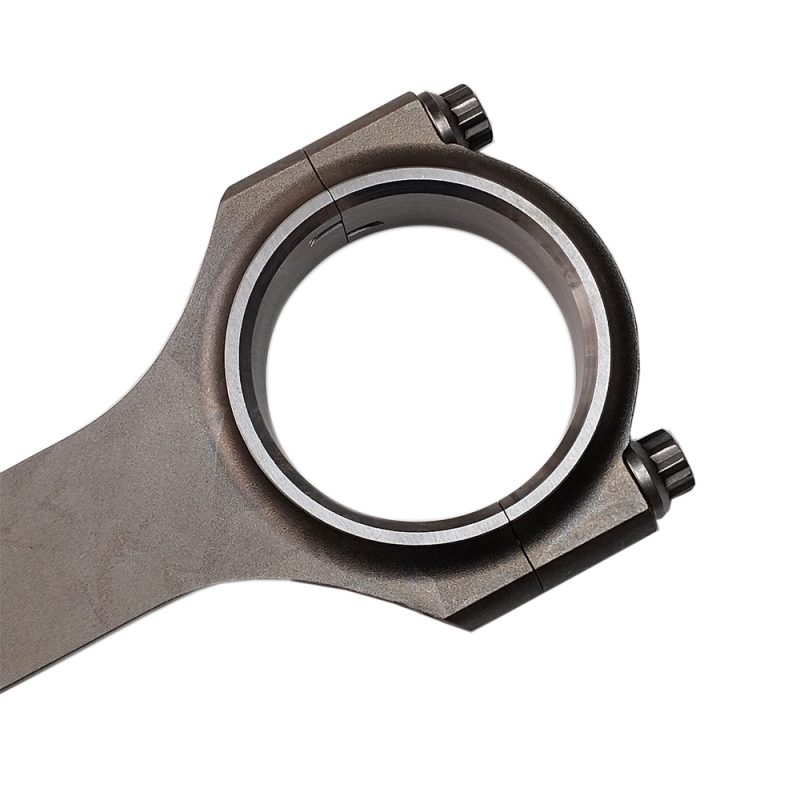

Subaru WRX STi EJ20 EJ205 connecting rod
Description

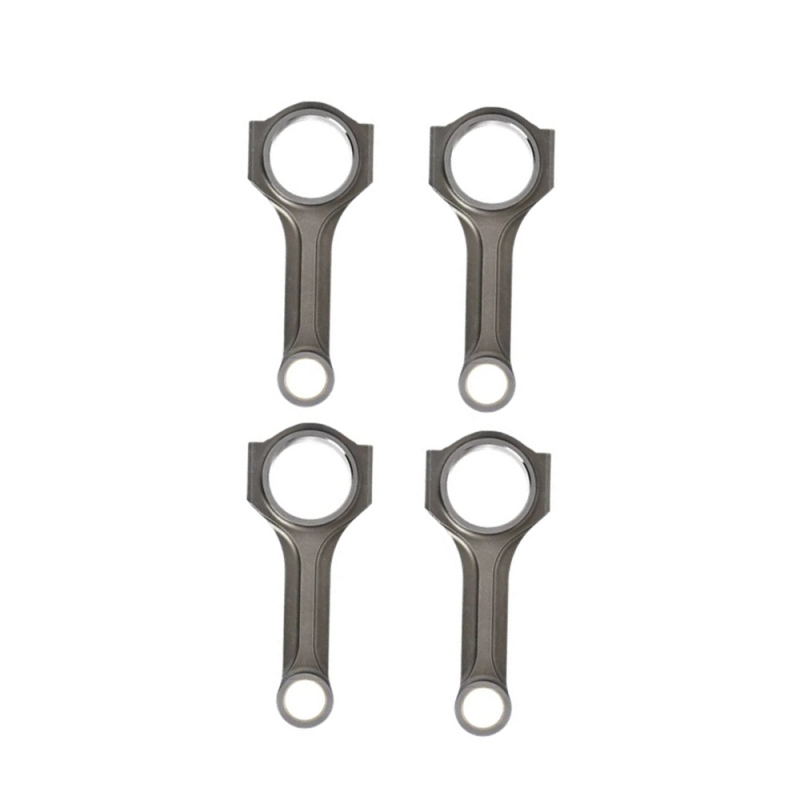

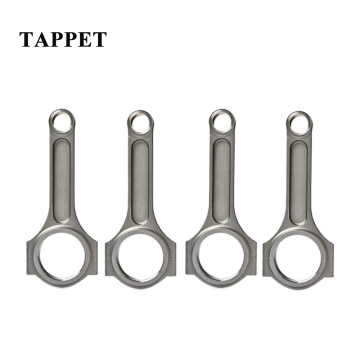

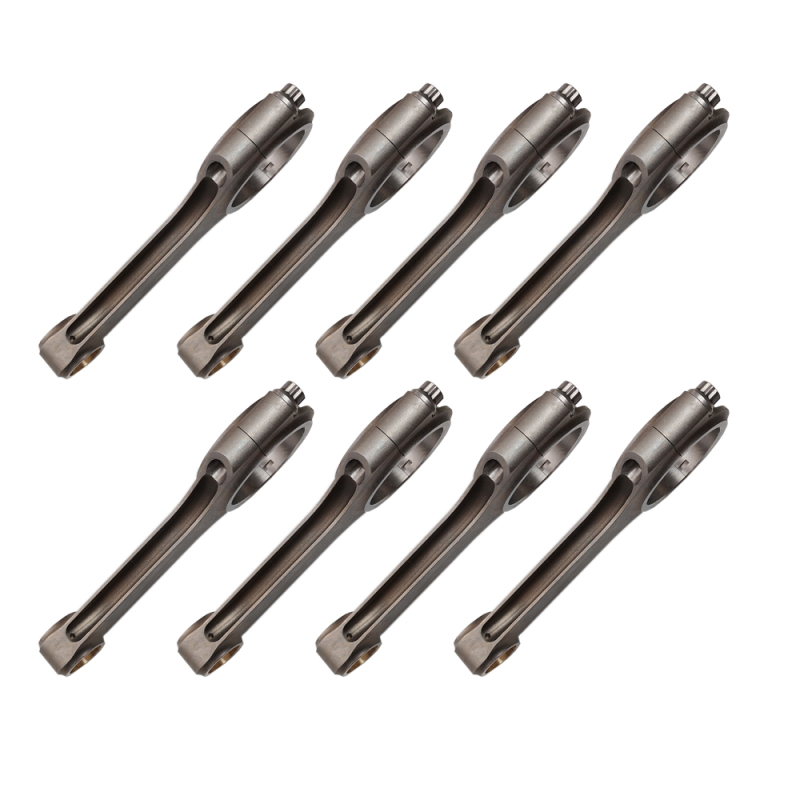

Subaru WRX EJ205/STi EJ257 X-Beam Connecting Rod Set Main Sizes
| Brand: TAPPET |
|
| Center to Center Length: 130.50mm/5.137" | |
| Big End Bore Diameter: 54.991mm/2.165" | |
| Big End Width: 21.34mm/0.840" | |
| Small End Bore Diameter: 23.012mm /0.906" | |
| Small End Width: 21.34mm/0.840" | |
| Beam Style: X-beam |
X-Beam Rods For Subaru Impreza WRX STI EJ20 EJ25 Features
| Connecting Rod Bolt Diameter | 3/8" |
| Approximate Connecting Rod Weight |
560 gram |
| Advertised Horsepower Rating | 800hp |
| Quantity | Sold as 4 pieces /set |
| Material | Forged 4340 steel |
| Connecting Rod Finish | Shot-peened, Polished |
| Pin | Bronze wrist pin bushings |
| Wrist Pin Style | Floating |
| Cap Retention Style | Cap screw |
| Weight Matched Set | Yes, Balanced +/- 1g |
| Magnafluxed | Yes |
| Private Label | Yes, available |
| Custom design | Yes, accept |
Applications
Subaru Impreza WRX - 2002
Subaru Impreza WRX - 2003
Subaru Impreza WRX - 2004
Subaru Impreza WRX - 2005
Subaru Impreza WRX - 2006
Subaru Impreza WRX - 2007
Subaru Impreza WRX - 2008
Subaru Impreza WRX - 2009
Subaru Impreza WRX - 2010
Subaru Impreza WRX - 2011
Subaru Impreza WRX - 2012
Subaru Impreza WRX - 2013
Subaru Impreza WRX - 2014
Subaru Impreza WRX STI - 2004
Subaru Impreza WRX STI - 2005
Subaru Impreza WRX STI - 2006
Subaru Impreza WRX STI - 2007
Subaru Impreza WRX STI - 2008
Subaru Impreza WRX STI - 2009
Subaru Impreza WRX STI - 2010
Subaru Impreza WRX STI - 2011
Subaru Impreza WRX STI - 2012
Subaru Impreza WRX STI - 2013
Subaru Impreza WRX STI - 2014
Subaru Impreza WRX STI - 2015
Subaru Impreza WRX STI - 2016
Subaru Impreza WRX STI - 2017
