Forged 4340 Connecting rod Honda D16Z6 H-beam steel
Description
Forged 4340 Connecting rod Honda D16Z6 H-beam forged 4340 steel

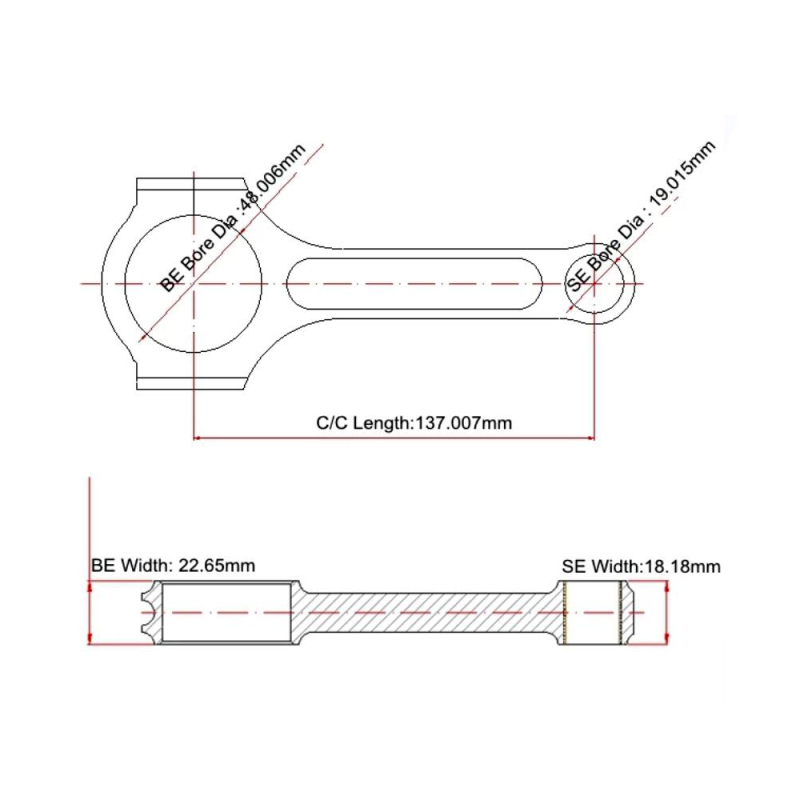

Center to Center Length: 137.007mm/5.394"
Big End Bore Diameter: 48.006mm/1.890"
Big End Width: 22.65mm/0.892"
Small End Bore Diameter: 19.015mm /0.749"
Small End Width: 18.18mm/0.716"
Beam Style: H-beam
Connecting Rod Bolt Diameter:3/8"
Approximate Connecting Rod Weight: ~g/piece
Advertised Horsepower Rating: 750hp
Quantity: Sold as 4 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Forged Connecting Rods Set Acura Honda Civic D16A6 D16Y7 D16Y8 D16Z6 Fitting info:
Make: Honda / Acura
Vehicle :Civic 92-95 EG, Civic Non-VTEC 96-00 EK, Civic 87-91 EF, Del Sol Si 93-95 EH6, Del Sol S/Si 96-97 EH6
Engine:All D16 Engines, like D16A6, D16Y7, D16Y8, D16Z6
