Product ID: 63684704

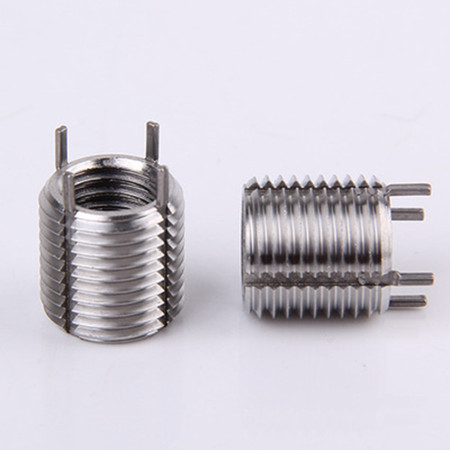

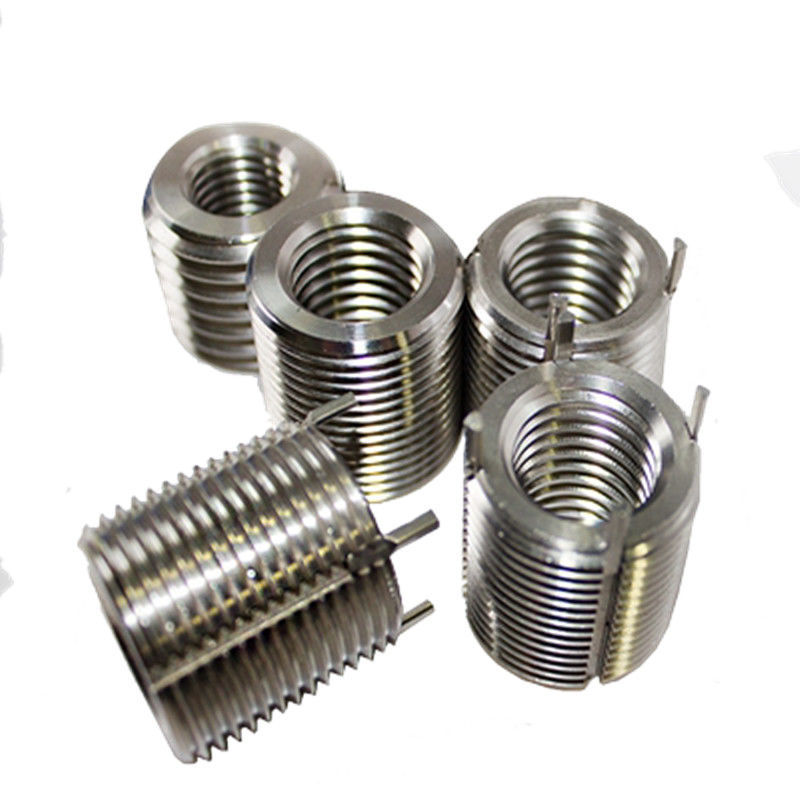

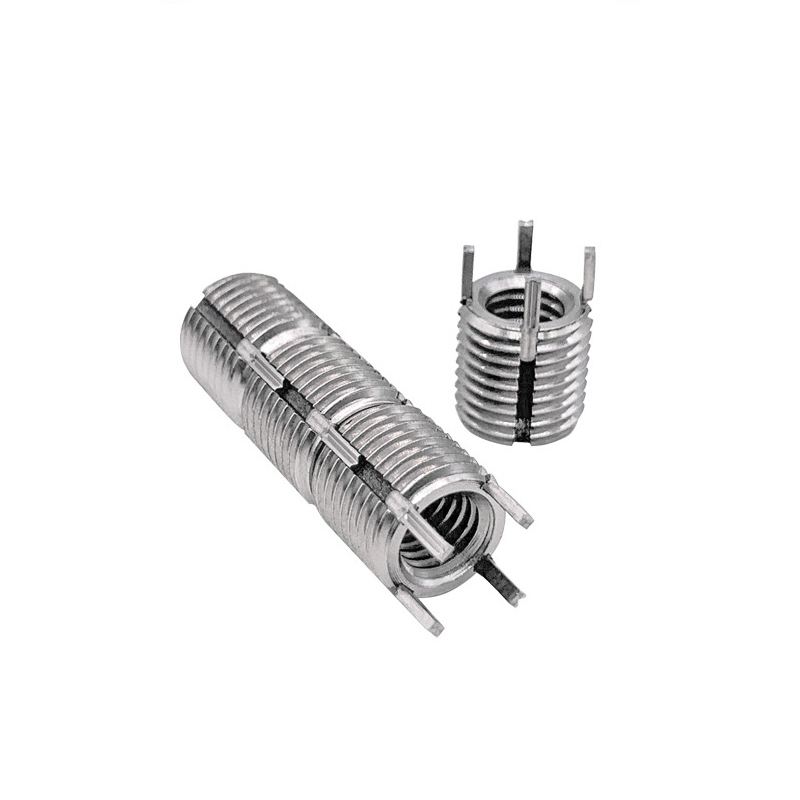

Stainless Steel Key Locking Threaded Inserts UNC 10-32 1/4-20 3/8-24 Fasteners
Contact Now
Description
Product Overview
Installation method and introduction of locking thread insert
The installation tools of steel wire screw sleeve include drill bit, screw tap, plug gauge, special installation tools and hammer.
Steel wire insert drill bit: when drilling the threaded hole, the drill bit of the steel wire insert shall be larger than the diameter of the internal thread hole of the steel wire insert and smaller than the diameter of the external thread of the steel wire insert.
Wire thread tap: a tool for tapping thread holes. The screw taps are divided into straight groove screw taps and spiral groove screw taps. The spiral groove screw taps can automatically discharge debris during tapping
Steel wire insert plug gauge: the steel wire insert plug gauge is a tool used to test the screw thread accuracy after tapping the screw hole. The steel wire screw plug gauge is divided into go gauge and no go gauge. Use the plug gauge to detect the threaded hole. If the go gauge can pass and the no go gauge can stop, it means that the threaded hole is qualified

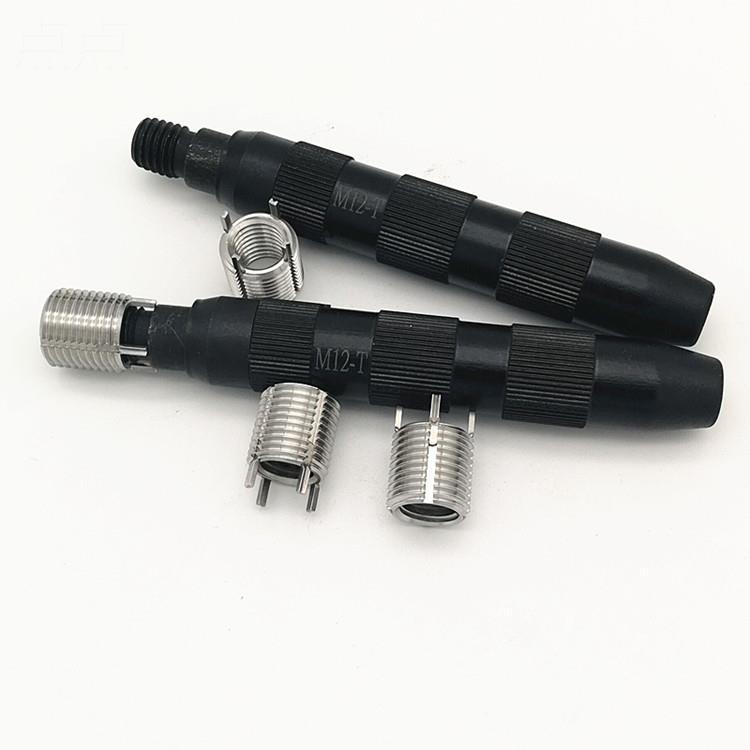

Special installation tool: screw the steel wire threaded sleeve vertically into the installation hole, and the steel wire threaded sleeve shall be lower than the workpiece surface. After installation, screw out the installation tool.
Hammer: after the steel wire screw sleeve is screwed into the base metal, knock the top of the installation tool with a hammer, press the key pin of the steel wire screw sleeve into the base metal, and start the locking operation.
FEATURES AT A GLANCE
Precautions for use of steel wire insert
What we need to know is that the accuracy of tapping determines the tolerance zone of the final standard internal screw hole. Users should properly select the tapping method and lubrication, and use appropriate force for blind hole tapping to prevent the tap from breaking. We need to use the special screw tap for screw sleeve of corresponding specification to tap in the drilled hole. When the new screw tap is used and the screw tap is close to wear, we must use the thread plug gauge to check the screw hole to identify the thread Whether the cone is available.
Installation steps
Screw insert
Bolt insert
PRODUCT SPECIFICATIONS
1 | brand | Xiyangyang machinery |
2 | Product name | locking thread insert |
3 | Processing customization | Customized as required |
4 | standard | GJB119.1-2001 |
5 | accuracy | 6H |
6 | function | Tighten the thread and repair the sliding tooth |
7 | application | High speed railway, automobile, industry, machinery and electronics |
8 | Whether the manufacturer | yes |

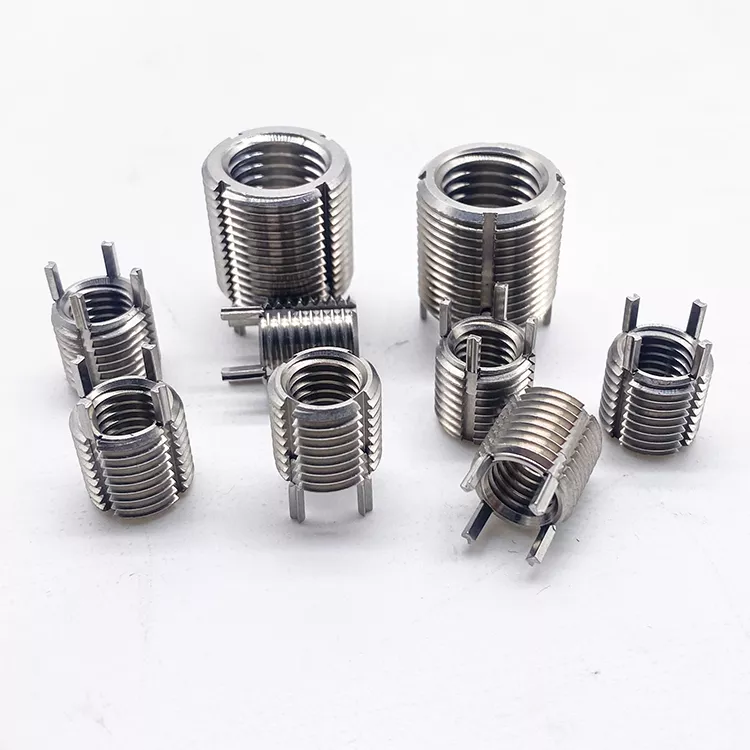

locking thread insert
Stainless steel wire
Full automatic wrapping machine
SALES AND SERVICE NETWORK
Successful Project
China equipment project
Indonesia industrial project
German automobile project
SIMILAR PRODUCTS
FAQ
1. who are we?
We are based in Henan, China, start from 2014,sell to Eastern Europe(10.00%),South America(10.00%),North
America(10.00%),Africa(5.00%). There are total about 11-50 people in our office.
2.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wire thread insert,Self tapping insert,Tanglees,Keensert,Thread repair kit
4. why should you buy from us not from other suppliers?
Our company is a professional manufacturer of thread inserts and tools. Xinxiang, a powerful industrial city in Central China,has been engaged in thread nesting industry for more than 20 years.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese
