Factory Direct M2.5*0.45 Wire Thread Insert Hot Sales Steel Stainless Steel 304 Healthcare Customizable OEM Support M8 M10
Description

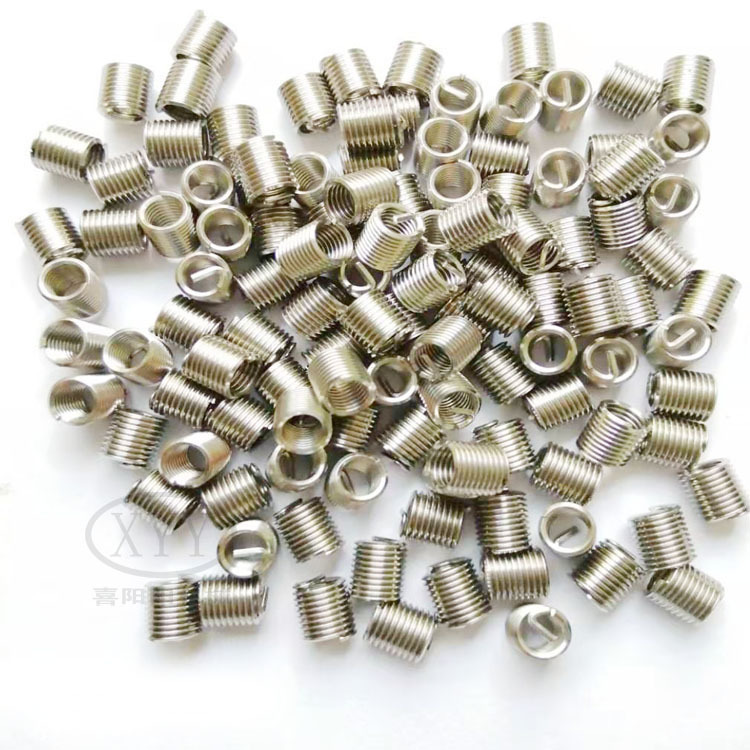

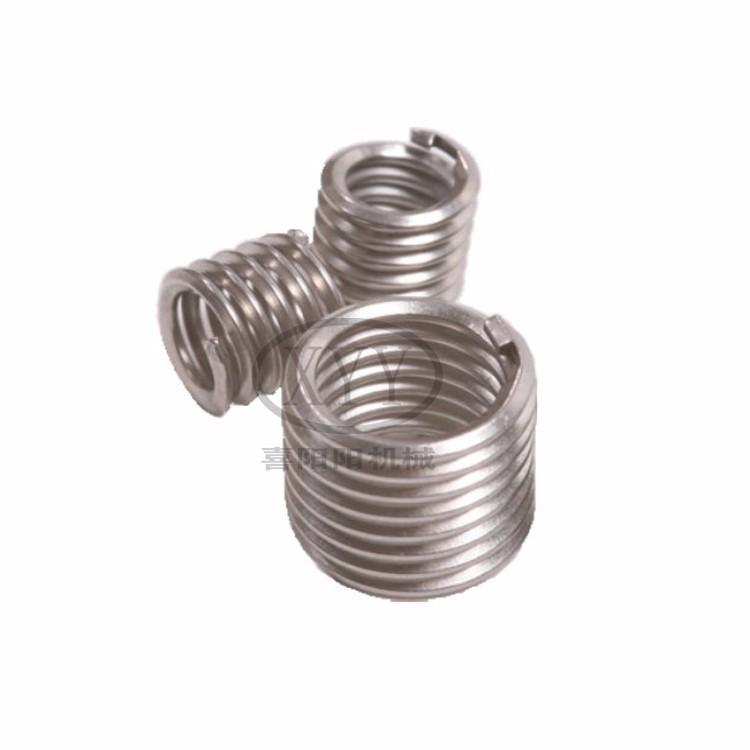

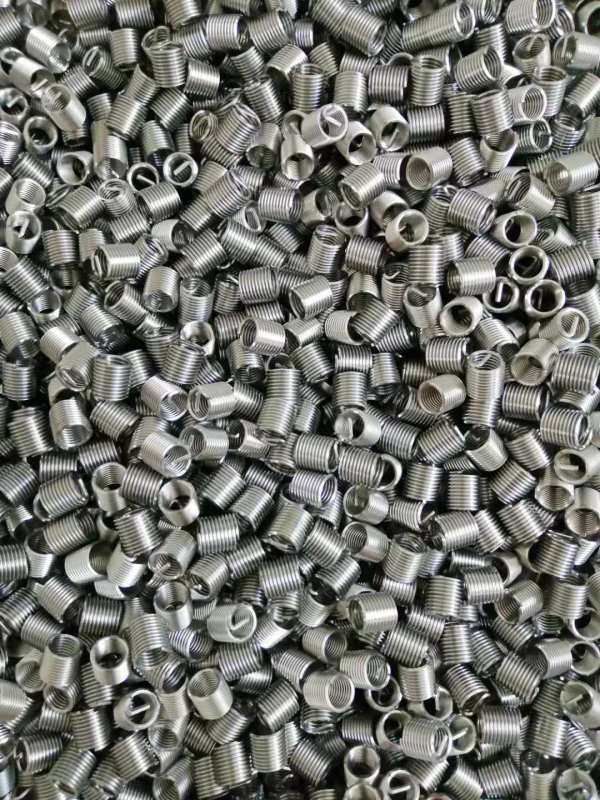

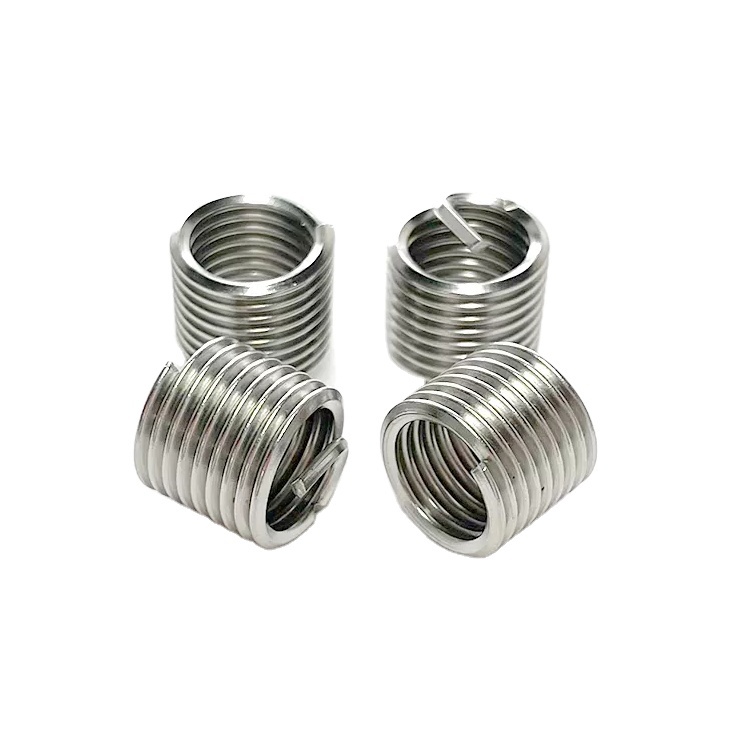

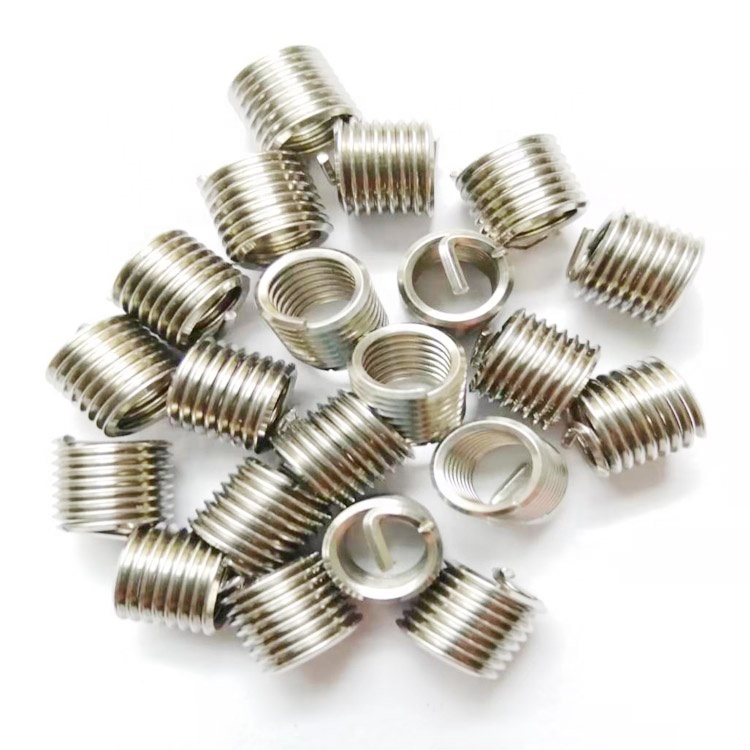

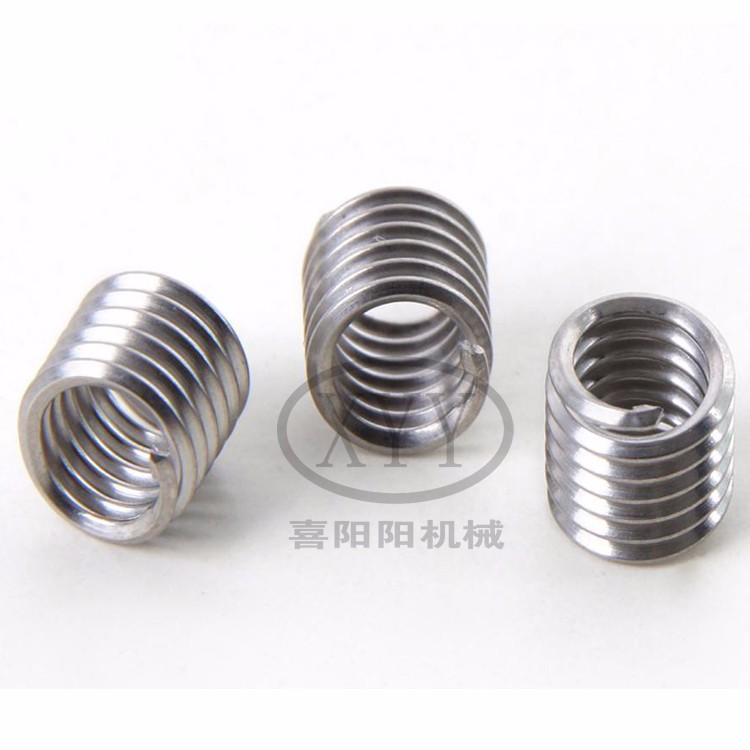

Own factory hot sale M2.5*0.45 wire thread insert
The steel wire insert is a new type of internal thread fastener. It is a kind of spring-shaped internal and external thread concentric body precisely processed by cold-rolled rhombic stainless steel wire with high strength, high precision and smooth surface. It is mainly used to strengthen and protect the internal thread of low strength materials.
| Product Name | wire thread inserts |
| Material | 304 Stainless steel |
| Standard | ISO |
| Quantity | 100piece |
| Place of Origin | Henan, China |
| Used | Machinery,Industry,Thread repair |
Professional steel wire screw sleeve manufacturer, welcome to consult.
1. Strengthen connection strength and improve connection conditions.
The low strength materials, such as aluminum and magnesium, can avoid the phenomenon of sliding wire and staggering teeth, and obtain excellent connection performance.
2. Wear resistance.
It can be used for the parts that are often disassembled, which can greatly improve the service life of the thread.
3. Increase the stress surface.
It is used for parts requiring strength connection force but not increasing screw hole diameter.
4. Prevent loosening.
Especially for spacecraft and other products requiring high safety factor.
5. Easy to repair.

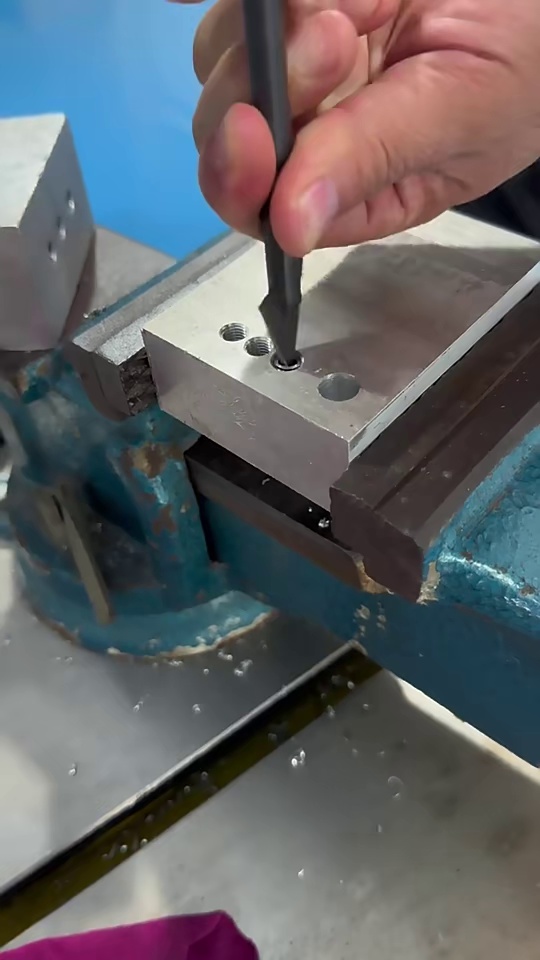

Install the damaged screw hole into the steel wire screw sleeve, and continue to use after repair to avoid the possibility of workpiece damage.
The steel thread insert is embedded in the threaded holes of low strength engineering materials such as aluminum, magnesium alloy, cast iron, glass fiber reinforced plastic, etc., which can form high-precision internal thread in accordance with international standards, with the functions of high connection strength, earthquake resistance, impact resistance and wear resistance, and can disperse stress to protect the base thread, greatly extending the service life of the base.
click me and Ellie Wang will bring you the latest quotation
| XYY Wire Thread Insert | |||||
| Use parameter table of metric wire thread insert | |||||
| Size | Nominal length |
Hole depth |
Drill diameter |
Outer diameter |
Number of turns |
| 2*0.4 | 1D | 2 | 2 | 2.62-2.76 | 2.9 |
| 1.5D | 3 | 4.7 | |||
| 2D | 4 | 6.5 | |||
| 2.5*0.45 | 1D | 2.5 | 2.6 | 3.3-3.5 | 3.5 |
| 1.5D | 3.75 | 5.9 | |||
| 2D | 5 | 8.1 | |||
| 3*0.5 | 1D | 3 | 3.1 | 3.8-4.0 | 4 |
| 1.5D | 4.5 | 6.3 | |||
| 2D | 6 | 8.7 | |||
| 4*0.7 | 1D | 4 | 4.1 | 5.05-5.25 | 3.7 |
| 1.5D | 6 | 6 | |||
| 2D | 8 | 8.4 | |||
| 5*0.8 | 1D | 5 | 5.2 | 6.35-6.6 | 4.3 |
| 1.5D | 7.5 | 6.9 | |||
| 2D | 10 | 9.7 | |||
| 6*1 | 1D | 6 | 6.2 | 7.6-7.85 | 4.2 |
| 1.5D | 9 | 7 | |||
| 2D | 12 | 9.6 | |||
| 8*1.25 | 1D | 8 | 8.3 | 9.85-10.1 | 4.7 |
| 1.5D | 12 | 7.4 | |||
| 2D | 16 | 10.6 | |||
| 10*1.5 | 1D | 10 | 10.3 | 12.1-12.5 | 5 |
| 1.5D | 15 | 8 | |||
| 2D | 20 | 11.2 | |||
| 12*1.75 | 1D | 12 | 12.4 | 14.4-14.8 | 5.2 |
| 1.5D | 18 | 8.4 | |||
| 2D | 24 | 11.7 | |||
| 14*1.5 | 1D | 14 | 14.4 | 16.8-17.2 | 7.4 |
| 1.5D | 21 | 11.2 | |||
| 2D | 28 | 15.3 | |||
| 16*2 | 1D | 16 | 16.5 | 19.0-19.4 | 6 |
| 1.5D | 24 | 9.7 | |||
| 2D | 32 | 13.3 | |||
Although our details page is very common, but our products are really trustworthy!
Xiyangyang thread nesting is your solid backing. Wish you a pleasant shopping!
