Warm Boots Battery Power Bank 3.7V 12.8Ah
Description
产品描述
The AC407NC-3V12800 is 3.7v 12800mAh version of AC407 li ion rechargeable battery pack made of 4pcs Samsung 18650 battery, LG 18650 battery, Sanyo 18650 battery or other optional 18650 battery, The AC407 battery has no output setting, to get output setting customer can use with our T21sicpu the silicon pushbutton heat controller. Application: battery operated insoles, electric heated shoes, self heating shoe inserts, electric heated booties and other 3v heated wear products.
Battery ID: AC407NC-3V12800
Cell inside: 4pcs li ion 18650 battery
Dimension: 23*76*82mm
Capacity: 3.7v 12800mAh
Input: 4.2v 3A max
Output: 4.2v~3V 3A max, constant DC output, no output settings. to get output setting customer can use with our T21sicpu the silicon pushbutton heat controller.
Input/Ouput Terminal: 3.5*1.35mm coax type,
or designated connector in extension cable.
Weight: 220g
Function Code: NC (No control, but can have a LED light to indicates the remaining battery level)
Typical cell inside:

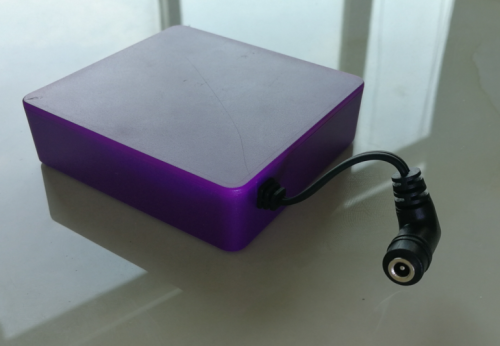

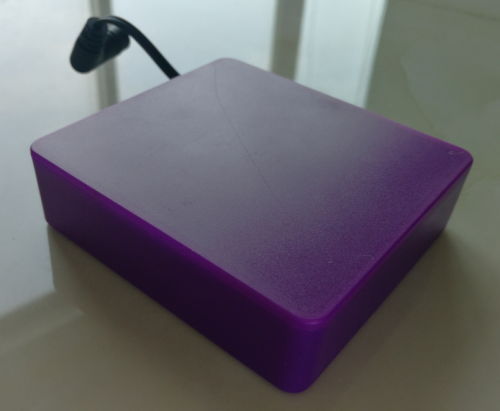

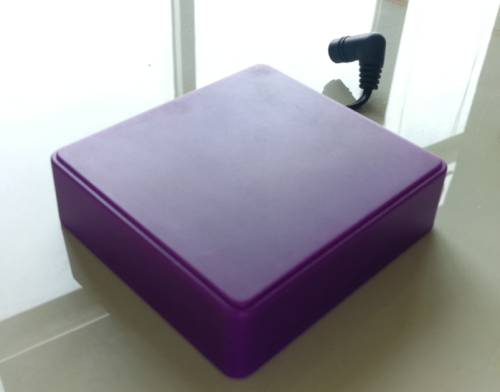

The AC407 battery is designed for electric heated wears application as well as electronic device used as an external battery. It has compact size 23*76*82mm , a 3.5*1.35mm coax type socket connector or other specified connector type.
The AC407 battery LED light can be made to reflect the battery fuel level status by lighting up different color.
Typical Capacity Option:
3.7v 8800mAh/10400mAh/12800mAh/13600mAh
7.4v 4400mAh/5200mAh/6400mAh/6800mAh
