700W Monocrystalline Solar Power System with 25-Year Warranty and Solar Battery Bank
Description
Basic Info.
Model NO. YS700M-66
Number of Cells 132 PCS
Application Industrial
Condition New
Certification ISO, CE, TUV, Cec, IEC61215, IEC61730
Material Monocrystalline Silicon
Frame Anodized Aluminium Alloy
Junction Box IP68 Waterproof
Solar Cell Mono 210*105mm Half Cell
Front Cover 3.2mm High Transmission Low Iron Tempered Glass
Size 2400*1303*35mm
Connector Mc4 Compatible Connector
Backsheet Color White or Black or Transparent
OEM Order Acceptable
Frame Color Silvery or Black
Weight 36 Kg
Transport Package by Carton & Pallet
Specification 2400*1303*35mm
Trademark Yangtze Solar
Origin China
HS Code 8541402000
Production Capacity 500000 Piece/ Years
Product Description
Model Type
YS660M-66
YS670M-66

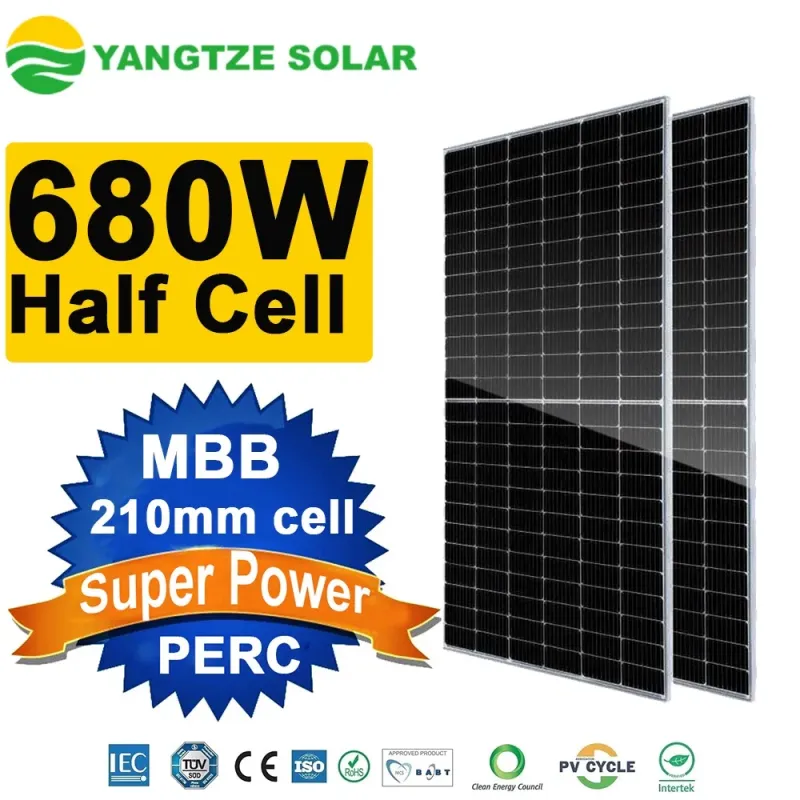

YS680M-66

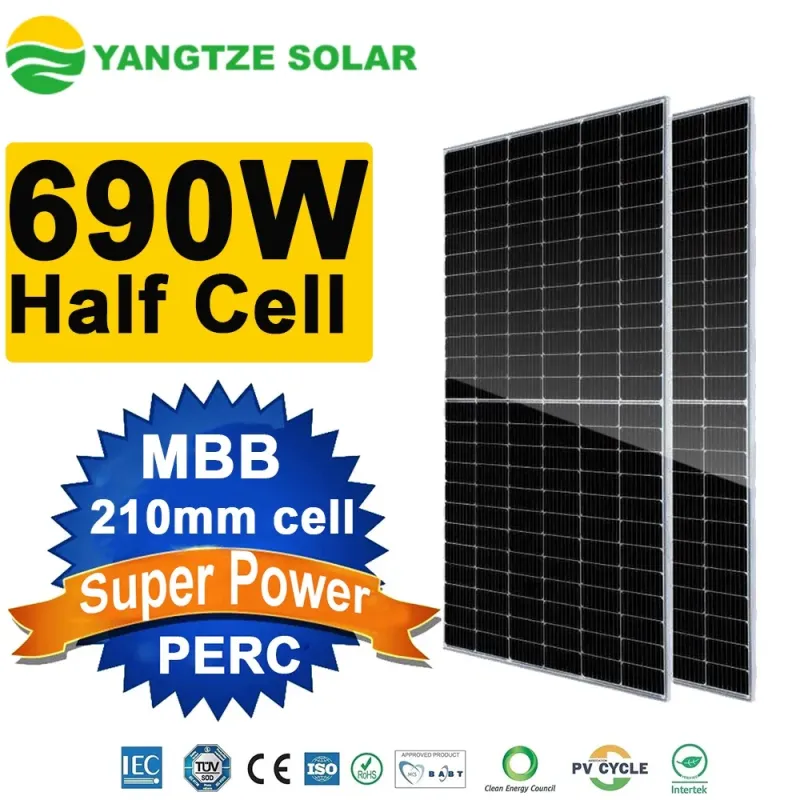

YS690M-66
YS700M-66
Rated Maximum Power at STC
660W
670W
680W
690W
700W
Maximum Power Voltage (Vmp)
38.38V
38.68V
38.98V
39.28V
39.58V
Maximum Power Current (Imp)
17.20A
17.33A
17.45A
17.57A
17.69A
Open Circuit Voltage (Voc)
45.55V
45.85V
46.15V
46.45V
46.75V
Short Circuit Current (Isc)
18.45A
18.54A
18.66A
18.79A
18.92A
Module Efficiency
21.1%
21.4%
21.7%
22.0%
22.3%
Working Conditions
Operating Temperature: -40°C~+85°C
Maximum System Voltage: DC 1000V(IEC) / 1500V(IEC)
Maximum Series Fuse: 25A
Power Tolerance: 0~+5W
Temperature Coefficient of Pmax: -0.35%/°C
Temperature Coefficient of Voc: -0.29%/°C
Temperature Coefficient of Isc: +0.048%/°C
STC(Standard Testing Conditions): Irradiance 1000W/m², Cell Temperature 25°C, Spectra at AM1.5
NOCT(Nominal Operating Cell Temperature): Irradiance 800W/m², Ambient Temperature 20°C, Spectra at AM1.5, Wind at 1 m/s
Factory Introduction
- Founded in 1994, 300MW solar panel production capacity, solar panel power range 3watt to 800watt for both polycrystalline and monocrystalline solar panel
- 10 years total workmanship and materials warranty, 10 years for at least 90% and 25 years for 80% linear power output warranty
- 100% EL test before package and shipping
- Two factories, solar panel factory, battery factory
- Cooperated with world-famous big companies like Jinko Solar, SMA, Tesla, HUAWEI
- Products are exported to more than 150 countries
- Products are certified by TUV(Germany), CE

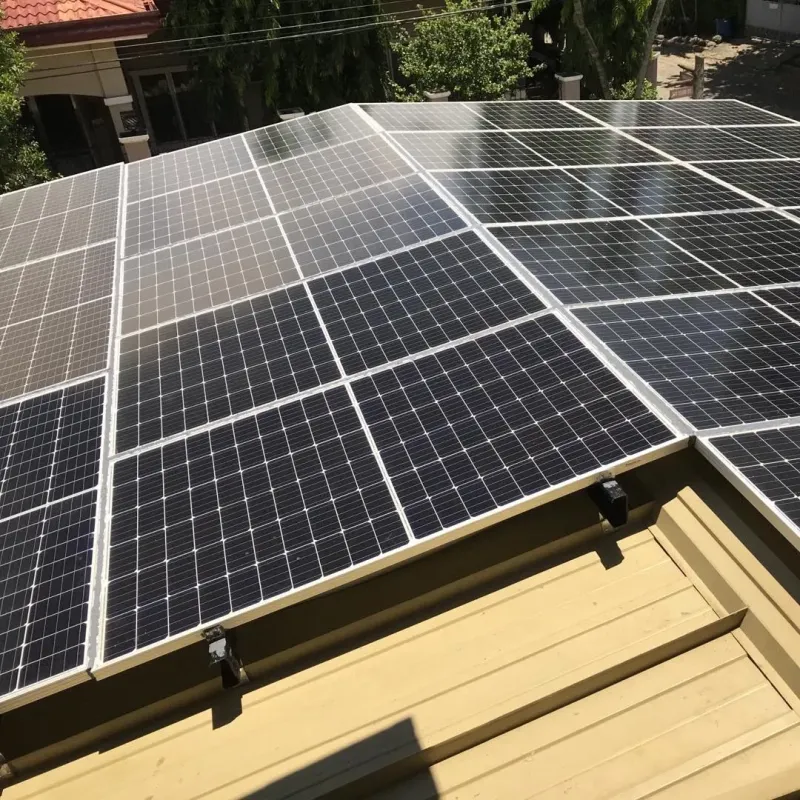

- Turn-key solar systems are offered, to save time and money for the clients
- Rich experience in overseas construction of solar projects
