Product ID: 68592354

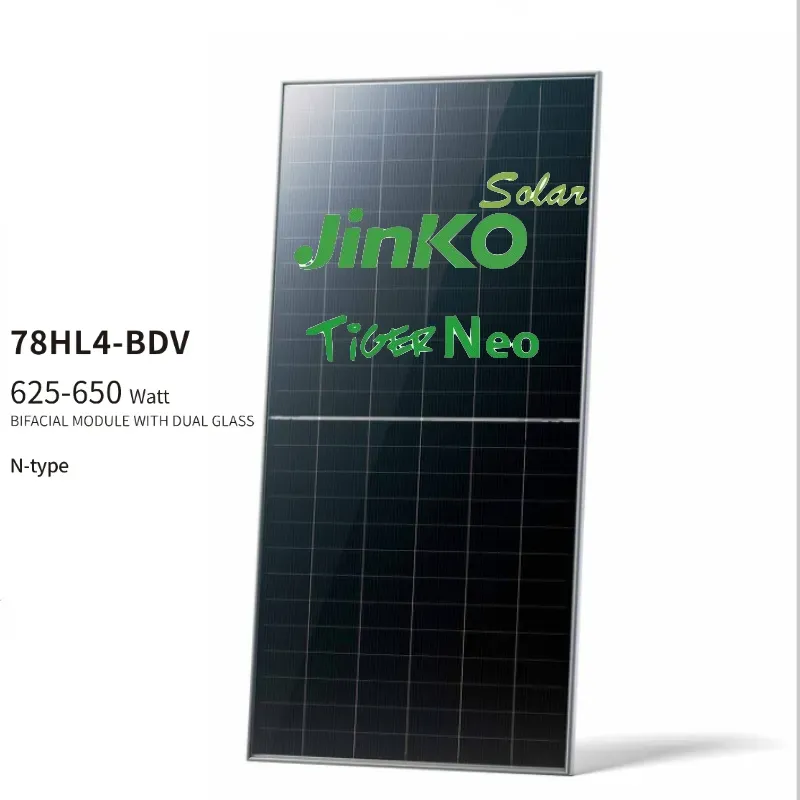

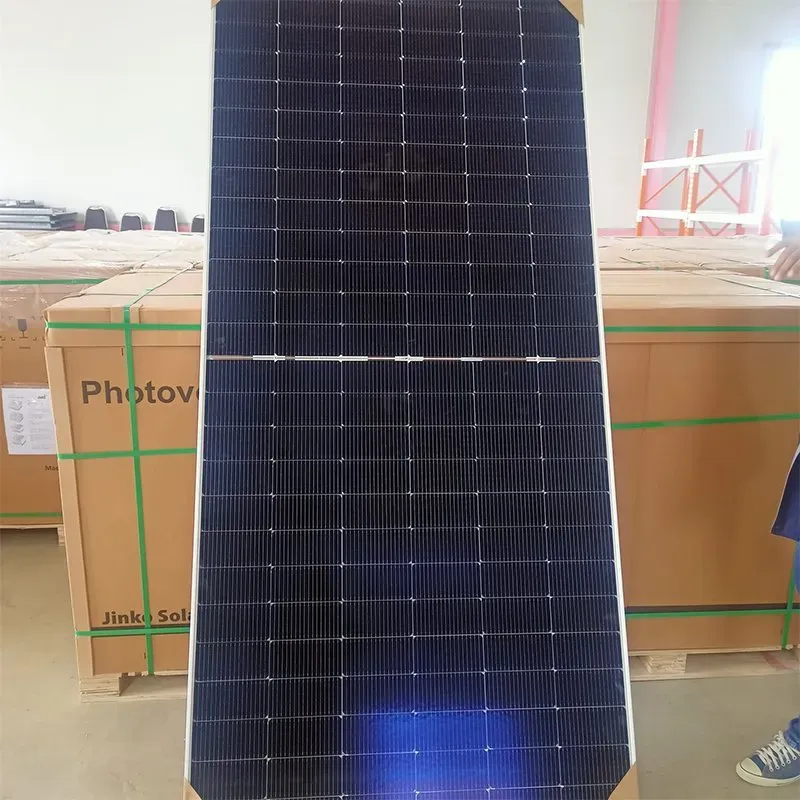

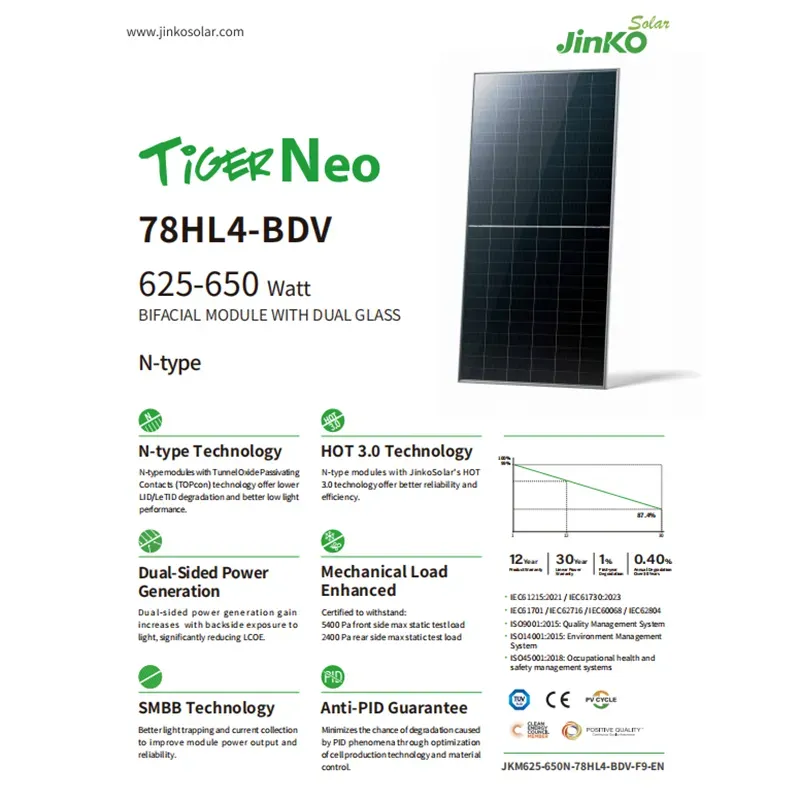

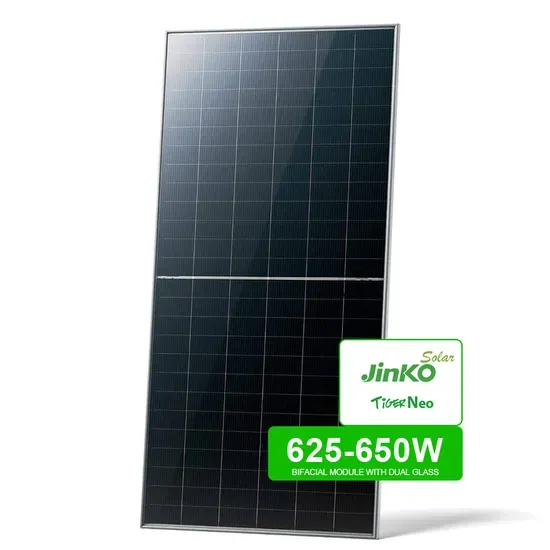

High PV Efficiency 625~650W N-Type Bifacial Solar Panels with TOPCon Technology for Solar Systems
Contact Now
Description
Overview
Basic Info.
- Model NO. JKM625-650N-78HL4-BDV
- Number of Cells 144 Cells
- Application Solar System
- Condition New
- Certification EST, ISO, CB, CE
- Material Monocrystalline Silicon
- Weight 34kgs
- Packing 36PCS/Pallets
- Loading 720PCS/ 40'hq Container
- Junction Box IP68 Rated
- Frame Anodized Aluminium Alloy
- Output Cables TUV 1*4.0mm2
- Maximum Series 25A
- Transport Package Pallet
- Specification 2465*1134*30mm
- Trademark Jinko
- Origin China
- HS Code 85414300
- Production Capacity 1000000watt Per Day
Packaging & Delivery
- Package Size 230.00cm * 130.00cm * 110.00cm
- Package Gross Weight 1200.000kg
Product Description
Product Parameters
Mechanical Characteristics
- Cell Type N- type Mono-crystalline
- No. of cells Dimensions 156(78×2)
- Dimensions 2465×1134×30 mm
- Weight 34.0 kg
- Front Glass 2.0 mm, Anti-reflection Coating
- Back Glass 2.0 mm, Heat Strengthened Glass
- Frame Anodized Aluminium Alloy
- Junction Box IP68 Rated
- Protection Class Class II
- IEC Fire Type Class C
- Connector Type JK03M/MC4/Others
- Output Cables 4.0 mm2(+): 400 mm , (-): 200 mm or Customized Length
Packaging Configuration
- Pallet Dimentions 2525×1140×1251 mm
- Packing Detail (Two pallets = One stack) 36 pcs/pallets 72 pcs/stack 576 pcs/ 40'HQ Container
Specifications (STC)
| Maximum Power - Pmax [Wp] | 625 | 630 | 635 | 640 | 645 | 650 |
|---|---|---|---|---|---|---|
| Maximum Power Voltage - Vmp [V] | 47.54 | 47.7 | 47.86 | 48.02 | 48.17 | 48.33 |
| Maximum Power Current - Imp [A] | 13.15 | 13.21 | 13.27 | 13.33 | 13.39 | 13.45 |
| Open-circuit Voltage - Voc [V] | 56.95 | 57.08 | 57.21 | 57.34 | 57.47 | 57.6 |
| Short-circuit Current - Isc [A] | 13.8 | 13.86 | 13.92 | 13.98 | 14.04 | 14.1 |
| Module Efficiency STC [%] | 22.36 | 22.54 | 22.72 | 22.90 | 23.07 | 23.25 |
- Power Tolerance 0 ~ + 3 %
- Temperature Coefficients of Pmax -0.29 %/°C
- Temperature Coefficients of Voc -0.25 %/°C
- Temperature Coefficients of Isc 0.045 %/°C
