Product ID: 68592372

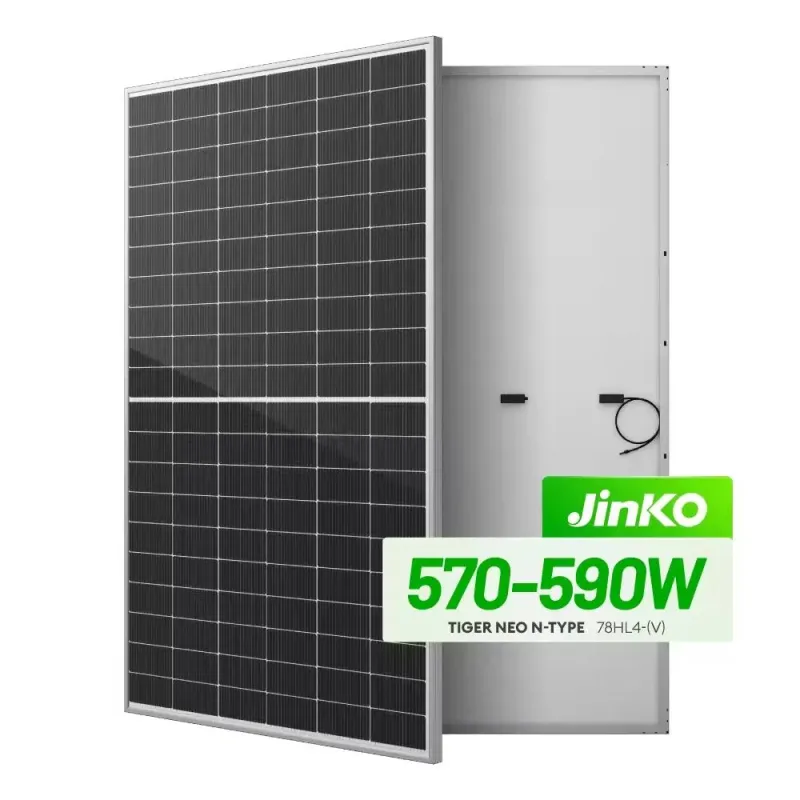

Jinko Solar Panel 580W N-Type PV Module
Contact Now
Description
Overview
Basic Info.
- Model NO. Tiger Neo N-type 72HL4-V 570-590
- Number of Cells 144PCS
- Application Industrial
- Condition New
- Certification ISO, CE
- Material Monocrystalline Silicon
- Solar Cell N Type Topcon 182*182mm
- Slow Power Degradation Enabled by Low Lid Mono Perc Technology
- Weight 28.0 Kg
- Junction Box IP 68, 3 Diodes
- Output Cable 4.0mm2, 300mm or Customized
- Glass Single , 3.2mm, Tempered, Low Iron High Transmiss
- Frame Anodized Aluminum Alloy
- Max. System Voltage DC 1500V (IEC)
- Max. Series Fuse Rating 10.08A
- Fire Rating IEC Type 1 or 2
- Q'ty / Container 31PCS/Plt, 620PCS/40hq
- Product Class 100% A Grade
- MOQ 620PCS
- Wind and Snow Load 5400/2400PA
- Hailstone Test 25mm Hailstone at The Speed of 23m/S
- Transport Package Carton Box and Wooden Pallet
- Specification 2278*1134*35mm
- Trademark Jinko solar
- Origin China
- HS Code 85414020
- Production Capacity 500MW/Year
Packaging & Delivery
- Package Size 230.00cm * 130.00cm * 5.00cm
- Package Gross Weight 28.000kg
Product Description
Module Type: JKMxxxN-72HL4-(V)
| Maximum Power (Pmax/w) | 570 | 575 | 580 | 585 | 590 |
|---|---|---|---|---|---|
| Maximum Power Voltage (Vmp/V) | 42.99 V | 43.17V | 43.35V | 43.53V | 43.71V |
| Maximum Power Current (Imp/A) | 13. 26A | 13. 32A | 13.38A | 13.44A | 13.50A |
| Open-circuit Voltage (Voc/V) | 51.99V | 52.30 | 52.50 | 52.70 | 52.90 |
| Short-circuit Current (Isc/A) | 13.89A | 13.95A | 14.01A | 14.07A | 14.13A |
| Module Efficiency STC (%) | 22.07 | 22.26 | 22.45 | 22.65 | 22.84 |
| Operating Temperature(°C ) | -40°C~+85°C | ||||
| Maximum system voltage | 1500VDC (IEC) | ||||
| Maximum series fuse rating | 25A | ||||
| Power tolerance | 0~+3% | ||||
| Temperature coefficients of Pmax | -0.29%/°C | ||||
| Temperature coefficients of Voc | -0.25%/°C | ||||
| Temperature coefficients of Isc | 0.045%/°C |

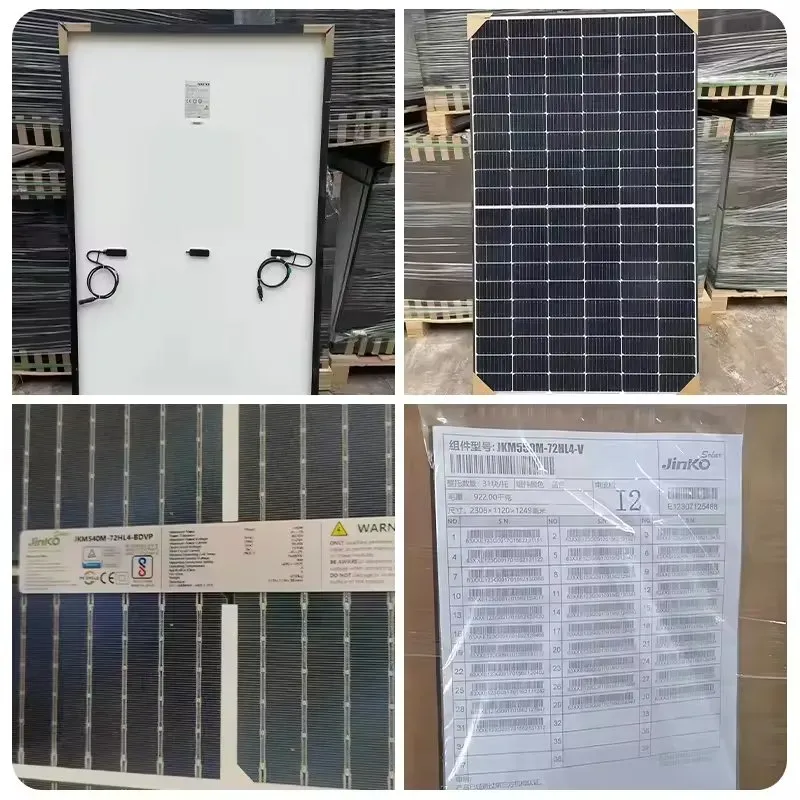

Detailed Photos

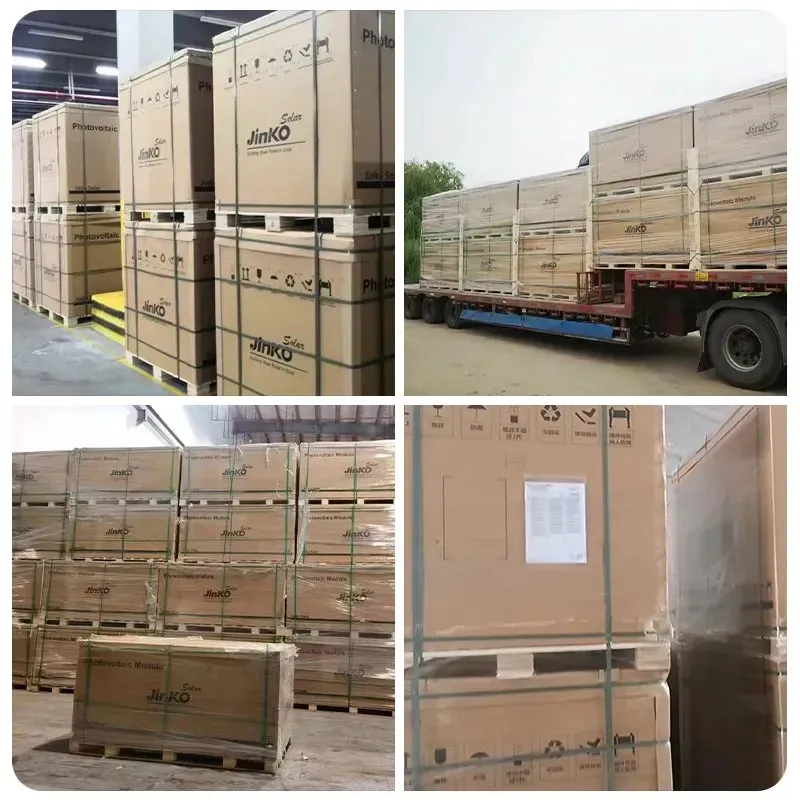

Packaging & Shipping
