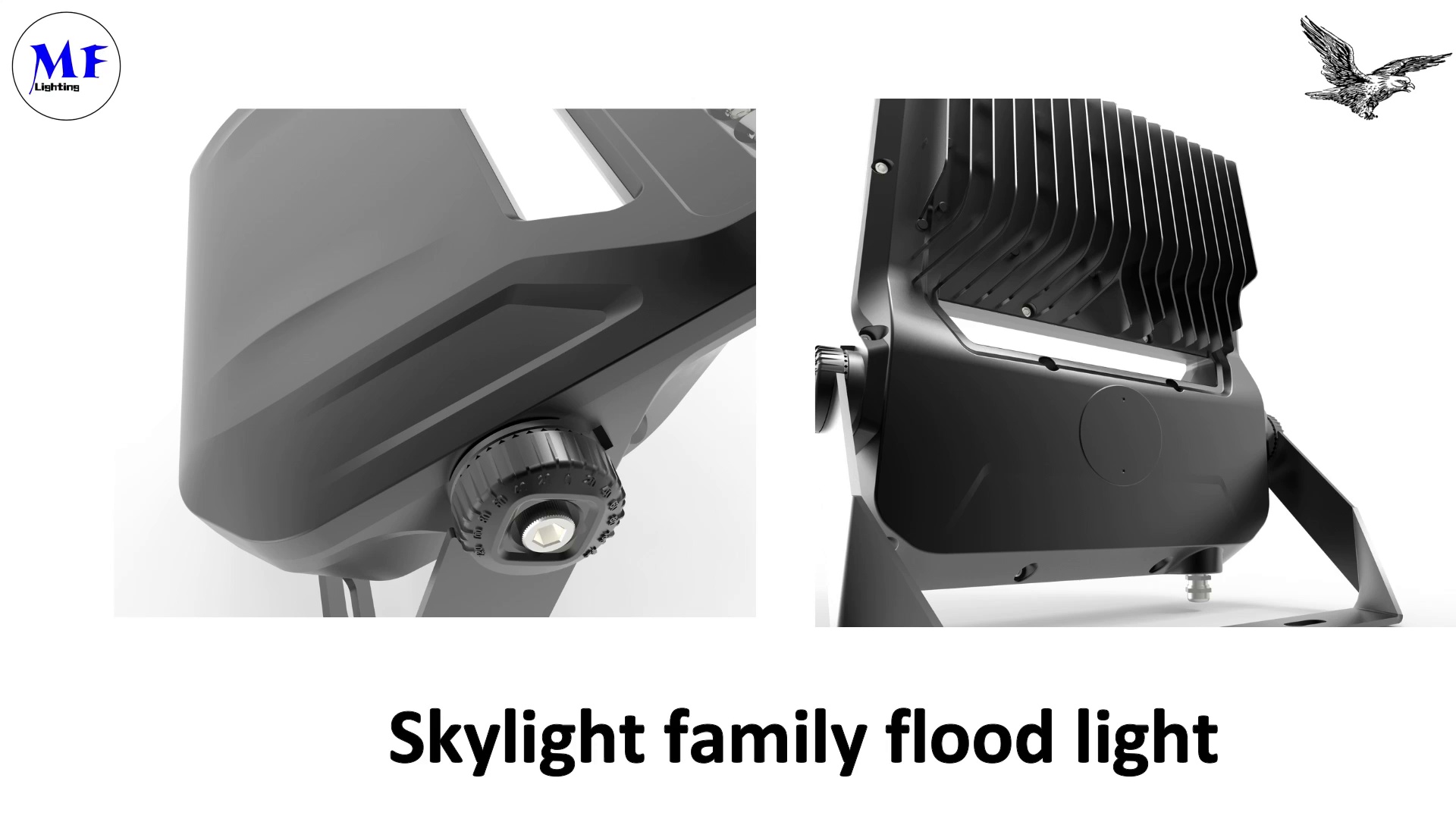

Video
Product ID: 68594801

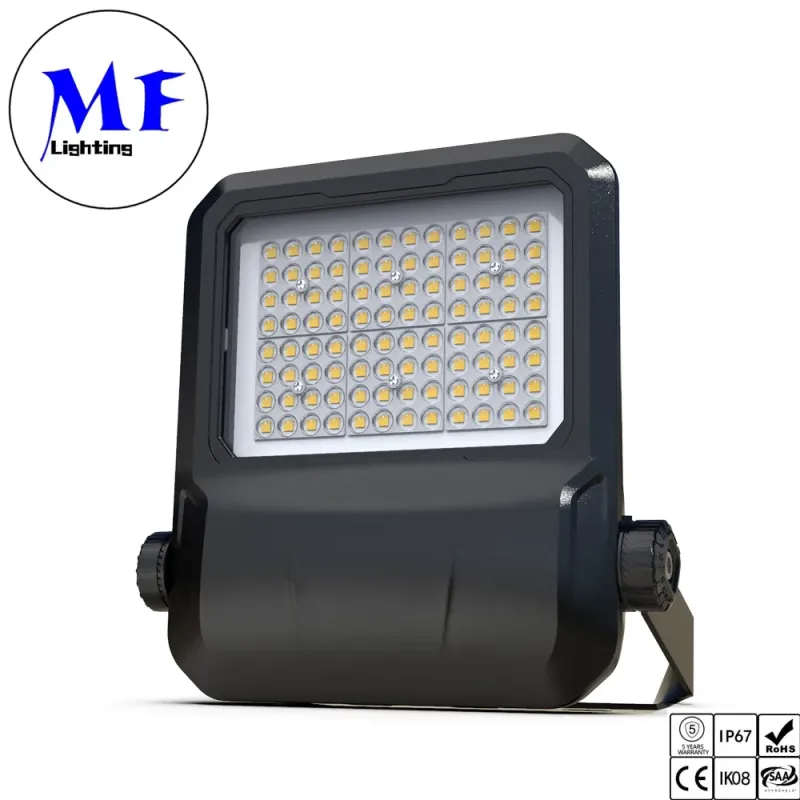

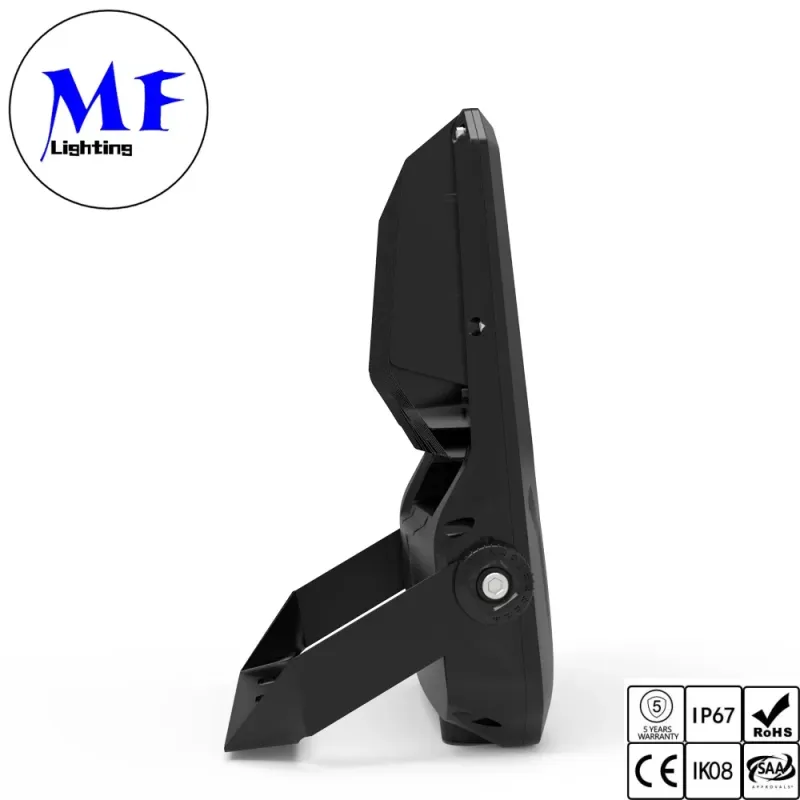

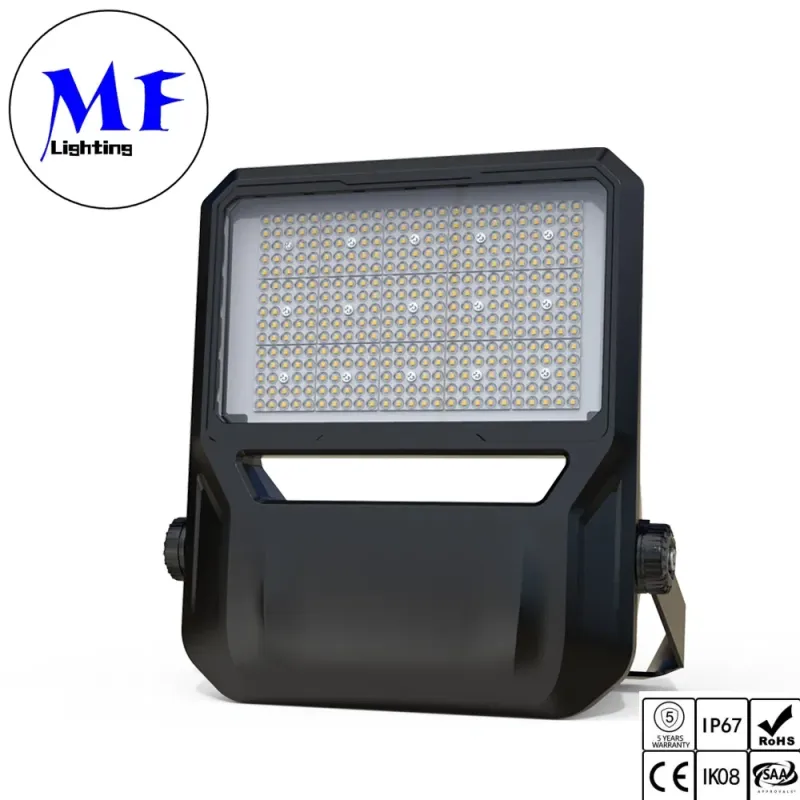

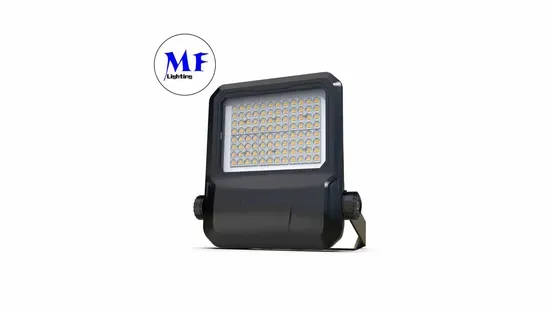

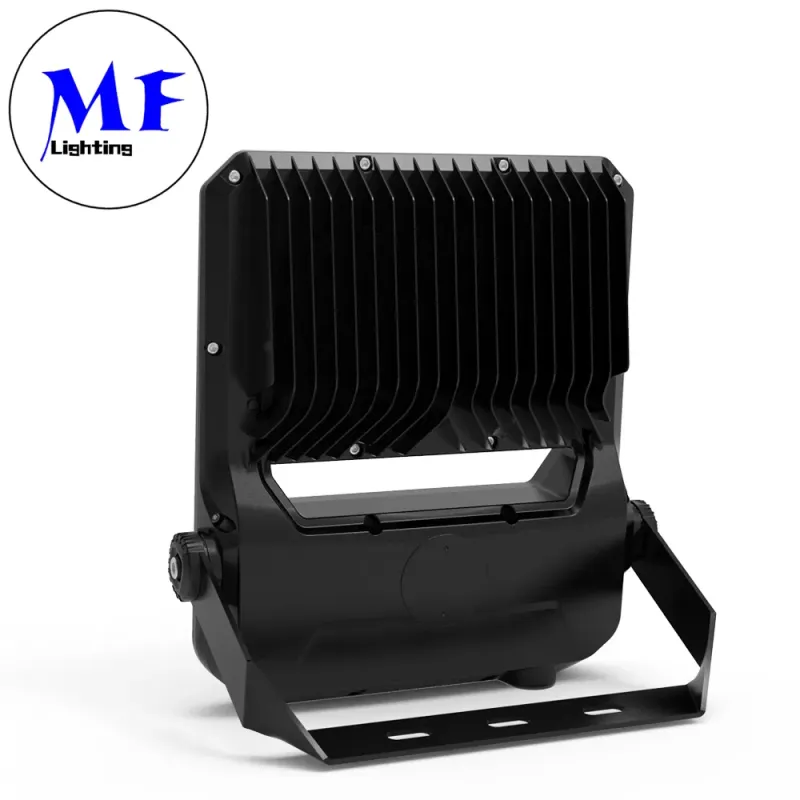

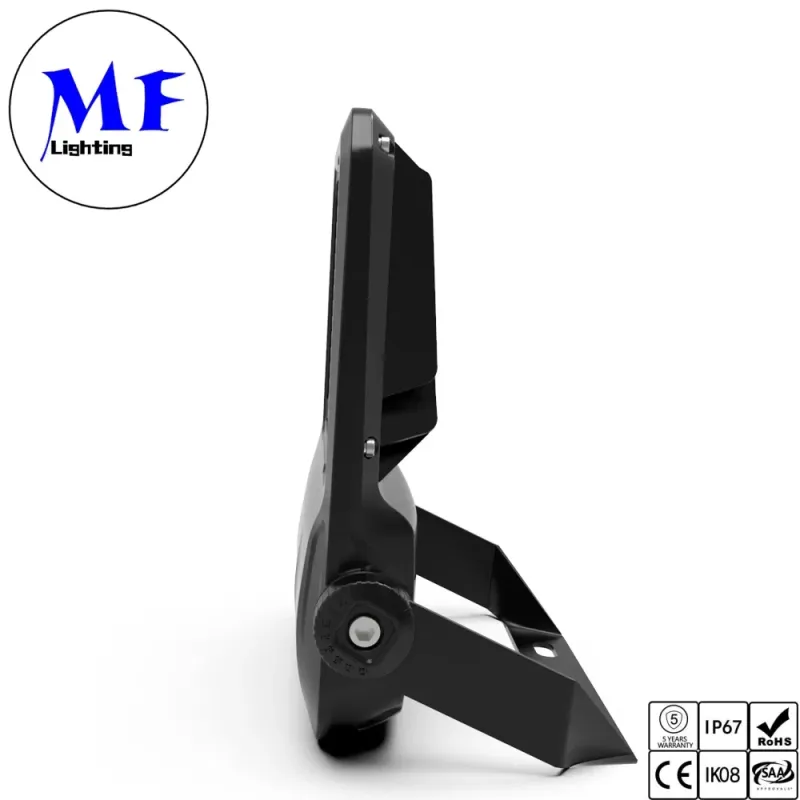

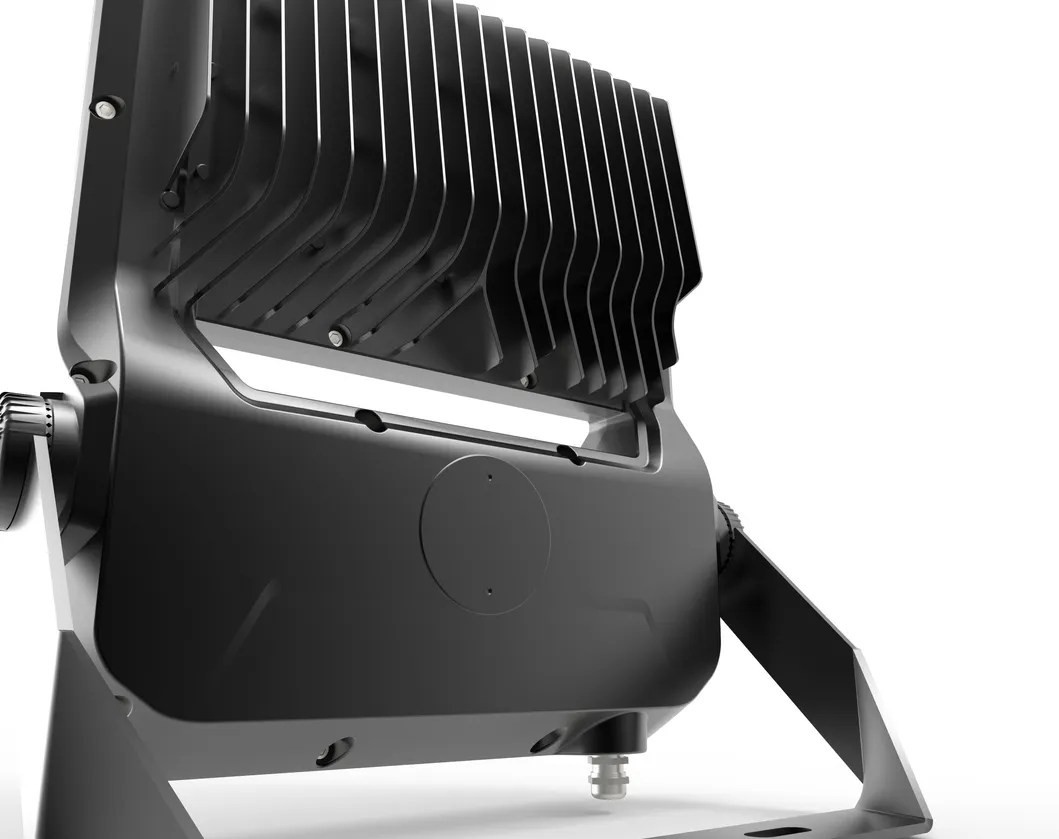

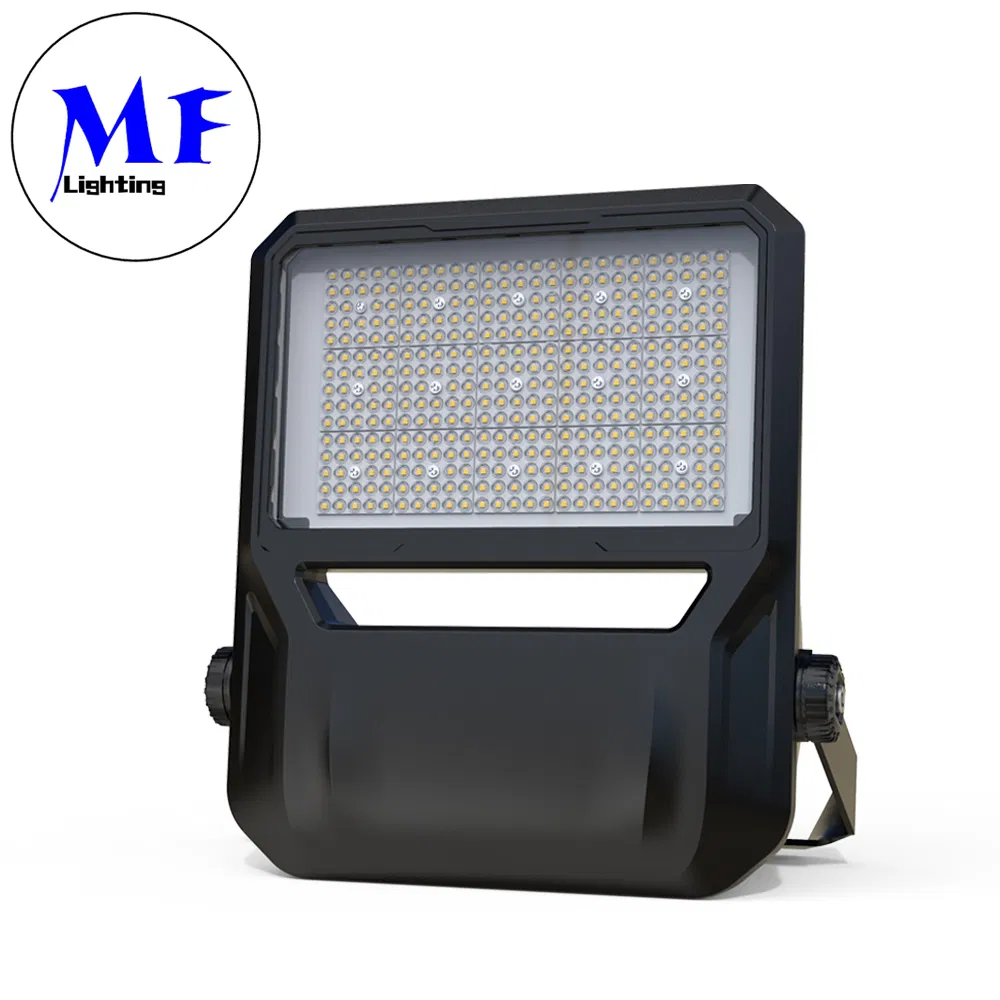

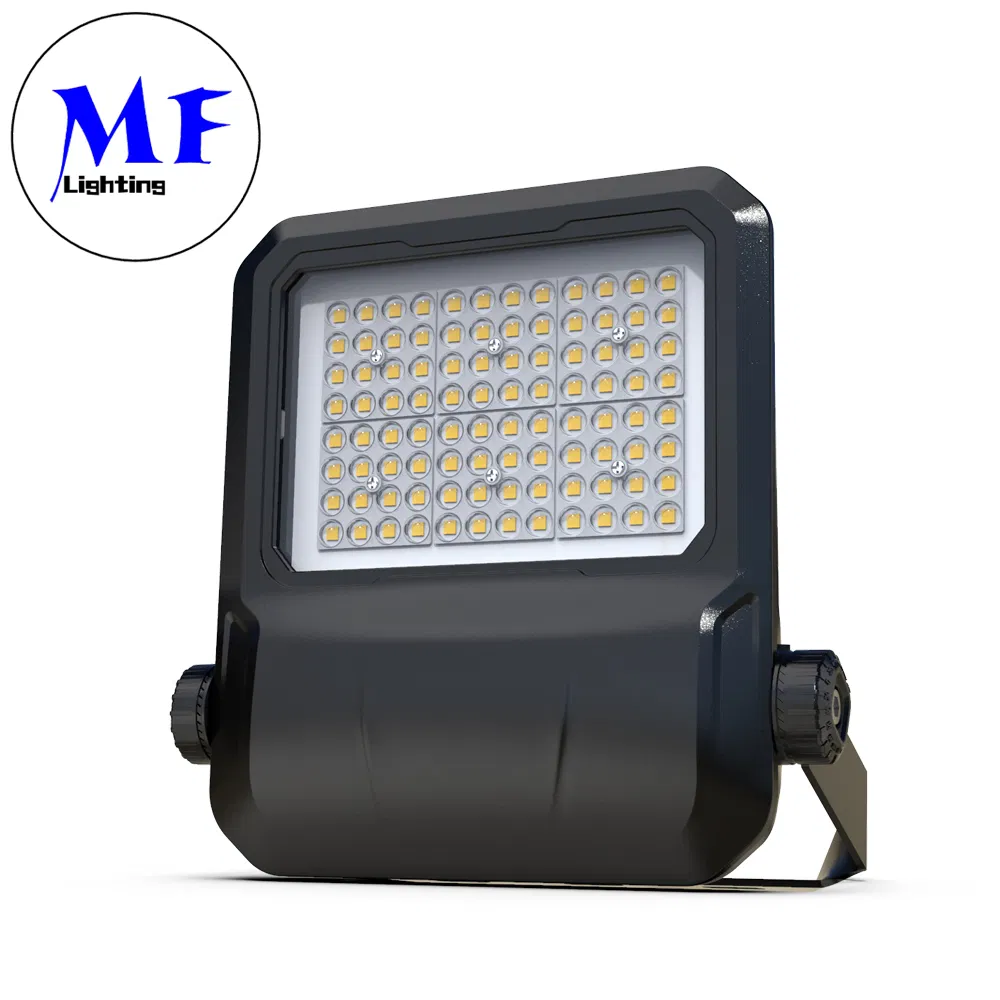

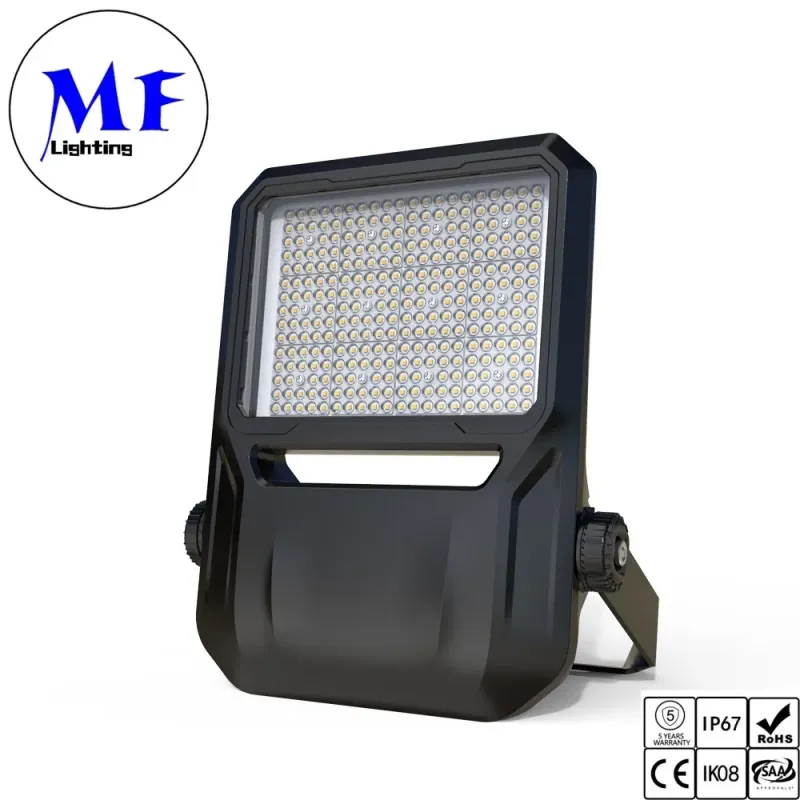

Factory Price LED Flood Light
Contact Now
Description
- Overview
- Feature
- Product characteristic
- Specification

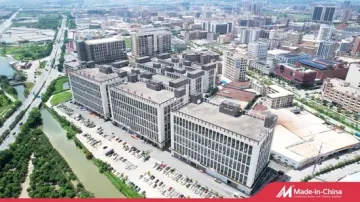

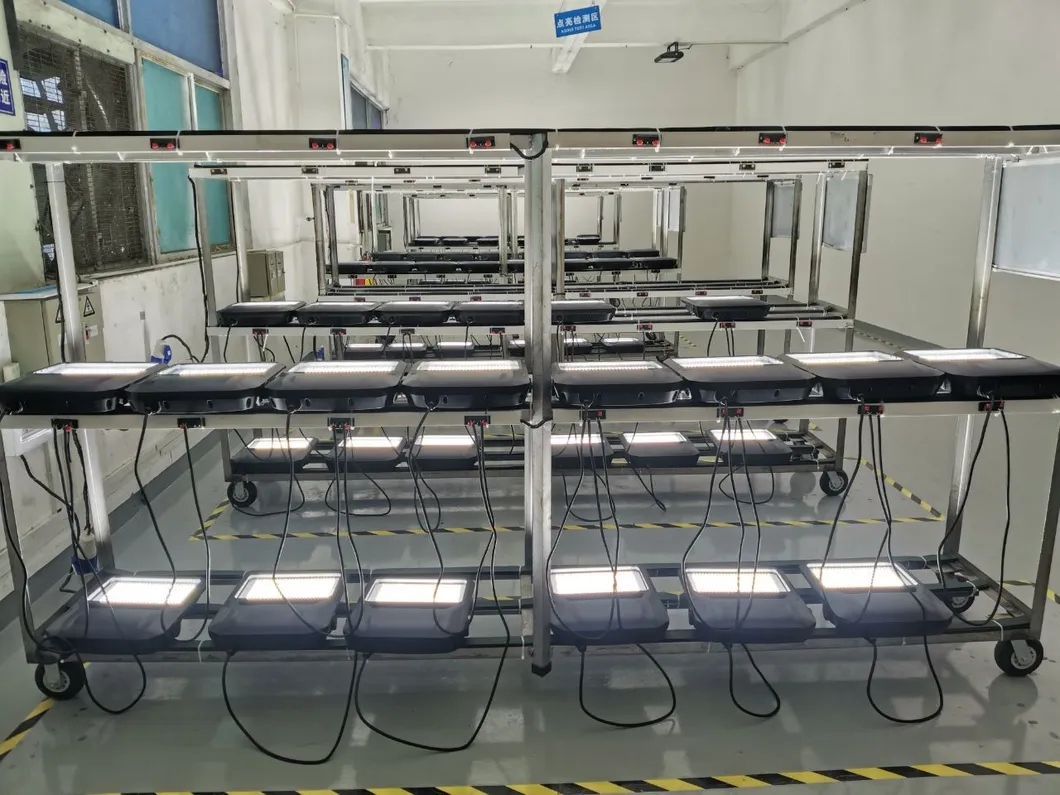

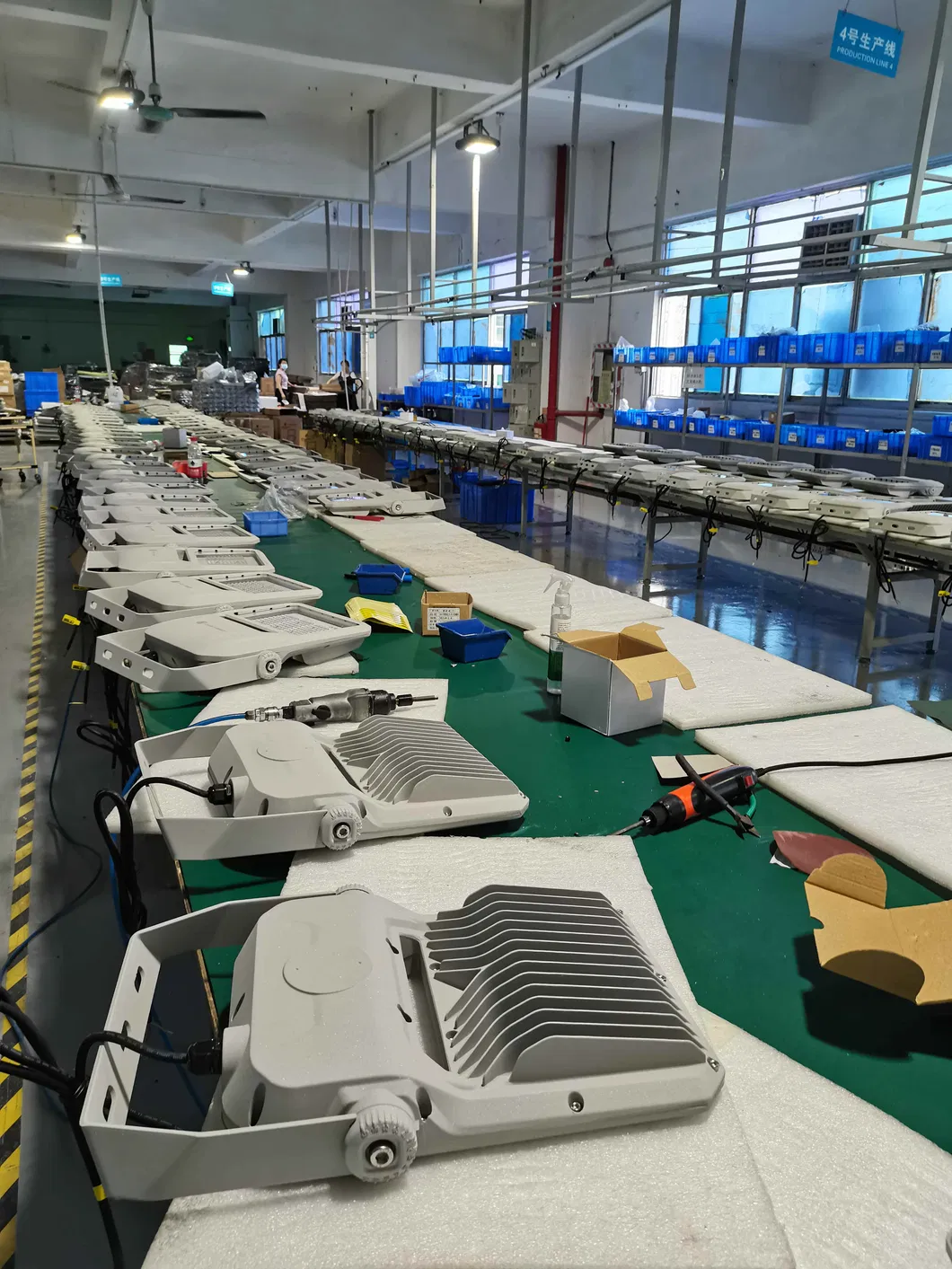

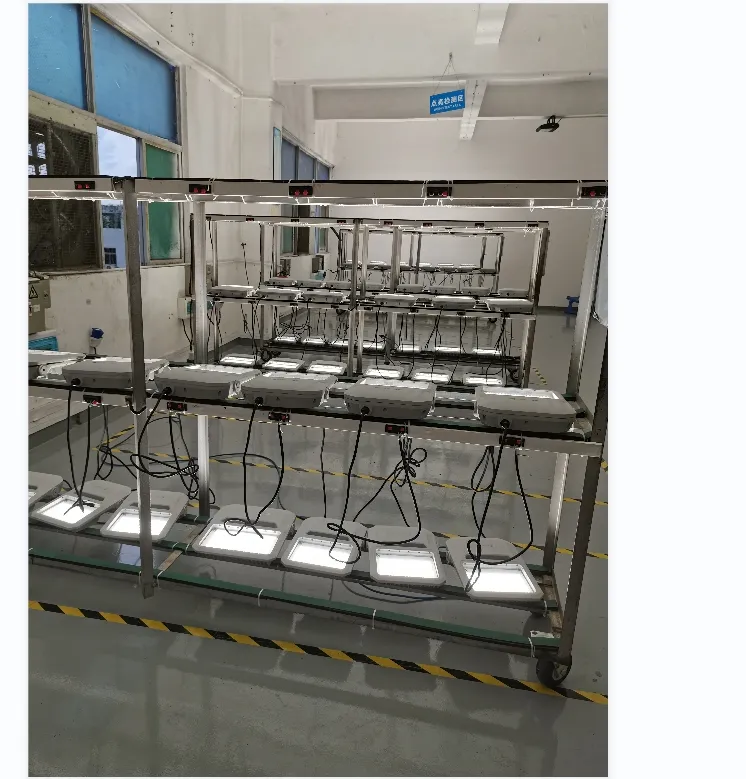

- PRODUCTION

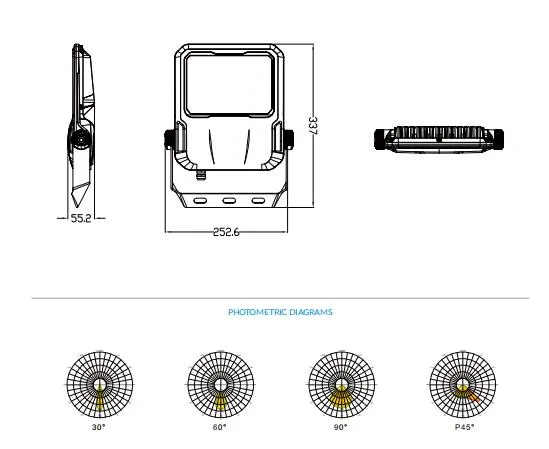

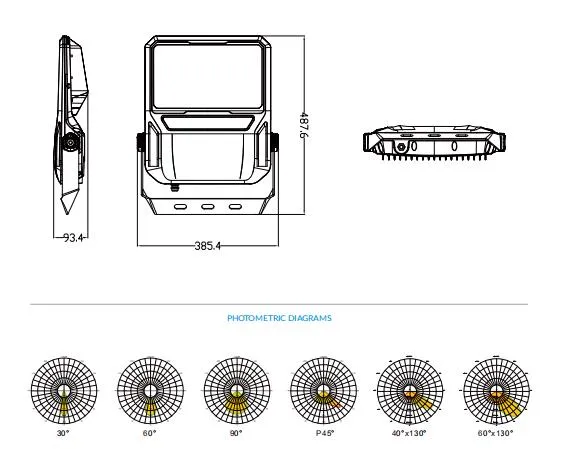

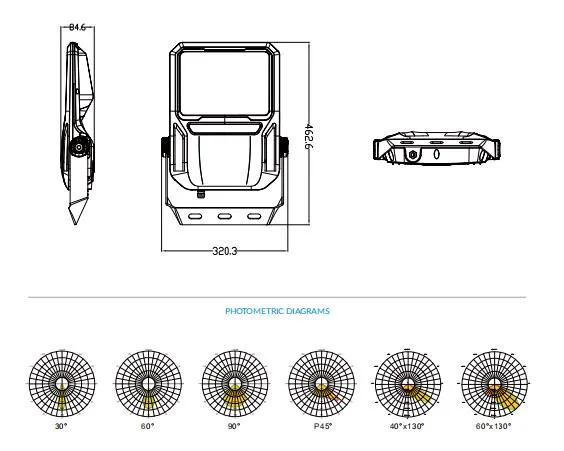

- Dimension

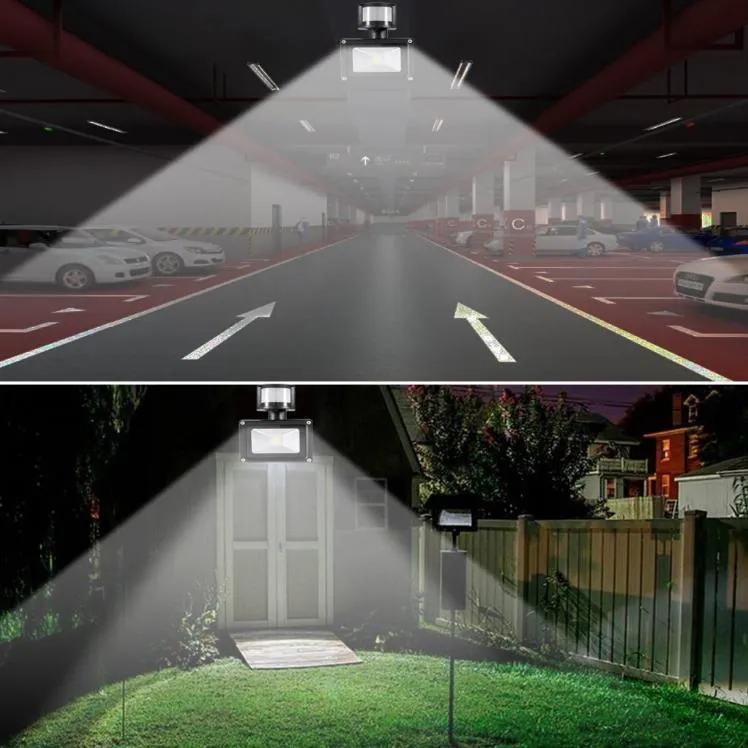

- Application

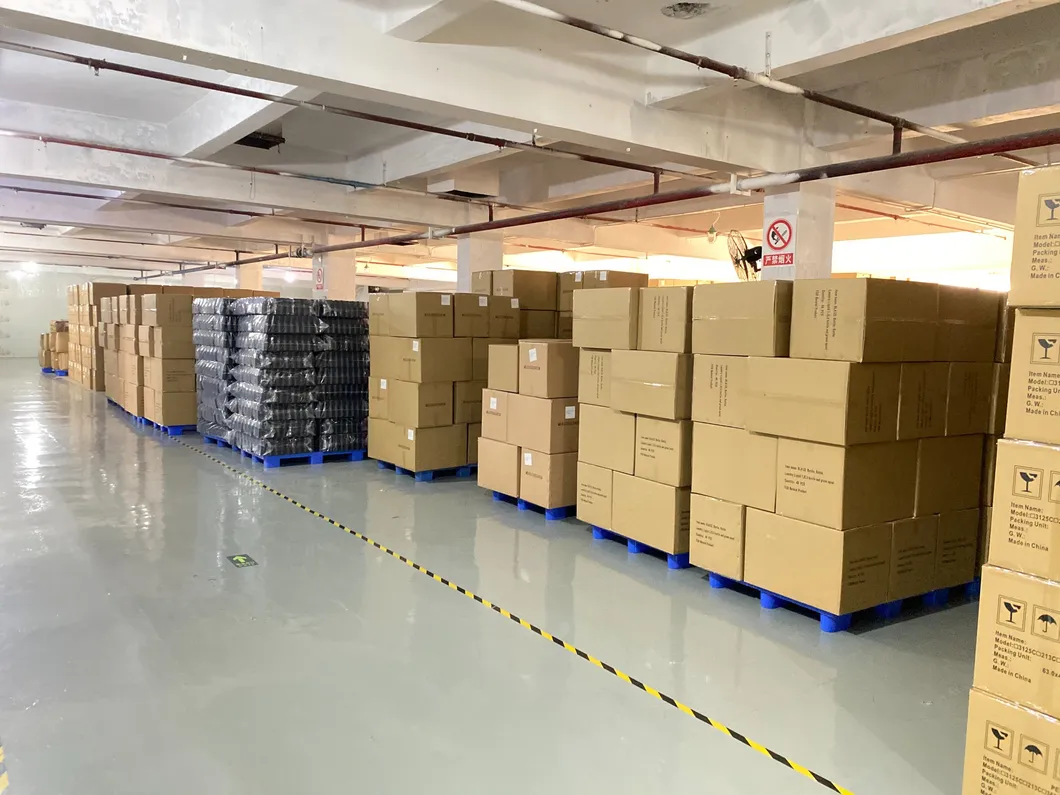

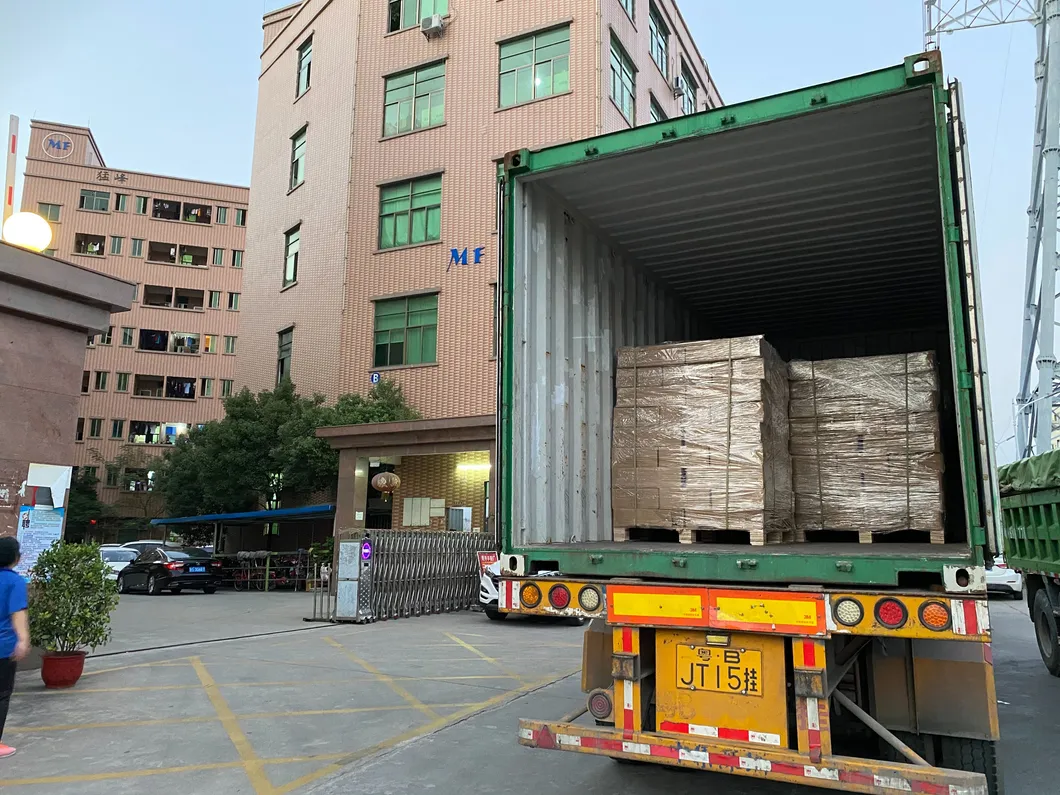

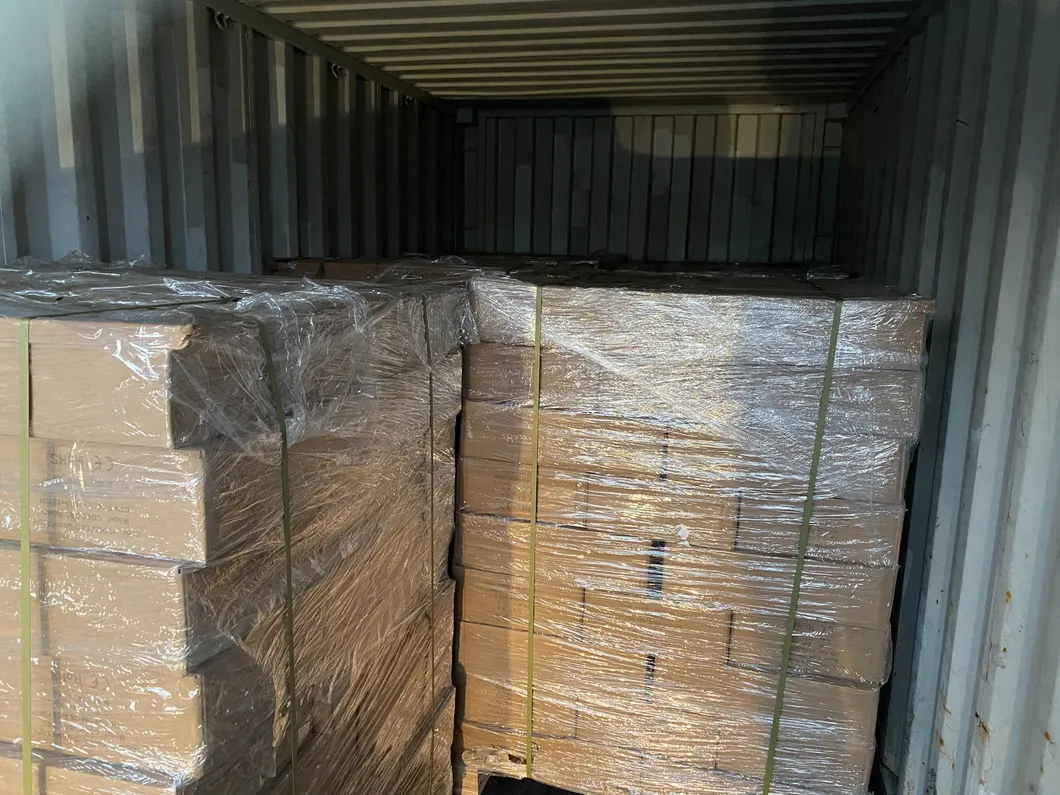

- Packaging
- Matters needing attention
Basic Info.
Model NO.
MF SKY series Flood light
Power
20W-400W
Projection Distance
Depends on Power
Application
Park, Square, Factory, Garden, Any Outdoor Application
IP Rating
IP67
Certification
CCC, CE, RoHS, SAA
Operating Voltage
AC 100-277V
Input Voltage
AC 100-277V
LED Chips Brand
Phi-Lips/Mean-Well
CRI
>80ra
Material
Aluminum
Luminous Flux
130lm/W-150lm/W
IP Rate
IP67
Warranty
5 Years
Ik Rate
Ik08
Power Frequency
50-60Hz
LED
Mean Well 3030
Transport Package
Carton Box
Trademark
MF
Origin
China
HS Code
9405429000
Production Capacity
10000pieces/Year
Product Description

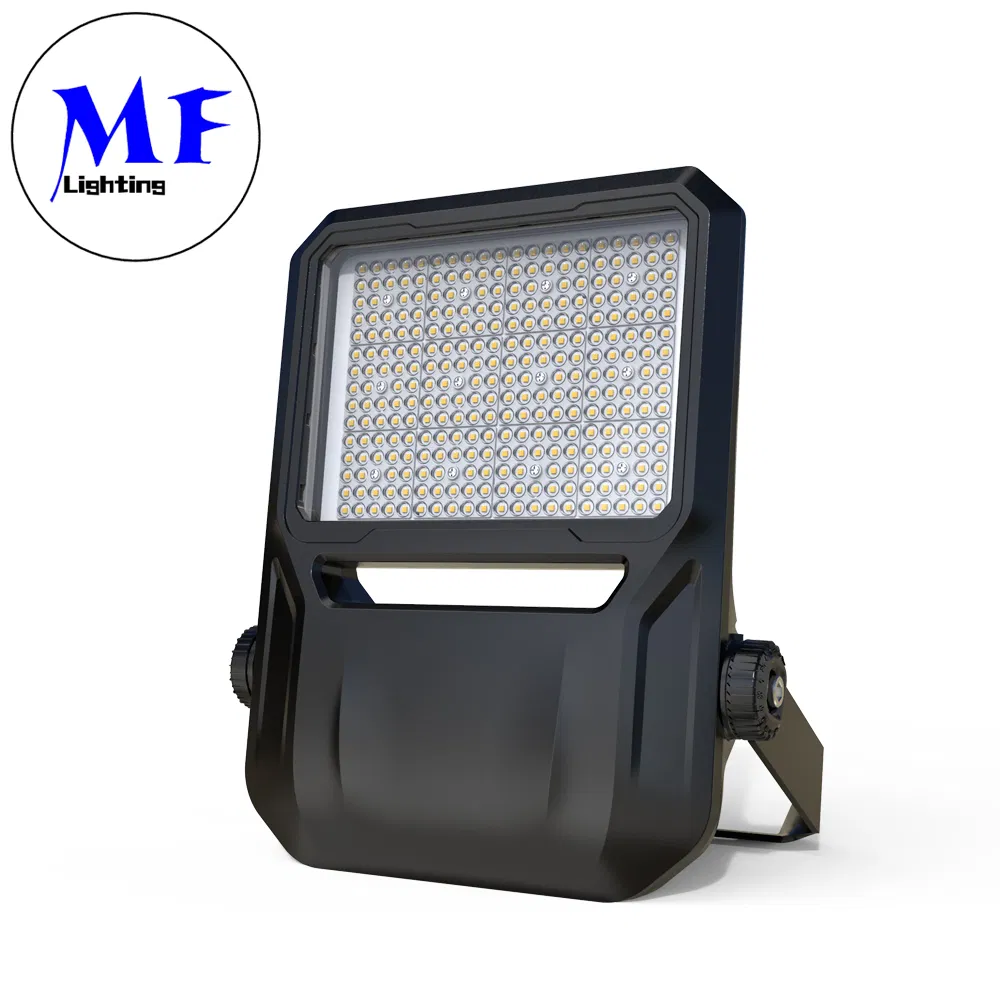

Factory Price 100W 150W 200W 300W 400W Sport Filed Outdoor Stadium Garden Landscape Tennis Court Yard IP66 Waterproof Dustproof Roadway Square LED Flood Light
- Massive light output of up to 39,200lm
- Ultra-high system effciency of up to 140lm/W
- High quality Lu-miled LED Chip and Inven-tronics Driver
- Long >102,000 hours lifespan to L70
- Professionally Designed True Asymmetric Flat Optics

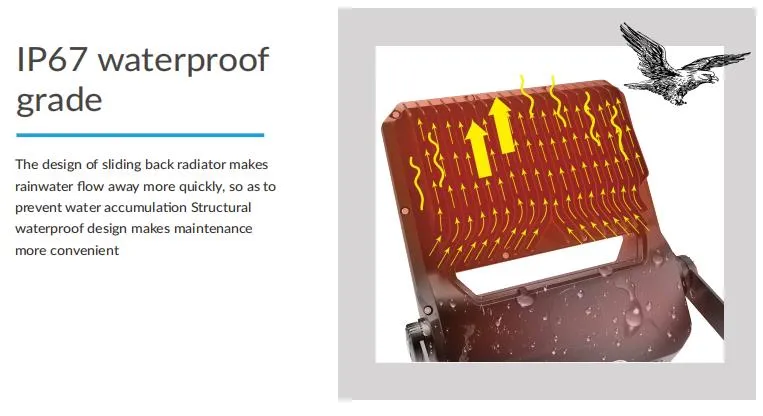

- Tough IP67 and IK09 construction
- Suitable for coastal areas (with optional 304 stainless steel bracket)
- IP67 Waterproof dust proof
| CODE | POWER | LUMEN OUTPUT | EFFICACY |
| MF-SKY-50 | 50W | 7,000lm | 140lm/W +10 |
| MF-SKY-75 | 75W | 10,500lm | 140lm/W +10 |
| MF-SKY-100 | 100W | 14,000lm | 140lm/W +10 |
| MF-SKY-150 | 150W | 21'000lm | 140lm/W +10 |
| MF-SKY-180 | 180W | 25,200lm | 140lm/W +10 |
| MF-SKY-200 | 200W | 28,000lm | 140lm/W +10 |
| MF-SKY-240 | 240W | 33,600lm | 140lm/W +10 |
| MF-SKY-280 | 280W | 39,200lm | 140lm/W +10 |
| LIGHTING DATA | ELECTRICAL DATA | ||
| LIGHT SOURCE | SMD 5050 | POWER SUPPLY | Inven-tronics / Mean-Well / Done |
| LIFETIME | >102,000hrs | INPUTVOLTAGE | 100-277V/AC,50-60Hz |
| CCT | 5000K (3000K,4000K5700K6500K availablel | POWER FACTOR (Typ) | ≥0.97 |
| CRI | >70 (>80,>90 available) | THD(Typ) | <8% |
| SDCM | c 5 (<3 available) | SURGE PROTECTION | 6kV |
| SYMMETRIC | 30°,60°,90° | DRIVER LIFETIME | 50000hrs |

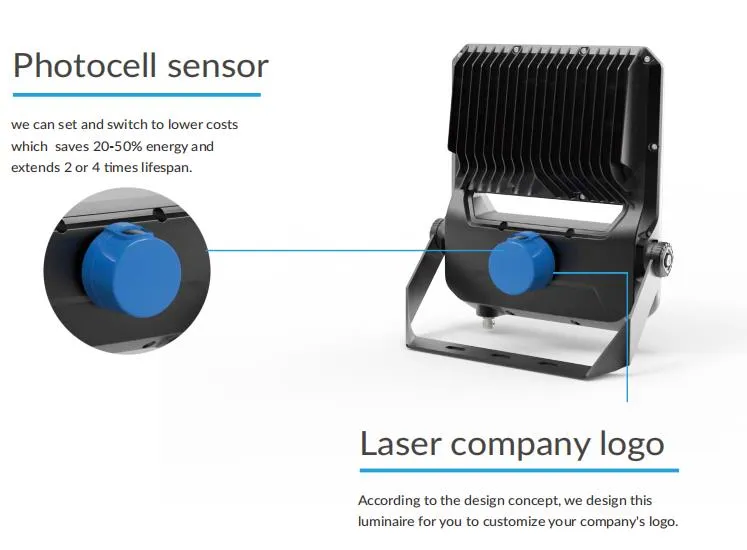

| ASYMMETRIC | P45° | DIMMABLE OPTIONS | 0-10V,Dali, Sensor, LoRa, Zhaga |
| DESIGN / CONSTRUCTION | TECHNICAL DATA | ||
| BODY MATERIAL | Aluminium | IP RATING | IP 67 |
| OPTICS MATERIAL | Polycarbonate | IK RATING | IK 09 |

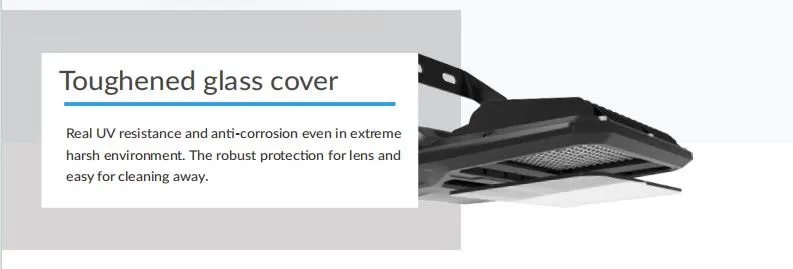

| LENS MATERLAL | Toughened glass | OPERATING TEMP | -30° to +50°C |
| BRACKET MATERIAL | Galvanized ironl | PROTECTION CLASS | Class 1 |
| FINISH | Powder-Coat | CERTIFICATIONS | ROHS/CE/SAA |
| COLOUR | Black(RAL9005) | WARRANTY | 5 Year |
| Weight | 2.16kg | ||

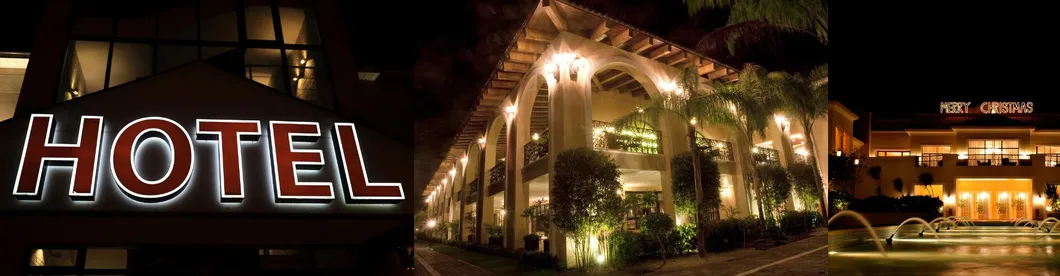

| COMMERCIAL LIGHTING | PUBLIC LIGHTING | INDUSTRIAL LIGHTING |
| Tunnel | Tunnel | Manufacture |
| Supermarkets | Airports | Warehouses |
| Large retailers | Stadium | Parking lots |
| School | Train stations | Exhibition centers |
| Billboard | Bus stations | Gas stations |
| Building | etc. | Toll stations |
| etc. | etc. |
Before installing the lighting fixtures, please read this instruction manual carefully.
1. The lighting fixtures should be installed, connected and tested by a certified electrician based
on the local regulations.
2. Lamps should always be installed or replaced carefully.
3. Please check the local voltage in accordance with the product requirements before installation.
4. Revamping only can be done when the power is off and the lamp is completely cooled down.
5. When clean the lamp, make the power off and let it cool down completely, clean the
fixture with a soft cloth and a standard PH neutral detergent, stainless steel should
be maintained regularly.
6. Don't cover the fixtures with flammable materials.
7. Replace should be made by the manufacturer or his service agent or certified electrician
in order to avoid a hazard.
