Product ID: 68592380

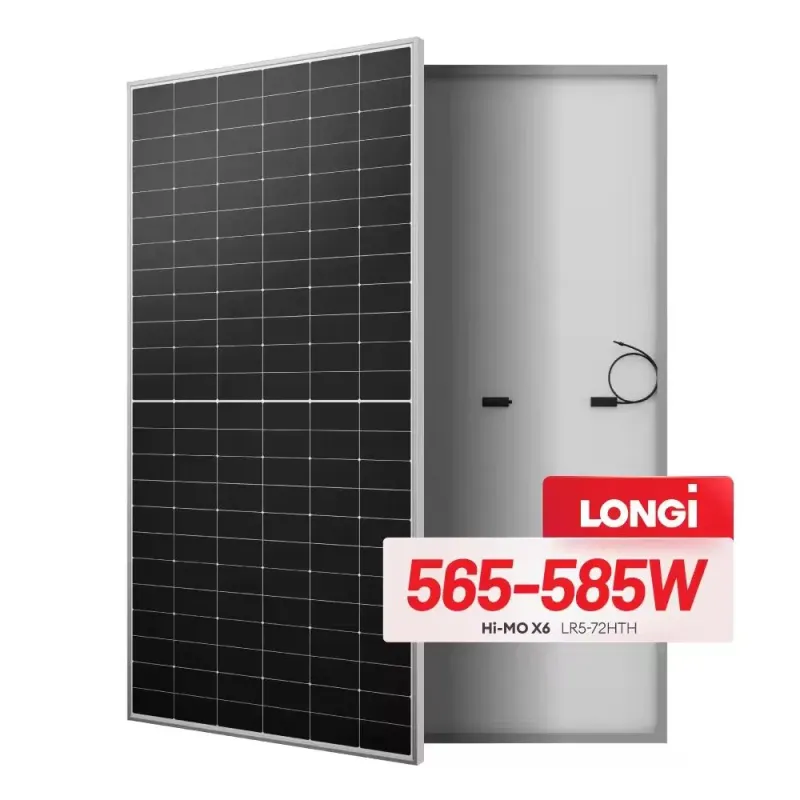

Longi Hi-Mo 6 570W-590W Mono PV Solar Panels with Affordable Pricing
Contact Now
Description
Overview
Basic Info.
- Model NO. Hi-Mo6 LR5-72HTH 565-585M
- Number of Cells 144
- Application Industrial
- Condition New
- Certification CE
- Material Monocrystalline Silicon
- Transport Package Pallets

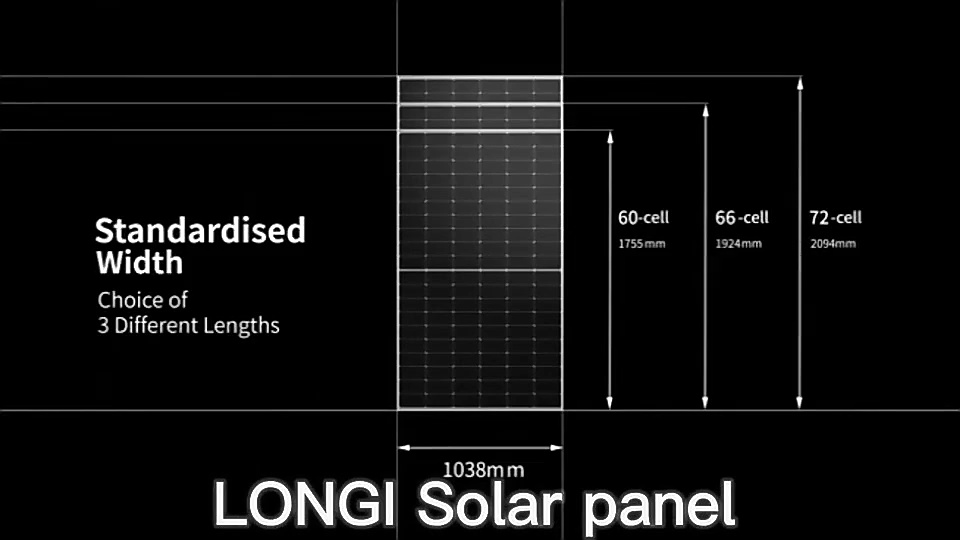

- Specification 2094*1038*35mm
- Trademark LONGI
- Origin China
- HS Code 85414300
- Production Capacity 800MW/Year
Product Description

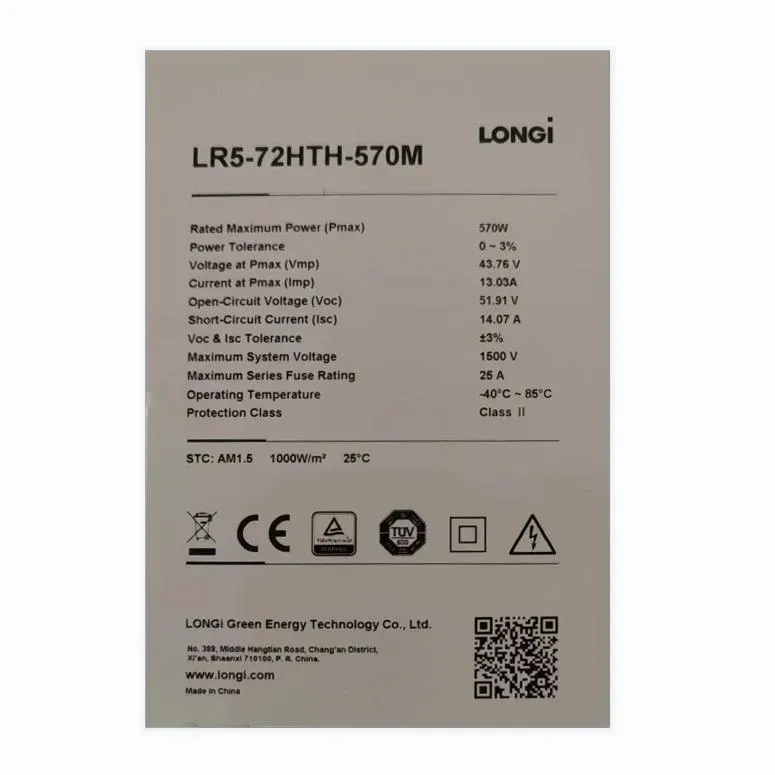

Electrical Performance Parameters (STC Test)
| Module Type | LR5-72HTH 565-585M | ||||
|---|---|---|---|---|---|
| Maximum Power (Pmax/W) | 565 | 570 | 575 | 580 | 585 |
| Open Circuit Voltage (Voc/V) | 51.76 | 51.91 | 52.06 | 52.21 | 52.36 |
| Short Circuit Current (lsc/A) | 14.01 | 14.07 | 14.14 | 14.2 | 14.27 |
| Voltage at Maximum Power (Vmp/V) | 43.61 | 43.76 | 43.91 | 44.06 | 44.21 |
| Current at Maximum Power (Imp/A) | 12.96 | 13.03 | 13.1 | 13.17 | 13.24 |
| Module Efficiency(%) | 21.9 | 22.1 | 22.3 | 22.5 | 22.6 |
Operating Parameters
- Operational Temperature -40°C ~ +85°C
- Power Output Tolerance 0~3%
- Voe and lsc Tolerance ±3%
- Maximum System Voltage DC1500V (IEC)
- Maximum Series Fuse Rating 25A
- Nominal Operating Cell Temperature 45±2°C
- Protection Class Class II
- Fire Rating IEC Class C
Mechanical Loading
- Front Side Maximum Static Loading 5400Pa
- Rear Side Maximum Static Loading 2400Pa
- Hailstone Test 25mm Hailstone at the speed of 23m/s
Temperature Ratings (STC)
- Temperature Coefficient of lsc +0.050%/°C
- Temperature Coefficient of Voe -0.230%/ºC
- Temperature Coefficient of Pmax -0.290%/ºC
Our Advantages

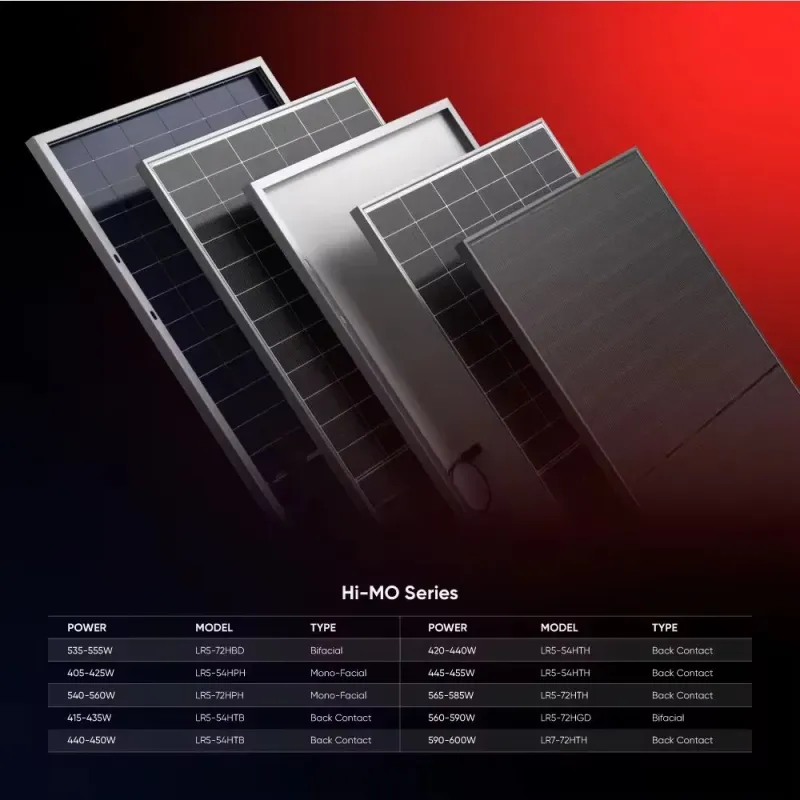

We can provide all popular solar panel models in the market, such as 410W, 455W and 550W etc.
The company's advantages are as follows:
- OEM is accepted.
- We have reliable quality and competitive price.
- We are Initial Distributors of tier 1 solar panels, LONGi, Jinko, Trina, JA, GCL and Yingli.
- We are also a distributor of Huawei inverters. Our price is more favorable and the delivery time is faster.
- Our payment methods are flexible, TT, LC, DA, DP, CAD and OA are supported.
FAQ
- What's your payment terms? TT, LC, DA, DP, OA etc.
- Could you send free sample? Your sample fee will be returned when your place next order.
- Can we print our own logo? Yes absolutely.
- What are the advantages of your company? We are new factory, now we control thin benefit for developing customers, price, quality and service will never let customers do.
