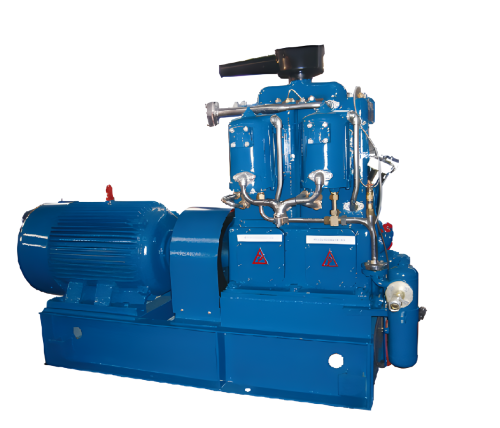

WP Series Marine Air Compressor
Contact Now
Description
产品描述
WP系列船用空压机
WP series marine air compressor has perfect automatic control and protection system,like automatic open and stop,automatic discharge,oil pressure protection,hydraulic protection,cooling water temperature protection,cooling water intake water control,etc.It can realize unmanned operation.Our marine air compressor is mainly suitable for shipping industry.
HI-SEA Marine Air Compressor includes the main air compressor,control marine air compressor and emergency marine air compressor. Air cooling marine air compressor and water cooling marine air compressor are available.Our product has high quality.If you have any question,please feel free to contact us directly. Best service will be offered.
Certificates:CCS,ABS,GL,DNV,RINA,etc. They can be offered along with marine air compressor
Specifications of WP Series of Marine Air Compressor(50HZ,380V):
Design particulars
Max pressure 3.5Mpa
Suitable for both seawater and freshwater
Reliable pressure oil lubrication
Ensure safety operations by several monitoring devices
Performance data with 5% tolerance
Standard voltage and frequency;380v/50hz,440v/60hz
Model:WP60 Pressure; 3.0Mpa Stages;2 Speed:970r/min Capacity: 54m3/h Motor power:15kw Cooling water required (L/Min) ; 16 Dimension 1282x600x1120mm
Model:WP110 Pressure; 3.0Mpa Stages;2 Speed:970r/min Capacity: 100m3/h Motor power:18.5kw Cooling water required (L/Min) ;35 Dimension 1425x840x1370mm
Model:WP120 Pressure; 3.0Mpa Stages;2 Speed:970r/min Capacity: 100m3/h Motor power:18.5kw Cooling water required (L/Min) ;35 Dimension 1425x840x1370mm
Model:WP135 Pressure; 3.0Mpa Stages;2 Speed:970r/min Capacity: 106m3/h Motor power:22kw Cooling water required (L/Min) ;35 Dimension 1425x840x1370mm
Model:WP160 Pressure; 3.0Mpa Stages;2 Speed:970r/min Capacity: 141m3/h Motor power:30kw Cooling water required (L/Min) ;34 Dimension 1425x840x1370mm
Model:WP185 Pressure; 3.0Mpa Stages;2 Speed:970r/min Capacity: 162m3/h Motor power:37kw Cooling water required (L/Min) ;44 Dimension 1425x840x1370mm
Model:WP185 Pressure; 3.0Mpa Stages;2 Speed:970r/min Capacity: 162m3/h Motor power:37kw Cooling water required (L/Min) ;44 Dimension 1425x840x1370mm
Model:WP220 Pressure; 3.0Mpa Stages;2 Speed:970r/min Capacity: 191m3/h Motor power:45kw Cooling water required (L/Min) ;56 Dimension 1975x950x1568mm
Model:WP320 Pressure; 3.0Mpa Stages;2 Speed:970r/min Capacity: 294m3/h Motor power75kw Cooling water required (L/Min) ;76 Dimension 1975x950x1568mm
Model:WP370 Pressure; 3.0Mpa Stages;2 Speed:970r/min Capacity: 344m3/h Motor power75kw Cooling water required (L/Min) ;90 Dimension 1975x950x1568mm
Model:WP2001 Pressure; 3.0Mpa Stages;2 Speed:970r/min Capacity: 110m3/h Motor power22kw Cooling water required (L/Min) ;56 Dimension 1500x1000x900mm
Model:WP2401 Pressure; 3.0Mpa Stages;2 Speed:970r/min Capacity: 130m3/h Motor power30kw Cooling water required (L/Min) ;66 Dimension 1540x1000x900mm

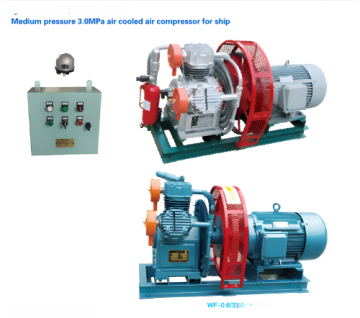

WP Water colled compressor
