ZR Series Air Conditioning System Copeland Compressor

Product ID: 66570850

ZR Series Air Conditioning System Copeland Compressor

Contact Now

Description

产品描述

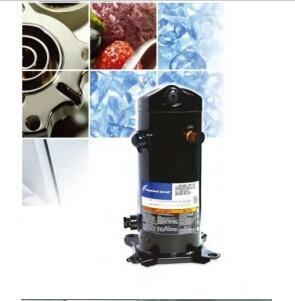

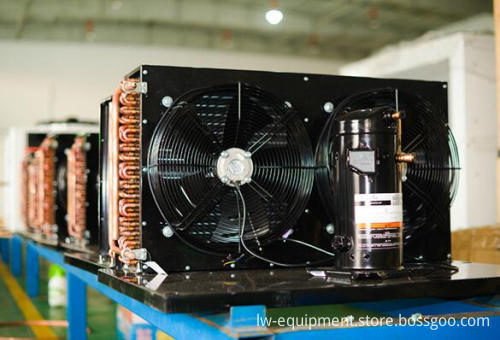

Air Conditioning ZR/ZB Serious Refrigertion Scroll Copeland Compressor (ZB45KQE-TFD-558) Applicable Storage Temperature is -5ºC~5ºC

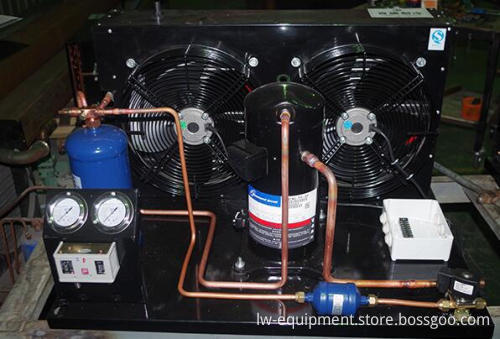

1. The unit is equipped with well knowed Copeland hermetic scroll compressor, which is high quality and reliable.
2. Copper tube and aluminum fin type air cooling condenser or high efficiency tube and shell type water cooling condenser applied to guarantee high heat exchange rate and long life.
3. Air cooling unit equipped with external rotor condenser, which is less noise, high efficiency and good appearance.
4. High quality imported or domestic accessories guarantee complete configuration and reliability.
5. Water proof junction box is equipped, easy to connect all control components.
6. Wide product range, wide temperature range, capable of supporting a wide range on the fresh, cold storage, ice, frozen water refrigeration equipment,.
Main Parts:
Compressor /Condenser /Reservoir /Filter /Pressure controller /High-low pressure guage /Junction box

Copeland Scroll compressor Digital, Technology for simple, step-less capacity modulation

Model NO.	Cindensate Temperature	The Evaporation Temperature ° C (R22/50HZ)
Model NO.	Cindensate Temperature	-12	-10	-5	0	5	10
ZB15KQ	40	3300	3550	4350	5200	6250	7400
ZB19KQ	40	3650	3950	4850	5850	7000	8300
ZB21KQ	40	4650	5050	6200	7450	8850	10500
ZB26KQ	40	5100	5500	6800	8200	9850	11700
ZB29KQ	40	6230	6790	8290	9970	11800	14070
ZB38KQ	40	7300	8000	9950	12200	14650	17300
ZB45KQ	40	9400	10200	12400	14900	17800	21000
ZB48KQ	40	10390	11285	13700	16436	19574	23199
ZB58KQ	40	11800	12950	16100	19600	19574	28000
ZB66KQ	40	13950	15100	18400	22200	26500	31500
ZB76KQ	40	16400	17800	21700	28500	30500	35500
ZB88KQ	40	18800	20400	24900	30000	36000	42000
ZB95KQ	40	19500	21400	26500	32000	38200	45200
ZB114KQ	40	23200	25500	31700	38500	41600	54500
