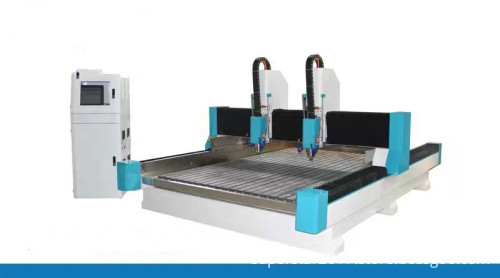

4*8 feet heavy duty cnc router for stone
Description
产品描述
Features:
1.Taiwan linear square guide rail, to ensure the accuracy and stability of the mechanical operation.
2.The bed is thicker steel structure, strong bearing capacity can reach more than a ton, durable without deformation.
3.The entire dust structure, effective protection of dust or water erosion of the guide rail and lead screw, improve the life of the machine tool.
4.High power 4.5kw water cooled spindle, the use of imported bearings configuration, low noise, high power, long life.
5.The macro control, computer independent cabinet, beautiful appearance, convenient operation.
6.Rack drive, high precision, long life.
7.With a sink, two-way cooling tool, effectively improve the life of the tool.
8.Software compatibility is good, can be compatible with a variety of CAD/CAM, such as Type3/Artcam/Castmate/ design software.
9.External rotation axis can be the largest 400*2000mm cylindrical engraving.
cnc router for stone belongs to stone machine, its used for stone cnc engraving, granite carving, tombstone making etc. is also called stone cutting and engraving machine. cnc stone router is widely used in architectural building, arts crafts industry etc. If you need stone machinery, welcome to choose CNC stone carving machine. WE are 15 years factory in china, can provide comfortable service for you.
Technical Parameter:
|
型 |
CXS1325 |
|
X,Y,Z working area |
1300*2500*250mm |
|
Table size |
1500*3000mm |
|
Working accuracy |
0.02mm |
|
Repeat position accuracy |
0.05mm |
|
X,Y,Z Transportation |
X,Y axis is Rack Gear , Z axis is Ball screw |
|
Bed Structure |
Top structural aluminum profile |
|
Max. Running Speed |
8m/min |
|
Max, Engraving Speed |
6m/min |
|
纺锤 |
4.5kw water cooling spindle |
|
主轴转速 |
0-24000转/分 |
|
驱动电机 |
高速步进电机 / 伺服电机 |
|
工作电压 |
380V/50HZ，三相 |
|
雕刻顺序 |
G 代码，U00，mmg，plt |
|
控制系统 |
NC 演播室系统 |
|
软件运行环境 |
Windows98/2000/XP 操作系统 |
|
机器功率 |
2kw（无主轴） |
|
总重量/净氮 |
1400公斤/1000公斤 |
|
机器尺寸/包装措施 |
2700 * 1700 * 1400毫米/ 3200 * 2000 * 1500毫米 |

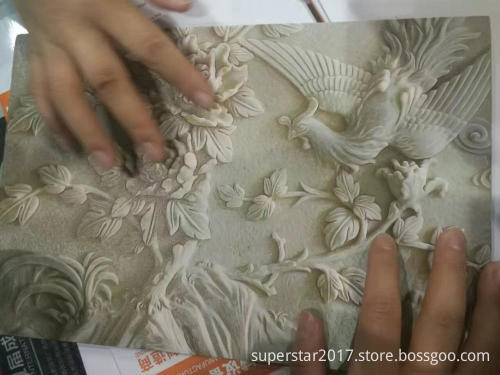

应用：花岗岩、大理石和青石、砂岩、玻璃和瓷砖以及其他石材的平面雕刻和柱子雕刻。

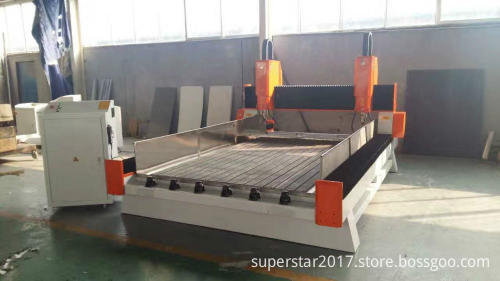

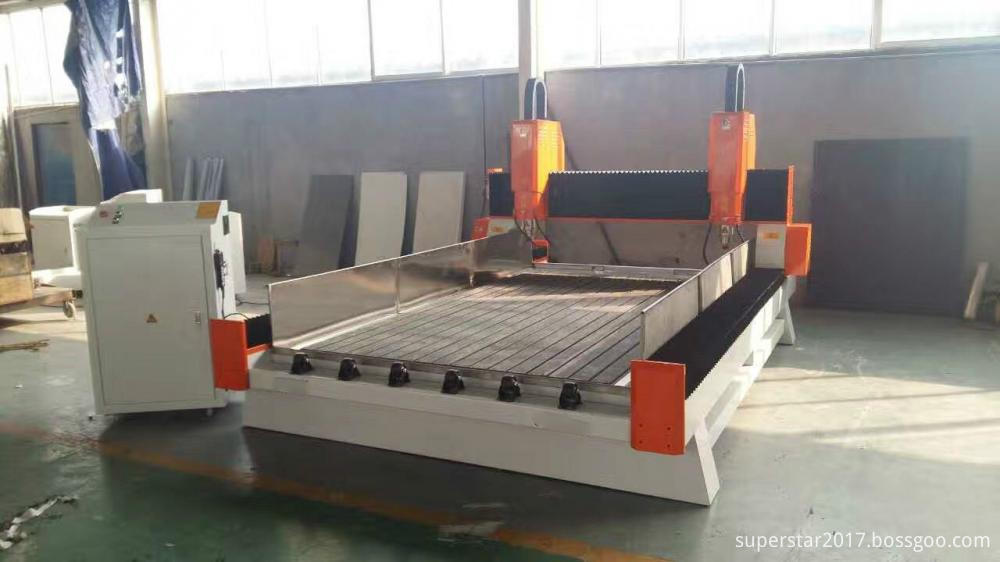

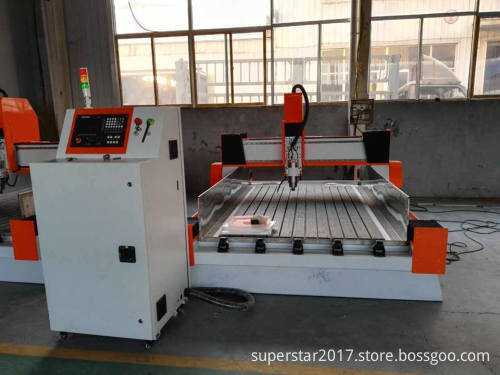

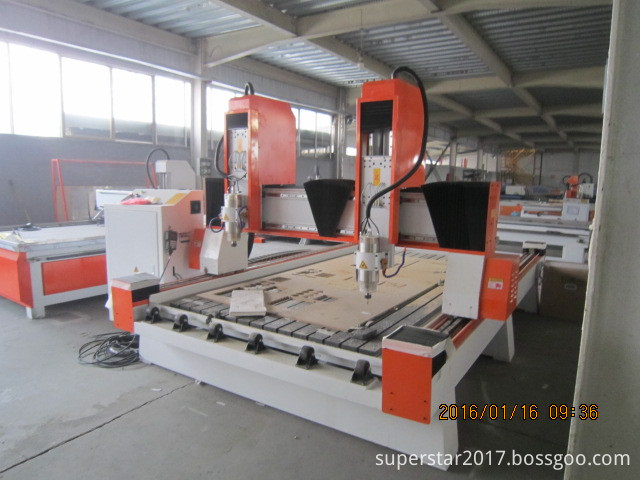

车间和样品：
