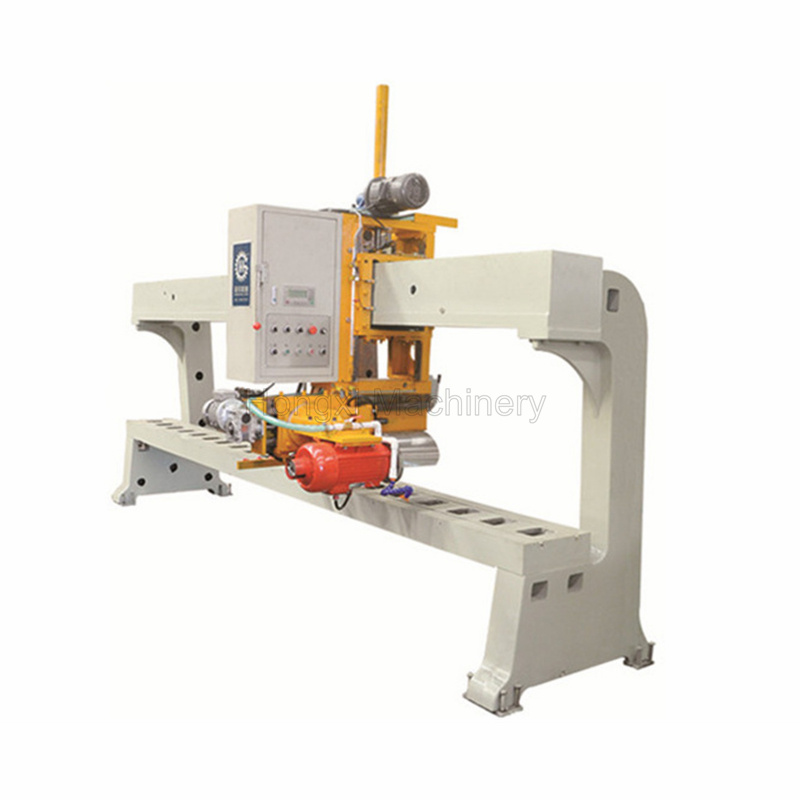

3500mm Double Speed Granite Marble Stone Edge Profiling and Polishing Machine: Precision in Stone Surface Finishing
Contact Now
Description
产品描述
This 3500 mm double speed granite marble stone edge profiling polishing machine for kitchen granite marble polisher edge profiling can help stone fabricators work more flexible and minimize their maintenance cost.-It is equipped with fully sealed guide rail with oil improgramtion, and adopts dual conveyor idler structure. With 0 - 90 rotation function, its working head can polish the stone edge all-round. Quick mounting system is applied to clamp the grinding whee and extension supporting rack. It's ideal machine to shape, profile, grind and polish various special shaped edges and lines. Special-shaped flower line stone edging machine (milling machine), the bed adopts the integrated structure of the guide rail and the bed, and the working table adopts the 3"T" structure, which facilitates the clamping and positioning of the work piece and the arbitrary positioning of the bent plate. The guide rail is fully sealed. The oil-immersed rolling guide has long service life and high guiding accuracy. It is mainly suitable for the grinding and shaping of granite, marble and hard non-metallic materials such as straight line, curve edging and step stone and other flower line plates. It can also complete the trimming and cutting functions of the plate.
|
Voltage
|
380V or 220V
|
|
Power (Watts)
|
6.42KW
|
|
Table Size
|
3000*500 / 3000*1000mm
|
|
Main Motor Power
|
5.5KW
|
|
Walking Motor Power
|
0.55KW
|
|
Lifting Motor Power
|
0.37KW
|
|
Angle Of the head
|
Any degree
|
|
Head deflection angle
|
+-10 degree
|
|
Grinding Speed
|
1440/2880r/min
|
|
Dimensions (length × width × height)
|
4400*1400*2100mm
|
|
weight
|
2600kg
|
|
warranty period
|
1 Year
|
