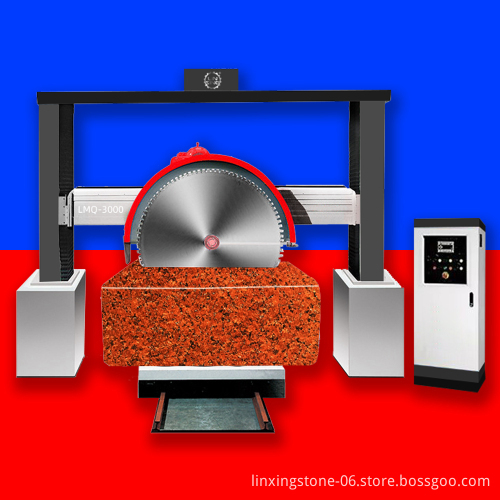

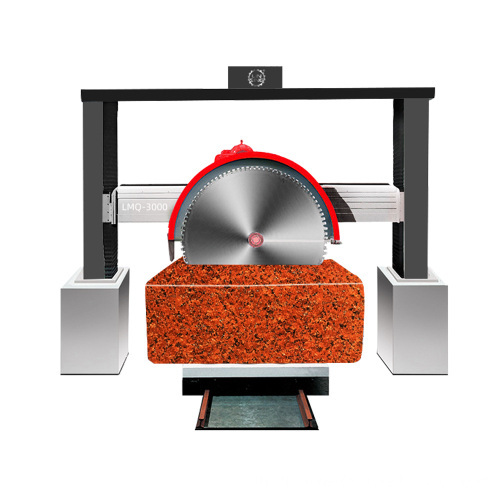

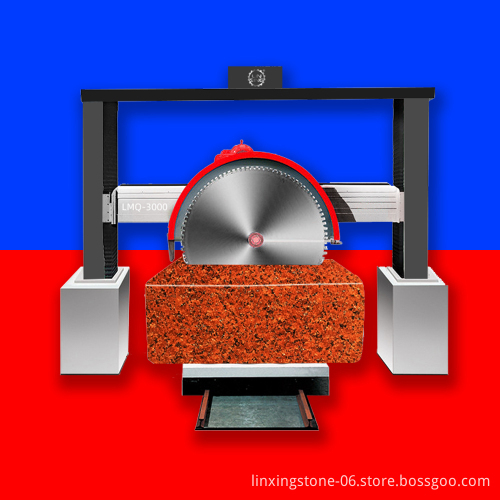

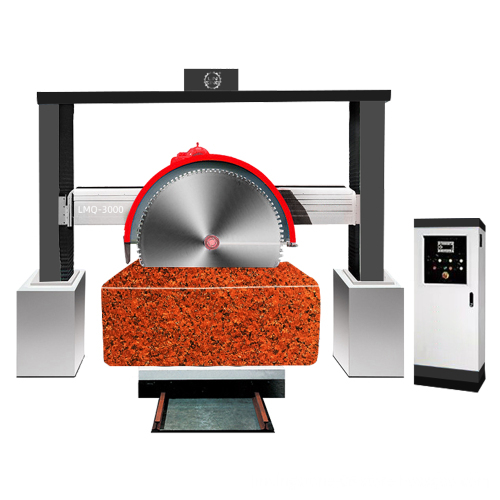

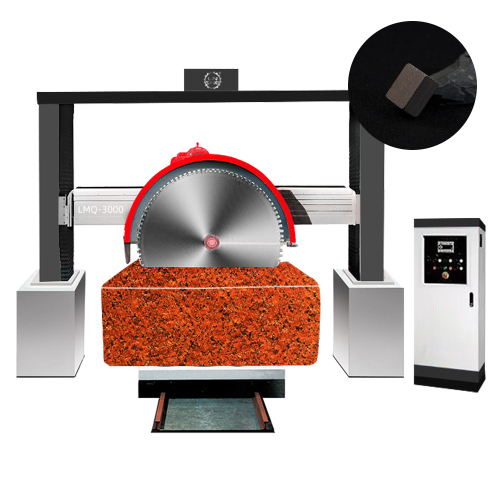

LINSING Gantry Stone Cutting Machine for Granite and Marble
Description
产品描述

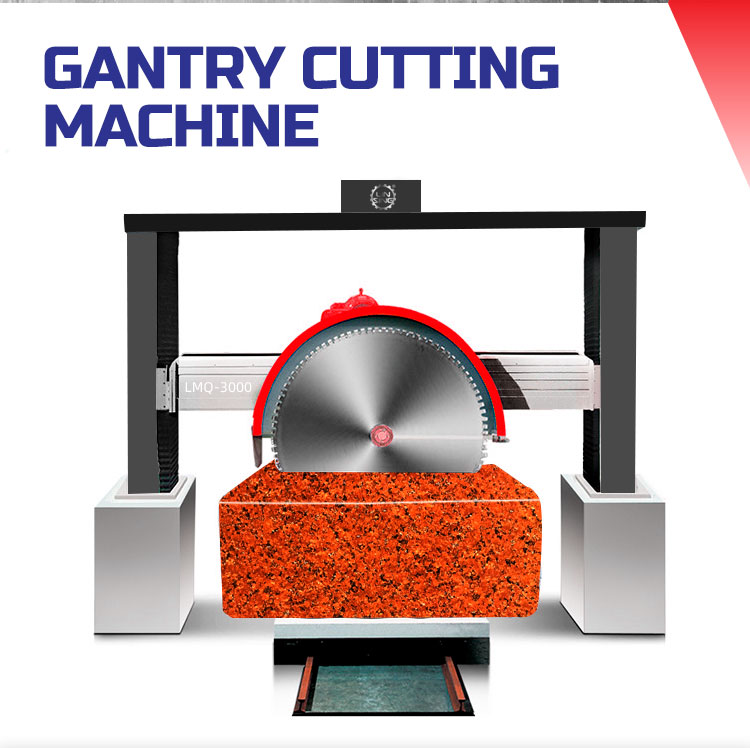

Gantry Cutting Machine For Block Cutting
Product Features:
This types of sawing machine (gantry saw machine) is composed of beams and composite drag board system, with the method of dragging plate up and down movement to realize longitudinal feed, dragging plate beam yan about motion to realize transverse feeding, main motor drives the saws for cutting stone material, the type of disk saw machine structure is simple, compact, low cost, high efficiency, wide applicable scope, is the most common stone machine, Therefore, it has been widely used in stone industry.
1. Crossbeam lift structure(up&down),V-shape that can achive a precise and stable cutting.
2. main spindle box move side to side (x-axis) along the cross beam.
3. Imported frequency convter is equipped and stepless speed adjusting is available.
4. Mechanotronic design &PLC controlling systerm for an easy and user-friendly operation.
5. Workbench can rotate 360°.
Product specifications:
| Model | Unit | LXLMQ-2200 | LXLMQ-2500 | LXLMQ-3000 |
| Max. diameter of blade | 毫米 | 2200 | 2500 | 3000 |
| Max. No. of blades | pc | 3 | 1 | 1 |
| Recommended Blade Combination | 毫米 | 2200 1600 940 | 2500 | 3000 |
| Recommend saw blade thickness | 毫米 | 6.5/7.2/8.0 | 8/8.5/9.0 | 8.0/9.0/9.5 |
| Main motor power | KW | 30 | 30 | 37 |
| Table dimensions(L*W) | 毫米 | 3200*2000 | 3000*2000 | 2500*2000 |
| Max. cutting size(L*W*H) | 毫米 | 3200*2000*950 | 3000*2000*1100 | 2500*2000*1350 |
| Overall dimensions(L*W*H) | 毫米 | 6600*600*4800 | 6600*6000*4800 | 7000*4700*6000 |
| Water consumption | m3/h | 6 | 6 | 6 |
| Approximate weight | Kg | 9000 | 9500 | 9700 |
