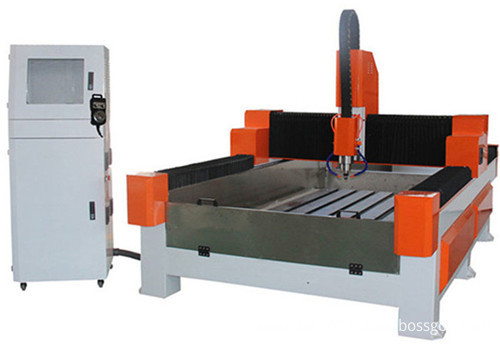

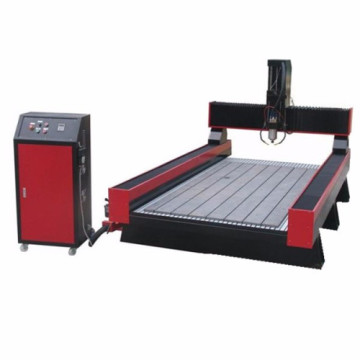

cnc stone processing machinery for marble granite carving
Description
产品描述
Features:
1.Taiwan linear square guide rail, to ensure the accuracy and stability of the mechanical operation.
2.The bed is thicker steel structure, strong bearing capacity can reach more than a ton, durable without deformation.
3.The entire dust structure, effective protection of dust or water erosion of the guide rail and lead screw, improve the life of the machine tool.
4.High power 4.5kw water cooled spindle, the use of imported bearings configuration, low noise, high power, long life.
5.The macro control, computer independent cabinet, beautiful appearance, convenient operation.
6.Rack drive, high precision, long life.
7.With a sink, two-way cooling tool, effectively improve the life of the tool.
8.Software compatibility is good, can be compatible with a variety of CAD/CAM, such as Type3/Artcam/Castmate/ design software.
9.External rotation axis can be the largest 400*2000mm cylindrical engraving.

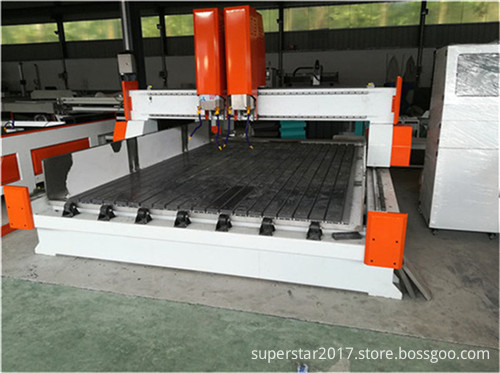

double head stone router belongs to stone machine, its used for stone cnc engraving, granite carving, tombstone making etc. is also called stone cutting and engraving machine. cnc stone router is widely used in architectural building, arts crafts industry etc. If you need stone machinery, welcome to choose CNC stone carving machine. WE are 15 years factory in china, can provide comfortable service for you.
Technical Parameter:
|

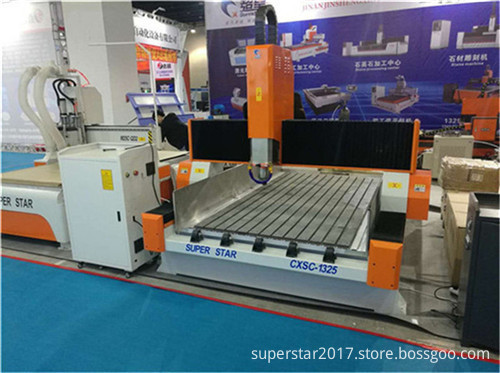

Model |
CXS1325 |
|
X,Y,Z working area |
1300*2500*250mm |
|
Table size |
1500*3000mm |
|
Working accuracy |
0.02mm |
|
Repeat position accuracy |
0.05mm |
|
X,Y,Z Transportation |
X,Y axis is Rack Gear , Z axis is Ball screw |
|
Bed Structure |
Top structural aluminum profile |
|
Max. Running Speed |
8m/min |
|
Max, Engraving Speed |
6m/min |
|
Spindle |
4.5kw water cooling spindle |
|
Spindle Speed |
0-24000rpm |
|
Driver motor |
High Speed stepper motor / Servo motor |
|
Working voltage |
380V/50HZ, Three phase |
|
Engraving order |
G code,U00,mmg,plt |
|
Control system |
Nc studio system |
|
Software running environment |
Windows98/2000/XP |
|
Machine power |
2kw(without spindle) |
|
G.W/N.N |
1400KGS/1000KGS |
|
Machine size/Packing measure |
2700*1700*1400mm/3200*2000*1500mm |
Application:Granite,marble and blue-stone,sandstone,glass and tile ans other stone`s flat engraving and column engraving.

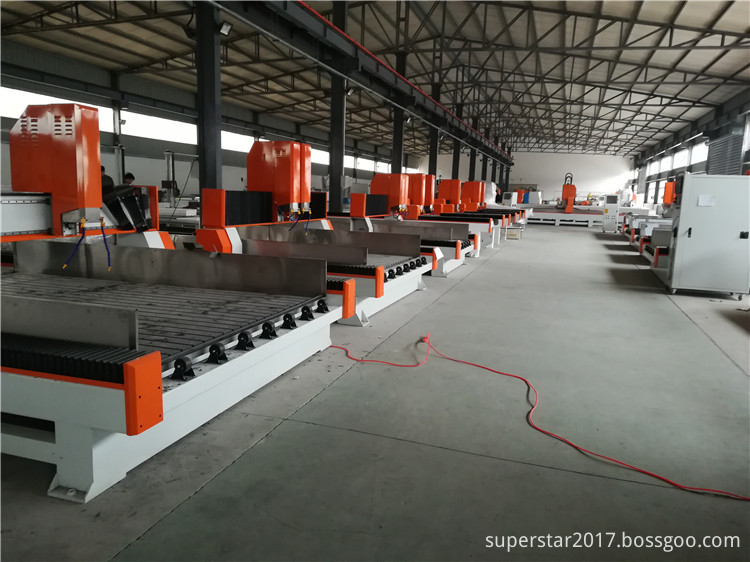

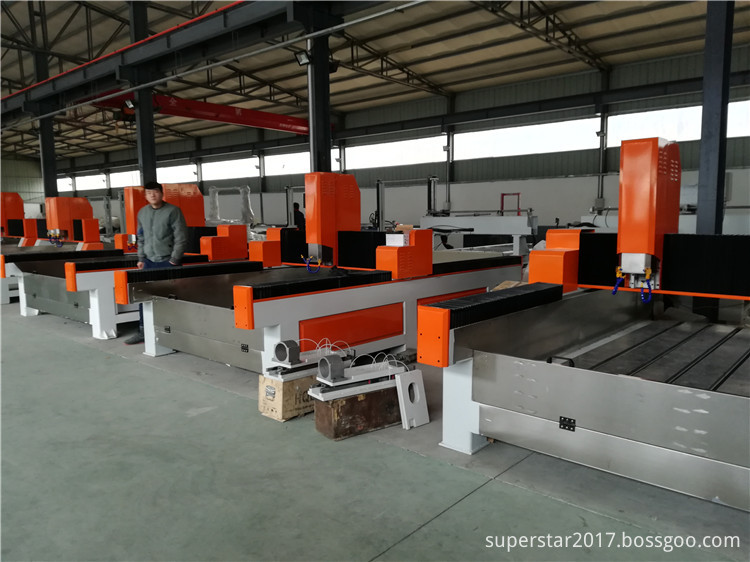

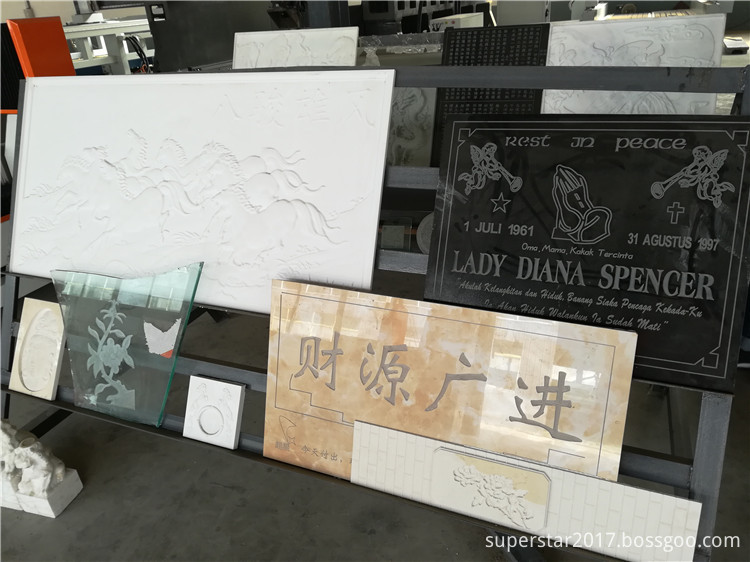

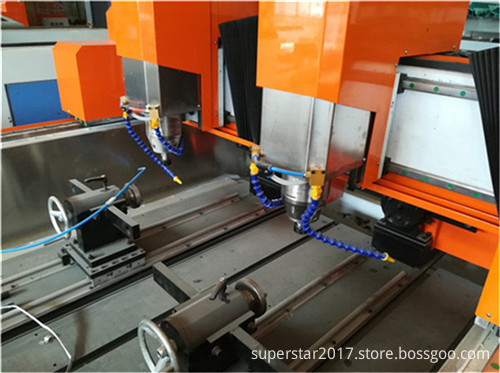

Workshop and samples:
