PLC Controlled Stone Marble Processing Lathe

Product ID: 66639805

PLC Controlled Stone Marble Processing Lathe

Contact Now

Description

产品描述

参数	单位	DNFX-1300	DNFX-1400	CNFX-1300	CNFX-1400
Blade diameter	毫米	Φ300-Φ600	Φ300-Φ600	Φ300-Φ600	Φ300-Φ600
Max lifting travel of cutting frame	毫米	800	800	800	800
Dimension of worktable(L×W)	毫米	3000×1300	3500×1400	3000×1300	3500×1400
Main Motor	千瓦	15	15	15	15
Gross Motor	千瓦	18	18	18	18
Outline Dimension(L×W×H)	毫米	5500×2300×1800	6000×2400×1800	5500×2300×1800	6000×2400×1800
Gross Weight	病历	5000	5500	5000	5500
Water Consumption	m³/小时	6	6	6	6

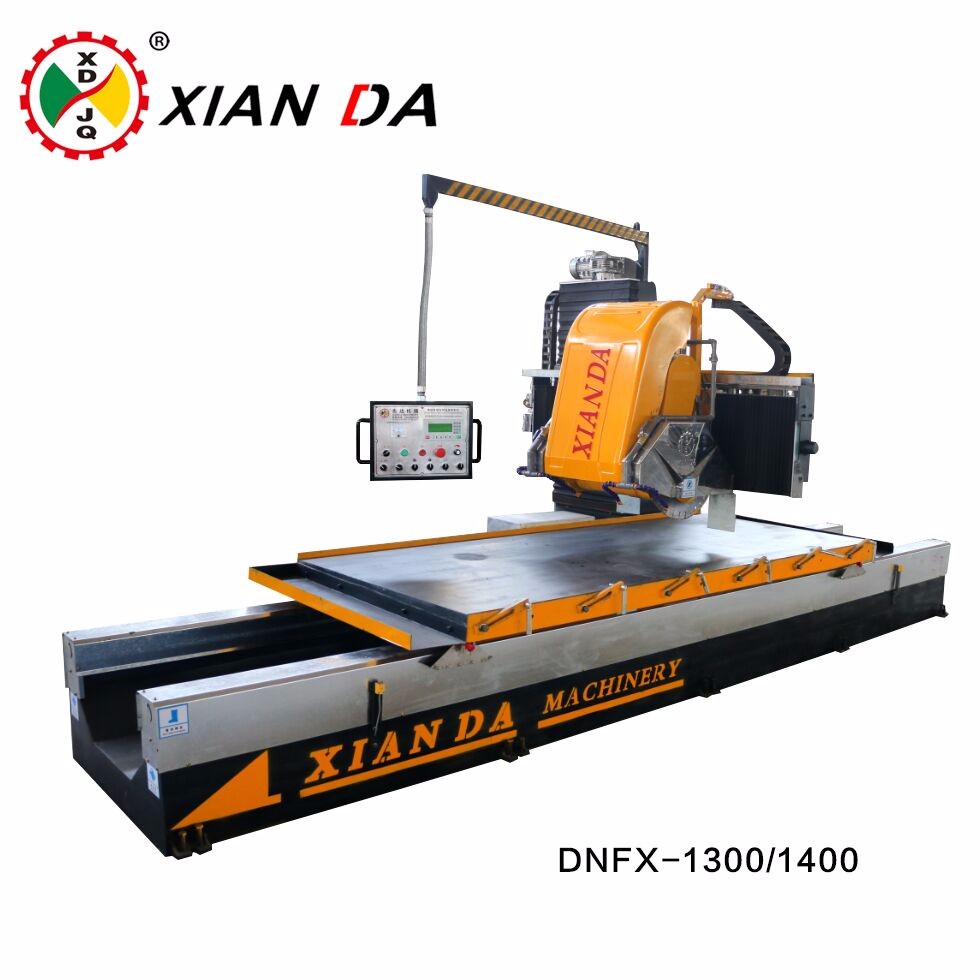

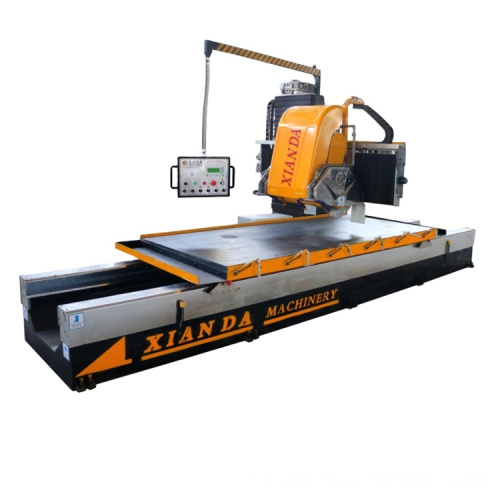

DNFX-1300/1400 adopts PLC system.It automatically profiling through diamond circular saws to cut stone with program,uses inverter to control up-down rising and left-right feeding ,adjusts the speed according to the stone material.This machine adopts CNC system,higher degree of automation , higher precision cutting;using double-blades designing,with higher cutting efficiency,higher stability, easy-operation to suit for lines,arc-shaped lines,Roman columns etc.

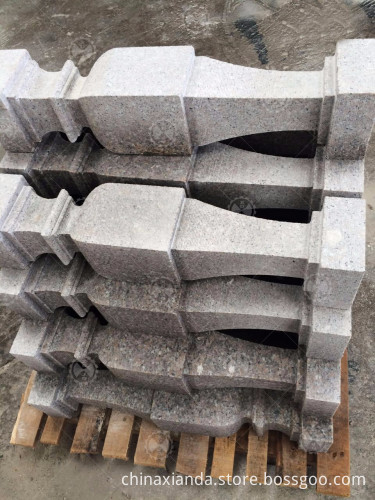

Remark: If choosing rotating worktable,the processing of arc-shaped lines can be done.

PLC Stone Marble Processing Lathe For Stone
