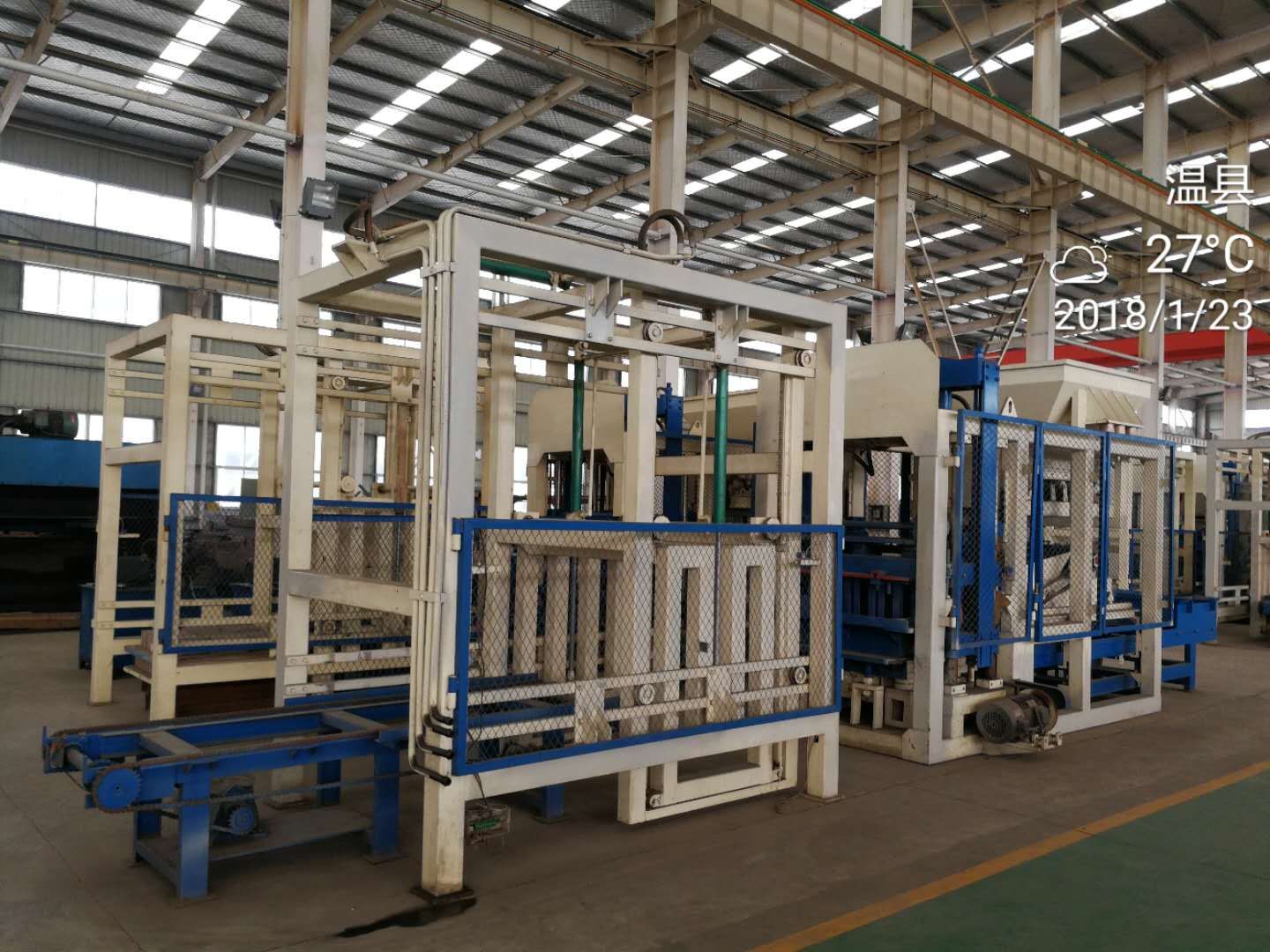

15-18 Seconds Automatic Concrete Brick Factory with Manufacturing Machine
Description
Product description
1. Automatic Concrete Brick Factory With Manufacturing Brick
2.QMD6-15(A) Automatic Concrete Brick Factory With Manufacturing Brick Forming Machine technical parameter
| Overall size | 5300*2050*2700mm | Host machine power | 56KW | Molding period | 12-20S |
| Pallet Size | 1100×850×25mm | Vibration Force | 90-110KN | Pallet quantity | 1500pcs |
3.Theoretical workshop area :200m2 , Need about 3-4workers.
office.curing and stacking area to arrange according to demands
4.QT10-15 concrete block making machine production capacity
| Size(mm) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr |
| 450*225*225mm | 10PCS | 2400 | 19200 |
| 200*100*80mm | 33PCS | 5400 | 43200 |
| 200*100*60mm | 33PCS | 5400 | 43200 |
| 400*150*225mm | 16pcs | 3840 | 30720 |
| 1.We can design mould as per client requests 2.Capacity above is indicative only,The actual capacity varies with operator efficiency and material quality etc |
|||
5.Raw material formula
1.Cement :8%-10% sand:30%-40% small chips:50-60%
2.Sand:60% fly ash :30% cement:8-10% lime:2%
3.Color material formula:50kgs cement,100kgs sand ,3kgs color material
Remark:the formula varies as per the local raw material quality.
6.Block curing
The block can be taken offer pallet after 18-24hours.In hot place like middle east,blocks can be
taken after several hours
In the first 3-5 days,spray water on the block.Then dry the block for 10-15 days.The block is done.
The blocks can be finished product after 9 hours if there is curing room
Our Survice
售前服务
* 查询和咨询支持。
* 根据客户要求
快速响应详细的报价
和生产解决方案* 确认价格、数量、发货、交货时间和
付款条件。
* 下订单并密封 PI。（贸易保证令
推荐给新客户以确保
支付安全）
售后服务
* 1 年免费保修
* 培训如何安装和操作
机器
* 终身免费维护服务和 24 小时
技术支持
* 工程师可在海外
维修机器* 可靠的质量和周到的售后服务
常见问题
问：您是贸易公司还是制造商？
答：我们是专业的实验室设备制造商，我们有自己的工厂。
问：你们的交货时间是多久？
答：如果货物有库存，一般在收到付款后 3 个工作日内。或者如果货物没有库存，则需要 5-10 个工作日，具体取决于订单数量。
Q： 你们提供样品吗？是免费的还是额外的？
答：是的，我们可以提供样品。考虑到我们产品的高价值，样品不是免费的，但我们会为您提供最优惠的价格，包括运费。
Q： 你们的付款条件是什么？
A: Payment<=15000USD, 100% in advance. Payment>=15000USD, 30% T/T in advance ,balance before shippment.
