I-VECO Yuejin 6m3 self loading concrete mixer truck india
Description
产品描述

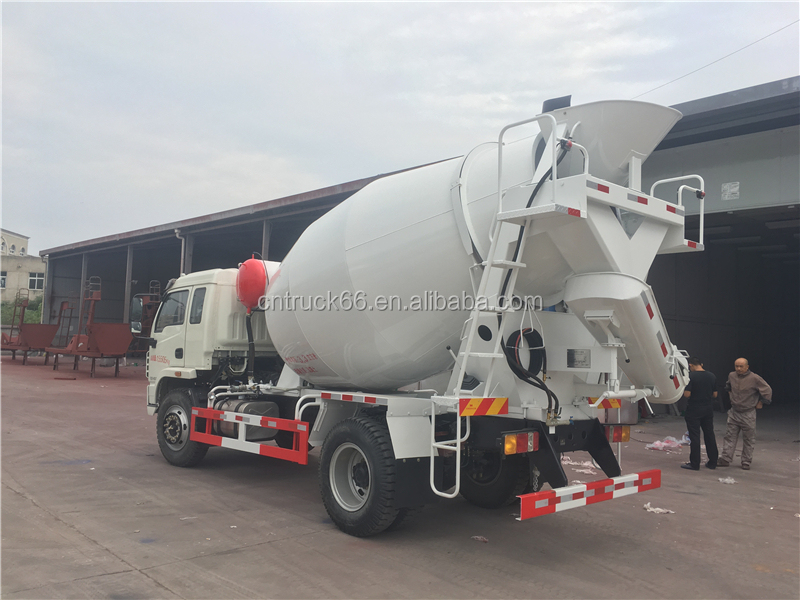

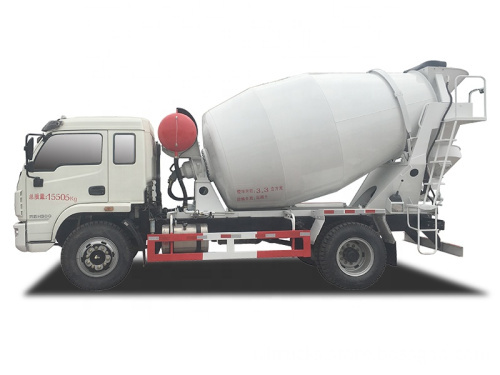

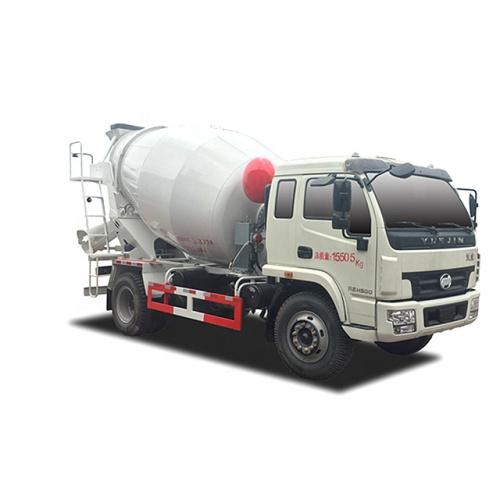

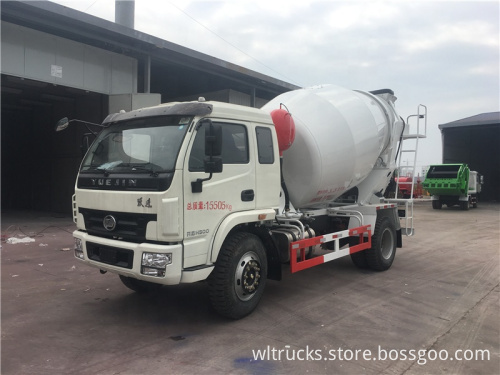

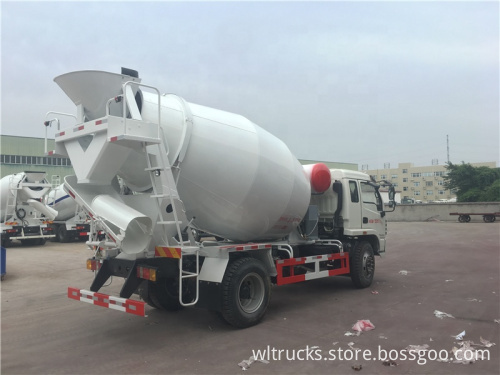

I-VECO Yuejin 6m3 self loading concrete mixer truck india
Our mixer truck is mainly used in cement mixing station, construction field and other place.The capacity ranges from 3 to 20m3, meeting customers' various needs.
It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system.
Our concrete truck mixer consists of seven main parts. Theyare hydraulic pump, reducer, rotating drum mixer, operation system, drum cleaning system,concrete feed hopper,concrete outlet hopper.
|
Basic parameters |
|||
|
Vehicle name: |
6 cubic concrete mixer |
Product trademark: |
Yuejin |
|
engine: |
Yuchai 140 horsepower |
Cab: |
Yuejin H500 row half cab |
|
Gearbox: |
Wan Liyang six files |
Rear axle: |
153 reinforced rear axle |
|

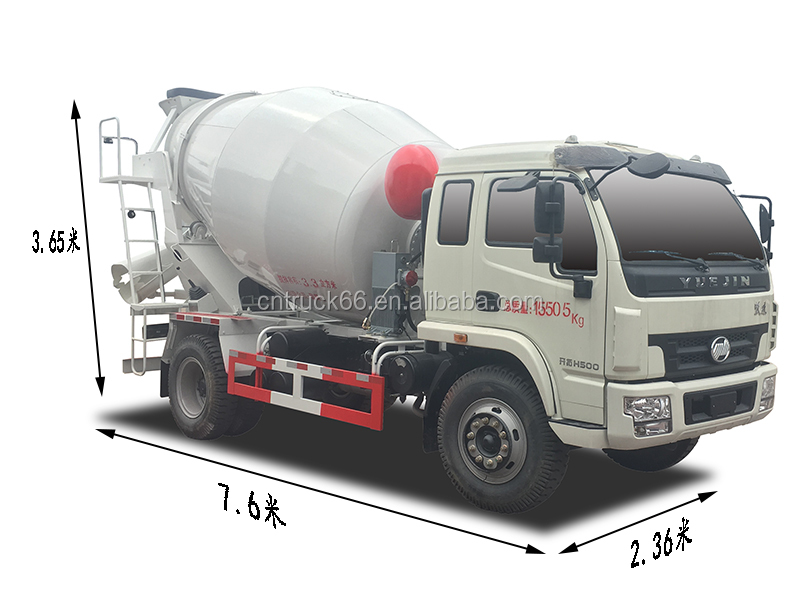

Dimensions: |
7600×2360×3650 (mm) |
Actual volume: |
6 parties |
|
Total quality: |
15595kg |
Curb quality: |
7995kg |
|
Top speed: |
80 公里/小时 |
Displacement: |
4156ml |
|
Wheelbase: |
3850 (mm) |
Tire specifications: |
9.00-20 nylon tire |
|
Drive mode: |
4×2 |
Braking method: |
Steam brake |
|
Fuel type: |
Diesel |
Emission Standards: |
Country five |
|
Top loading parameters |
|||
|
Head: |
6mm thick high strength manganese steel (Q345) material is more wear resistant |
Tank body: |
5mm thick 16 high alloy steel |
|
blade: |
4mm thick (520JJ) alloy steel material (adding wear-resistant strips to increase service life) |
Reducer: |
Shijiazhuang wing (optional German ZF reducer) |
|
Hydraulic system: |
Long source oil pump, strong motor (optional US Sally, Interpp pump motor) |
cooling system: |
Xinxiang Zhenhua (optional Changzhou Kaipeng, Xugong radiator) |
|
water supply system: |
300L water tank pressure water supply |
Operation method: |
Left and right sides and cab three-way operation |
|
Feeding speed: |
3m3/min |
Discharge speed: |
2m3/min |
|
Discharge residual rate: |
Discharge residual rate ≤0.5 |
Discharge range: |
180° up and down height adjustment |
