Product ID: 66667610

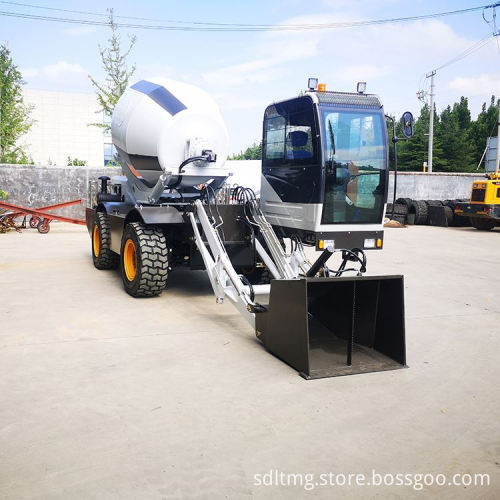

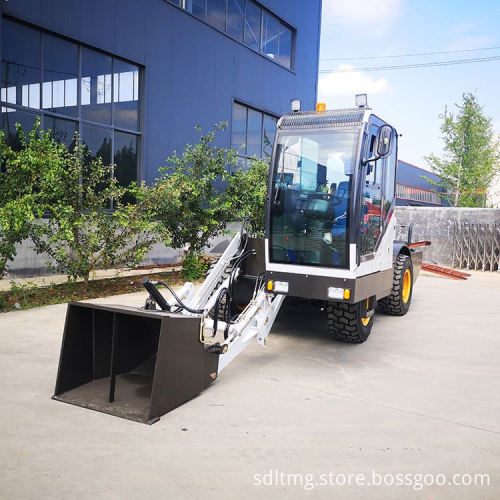

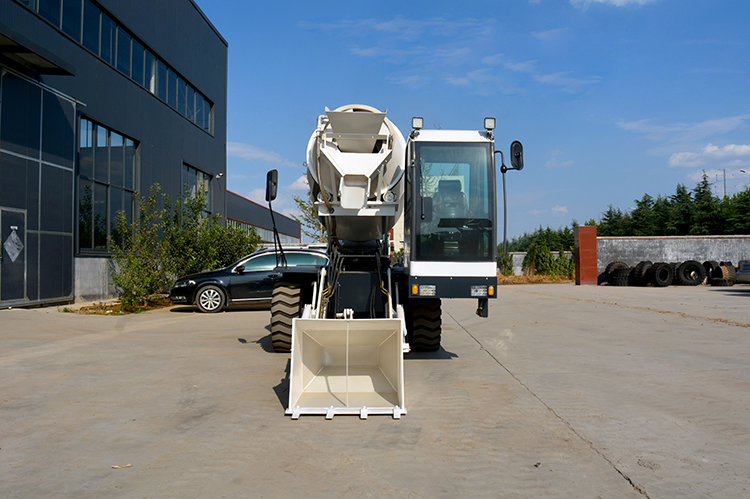

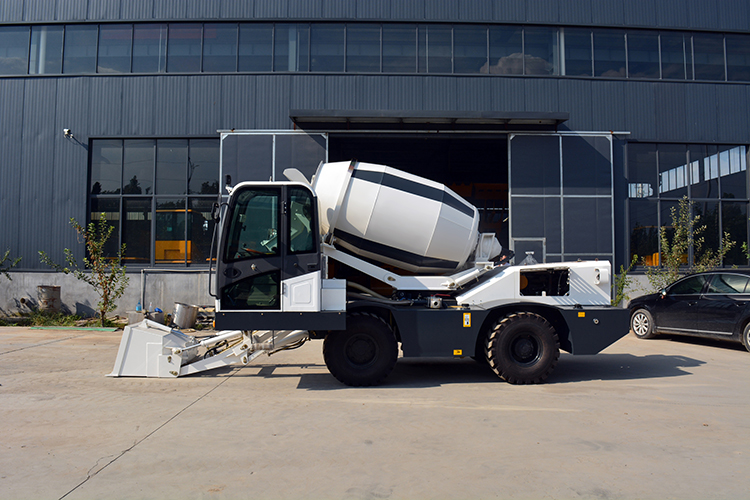

High Efficiency 4X4 Diesel Self Loading Concrete Mixer Truck - 2.0 m³ Capacity
Contact Now
Description
产品描述
|
MODEL
|
|
LTM40
|
|
||
|
Vehicle parameters
|
1
|
Integrated structure, rear wheel steering
|
The drum rotates 270 ° and can be lifted and lowered
|
||
|
|
2
|
overall dimension (L*W*H)
|
7520*2550*4300mm
|
||
|
|
3
|
wheel base (mm)
|
2350mm
|
||
|
|
4
|
wheel tread
|
2030mm
|
||
|
|
5
|
Curb Weight（kg）
|
7600kg
|
||
|
|
6
|
Maximum speed (km / h)
|
40
|
||
|
|
7
|
Maximum climbing gradient
|
45°
|
||
|
|
8
|
Steering angle
|
28°±1.5°
|
||
|
发动机
|
10
|
YN48GBZ
|
YUNNEI YN48GBZ
|
||
|
|
11
|
type
|
4-cylinder inline, direct injection, water-cooled, four-stroke, supercharged
|
||
|
Transmission system
|
16
|
torque converter
|
280 Split gearbox torque converter
|
||
|
|
17
|
gearbox mode
|
280 Power shift transmission
|
||
|
|
18
|
gears
|
4 forward shift 4reverse shift
|
||
|
|
19
|
maximum speed
|
40km/h
|
||
|
Mixing and unloading
|
20
|
Geometric volume of drum
|
5.5m³
|
||
|
|
21
|
Rotation speed of drum
|
15-20 rpm
|
||
|
|
22
|
Concrete output
|
3.5-4m³/Batch
|
||
|
|
23
|
Drum lift time
|
3.5s
|
||
|
Brake system
|
27
|
service brake
|
Air brake
|
||
|
|
28
|
parking brake
|
Manual disk brake
|
||
|
Tyre
|
29
|
type specification
|
1670-20 Rail tyre
|
||
|
|
30
|
front tyre pressure
|
0.5Mpa
|
||
|
|
31
|
rear tyre pressure
|
0.4Mpa
|
||
