Large Scale portable concrete batch plants for sale
Description
产品描述

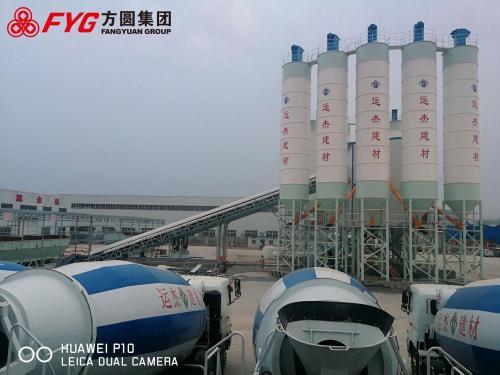

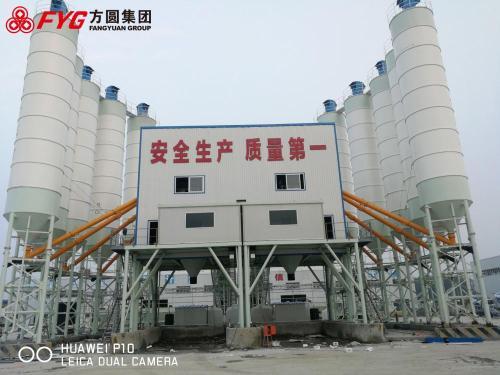

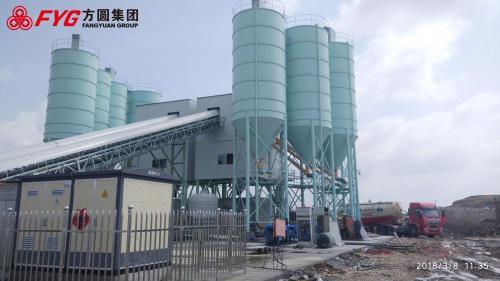

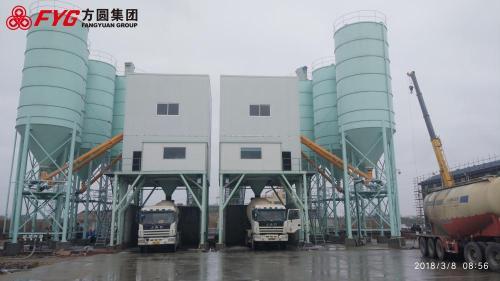

HZS180 Modular Container-design Mixing Plants with Conveyor Loading
Advantages
1.High Production Performance
2.High Quality and Precise Concrete Production (with Fully Automated Computerized Control System)
3.Different Layout Options according to Customer Requirements
4.Possibility for Different Kinds of Concrete Production with Different Type of Mixers
|
Item |
Unit |
HZS120 |
HZS180 |
|
|
Nominal output/h |
m³/h |
120 |
180 |
|
|
Mixer charging |
m³ |
2 |
3 |
|
|
Batching machine |
|
PLD3200QD-IV |
PLD4800QD-IV |
|
|
Aggregate storage bins charging |
m³ |
15 |
20 |
|
|
Aggregate storage bins qty |
pc |
4 |
4 |
|
|
Aggregate weighing capacity |
kg |
4*2000 |
4*3000 |
|
|
Cement weighing capacity |
kg |
1200 |
1600 |
|
|
Fly-ash weighing capacity |
kg |
400 |
600 |
|
|
Water weighing capacity |
kg |
500 |
800 |
|
|
Additive weighing capacity |
kg |
50 |
80 |
|
|
Mixer power |
kw |
2*37 |
2*55 |
|
|
Belt conveyor power |
kw |
30 |
45 |
|
|
Total power |
kw |
150 |
200 |
|
|
Mixer discharge height |
m |
3.8 |
4.1 |
|
|
总重量 |
t |
60 |
72 |
|
|
Outline dimension(L*W*H) |
m |
46.7*23*20 |
43.5*21*20 |
|
|
Loading |
|
Belt conveyor |
||
|
Weighing accuracy |
Aggregate |
% |
±2 |
±2 |
|
Powder |
% |
±1 |
±1 |
|
|
Water |
% |
±1 |
±1 |
|
|
Additive |
% |
±1 |
±1 |
|
Taking construction technology to the next level is our mission – and that means making it cost-efficient, accurate, future-proof and connected. We are a market and technology pioneer in construction machinery. Our product include:
concrete mixer snd concrete batcher is the main components of the Concrete batching plant , used for mixing concrete.；
Tower cranes are used to lift heavy objects on construction sites；
Construction elevator is used for both manned and cargo;
concrete pump are used to transport concrete on site;
stabilized soil mixing plant is used to produce cement stabilizer for highway ;
The main purpose of the concrete mixing truck is to transport the concrete or mortar that has been mixed in the concrete mixer to the construction site
Screw conveyor is used for trsport cement from cement silo to mixer
Modular box designed HZS120D mobile concrete mixing plant concrete mixing plant for Railway construction mobil
Construction building Concrete Batcher Plant for build
