Zoomlion 65M 10 Ton Luffing Jib Tower Crane: High-Quality Construction Equipment with 25M Max Lifting Height and 6 Ton Loading C
Contact Now
Description
产品描述
产品概述
WA6012-6A

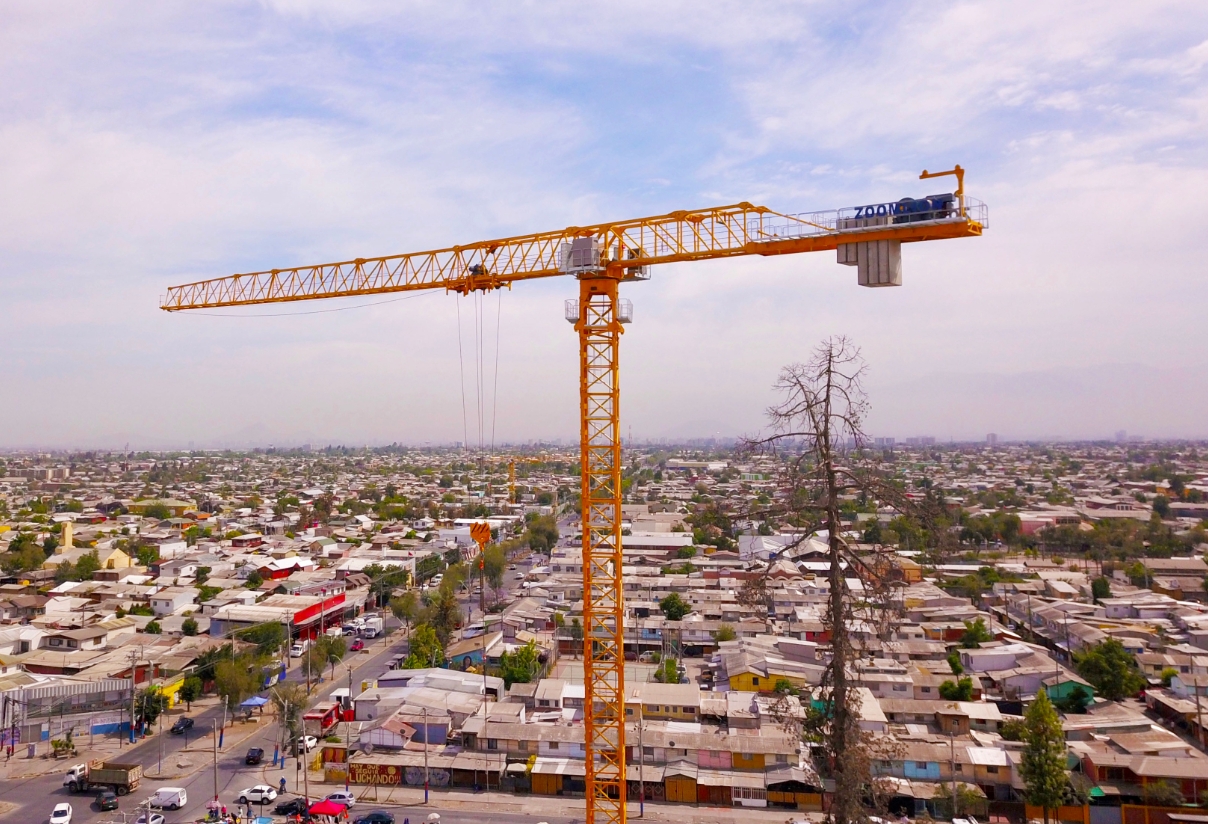

Zoomlion WA6012-6A flat-top tower crane has a maximum lifting capacity of 6t and an industry-leading lifting speed of 100m/min; it
has a rich combination of boom lengths, with a maximum lifting arm length of 60m, a variable arm length of 5m, a minimum arm
length of 30m, and seven combinations of arm lengths. 4 major institutions have been fully accelerated to improve the overall
efficiency by 35%. Adopting patented jacking safety technology, triple protection of jacking height against topping, double
protection of amplitude against collision, intelligent detection of electronic control system to protect against hook slipping,
jacking leveling control, jacking motor control to prevent jacking accidents. It is the first time in China tower crane field to
load one-key super-lift function; new slewing reduction and amplitude reduction technology. Adopting quick-loading technology, the
fastest time from unloading to the completion of installation and commissioning is 3h. The industry's first ETI2.0 safety and
intelligent control system, which improves performance, safety and intelligence. Award Level: Won the China Construction Machinery
2021 Annual Product TOP50 A
has a rich combination of boom lengths, with a maximum lifting arm length of 60m, a variable arm length of 5m, a minimum arm
length of 30m, and seven combinations of arm lengths. 4 major institutions have been fully accelerated to improve the overall
efficiency by 35%. Adopting patented jacking safety technology, triple protection of jacking height against topping, double
protection of amplitude against collision, intelligent detection of electronic control system to protect against hook slipping,
jacking leveling control, jacking motor control to prevent jacking accidents. It is the first time in China tower crane field to
load one-key super-lift function; new slewing reduction and amplitude reduction technology. Adopting quick-loading technology, the
fastest time from unloading to the completion of installation and commissioning is 3h. The industry's first ETI2.0 safety and
intelligent control system, which improves performance, safety and intelligence. Award Level: Won the China Construction Machinery
2021 Annual Product TOP50 A
产品规格
|
不
|
项目
|
WA6012-6A Parameters
|
|
1
|
产品型号
|
WA6012-6A
|
|
2
|
产品类型
|
塔式起重机
|
|
3
|
臂长/臂架起重重量末端
|
60/1.2 m/t
|
|
4
|
额定提升力矩
|
110.4吨
|
|
5
|
最大起重能力
|
6吨
|
|
6
|
Fixed height
|
60m
|
|
7
|
Attachment height
|
220m
|
|
8
|
Lifting capacity rope
|
440m
|
|
9
|
Maximum lifting capacity/amplitude t/m
|
6/ 18.4
|
|
10
|
Max. lifting speed m/min
|
100
|
|
11
|
Luffing speed m/min
|
0-75
|
|
12
|
Rotary speed r/min
|
0~0.8
|
|
9
|
core component
|
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear,
|
