Indoor and Outdoor General Lifting Gantry Cranes: 40 Ton to 100 Ton for Sale

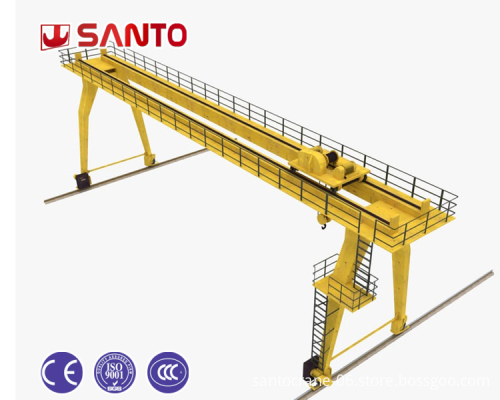

Description
产品描述
| Double girder gantry crane | |||
| 应用 | |||
|
Double girder gantry crane for factory yard is normally using in open-air warehouse. It normally accompanied with particular lifting tools using in the container shipyard. It has features of beautiful and durable appearance, perfect performance, low cost, easy maintenance, high adaptability and so on. It is composed of beam, support legs, crane traveling mechanism, trolley, electric equipment and so on. The strong legs shape is like a English Letter ”A”, this design is very benefit when the container pass by thought the legs. The control method could be ground control, remote control, cabin control or both.
|
|||
 |
|||
| Brief description | |||
|
1.Double girder gantry crane is applied open warehouse or rail along for general handling and lifting work, it also can equipped with many lifting device for special work. 2.This kind of crane is composed of bridge, support legs, crane traveling organ, trolley, electric equipment, strong lifting winch,the frame adopts boxtype welding mechanism, crane traveling mechanisms are operated in the driver cabin or remote control. Power is supplied by cable or slide wire, there are different capacity double beams gantry crane for your choice according to your different use. 3.Double girder gantry crane have A type,U type.U type is designed for container lifting.It could be designed with cantilever or not.The crane working class is A5. 4.There are two type structure for the main girder and leg as optional: truss girder type and box girder type. dust and other dangerous operations.
|
|||
| Feature | |||
|
1.Reasonable structure 2.Favorable performance 3.Smooth starting and stopping 4.Safe and reliable traveling 5.Low noise, commodious cabin and good view 6.Convenient maintenance, excellent exchangeability for parts and components |
|||

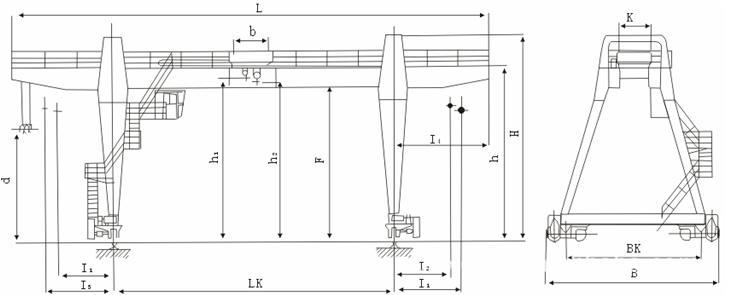

| Double girder gantry crane structure diagram: | |||
 |
|||

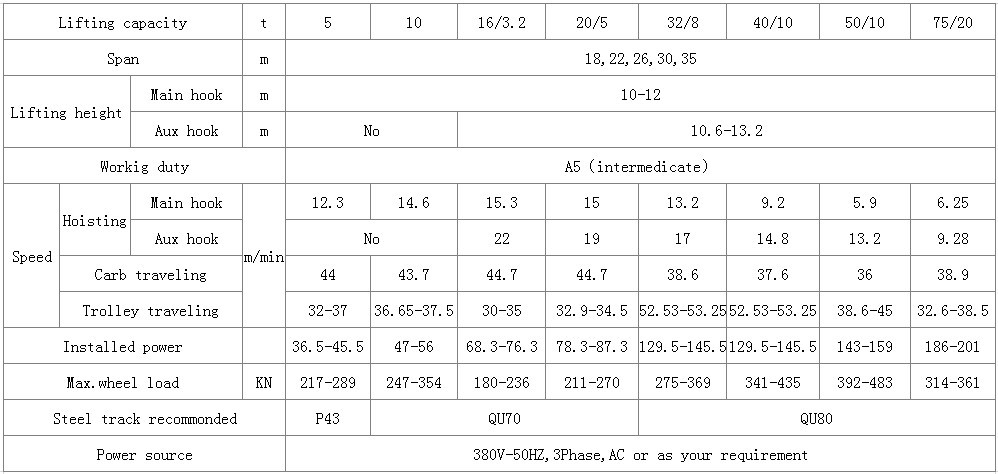

| Main parameters | |||
 |
|||

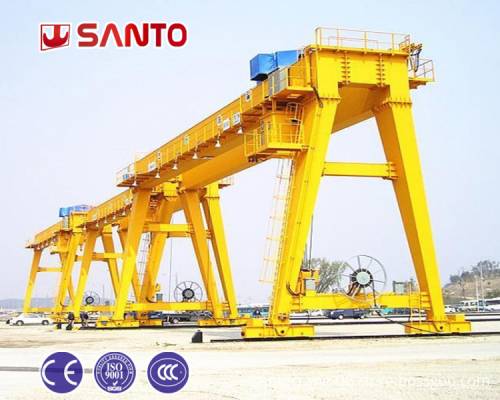

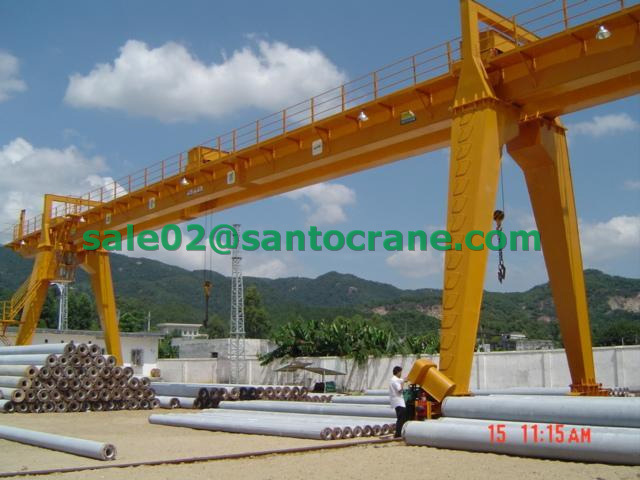

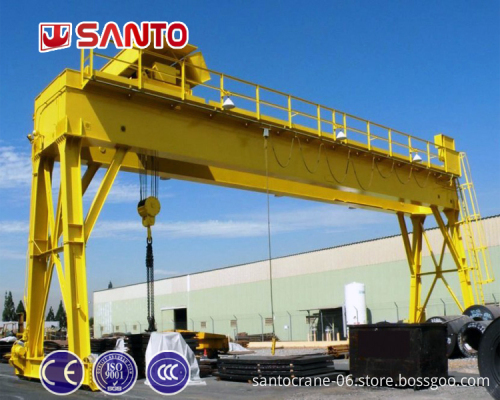

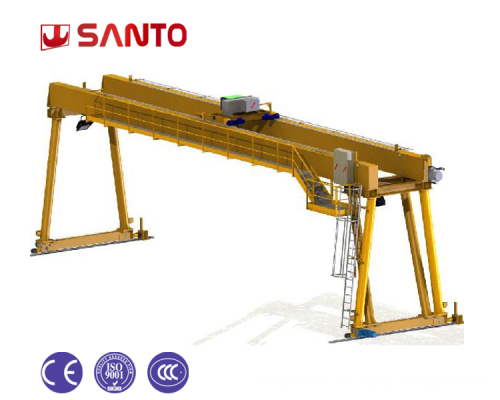

| Pictures show | |||
|
|
|||
