European Single Girder Beam Bridge Overhead Crane with FEM/DIN Hoist - 1 to 20 Ton Capacity Prices
Contact Now
Description
产品描述
产品描述
equipment. CXTS model European standard single girder overhead crane with electric hoist is our new designed crane for the low workshop and high lifting height demands. Its technology is advanced and design is based on international standard: DIN (Germany), FEM (Europe), and CE, ISO(International), working class A5.
Applications of CXTS model European standard single girder overhead crane with electric hoist:
CXTS single girder electric hoist European crane is widely used in many kinds of workshop and warehouse with low headroom, but need more lifting height, such as accessories manufacturing workshop, glass warehouse, power plant, heavy materials logistic, paper making, steel manufacturing workshop and other material handling plant.

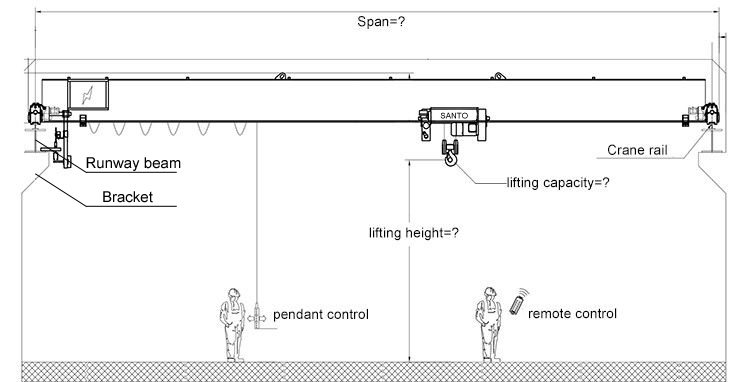

Factors to consider when selecting your crane: a. Lifting capacity. b. Lifting height. (hook center to ground) c. Power supply: (_V_Hz 3Phase) d. Span (rail center to rail center)
e. Crane Duty Class (ISO A3 to A8, or how many hours the crane works per day? ) f. Working condition: which material to lift? temperature? g. Would be better if you have drawings of your plant.
Advantages:
1). Low noise, soft starting and stopping .
2). Safe and reliable operation ;
3). Crane could be equipped with the high technology anti-swing mechanism.
4). Double welding box girder, beam deflection with DIN/FEM standard.
5). Many parts are processed by CNC machine center, TOP quality control.
6). Attractive in quality and price.
2). Safe and reliable operation ;
3). Crane could be equipped with the high technology anti-swing mechanism.
4). Double welding box girder, beam deflection with DIN/FEM standard.
5). Many parts are processed by CNC machine center, TOP quality control.
6). Attractive in quality and price.
Product Parameters
|
Lifting Capacity
|
|
|
ton
|
1t 2t 3.2t 5t 10t 12.5t
|
16t 20t
|
||||
|
Span
|
|
|
m
|
7.5~31.5m
|
7.5~31.5
|
||||
|
Speed
|
Lifting
|
MD1 hoist
|
米/分钟
|
8/0.8 (7/0.7)
|
3.5/0.35
|
||||
|
|
|
CD1 hoist
|
|
8 (7)
|
3.5
|
||||
|
|
Cross Traveling
|
|
20
|
|
20
|
||||
|
|
Long Traveling
|
|
20/30
|
|
20/30
|
||||
|
Wheel diameter
|
|
|
|
Ø270
|
Ø370
|
||||
|
Width of rail
|
|
|
|
37~70mm
|
37~70mm
|
||||
|
Operation Model
|
|
|
|
remote/pendant
|
remote/pendant
|
||||
|
Working Duty
|
|
|
|
A3
|
|
||||
|
Power Supply
|
|
|
|
According to your demands
|
According to your demands
|
||||

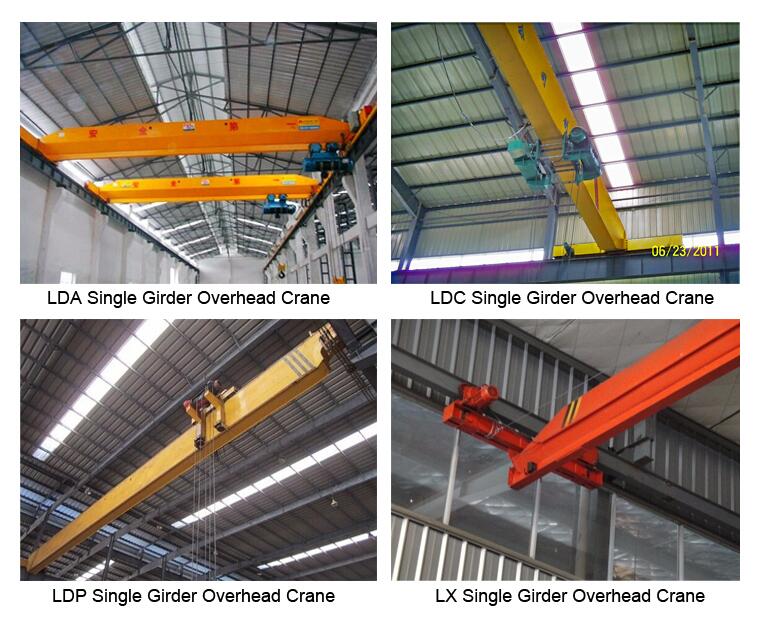

Single Girder Crane Types
