Forest SEM 816FR Bulldozer
Description
产品描述
森林 SEM 816FR 推土机
Product Description(Bulldozer)
Arch logging
3 dimensions for main roller height options, which is more convenient for forestry working condition.
Winch
The optional US Allied hydraulic winch H6H can be combined with tractor hydraulic system and equip hydraulic cooling system. The hydraulic winch can take the freespool, break-off and Maximum line pull of bare drum can be 40,120 Kg.

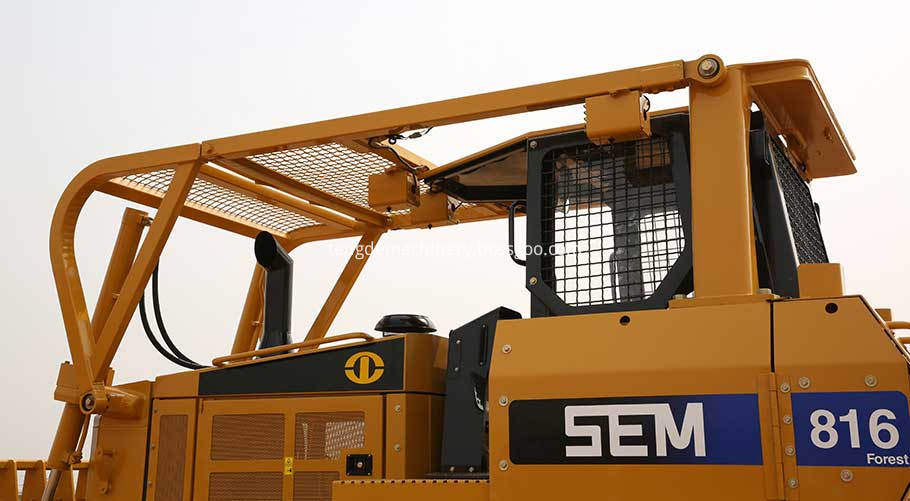

Forestry protective device
Besides all the configuration of standard tractor, forestry tractor is equipped with ROPS/FOPS.
Protective screen installed over the cab or Canopy can prevent the operator from woods and branches injuries. Sweep with screen can prevent the engine from being broken by falling trees.
Rack on the Blade and heavy duty radiator guard grill can prevent the radiator from being broken by woods.
Track roller frame guard can makes branches not involved into track roller frame and prevent the woods impact to the track roller.
Tank guard can prevent fuel tank and hydraulic tank from being broken by woods collision.
Semi-Universal Blade
SU blade combines the excellent penetration of the S blade and the high production capacity of the U blade.
Designed for superior load retention and penetration in tightly packed materials.
L-shaped push arms bring the blade closer to the machine, providing excellent maneuverability, balance and blade penetration.
Blades feature a strong box section design, made from high tensile strength steel to stand up to the most severe applications.
Undercarriage
Undercarriage is provided by a world class supplier ensures high reliability and resistance to wear.
Carrier rollers track rollers and idle rollers are all maintenance free.
Planetary final drive design delivers increased torque ratio for higher transmission effi ciency and lower maintenance cost.
Durable final drive bearings and multiple wet disc brakes provide reliability, reduce system heat and extend overall life.
Structures
Machine structures are analyzed using Finite Element Analysis (FEA) and On Machine Stress Analysis (OMSA) to identify and protect high stress areas.
Advanced structure welding technique, relieving welding stress.
Modular Radiator
New advanced cooling system designed to meet -43°C to +50°C ambient temperatures capability.
Modular designed radiator, easy to maintain remove and repair.
Radiator grill provides better heat dissipation, easy access for maintenance.
Maintenance
Electronic Control Module (ECM) fault diagnosis system, automatic diagnosis of eight key parameters.
Monitoring system provides three levels of alarm, to indicate fault diagnosis.
Hydrostatic system has longer service interval (2000 hrs), reduces maintenance time by 50%.
Implement valve mounted outside of hydraulic tank provides easy access to check and service.

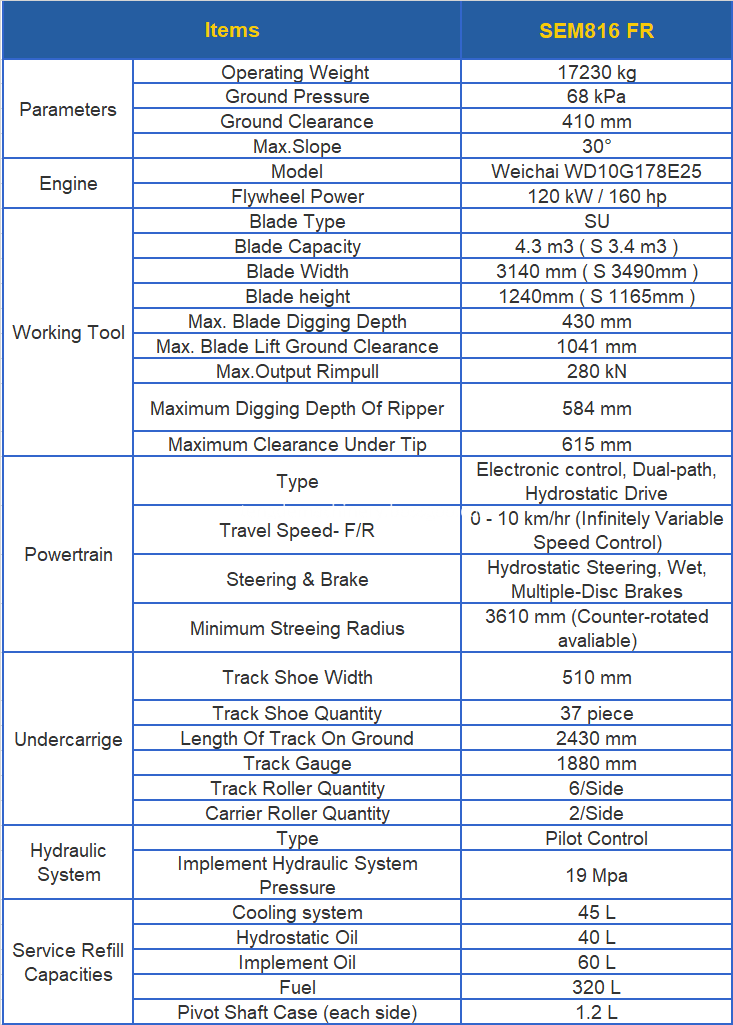

Product Specification(Bulldozer)

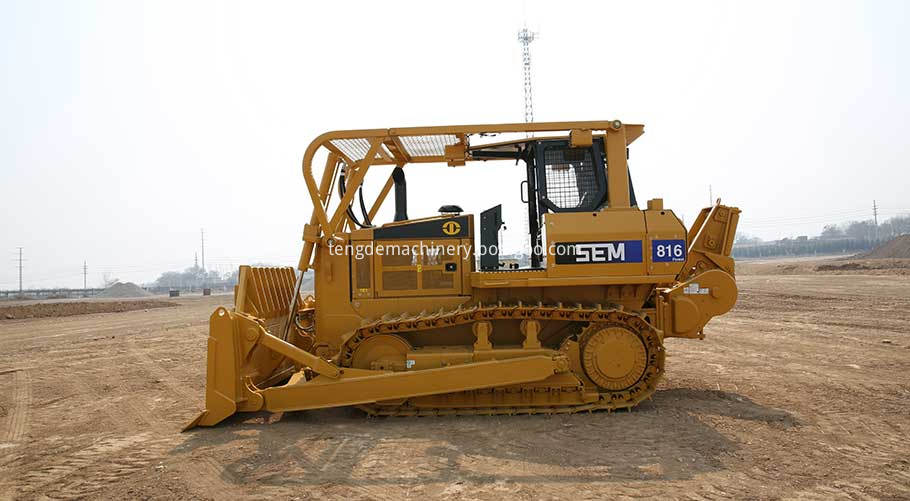

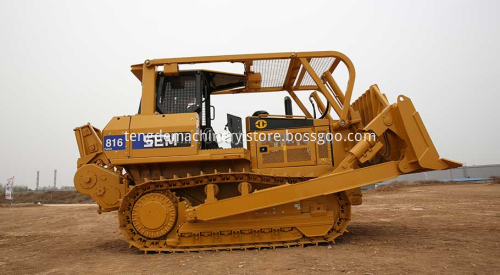

Product Overviews(Bulldozer)
