Product ID: 66677484
Used 220HP China SEM Bulldozer SEM Bulldozer 818F
Contact Now
Description
产品描述
产品描述
Manufacturing Technique
|
Operating weight
|
23680 KG
|
|
|
Ground Pressure
|
70 kPa
|
|
|
Ground Clearance
|
394 mm
|
|
|
Max.Slope
|
30°
|
|
|
发动机
|
6
|
|
|
型
|
Weichai WD10G178E26
|
|
|
Rated Power
|
175 kW / 235 hp
|
|
|
Working Tool
|
2000mm
|
|
|
Blade Type
|
SU
|
|
|
Blade Capacity
|
6.4 m³ (U 7.5 m³ )
|
|
|
Blade Width
|
3,720 mm U 4,015 mm
|
|
|
Blade height
|
1,511 mm U 1,420 mm
|
|
|
Max. Blade Digging Depth
|
563 mm
|
|
|
Max. Blade Lift Ground Clearance
|
1,140 mm
|
|
|
Max.Output Rimpull
|
350 kN
|
|
|
Maximum Digging Depth Of Ripper
|
650 mm
|
|
|
Maximum Clearance Under Tip
|
640 mm
|
|
|
Powertrain
|
|
|
|
Type
|
Electronic control, Dual-path, Hydrostatic Drive
|
|
|
Travel Speed- F/R
|
0 - 11.5 km/hr (Infi nitely Variable Speed Control)
|
|
|
Steering & Brake
|
Hydrostatic Steering, Wet, Multiple-Disc Brakes
|
|
|
Minimum Streeing Radius
|
4,225 mm (Counter-rotated avaliable)
|
|
|
Undercarrige
|
|
|
|
Track Shoe Width
|
560 mm
|
|
|
Track Shoe Quantity
|
40 piece
|
|
|
Length Of Track On Ground
|
2,948 mm
|
|
|
Track Gauge
|
2,000 mm
|
|
|
Track Roller Quantity
|
7/Side
|
|
|
Carrier Roller Quantity
|
2/Side
|
|
|
Hydraulic System
|
|
|
|
Type
|
Pilot Control
|
|
|
Implement Hydraulic System Pressure
|
19 Mpa
|
|
|
Service Refi ll Capacities
|
|
|
|
Cooling system
|
45 L
|
|
|
Hydrostatic Oil
|
62 L
|
|
|
Implement Oil
|
110 L
|
|
|
Fuel
|
460 L
|
|
|
Pivot Shaft Case (each side)
|
0.8 L
|
|

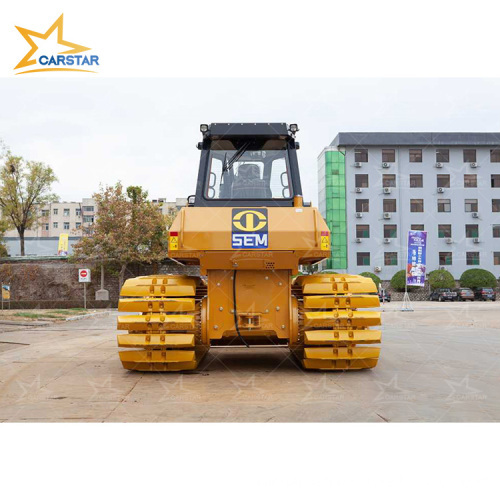

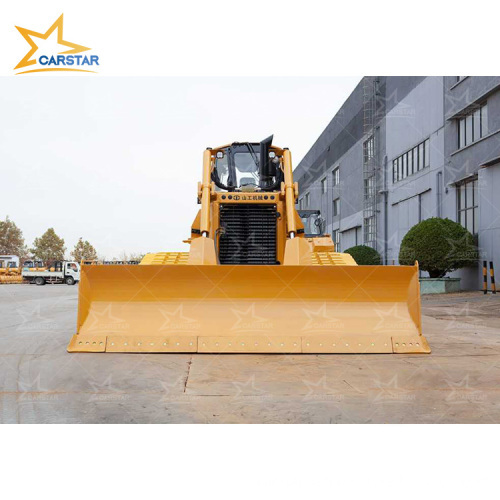

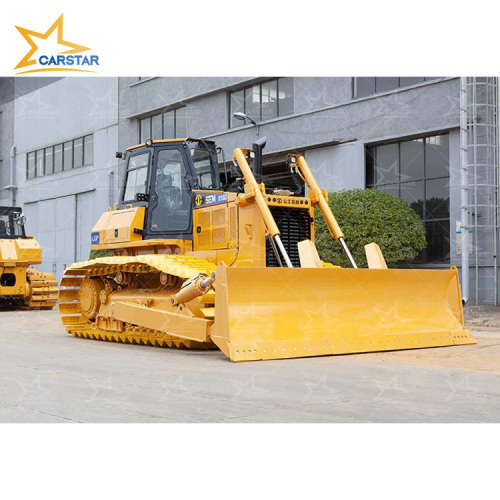

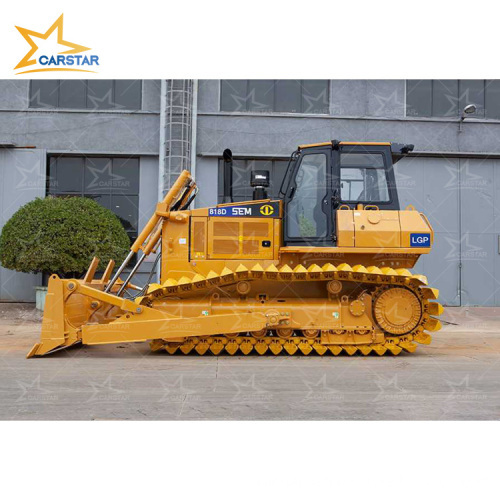

Details Images
