Top Bulldozer Shantui SD32 With High Performance
Contact Now
Description
产品描述

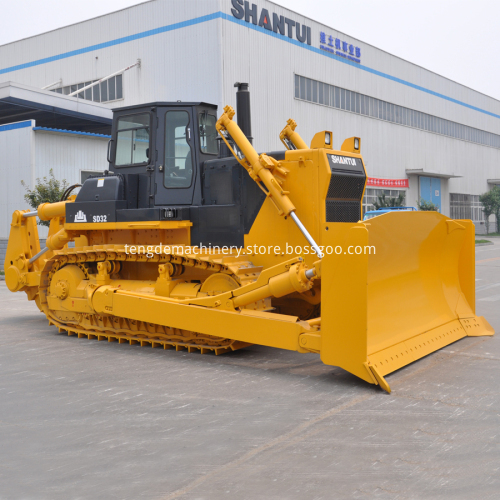

Brand new 320HP Shantui bulldozer SD32
Based on the Shantui TY320B, the SD32 bulldozer was developed by Shantui for operation in earth moving projects with tough conditions. Equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, which provides reliable performance and convenient and flexible operation, the SD32 is the ideal medium size construction machine for earth moving projects.
Paratemers:
| ITEM | UNIT | SD32 |
|---|---|---|
| L×W×H (Ripper not included) | mm | 6880×4130×3725 |
| Operating weight (Ripper not included) | t | 37.2 |
| 发动机 | - | imported engine from America NTA855-C360S10 |
| Rated power | kW/rpm | 235/2000 |
| Gradeability | ° | 30 |
| Blade type | - | Straight tilt bladeSemi-U bladeAngle blade |
| Blade width | mm | Straight tilt blade 4130×1590Semi-U blade 4030×1720Angle blade 5000×1140 |
| Dozing capacity | m3 | Straight tilt blade 10Semi-U blade 11.9Angle blade 6 |
| Ma× drop below ground of blade | mm | 560 |
| Lift height of blade | mm | 1560 |
| Ripper type | - | Single ripperThree-shank ripper |
| Ripping depth of ripper | mm | Single ripper 1250Three-shank ripper 842 |
| Lifting height of ripper | mm | Single ripper 955Three-shank ripper 883 |
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 7 |
| Number of track shoes (each side) | - | 41 |
| Width of track shoe | mm | 560 |
| Track gauge | mm | 2140 |
| Ground length and ground pressure | mm/MPa | 3150-0.105 |
| Pitch | mm | 228.6 |
| Forward speed | km/h | 0–3.6 |
| 0–6.6 | ||
| 0–11.5 | ||
| Reverse speed | km/h | 0–4.4 |
| 0–7.8 | ||
| 0–13.5 |
