Best Price SEM680D WHEEL LOADER FOR MINING
Description
产品描述

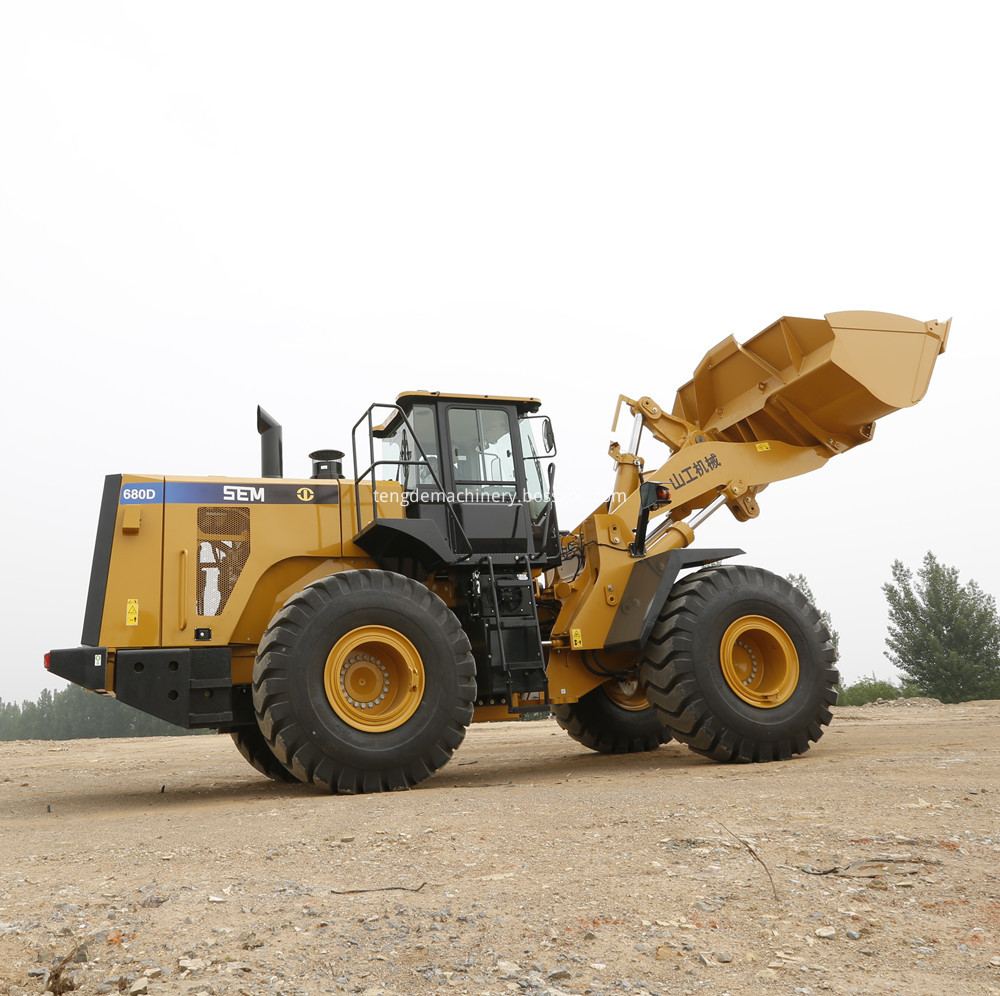

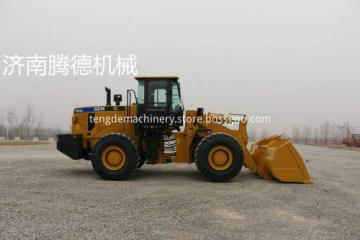

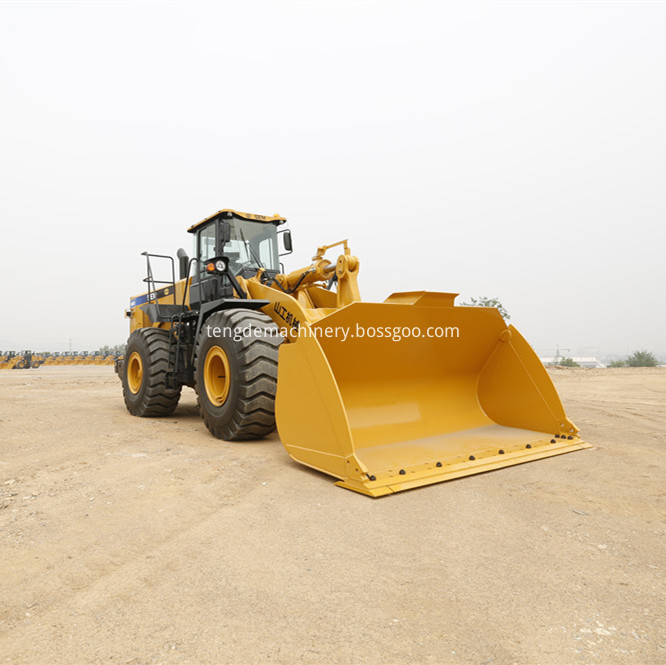

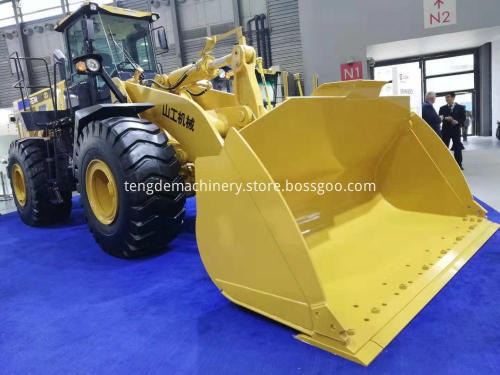

SEM 680 D heavy duty wheel loader 8 ton wheel loader for mining work
Reliable and durable: caterpillar technology electro-hydraulic control gearbox, single-stage three-component torque converter;Caterpillar technology high strength structural parts;Adopting caterpillar classic four-segment vehicle bridge technology, the technology is mature
High efficiency and energy saving: gearbox output helical gear design, low noise, high torque;Load sensitive double variable confluence hydraulic system, faster operation time, more efficient energy saving, torque converter automatic regulating wheel design, fuel saving 5%
Safety and comfort: full hydraulic wet brake system;Ergonomic design of cab, rear camera improves operating field
Green: the Cat ® (carter) intelligence system;Temperature control hydraulic cooling fan, low oil consumption, low noise
Product Description
Rated Load 8,000 kg
Operating Weight 24,140kg
Bucket Capacity 4.0-7.2m³
Wheel Base 3,550mm
Over Dimension 9,166*3,220*3,566mm
Turning Radius 7,891mm
Operating Specifications
Breackout Force 224kN
Tractive Force 224kN
Transmission
Transmission TypeElectric and Hydraulic Control
Transmission Gears F4/R4
Torque Converter Type Single stage 3 elements
Maker & Type TR35
Forward I / Reverse 7.2/8.1km/h
Forward II / Reverse II 12.3/14km/h
Forward III / Reverse III 21.5/24.5km/h
Forward IV / Reverse IV 37/41km/h
Axle
Main Drive Type Spiral bevel gear,single stage
Foma; Drove Redictopm Type Planetary type,singe stage
Rear-Oscillatinh +/- ±13°
发动机
Model Perkins 2206D
Rated Power 232kW
Rated Speed 1800r/min
Displacement 13L
Implement Hydraulic
Implement System Type
Load sensitive bivariate confluence hydraulic system
Boom Raise Time 5.64s
Hydraulic Cycle Time 10.2s
System Pressure Setting 30MPa
Brake System
Service Brake Wet multi-disc brake
Parking Brake
Hydraulic callper disc brake
Steering System
System Type Load-sensing full hydraulic steering system
System Pump Type Variable displacement pistion pump
System Pressure Setting 23.4MPa
Steering Angle(L/R) 35±1°
Tires
Size26.5-25
Type Bias
Layer 24
Textured Type L3/E3
