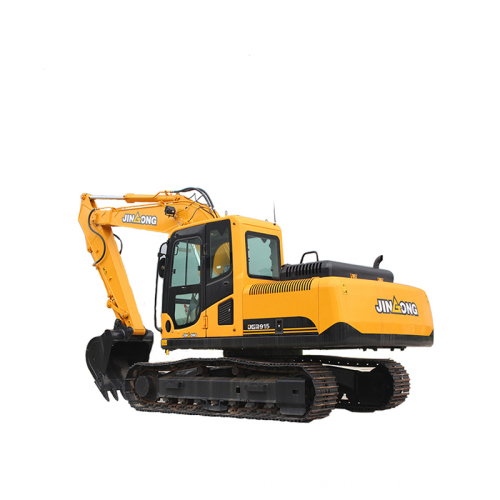

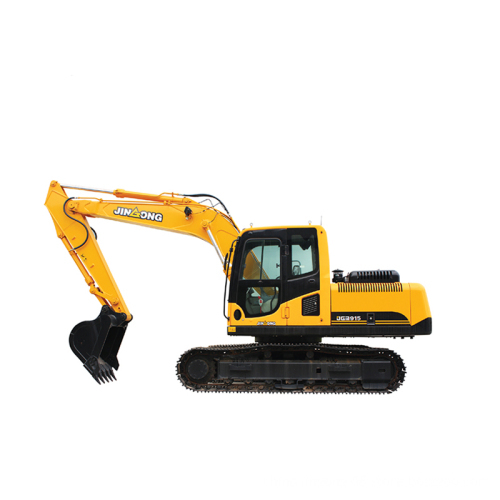

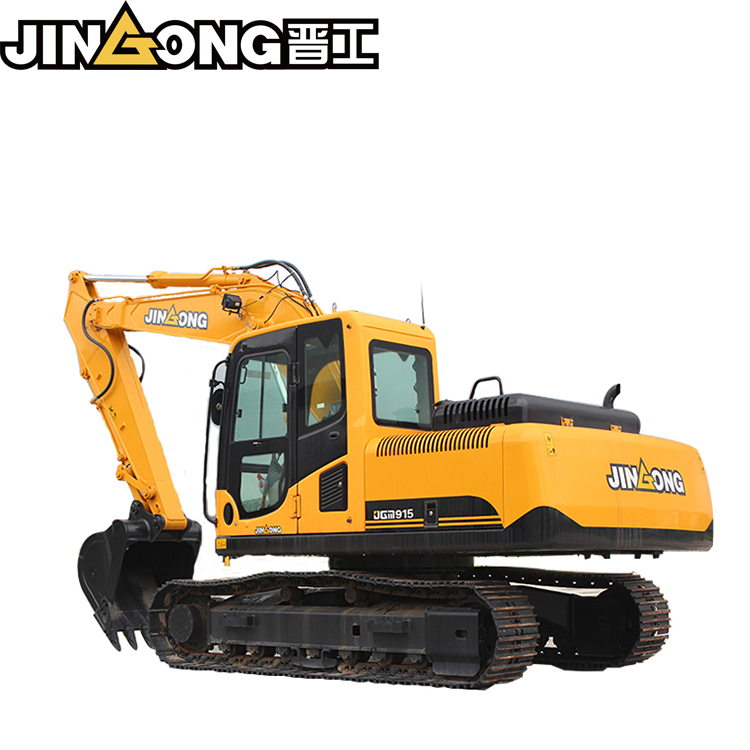

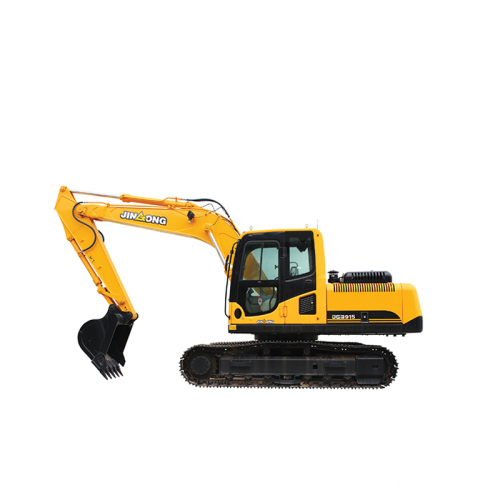

15 Ton JGM915-LC Cheap New Mini Backhoe Used Long Arm Excavator
Description
产品描述
15 ton JGM915-LC cheap new mini backhole used long arm excavator
Specification:
|
Diesel engine |
|
|
型 |
Cummins 4BTAA3.9 |
|
类型 |
4 cylinders,4 strokes, direct injection, water-cooling |
|
Displacement |
3.9L |
|
Rated power |
86kw at 2200rpm |
|
Max. Torque |
447nm at 220rpm |
|
|
|
|
Dimensions |
|
|
Overall length(during transport) |
7806mm |
|
Width of turntable |
2490mm |
|
Height of driver's cabin top |
2735mm |
|
Height of boom top |
2450mm |
|
Wheel base |
2917mm |
|
Track length |
3655mm |
|
Track gauge |
1990mm |
|
Track shoe width (standard) |
500mm |
|
|
|
|
Operating specification |
|
|
Operation weight |
13700kg |
|
Standard bucket capacity |
0.6m3 |
|
Max. excavating height |
8400mm |
|
Max. dumping height |
5590mm |
|
Max. excavating depth |
5765mm |
|
Max. excavating radius |
8455mm |
|
Min. swing radius |
2820mm |
|
Excavating height at min. swing radius |
3970mm |
|
Max. excavating force of bucket |
79.4kN |
|
Max. excavating force of bucket rod |
66.3kN |
|
Hydraulic system |
|
|
Main pump |
KAWASAKI twin axial plunger pump+ gear pump |
|
Max. flow rate |
2X132.7L/min |
|
Max. working pressure(boom, arm, bucket) |
34.3Mpa |
|
Travel |
34.3Mpa |
|
Swing |
27Mpa |
|
pilot |
4.0Mpa |
|
Travel system |
|
|
Travel motor |
NABTESCO switchable between two speeds |
|
brake |
Hydraulic, normally engaged |
|
Travel speed |
5.6/3.3 km/h |
|
Tractive force |
103kN |
|
Grade ability |
35o |
|
Ground clearance |
430mm |
|
Track tensioning |
Grease tensioning |
|
Track roller |
2x2 |
|
Carrier roller |
2x7 |
|
Track shoe width |
500mm |
|
Oil and cooling |
|
|
燃料 |
246L |
|
Coolant |
32L |
|
Engine oil |
11L |
|
Travel reducer oil |
2x3.0L |
|
Swing reducer oil |
3L |
|
Hydraulic oil |
136L |
|
Air conditioner |
0.9kg(cold media) |
