5 Ton Shifeng Dump Truck - Garbage Truck Solution
Description
产品描述
shifeng dump truck, 5ton dump garbage truck
we manufacture kinds garbage trucks with different chassis, any inquiry please contact us.thank you.
|
Main specification |
||||||||
|
Product model and name |
SSF3041DDJ52 Shifeng single cabin dump truck |
|||||||
|
Gross weight(Kg) |
4495 |
Drive type |
4X2,LHD |
|||||
|
Curb weight(Kg) |
2715 |
Overall dimension(mm) |
4840X1925X2320 |
|||||
|
Approach/departure angle(°) |
27/20 |
Cab seats |
2+3,3+3 |
|||||
|
Axle No. |
2 |
Front/rear hang(mm) |
1150/1240 |
|||||
|
Axle load(Kg) |
1850/2645 |
Wheelbase(mm) |
2550 |
|||||
|
Max speed(Km/h) |
90 |
|
|
|||||
|
Chassis specification |
||||||||
|
Chassis model |
SSF3041DDJ52 |
Manufacturer |
Shifeng Motor Co., Ltd |
|||||
|
Brand name |
Shifeng-fengshun |
Dimension(mm) |
4760×1920×2170 |
|||||
|
Tire specification |
7.00-16 8PR |
Tire No. |
6+1(One spare tire) |
|||||
|
Steel spring number |
8/10+5 |
Front track base(mm) |
1480 |
|||||
|
Fuel type |
Diesel |
Rear track base(mm) |
1500 |
|||||
|
Emission standard |
Euro IV |
Transmission |
5 forward gear |
|||||
|
Cab |
single row,5 person allowed, with power steering |
|||||||
|
Braking system |
Air brake |
|||||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
|||||
|
4B2-95C40 |
Anhui Quanchai Diesel Engine Co.,Ltd |
2545 |
70/95 |
|||||
|
Truck body |
||||||||
|
Body Dimensions (LXWXH) |
3030X1770X450 |
Body material |
QB235 Carbon steel |
|||||
|
Body steel thickness(mm) |
Floor 4mm,side 3mm |
|||||||
|
Produce cycle |
10-20 days |
warranty |
12 months since supply |
|||||
|
1,Nice truck, with a list of spare parts, driver’s tools. Choose to fix A/C 2,This truck is also used for factories, mines and large municipal sanitation department to carry kinds of waste, also can transport ash, sand, stone, soil and other bulk materials to be transported ore or coal mines or coal mines. Can be converted into various special purpose garbage truck due to users requirements. 3,With self dumper function, hydraulic control operation system. 4, Optional the seal form of garbage truck: Fully sealed, the clamshell, the slide type are sealed in a manner to prevent secondary pollution. The cap can be opened in different forms too. |
||||||||
The garbage truck is widely used in sanitation & municipal, industrial enterprises and residential area. The truck has several garbage tanks to avoid pollution during transporting process. The modified part can be separated from chassis, so it is easy to maintain and the mobility & readability of the truck are kept.
If you have special demand of garbage truck, please contact with us. We may design and modify it for you. We also can add power steering and A/C for you.

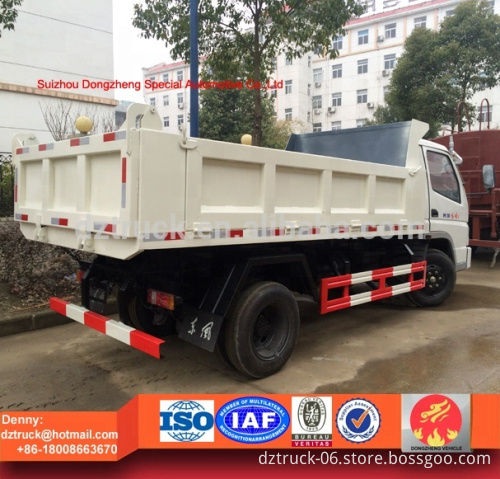

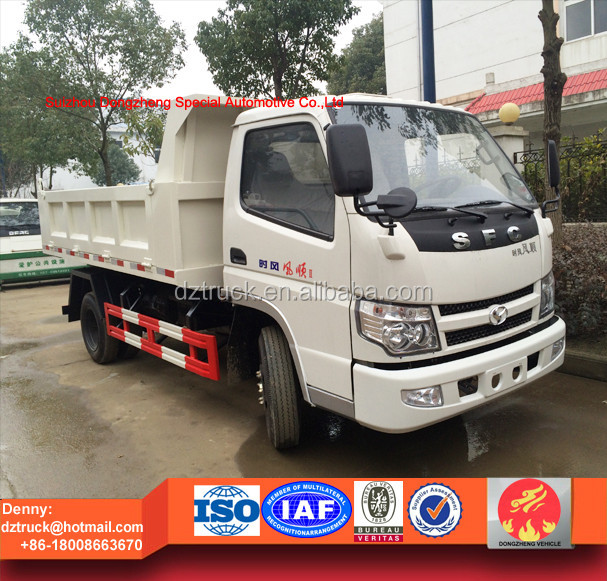

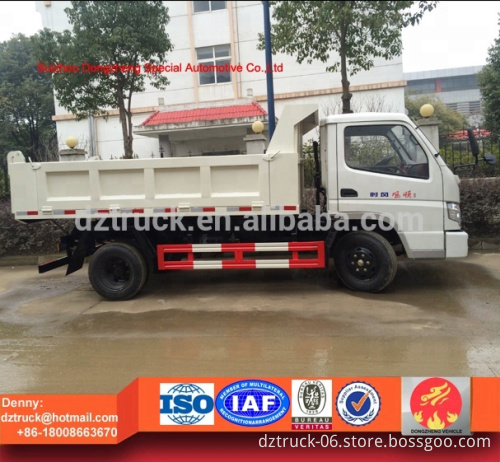

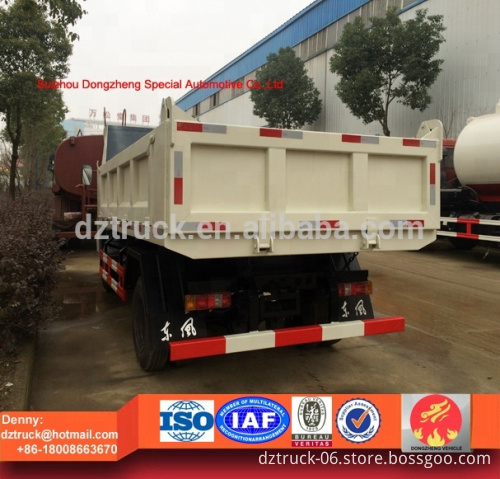

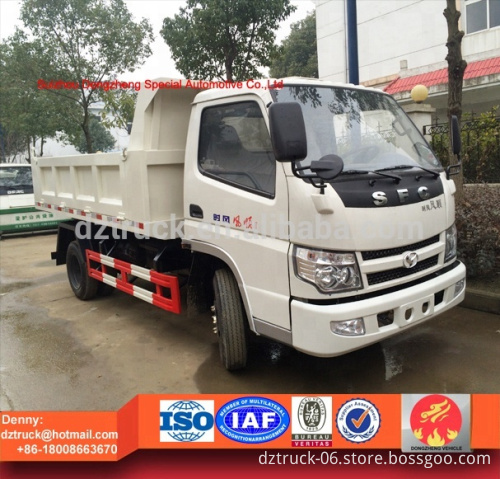

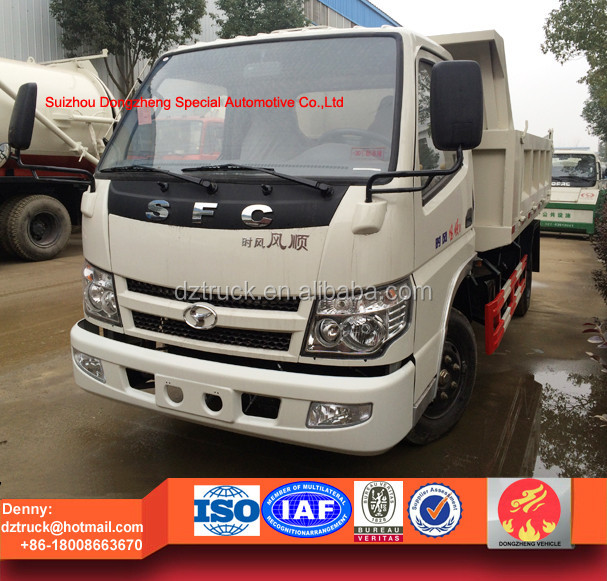

Pictures of our shifeng tipper garbage truck
