性能和目的

我们公司是中国专业的垃圾压实机制造商。垃圾压实机的供应能力为每月 300 台。欢迎来到我们公司购买垃圾压实机。

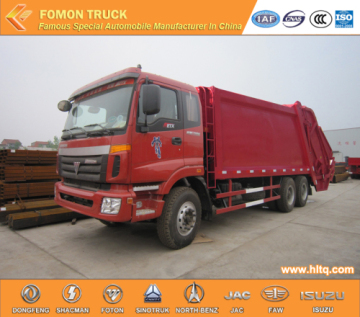

Vehicle parameters
Vehicle Model HLW5253ZYSE Vehicle Brand FOMON
Overall dimensions 9450×2480×2900
10200×2500×3500mm Curb weight 13705kg
Loading capacity 16/20m3


Chassis parameters
Chassis model EQ5253GFJ2 Chassis brand DONGFENG
Overall dimensions 9565x2470x2850mm Wheel base 4350+1300mm
Front/rear wheel track 1940/1860/1860mm Front/rear suspension 1245/2670mm
Approach/departure angle 28/15° Maximum speed 85km/h
Chassis Manufacturer Dongfeng Motor Corporation
Cab Configuration A row and a half deluxe cab(with sleeping berth),allowable 3 passengers
Color Red,other color is optional
Engine Model B210 33
Emission Euro 3
Type 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
Rated power 210hp,rated power speed 2500rpm
Displacement 5900ml
Max.torque 700N.m
Bore x stroke 102x120mm
Manufacturer Dongfeng Cummins Engine Co., Ltd.
Tire Size 10.00-20 nylon tire
Number 10+1 nos
Frame 280×80×(7+5)mm
Fuel tank 200L,steel
Front axle 5.0T
Rear axle 10.0T
Drive form 6X4
Rated voltage 24V,DC
Transmissions Gearbox 8JS118, 8 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Air Conditioner,steel wire tire,wheel base 4750+1300mm,engine YC6A240-33(240hp),new driver`s cab
If there is a slight change in the chassis parameters above,please take the actual product as the standard

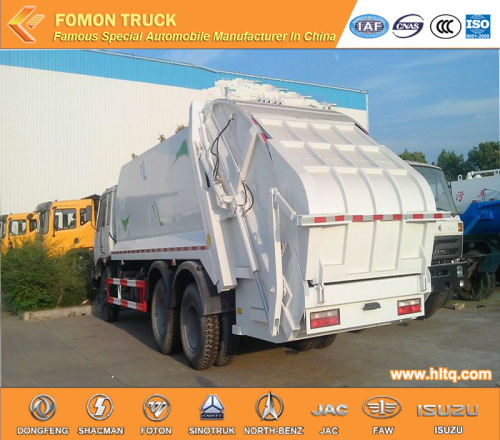

Refuse compactor structure parameters
Equipment
Structure Body, sub frame, lifting rear part, the loading device, the pushing-out plate, hydraulic and electric systems
Loading capacity 16/20m3
System of loading Mechanized, rear loading
Modes of the pressing Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic
Body
Version All-metal
Shape arc-shaped
Sidewalls Sheet carbon steel (thickness: 4 mm)
Bottom Sheet carbon steel (thickness: 5 mm)
Roof Sheet carbon steel (thickness: 4 mm)
Front frame Sheet carbonaceous steel (thickness: 5 mm)
Rear frame П-shaped profile from sheet carbon steel (thickness:5 mm)
Basis 120х120mm (thickness: 5 mm)
Loading bunker
Loading bunker All-metal with sidewalls and a loading ladle
Volume 1.5/1.8 m3
Sidewalls Sheet carbon steel (thickness: 4 mm)
Ladle floor material Sheet carbon steel (thickness: 5 mm)
Liquid drain Drainage channel,sewage tank
Working zone Lighting 2 lamps
Mechanism of raising Two hydraulic cylinders
Ensuring tightness Between the body and lifting back part in the lower part profile acid-proof rubber is used.
Pressing system
Features Control mode diversification,bidirectional compression
Pressure 16Mpa
Compaction ratio 3.0:1
Loading cycle 25-30 second
Unloading cycle 15-20 second
pressing mechanism The giving plate and  hinge related pressing plate moving on two directing bars
Pressing mode Automatic pressing
(1 full cycle and continuous pressing) and controlling of each cycle of pressing separately
Control of  pressing Control from the external panel on the bunker
Lifting rear part
Mechanism of lifting Two hydraulic cylinders
Function description Suitable for various rubbish bins
Others
Color and Logo Optional
Standard configuration Chassis,arc-shaped body,sub frame,rear lifting part,loading bunker,pushing-out plate,hydraulic system,pressing system,sewage tank,climbing ladder,pneumatic control.
Selective configuration PLC electric automatic control,multifunctional rear lifting part,rear handrail and footplate,other shapes of body,rear swing arm,and etc.
