Waste Collection Skip Loader Bin Washing Compactor Truck
Contact Now
Description
产品描述

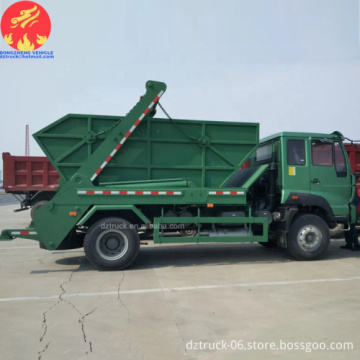

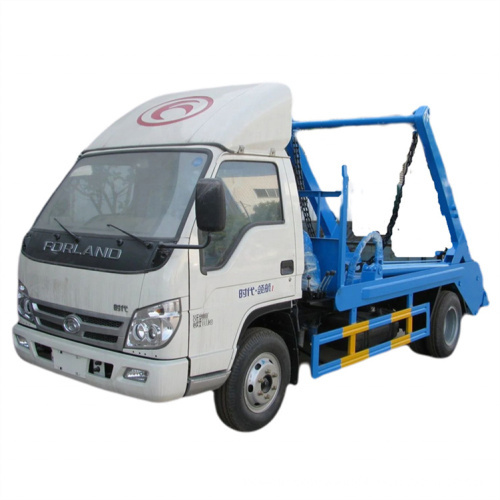

2 axles underground dustbin using hydraulic arm garbage trucks on sale
Factory making , factory sale ,
factory price , factory aftersales service
产品描述
| Reference Information | ||
| Truck name | Dustbin using hydraulic swing arm skiploader garbage trucks | |
| Chassis brand | HOWO, SHACMAN,1SUZU, DFAC, KAIMA, FOTON, FAW, Hongyan, etc. | |
| Wheel base (mm) | 3300, 3308, 3800, 3950, 4200, 4500, 4700, 5000, etc. | |
| Emission standard | Euro II, Euro III, Euro IIII, Euro V, Euro IV | |
| Gross Vehicle Weight (kg) | 3 - 25 | |
| Drive model | 4x2, 4x4, 6x4, 6x4 | |
| Cabin | Single Or Double Row, LHD/RHD, with air condition. | |
| Number of Passengers | 2 - 3 person | |
| Fuel type | Diesel or Gasoline | |
| Engine power | 70 - 280 hp | |
| Tire | 9.00R20, 10.00R20, 6pc with 1 spare tire | |
| Upperstructure Specification | ||
| Dump type | Hydraulic cylinder lifting and self-loading | |
| Dump angle | ≥45° | |
| Hydraulic system pressure | ≤16Mpa | |
| Protective Material | Q235A Carbon Steel | |
| Other Configuration |

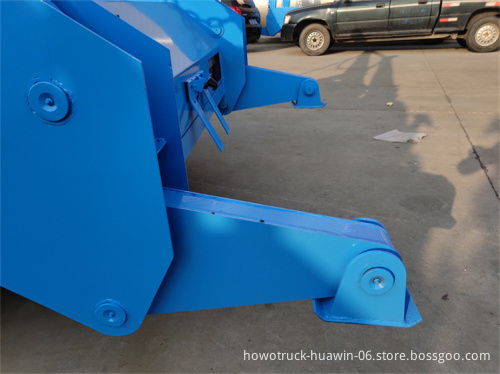

Reinforced hydraulic swept-body system, with Double hydraulic cylinder |
|
| Swing Arm, Chain. | ||

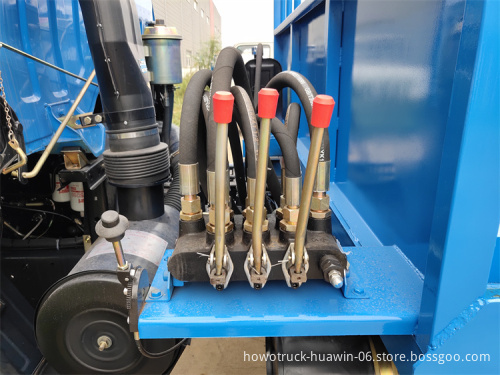

| Hydraulic multi-way valve control. | ||
| Options |
Electronically controlled valve, trash bin type, trash bin quantity, etc. |
|
| Garbage Hopper | ||
| Dimension |
2500x1650x850, 3170x1650x1250, 3700×1850×1400mm, 4200x1800x1500, the shape can be adjusted as per special request. |
|
| Standard Configuration | With one garbage bin, with hydraulic rear outrigger | |
| Volume | Ground type, 3-8CBM | |
| Loading Capacity | 3/4/5/6/8/10/15/18 Ton | |
| Thickness | 3/4/5mm, Carbon Steel Q235B | |
We can provide you matched garbage bins .One truck can match different quantity garbage bins
