Performance and purpose

Our company is a professional refuse compactor manufacturer in China. Supply ability of refuse compactor is 300 units per month. welcome to our company to purchase the refuse compactor.

Vehicle parameters

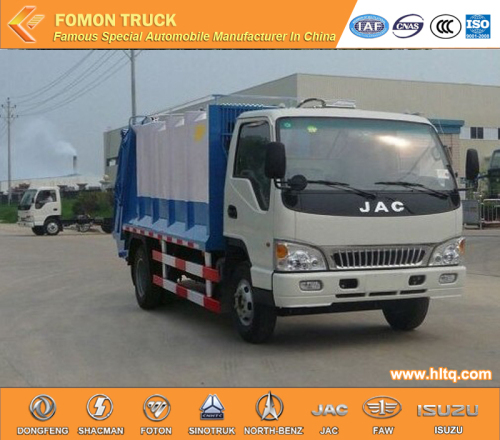

Vehicle Model HLW1081ZYSZ38 Vehicle Brand FOMON
Overall dimensions 7150×2450×2950mm Curb weight 6705kg
Loading capacity 6m3

Chassis parameters
Chassis model HFC1081P91K1C5 Chassis brand JAC
Overall dimensions 6810x2069x2220mm Wheel base 3815mm
Front/rear wheel track 1665/1600mm Front/rear suspension 1085/1910mm
Approach/departure angle 24/15° Maximum speed 95km/h
Chassis Manufacturer Anhui Jianghuai Automobile Co., Ltd
Cab Configuration Single row cab, air brake, skylight,ABS
Color Red, other color is optional
Engine Model CY4102-CE4B
Emission Euro 4
Type Electronically controlled high pressure common rail diesel engine, 4 cylinder inline, Turbocharged medium cooling
Rated power 136hp, rated power speed 2800rpm
Displacement 2672ml
Max.torque 420N.m
Bore x stroke 102X118mm
Manufacturer Dongfeng Chaoyang Diesel Power Co. Ltd.
Tire Size 825-16 Nylon tire
Number 6+1 nos
Fuel tank 150L iron oil tank
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V, DC
Transmissions 6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Air conditioner
If there is a slight change in the chassis parameters above, please take the actual product as the standard

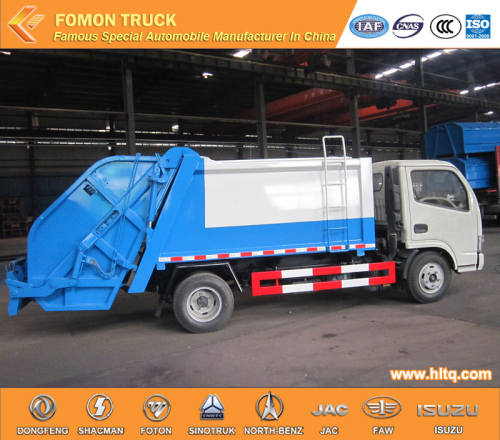

Refuse compactor structure parameters
Equipment
Structure Body, sub frame, lifting rear part, the loading device, the pushing-out plate, hydraulic and electric systems
Loading capacity 6m3
System of loading Mechanized, rear loading
Modes of the pressing Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic
Body
Version All-metal
Shape arc-shaped
Sidewalls Sheet carbon steel (thickness: 3 mm)
Bottom Sheet carbon steel (thickness: 4 mm)
Roof Sheet carbon steel (thickness: 4 mm)
Front frame Sheet carbonaceous steel (thickness: 5 mm)
Rear frame П-shaped profile from sheet carbon steel (thickness:5 mm)
Basis 120х120mm (thickness: 5 mm)
Loading bunker
Loading bunker All-metal with sidewalls and a loading ladle
Volume 0.9 m3
Sidewalls Sheet carbon steel (thickness: 3 mm)
Ladle floor material Sheet carbon steel (thickness: 4 mm)
Liquid drain Drainage channel,sewage tank
Working zone Lighting 2 lamps
Mechanism of raising Two hydraulic cylinders
Ensuring tightness Between the body and lifting back part in the lower part profile acid-proof rubber is used.
Pressing system
Features Control mode diversification,bidirectional compression
Pressure 16Mpa
Compaction ratio 3.0:1
Loading cycle 25-30 second
Unloading cycle 15-20 second
pressing mechanism The giving plate and  hinge related pressing plate moving on two directing bars
Pressing mode Automatic pressing
(1 full cycle and continuous pressing) and controlling of each cycle of pressing separately
Control of  pressing Control from the external panel on the bunker

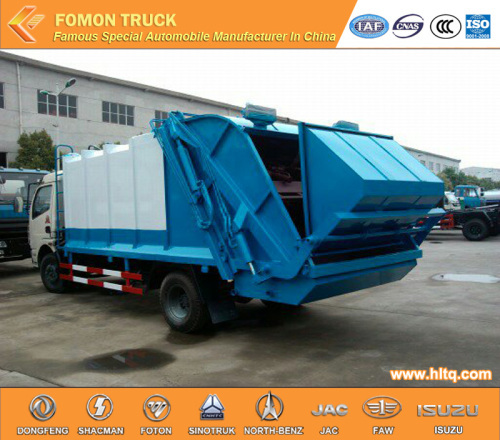

Lifting rear part
Mechanism of lifting Two hydraulic cylinders
Function description Suitable for various rubbish bins
Others
Color and Logo Optional
Standard configuration Chassis,arc-shaped body,sub frame,rear lifting part,loading bunker,pushing-out plate,hydraulic system,pressing system,sewage tank,climbing ladder,pneumatic control.
Selective configuration PLC electric automatic control,multifunctional rear lifting part,rear handrail and footplate,other shapes of body,rear swing arm,and etc.
