Product ID: 66680193

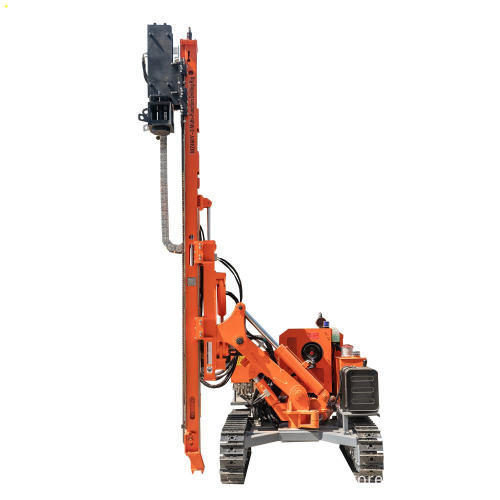

Crawler Type Hammer Pile Driver For Solar Park
Contact Now
Description
产品描述
We Taian Longye Import And Export Trade Co.,Ltd is an integrated set of manufacturing and export company with ShanDong LongYe Machinery Co.,Ltd, we are China No.1 solar ground pile Piling Machines manufacturer that cover more than 60% in Chinese solar market, and we exported to Russia, Kenya, Brazil, India , Japan, Malaysia, USA, Germany, Spain and more than 60 countries...
|
impact frequency（bpm） |
450--800 |
|
impact(j) |
1300 |
|
work pressure(bar) |
130---150 |
|
Bore diameter(mm) |
70~160 |
|
Bore depth(m) |
30 |
|
Air consumption(m³/min) |
8--16 |
|
Air pressure(Mpa) |
0.7—1.6 |
|
Once promotion(mm) |
4100 |
|
Maximum ramming length（mm） |
6000 |
|
Skid pitch(°) |
95 |
|
boom swing angle(°) |
110 |
|
Boom pitch(°) |
30° |
|
Swinging angle of skid(°) |
left and right total 40 |
|
host power(KW) |
84 |
|
Climb ability(°) |
35 |
|
Dimension（L*W*H)(mm) |
6240*2250*3000 |
|
weight(Kg) |
7350 |
|
Walk speed(km/h) |
0--2.5 |
