Best price pile driver for rent
Description
产品描述
Best price pile driver for rent

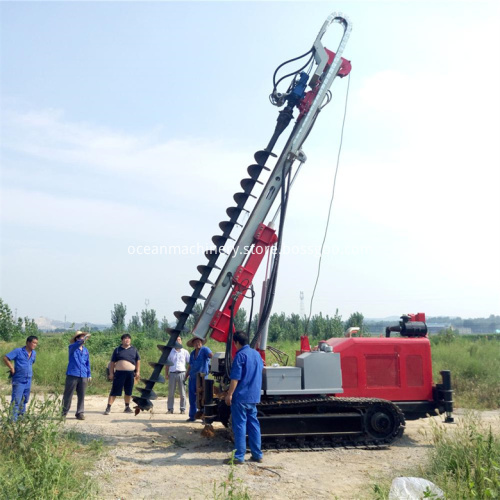

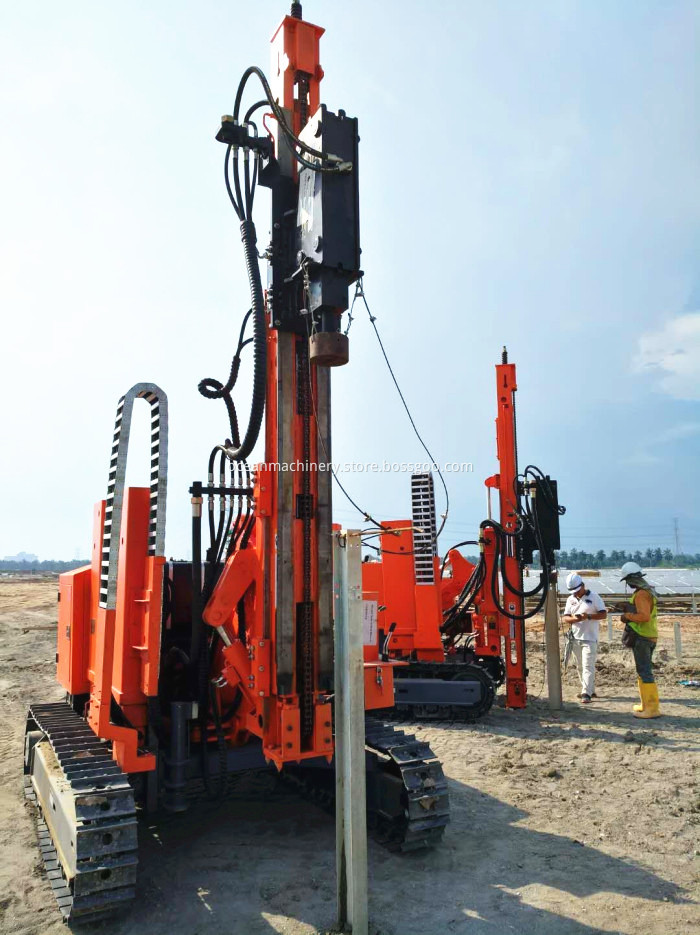

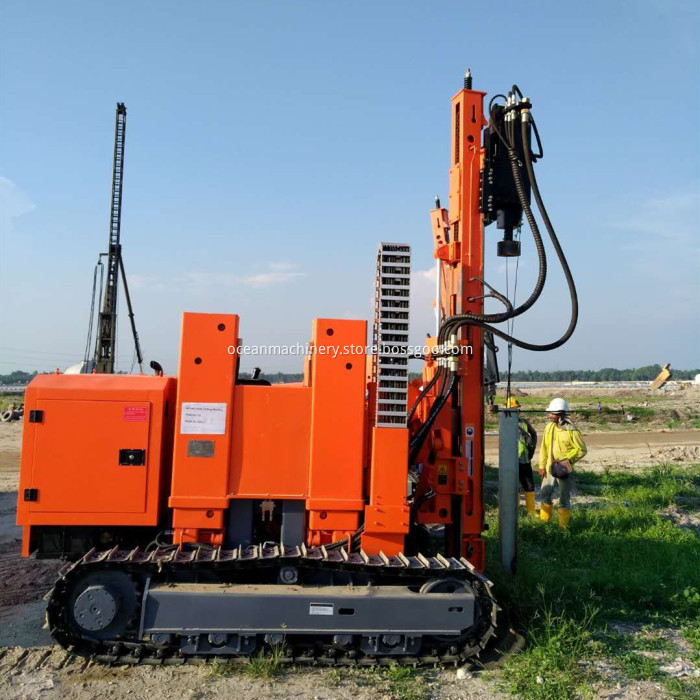

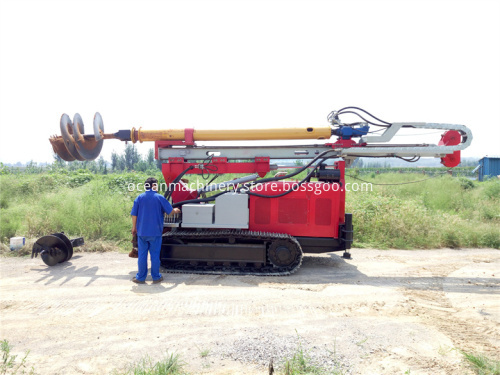

Hot sale solar pile post driving machine for mountain pile post hole drill, adopts unique construction technology and climbing mechanism design, which can be adjusted according to the slope height, suitable for maximum 45 degrees slope solar engineering construction, this equipment is capable for all kinds of PV constructional technologies: screw pile drilling, spiral hole drilling, rock DTH hammer, ramming pile and so on, the machine hydraulic parts adopt imported original parts, greatly improving the performance and stability of the equipment; machine has compact structure, and mast has telescopic compensation function, during working the mast are supported on the ground, it has high borehole stability .
Hot sale solar pile post driving machine for mountain pile post hole drill has reliable performance, high efficiency, multifunctional applications.Hot sale solar pile post driving machine for mountain pile post hole drill is currently the strongest mountainous solar drilling rig in China !
| Piling diameter (screw) | 400-1000 mm |
| Piling depth(screw) | 14 m |
| Bore diameter (DTH Hammer) | 115-400mm |
| Bore depth | 400m |
| Installed power | 92 kw |
| Pull-down force | 2400 kg |
| Extraction force | 9500 kg |
| Rotation torque | 11000 NM |
| Double clamps minimum diameter | 100 mm |
| Winch line pull (effective) | 2500 kg |
| Drum diameter | 250 mm |
| Rope diameter | 12 mm |
| Crawlers overall length | 2800 mm |
| Track shoe width | 380 mm |
| Overall width | 2100 mm |
| Dimension (L*W*H)) | 6500*2100*3000 |
| Total weight(kg) | 9600 kg |
