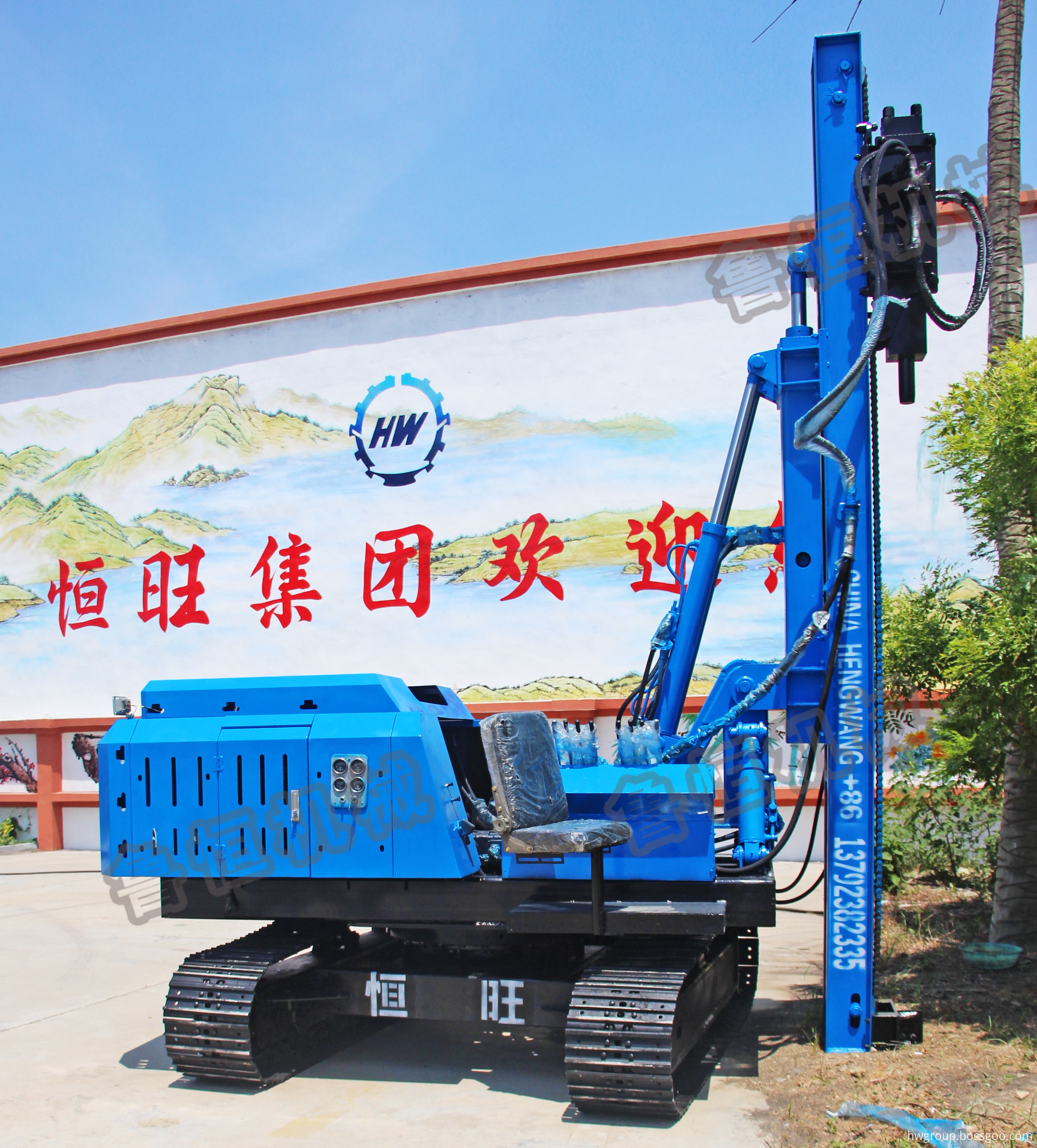

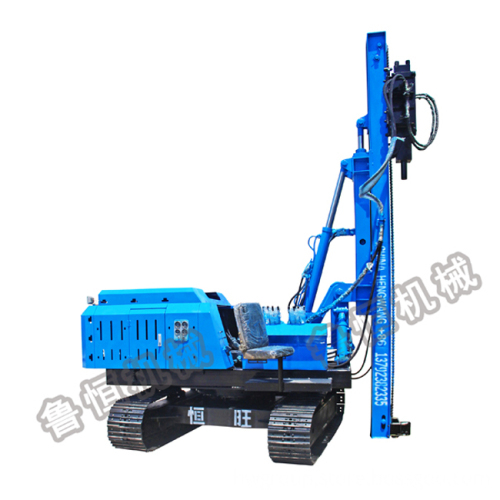

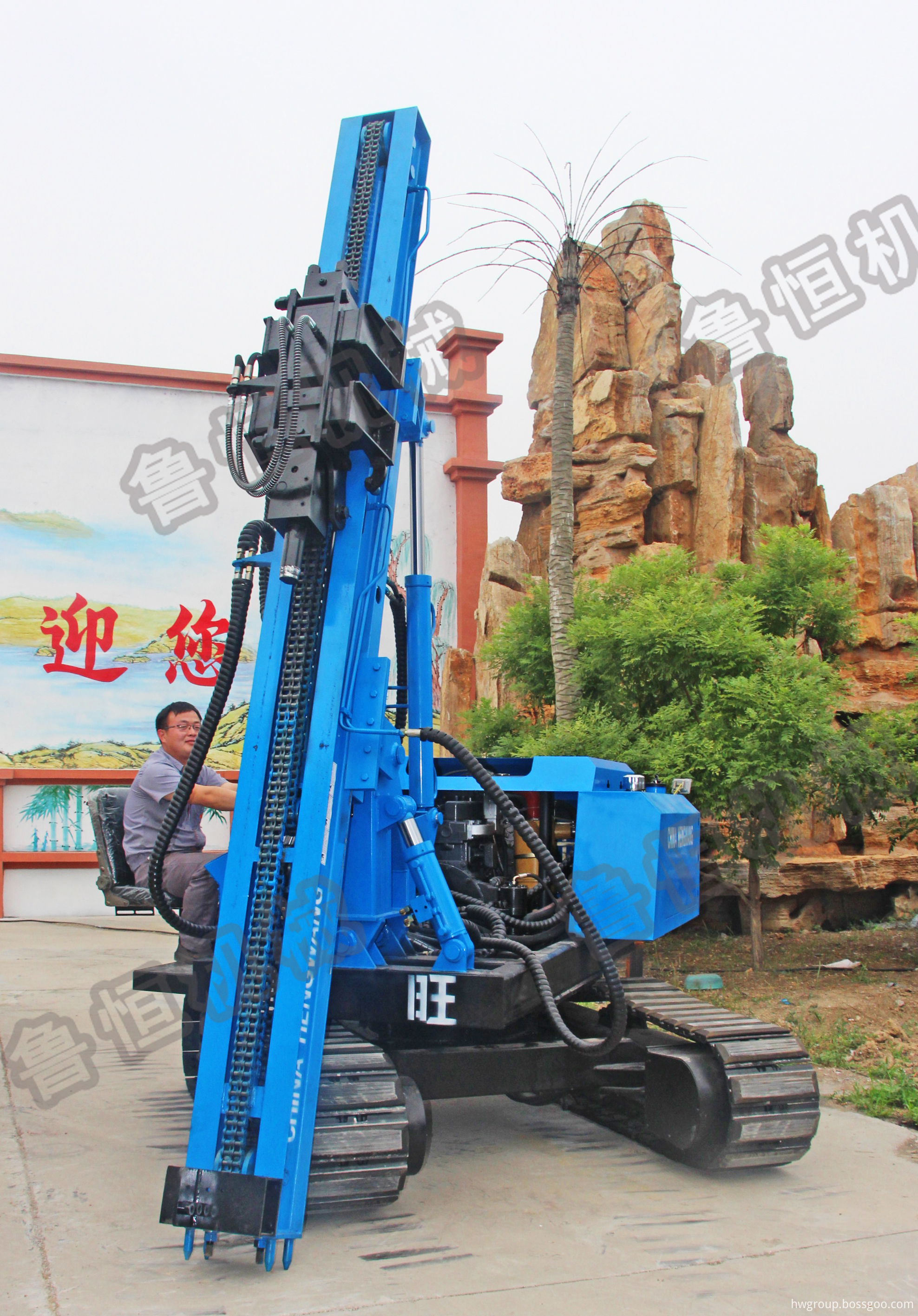

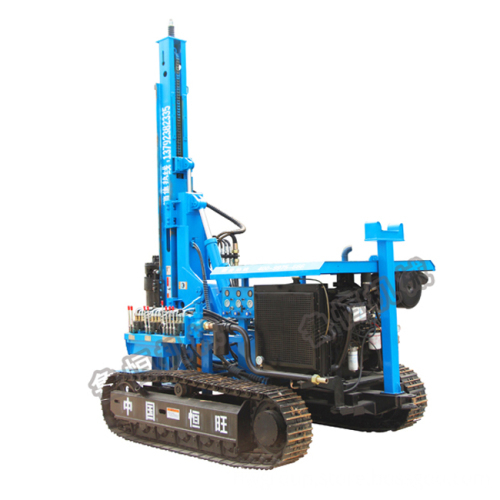

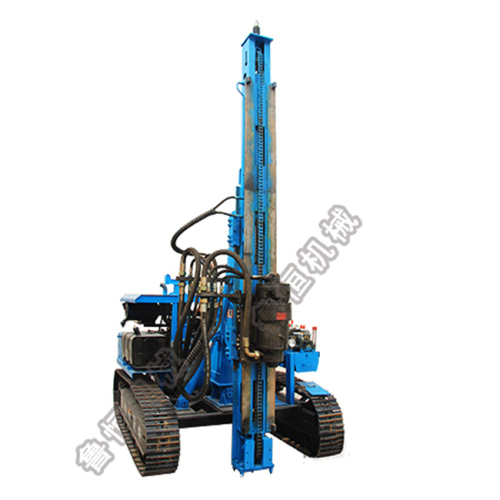

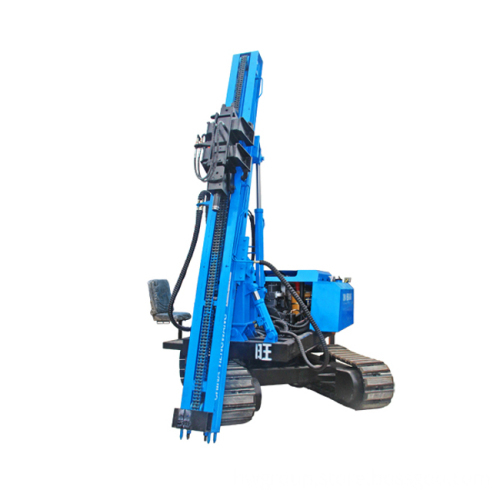

photovoltaic press pile driver machine
Description
产品描述

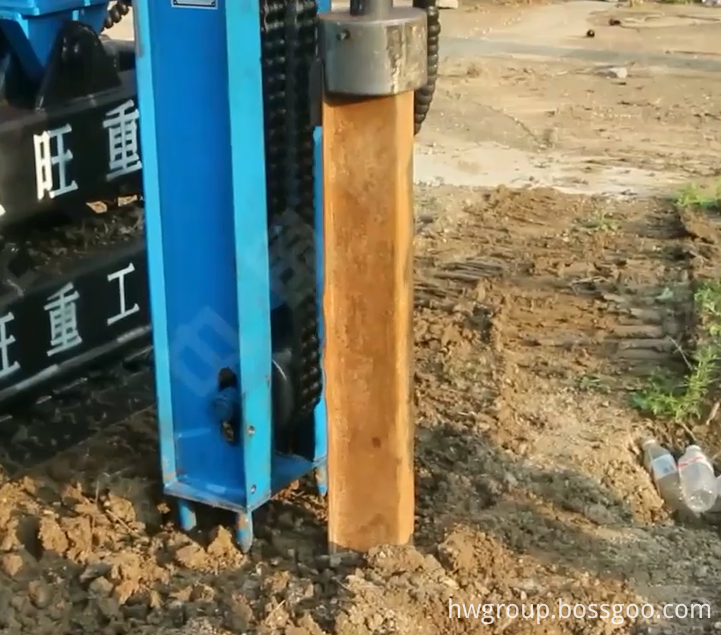

The hydraulic pile driver applied in high-speed way, highway soft foundation treatment, reclamation and bridge, dock engineering, deep foundation pit support, and basic treatment of ordinary buildings. The Photovoltaic Pile Driver is a domestically produced hydraulic pile driver with advanced foreign technology and independent intellectual property rights. The Hydraulic Photovoltaic Pile Driver has superior performance. The hydraulic power station is used as the hydraulic power source. The vibration box generates high-frequency vibration, so that the pile can easily penetrate into the soil layer. Low noise, high efficiency, no pollution, no damage to piles and so on.
Parameters of Photovoltaic Solar Pile Driver :
|
型 |
HWZGX-390L |
|
Hammer Model |
390 |
|
stroke m |
5m |
|
Duplex gear pump pressure(mpa) |
20 |
|
Rod Diameter /mm |
0-400 |
|
Duplex gear pump displacement(ml/r) |
40 |
|
Hydraulic system pressure(mpa) |
20 |
|
Overall Machine weight /T |
6.3 |
|
Rotation angle /° |
360 |
|
Diesel engine (kw) |
80 |
|
Dimension(LXWXH)/mm |
5150*2150*2700 |
|
Track shoe (mm) |
350 |
|
Walking motor total emissions(ml/n) |
1575 |
|
Walking motor rotation (r/min) |
50 |
