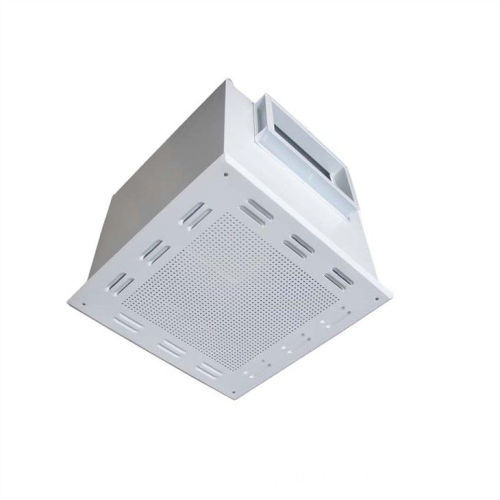

High Efficiency Air Outlet
Description
产品描述
The high efficiency air outlet is the ideal terminal filtration device for 100, 1000, 10,000 and 100,000 level purification and air conditioning systems, and can be widely used in the clean room purification and air conditioning systems of the pharmaceutical, health, electronic and chemical industries.
The high efficiency air outlet is used as a terminal filtration device for the renovation and new construction of clean rooms of 100-300000 levels, and is the key equipment to meet the purification requirements.

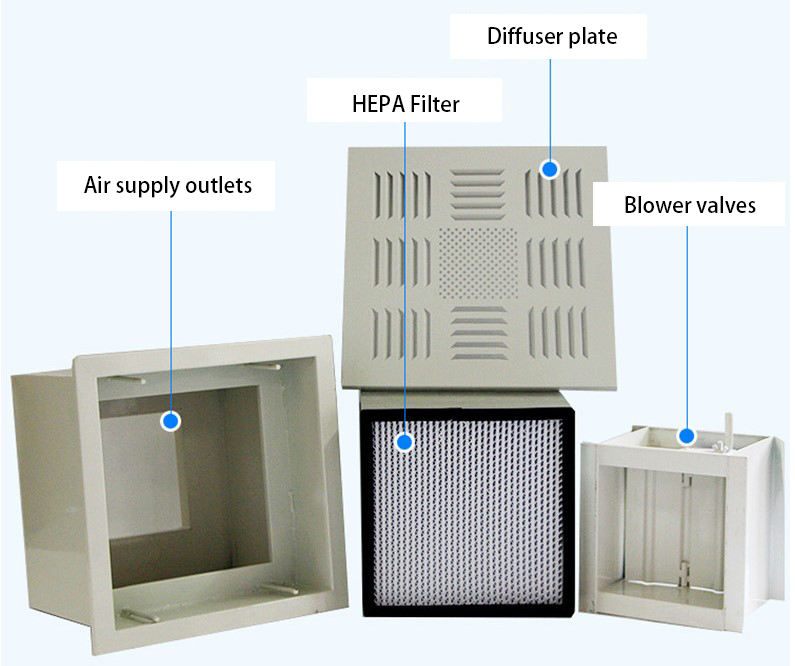

The high efficiency air outlet contains static pressure box, diffuser plate, high efficiency filter, and the interface with the air duct can be top or side connection.
|
型 |
Air flow (m³/h) |
Top inlet duct type Box dimension(mm) |
Side inlet duct type Box dimension(mm) |
HEPA filter Dimension (mm) |
Inlet duct Dimension (mm) |
|
GKF-5A |
500 |
465×465×280 |
465×465×450 |
400×400×95 (Top gel sealing ) |
200×200 |
|
GKF-10A |
1000 |
615×615×280 |
615×615×450 |
550×550×95 (Top gel sealing) |
200×320 |
|
GKF-15A |
1500 |
695×695×280 |
695×695×450 |
630×630×95 (Top gel sealing) |
250×320 |
|
GKF-20A |
2000 |
675×980×280 |
675×980×450 |
610×915×95 (Top gel sealing) |
250×500 |
|
GKF-5B |
500 |
500×500×280 |
500×500×450 |
430×430×90 (Side gel sealing) |
200×200 |
|
GKF-10B |
1000 |
680×680×280 |
680×680×450 |
610×610×90 (Side gel sealing) |
200×320 |
|
GKF-15B |
1500 |
985×680×280 |
985×680×450 |
915×610×90 (Side gel sealing) |
200×400 |
|
GKF-20B |
2000 |
1290×680×280 |
1290×680×450 |
1220×610×90 (Side gel sealing) |
200×500 |
|
GKF-30B |
3000 |
1290×985×280 |
1290×985×450 |
1220×915×90 (Side gel sealing) |
200×600 |
According to the shape of the diffuser plate: it can be divided into three types- orifice plate, orifice plate with strip slits and radiating strip slit plate.
According to the form of sealing: basically, they can be divided into two types of positive pressure sealing (liquid groove, rubber strip) and negative pressure sealing.
According to the regulating valve adjustment mode: it can be divided into two kinds of up-regulation and down-regulation.
By whether or not it contains a PAO aerosol detection port: it can be divided into two types: with and without detection port.
According to the shape of the interface: it can be divided into two kinds: round interface and square interface
According to the position of the flange interface: can be divided into two kinds of top connection and side connection.
Application
A wide range of applications.
Widely used in the food industry, pharmaceutical industry, electronics industry, research experiments, photovoltaic industry, operating theatres, etc.
