Overview

Product Description

FOUR-PIPE HEAT RECOVERY AIR-COOLED HEAT PUMP The four-pipe heat recovery air-cooled heat pump module unit is composed of one or more modules, each of which has its independent electronic control unit, and the electronic control units of each module exchange information through a communication connection. The module has both cooling and heating capabilities, and is equipped with a combined cooling and heating mode, a separate cooling mode, and a separate heating mode. It can automatically balance the output according to the cooling and heating needs of the building. The module is a completely independent integrated unit designed for outdoor (rooftop or ground) installation. Each module includes a high-efficiency, low-noise scroll compressor, a high-efficiency air-side heat exchanger, a high-efficiency water-side heat exchanger, a high-efficiency heat recovery heat exchanger, and a microcomputer control center. It can be widely used in new and renovated large and small industrial and civil building air-conditioning projects, such as hotels, apartments, office buildings, hospitals, industrial plants, and other types of buildings.

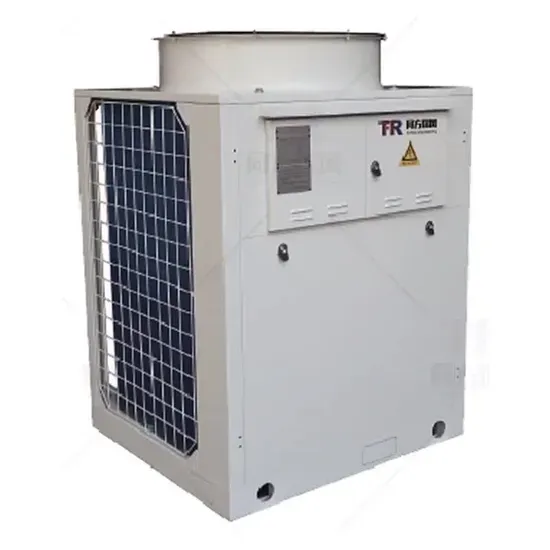

Detailed Photos

The series significantly reduces installation complexity and time with its all-in-one design, ensuring a clean and efficient environment for critical healthcare operations. With ultra-low noise levels and sophisticated air filtration, it prioritizes patient safety and comfort without compromising on performance. The intuitive touchscreen control interface simplifies operation, empowering healthcare staff to maintain optimal conditions effortlessly.

Specification

TECHNICAL PARAMETERS
Product Name: Four-Pipe Heat Recovery Air-Cooled Heat Pump
Keywords: Industrial Air Conditioner
Thickness: 860-2160mm
Suitable Temperature: 5-38 ℃
Certification: TUV, AHRI, ISO
Overbottom Pressure: 400-750pa
Installed Power: 8.3-39.2kw
Control: Automatic, 7 Inches Touch Screen
Air Volume: 6000-30000m/3/h
Transport Package: Film/Wooden Package
Outside Panel Material: 30/50mm Double Skin, Foaming Material
Inside Panel Material: Al-Zn Alloy Coated Steel Plate
Filter: 3-Stage G4+F8+H10

HIGHLY INTEGRATED DESIGN: Combines multiple functionalities—air conditioning, purification, and humidification—into a single unit for ease of installation and operation.
SUPERIOR AIR QUALITY ASSURANCE: Advanced three-stage air filtration and UV sterilization features ensure clean air delivery, essential for maintaining a sterile environment in healthcare settings.
COMPACT AND SPACE-SAVING: The ultra-slim structure allows for minimal space usage in crucial areas, making it ideal for environments where every inch counts.
USER-FRIENDLY OPERATION: Equipped with a large touchscreen interface, the system provides easy control over temperature, humidity, and air quality parameters, enhancing operational efficiency in high-pressure medical settings.

FAQ

• Q1: Are you a factory or a trader?
  A: We are a manufacturer integrating industry and trade. Welcome to visit our company.
• Q2: Can I add my LOGO to the product?
  A: We support on-demand customization, including LOGO customization, color customization, appearance size customization, etc.
• Q3: What payment methods do you support?
  A: We support T/T, Western Union, PayPal, cash, etc. The details can be negotiated.
• Q4: What are your modes of transportation?
  A: We usually choose the appropriate mode of transportation (sea, air, land) according to the conditions of the goods, or we can choose the mode of transportation according to your requirements.
• Q5: How can I get an accurate quotation?
  A: You can first send your specific demand information and product pictures, and we will customize a solution for you according to your needs and inform you of the specific price.
