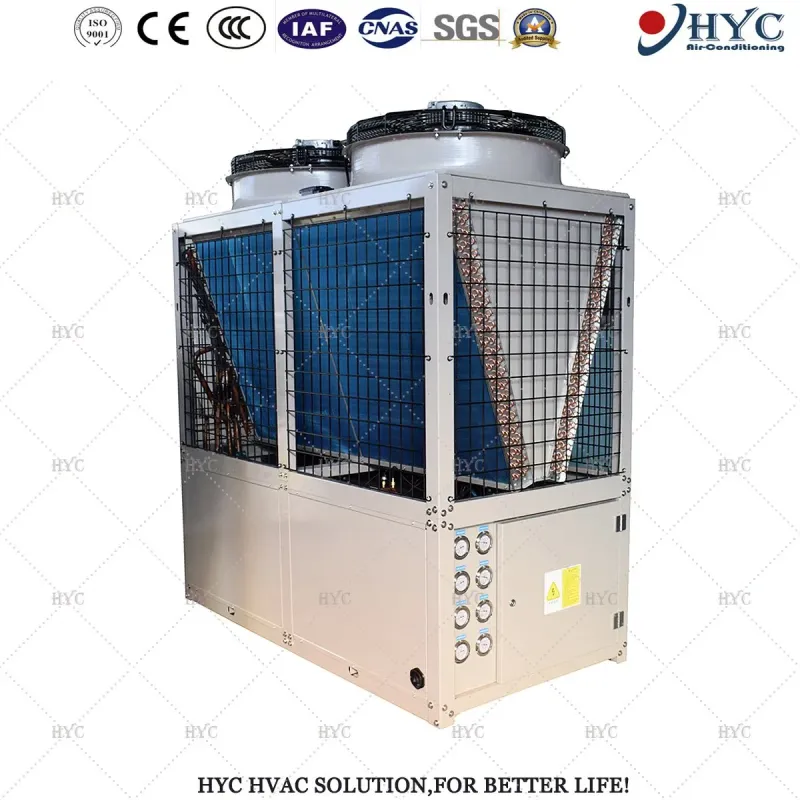

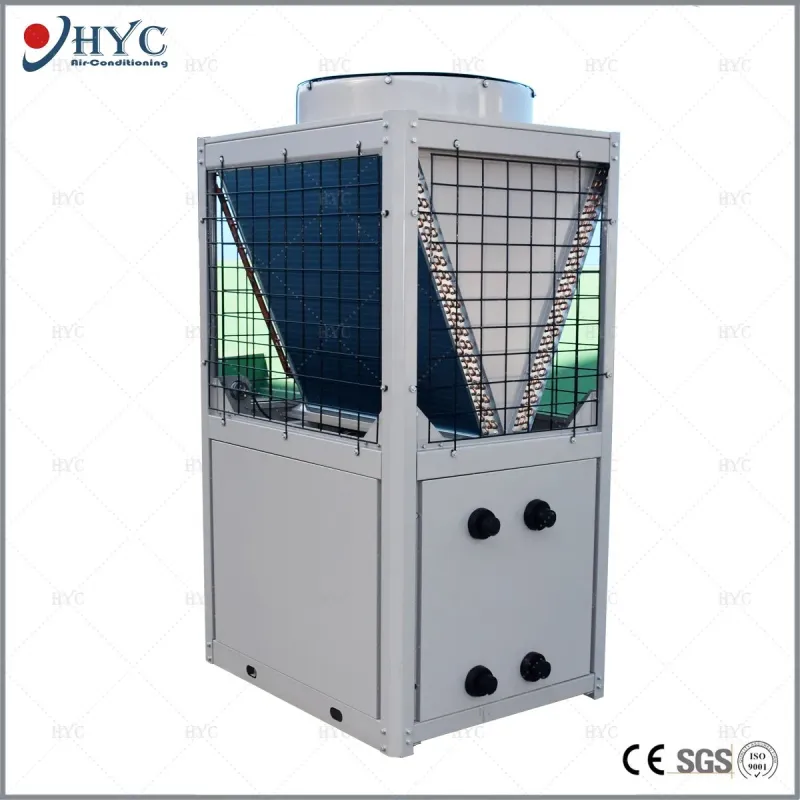

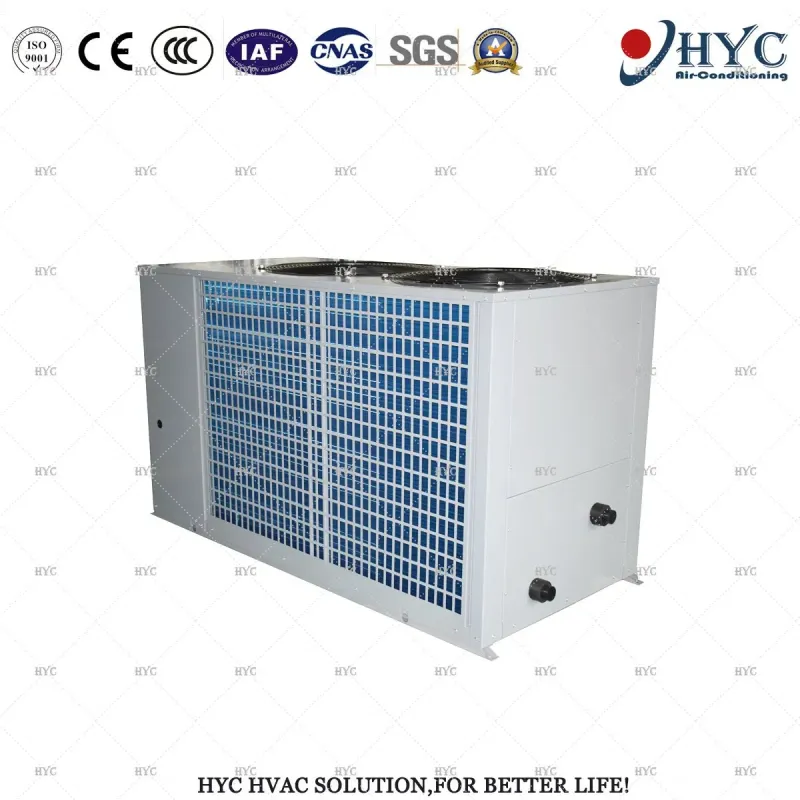

Evi Air Source Chiller Heat Pump with Gas Heat Recovery
Contact Now
Description
Basic Info.
Model NO.
HCA
Heat Source Type
Air Source Heat Pump
Color
Whilte/Optional Other Colors
Delivery Time
30days
Tailor Made
Avaiable
OEM/ODM
Avaiable
Capacity
65-130kw
Refrigerant
R22/R407c/R410A/R134A
Compressor Type
Scroll
Transport Package
Film/Wooden Package
Trademark
OEM/ODM/HYC
Origin
China
Production Capacity
5000sets
Packaging & Delivery
Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
1.000kg
Product Description
HYC Air to Water Heat Pump System
A Higher Level of Comfort
HYC heat pump unit delivers Year-round comfort with exceptional efficiency to design a complete
Heat pump system for any building.Whether removing heat and humidity from the air to keep you
cool,or drawing heat indoors to keep you warm.

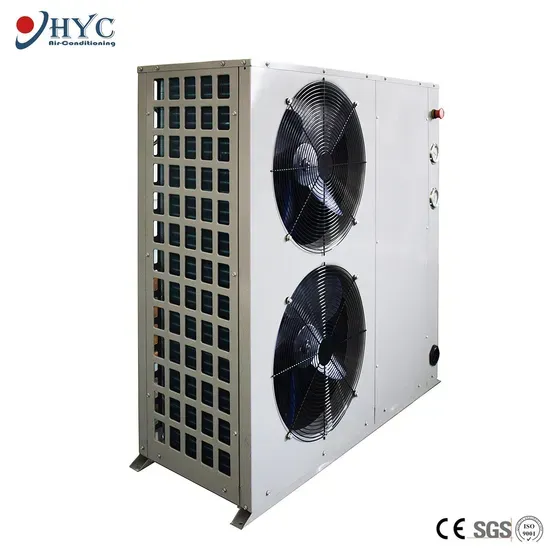

DC Inverter Air Source Heat Pump
DC Inverter heat pump refers to the inverrter compressor.The most common types of compressors are the fixed speed compressor. The fixed speed will run at 100% of its capacity and will stop and start automatically to maintain the desired temperature. An inverter compressor will vary its speed in order to maintain a consistent temperature. They convert the AC power into DC to all the control of the outdoor unit compressor speed. This gives the unit better accuracy to provide a constant temperature and less energy wastage.
Comparison with non-frequency conversion Heat Pump:
More comfortable
With a wider range of temperatures modes for heating and cooling,the inverter is able to operate in even the most extreme outdoor temperatures.An inverter compressor can also operate faster than non-inverter air conditioners thus allowing the air conditioners to reach the set temperature faster and bring you comfort sooner.
More Comfortable
When the air conditioner is initially activated to either heat or cool,the compressor will operate at maximum speed to reach the desired temperature is achieved,unlike non-inverter air conditioners that turn the compressor on and off,inverter units adjust and constantly vary the compressor speed to maintain the desired temperature with minimal fluctuation to ensure that your comfort is not compromised.
More Energy-efficient
Compressor and motor speed in non-inverter type air conditioners remains constant and temperature is adjusted by turning the compressor and more ON and OFF,which consumes more energy.In inverter type air conditioners,temperature is adjusted by changing compressor frequency/motor speed without turning them ON and OFF.Therefor,the power loss of the inverter air conditioner is smaller,with can increase energy efficiency by about 35%.
More Economics
All inverter systems are engineered and manufactured,ensuring performance.reliability,and efficiency.The increased efficiency and operation of our inverter systems reduce the wear tear on the compressor,contributing to durability and longevity of the system.
With a wider range of temperatures modes for heating and cooling,the inverter is able to operate in even the most extreme outdoor temperatures.An inverter compressor can also operate faster than non-inverter air conditioners thus allowing the air conditioners to reach the set temperature faster and bring you comfort sooner.
More Comfortable
When the air conditioner is initially activated to either heat or cool,the compressor will operate at maximum speed to reach the desired temperature is achieved,unlike non-inverter air conditioners that turn the compressor on and off,inverter units adjust and constantly vary the compressor speed to maintain the desired temperature with minimal fluctuation to ensure that your comfort is not compromised.
More Energy-efficient
Compressor and motor speed in non-inverter type air conditioners remains constant and temperature is adjusted by turning the compressor and more ON and OFF,which consumes more energy.In inverter type air conditioners,temperature is adjusted by changing compressor frequency/motor speed without turning them ON and OFF.Therefor,the power loss of the inverter air conditioner is smaller,with can increase energy efficiency by about 35%.
More Economics
All inverter systems are engineered and manufactured,ensuring performance.reliability,and efficiency.The increased efficiency and operation of our inverter systems reduce the wear tear on the compressor,contributing to durability and longevity of the system.
FEATURES
CAPACITY RANGE
Capacity ranging from 2.5Ton to 640Ton
Cooling performance: -5~50ºC
Heating performance: -25~24ºC
EASY INSTALLATION
It is supplied as a complete package ready for operation, with no extra controls or other items to be installed. The units have a single power point entry with simple connections.
Quick start-up is assured once installation is completed, as each unit is manufactured in an ISO9001:2000 listed facility to guarantee quality. All units are tested at the factory to provide reliable start up.
HIGHLY QUALITY COMPONENTS AND RELIABLE PERFORMANCE
DC inverter type compressor and high quality world known brand cooling parts, which ensures units' reliable performance.
STRUCTURE
Panels and base frame are made from galvanized steel protected with polyester powder painting to ensure total
resistance to atmospheric agents.
HERMETIC COMPRESSOR
The units use high efficiency, hermetically sealed, compressors, oil return lubrication and rubber vibration damper. The thermal overload cut-out, phase sequence relay and crankcase heater are integrated as the security
protection to enhance reliability and performance.
AXIAL FAN
External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level
IP54, provided with a protective outlet grille.
EVAPORATOR
Evaporator built with high efficiency plate type heat exchanger, factory insulated with flexible close cell material.
CONDENSER
Condenser built with seamless internal screw thread copper tubes mechanically expanded into blue wave hydrophilic aluminum fins.
HYDRAULIC CIRCUIT
Hydraulic circuit built with galvanized pipe, complete with water discharge connection for tube in tube heat exchanger and flange type hydraulic connectors in two directions easy for connections from both sides of the units.
ELECTRIC PANEL
Electric panel consist of: Compressor contactor, fan motor contactor, compressor protection breaker, fan protection breaker, phase sequence relay and microprocessor with function display (display only for master/packaged unit) Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.
OPTIONAL
• Pressure differential/Flow switch;
• Metallic filter for hydraulic circuit;
• Water pump;
• Rubber anti-vibration mounting..
• BMS
• Stainless steel covering
| Model | 8 | 10 | 12 | 14 | 20 | 25 | 30 | 35 | 40 | 50 | |
| Power supply | / | 220-240V/1Ph/50Hz | 380-415V/3Ph/50Hz | ||||||||
| Cooling | |||||||||||
| Cooling capacity | kW | 8 | 10 | 12 | 14 | 20 | 25 | 28 | 35 | 40 | 50 |
| Cooling input power | kW | 3.05 | 3.85 | 4.51 | 5.13 | 7.09 | 8.61 | 10.05 | 11.27 | 13.66 | 17.18 |
| Heating | |||||||||||
| Heating capacity | kW | 10 | 12.5 | 14.7 | 16 | 22 | 27.2 | 30 | 38 | 44 | 55 |
| Heating input power | kW | 3.05 | 3.85 | 4.51 | 5.13 | 7.09 | 8.61 | 10.05 | 11.27 | 13.66 | 17.18 |
| Compressor | |||||||||||
| Qty | / | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| Input power | kW | 2.81 | 3.37 | 4.03 | 4.65 | 2x3.27 | 2x4.03 | 2x4.65 | 2x5.26 | 2x6.28 | 2x8.04 |
| Running current | A | 13.12 | 16.43 | 7.02 | 8.32 | 2x6.26 | 2x7.02 | 2x8.32 | 2x10.03 | 2x12.01 | 2x14.79 |
| Axial fan qty | / | 1 | 2 | 2 | 2 | 1 | 1 | 1 | 2 | 2 | 2 |
| Expansion type | / | thermal expansion type | |||||||||
| Evaporator | |||||||||||
| Type | / | Plate type or tank type heat exchanger | |||||||||
| Water flow | m3/h | 1.4 | 1.7 | 2.1 | 2.4 | 3.4 | 4.3 | 4.8 | 6.2 | 6.9 | 8.6 |
| Water pressure drop | kPa | 33 | 33 | 33 | 36 | 36 | 38 | 42 | 50 | 52 | 52 |
| Water pipe in/out | mm | DN25 | DN25 | DN25 | DN25 | DN32 | DN32 | DN32 | DN32 | DN32 | DN40 |
| Dimension | |||||||||||
| Length | mm | 1250 | 1250 | 1250 | 1250 | 1600 | 1600 | 1600 | 2000 | 2000 | 2000 |
| Width | mm | 452 | 452 | 452 | 452 | 940 | 940 | 940 | 900 | 900 | 900 |
| Height | mm | 1180 | 1180 | 1180 | 1180 | 1080 | 1080 | 1080 | 1080 | 1080 | 1080 |
| Net weight | kg | 150 | 155 | 150 | 180 | 282 | 310 | 339 | 310 | 470 | 520 |
| Noise | dB(A) | 58 | 58 | 60 | 64 | 64 | 66 | 68 | 70 | 70 | 70 |
| Model | 20 | 30 | 40 | ||
| Power supply | V-Ph-Hz | 380v/3ph/50hz | 380v/3ph/50hz | 380v/3ph/50hz | |
| Cooling* | |||||
| cooling capacity | KW | 65 | 97.5 | 130 | |
| cooling power input | KW | 20.8 | 31.2 | 41.6 | |
| cooling current input | A | 38.50 | 55.8 | 74.3 | |
| Heating** | |||||
| heating capacity | KW | 68 | 103 | 141 | |
| heating power input | KW | 21.5 | 32.25 | 43 | |
| heating current input | A | 38.4 | 57.6 | 76.8 | |
| Compressor | |||||
| qty | / | 2 | 3 | 4 | |
| input power | kW | 10.1*2 | 10.1*3 | 10.1*4 | |
| input current | A | 17.6*2 | 17.6*3 | 17.6*4 | |
| Condensor | |||||
| condensor coil qty | / | 3 | 4 | 5 | |
| air flow | m3/h | 12700*2 | 17800*2 | 23800*2 | |
| axial fan qty | / | 2 | 2 | 2 | |
| motor power input | KW | 0.75*2 | 1.1*2 | 1.5*2 | |
| Evaporator | |||||
| type | / | shell and tube | shell and tube | shell and tube | |
| water flow | m3/h | 11.2 | 16.8 | 22.4 | |
| water pressure drop | kPa | 38 | 38 | 38 | |
| water pipe | mm | DN50 | DN50 | DN50 | |
| Noise level | dB(A) | 60 | 74 | 78 | |
| Dimension(L*W*H) | mm | 2020*1000*1920 | 2020*1000*1920 | 2020*1000*1920 | |
| Net weight | kg | 605 | 830 | 925 | |
Qingdao Hongyu Cles Air Conditioning Co., Ltd.
Hongyu cles air conditioning(HYC) are dedicated to providing market leading innovations and new technologies that are easy-to-use solutions with the goal to always offer our client reduced energy outlay whilst empowering complete control to customize the solution for their business.
Air Source Heat Pump Production Line
Production Machinery
Test Lab
Sincerely welcome to visit our factory at your convience. Customer could witness their order production real conditions by online videos or photos at any time during production.
