Factory Supply A+++ 16-50kW Air Source Monoblock R32 All-in-One DC Inverter WiFi Thermal Pump
Contact Now
Description
Basic Info.
Model NO.
#ADC-16(HC)
Work Environment
Low-temperature Heat Pump
Heat Source
Air-source
Heating Type
Circulating Heat
Application
Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons
Certification
CE, CB, ERP
Compressor
Panasonic/Highly/Hitachi
Heating/Cooling Capacity
14kw/12kw
Water Pump
DC Type
Fan Motor
Brushless Type
WiFi
Yes, APP
Controller
Wire Panel, LCD Panel
Expansion Tank
Flate Type
Heat Exchanger
Plate Type
4-Way Valve
Sanhua
Thrittling Device
Eev
Transport Package
Polywood/CTN Box
Specification
1076*478*1334
Trademark
SumAir
Origin
Guangdong
HS Code
8418612090
Production Capacity
5000/Year
Product Description
Product Features
1. Top SCOP, Panasonic/Highly Inverter Rotary compressor and ECO R32 R290 refrigerant gas for max heat capacity for less refrigeration, large volume of latent heat from the air via evaporator in coldest season by Factory Supply Home Appliance a+++ 16-50kw Air Source Monoblock R32 All in One DC Inverter WiFi Functional Thermal Pump Water Heating Heat Pump
2. Frequency conversion technology, based on the principle of proportional relationship between the motor speed and the input frequency of the working power supply: n = 60 f(1-s)/p and changing the motor speed by changing the working power frequency of the motor, it adopts AC-DC-AC power conversion technology, relying on our powerful controll system with PWM generation ability, integrate V/F, vector control (VC) and direct torque control (DTC) to achieve the control method of variable frequency PID calculus, mainly drive variable frequency by way of PWM synthesis drive, fully integrate power, electronics, microcomputer control and other technologies.
3. SUMAIR Operating System, ultra intelligent, especially superior heat dissipation circuit board design, longer service, over 3-time of other brand's, simple click and fully play the characteristics of DC inverter frequency conversion system to achieve overlocking performance.
4. Multi-speed mute fan motor, ROHS fan blades, ultra-low noise, durable & reliable, constant max air flow to satisfy heat supply.
5. Danfoss EEV, HUALU 4-way valves, LG AC contactor & other World famous brand components ensure heat pump water heater achieve House Heating, Air Cooling and domestic hot water heating for daily use.
6. High-tech shock-absorption all copper construction piping, high-accurate completely automatic silver welding, easy maintenance.
7. High-density protective jacket for minimum heat lost, aviation class insulation foam with outstanding sound absorption.
8. Classic European outlook forming, fashion taste, never out of time.
9. Portable compact design, saving room for installation & operation.
Parameter
| Monobloc (All-in-One) DC Inverter Heat Pump (heating/cooling & domestic hot water, -30ºC) | ||||||||||
| Item No. | ADC-10(HC) | ADC-16(HC) | ADC-20(HC) | ADC-22(HC) | ADC-26(HC) | ADC-32(HC) | ADC-40(HC) | ADC-50(HC) | ||
| HP | 3HP | 5HP | 6HP | 7HP | 8HP | 10HP | 12HP | 15HP | ||
| Power Supply | 220-240V/50-60Hz/1ph or 380-415V/50-60Hz/3ph | 380-415V/50-60Hz/3ph | ||||||||
| Heating Condition: Ambient Temp. +7ºC/+6ºC(WB/DB), Water Temp. +30ºC/+35ºC(In/Out). | ||||||||||
| Heating Capacity Rang | kW | 2.28-8.74 | 3.73-12.75 | 4.81-16.05 | 6.24-18.85 | 6.43-21.57 | 7.96-26.98 | 11.54-33.16 | 14.85-42.54 | |
| Power Input Range | kW | 0.38-1.85 | 0.58-2.83 | 0.78-3.7 | 0.96-4.08 | 1.04-4.85 | 1.27-5.96 | 1.76-7.27 | 2.25-9.14 | |
| Hot Water Condition: Ambient Temp. +20ºC/+15ºC (DB/WB), Water Temp. +15ºC/+55ºC (In/Out). | ||||||||||
| Heating Capacity Rang | kW | 3.42-10.23 | 4.14-15.97 | 5.35-19.25 | 6.74-22.66 | 6.97-25.95 | 8.75-32.45 | 11.66-39.68 | 12.52-49.77 | |
| Power Input Range | kW | 0.58-2.26 | 0.88-3.21 | 1.06-3.98 | 1.33-4.67 | 1.44-5.45 | 1.75-7.76 | 2.37-9.43 | 2.46-10.85 | |
| SCOP | at 35ºC water outlet | 4.83 | 4.86 | 4.84 | 4.82 | 4.85 | 4.86 | 4.84 | 4.87 | |
| at 55ºC water outlet | 3.44 | 3.52 | 3.53 | 3.45 | 3.54 | 3.50 | 3.53 | 3.55 | ||
| ErP Level | at 35ºC water outlet | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | |
| at 55ºC water outlet | A++ | A++ | A++ | A++ | A++ | A++ | A++ | A++ | ||
| Heating operation range | Ambient | °C | -15~25 | |||||||
| Heating side | °C | 18~60 | ||||||||
| DHW operation range | Ambient | °C | -15 ~ 43 | |||||||
| Water side | °C | 25~60 | ||||||||
| Chilling Condition: Ambient Temp.+35ºC/+24ºC (DB/WB), Water Temp. +7ºC/+12ºC (In/Out). | ||||||||||
| Chilling capacity | kW | 1.67-6.86 | 2.35-10.92 | 3.24-13.37 | 4.37-15.95 | 4.83-18.56 | 6.68-23.73 | 9.28-29.86 | 10.46-37.98 | |
| Power input range | kW | 0.76-2.55 | 1.06-3.84 | 1.38-4.67 | 1.57-5.46 | 1.65-6.23 | 1.93-8.34 | 2.42-10.05 | 2.54-12.57 | |
| Chilling operation range | Ambient | °C | 10~43 | |||||||
| Water side | °C | 7~22 | ||||||||
| Rated water flow rate | m³/h | 1.6 | 2.4 | 2.75 | 2.93 | 4.1 | 5.2 | 6.55 | 5.33 | |
| Rated pressure drop | kPa | 30 | 45 | 45 | 45 | 47 | 47 | 49 | 49 | |
| Max. working pressure | Refrigerant | Bar | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 |
| Water | Bar | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | |
| Controller | Micro processor based digital wire controller, LED Touch Screen | |||||||||
| External cabinet | Galvanized steel with powder coating | |||||||||
| Compressor | Type | Panasonic Dual Rotary | ||||||||
| Refrigerant | R32/R454B/R290 | |||||||||
| Water heat exchanger | SUS 316 Brazed plate heat exchanger | |||||||||
| Water Pipe | Inlet&Outlet | DN | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
| N W/G W | kg | 80/90 | 120/130 | 140/150 | 148/158 | 165/180 | 175/190 | 240/255 | 280/300 | |
| Noise in 1M | dB(A) | ≤52 | ≤56 | ≤58 | ≤58 | ≤59 | ≤59 | ≤61 | ≤61 | |
| Unit size | mm | 1076*478*803 | 1076*478*1334 | 1160*500*1600 | 1200*630*1650 | |||||
| Packaging size | mm | 1176*578*950 | 1176*578*1484 | 1260*600*1750 | 1300*730*1800 | |||||
| Loading | 20'/40'/40HQ | sets | 24/48/48 | 23/48/52 | 19/41/41 | 12/27/27 | ||||
| The data is tested based on EN14511. | ||||||||||

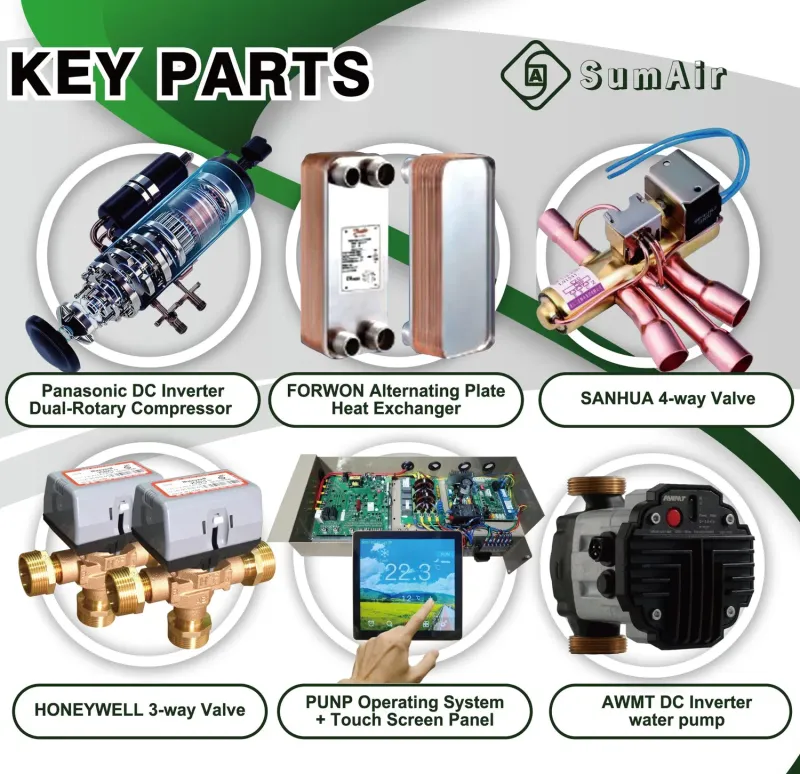

Detailed Images

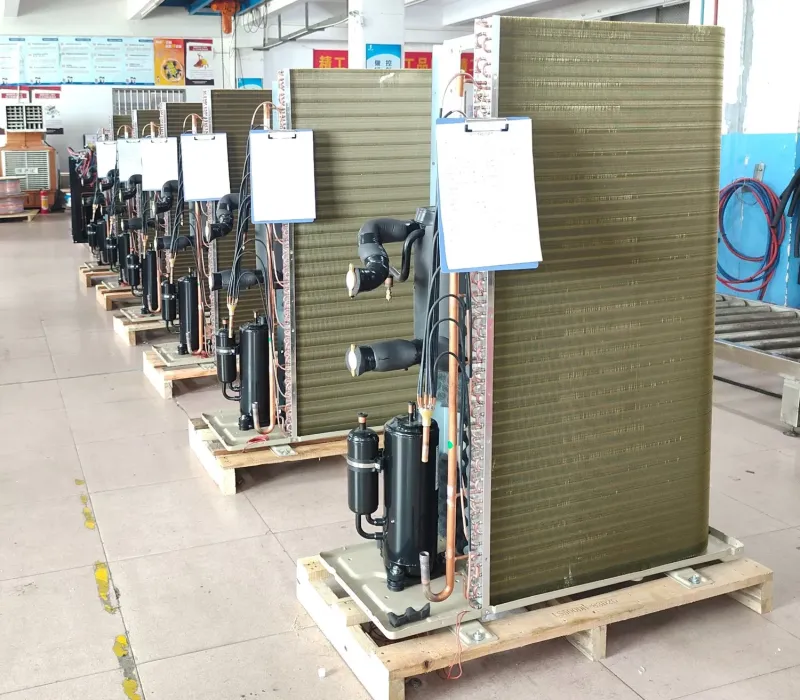

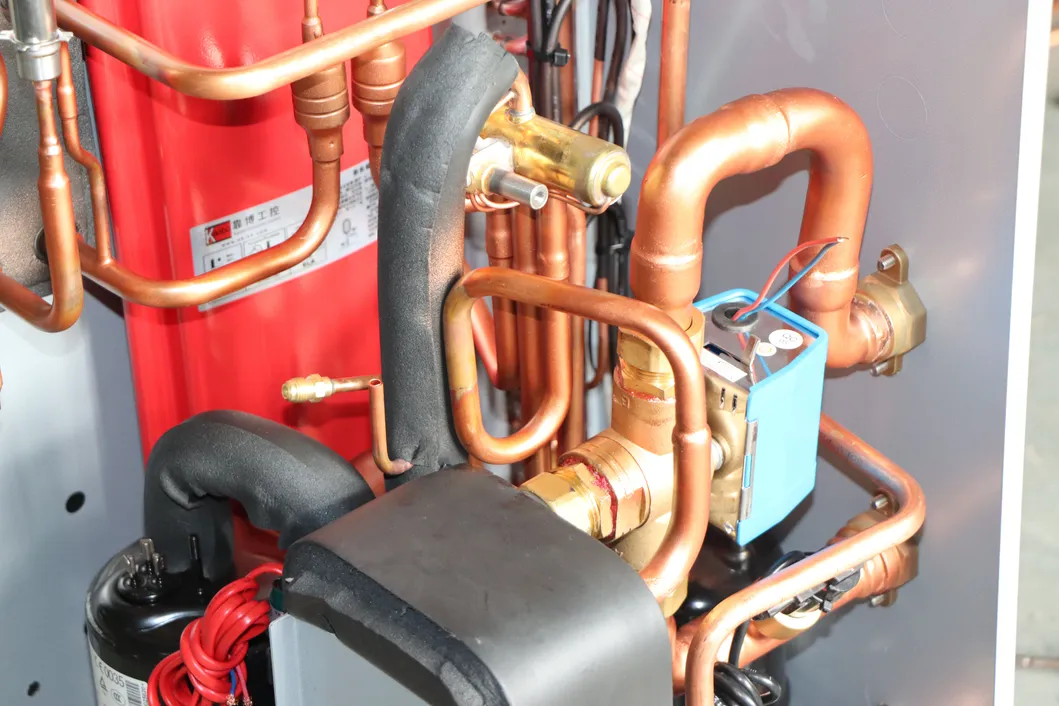

Inner Structure of Factory Supply Home Appliance a+++ 16-50kw Air Source Monoblock R32 All in One DC Inverter WiFi Functional Thermal Pump Water Heating Heat Pump
Certificates

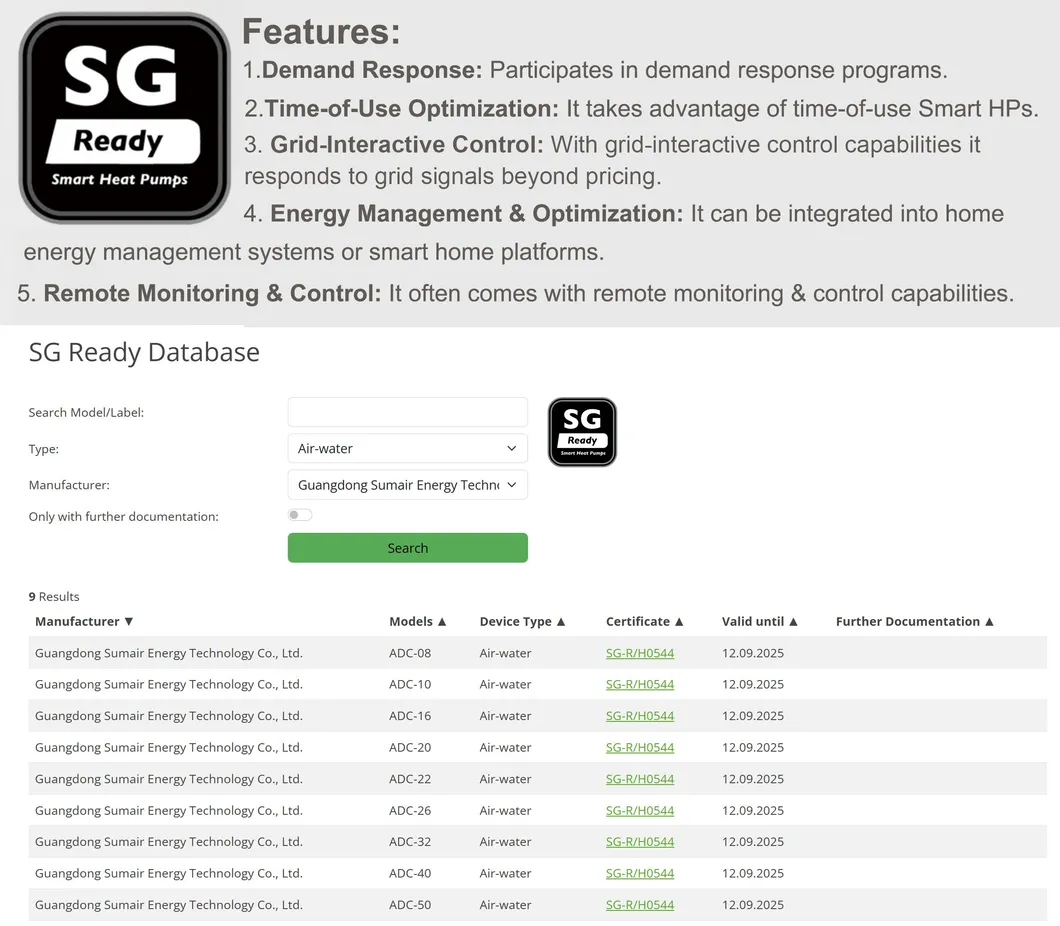

SG-Ready Certificate (Smart-Grid)
The SG Ready label is only awarded to heat pumps whose controls enable integration into an intelligent power grid. In summer, for example, when there is excess electricity and the battery storage is fully charged, the CHA monoblock receives the SG-Ready signal and immediately initiates the cooling process. The practical advantage - the storage remains full and you use your own electricity directly and efficiently to cool your building.

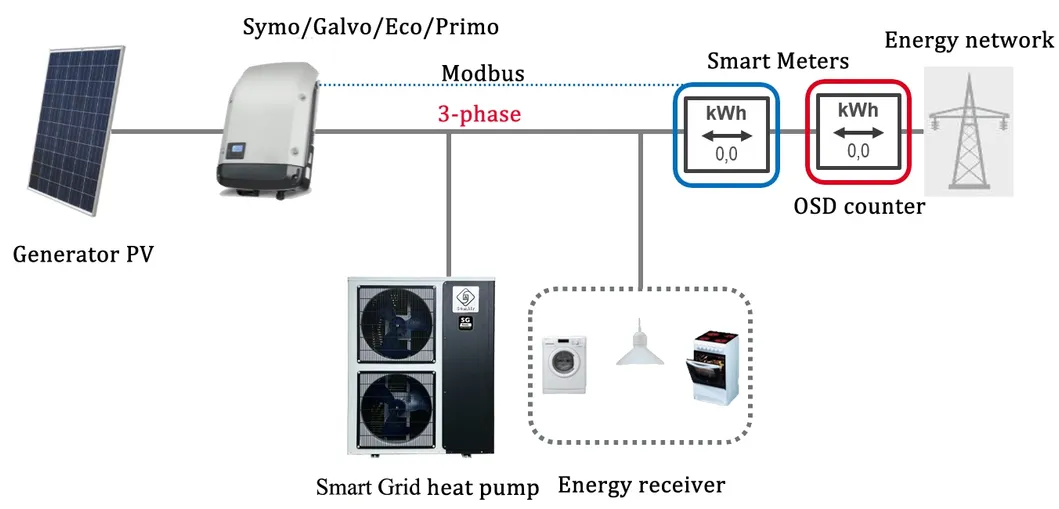

SG ready Connecting Principle
When Smart Grid Function is set to "Use" in the operate system, its logic helps to achieve:
Performance

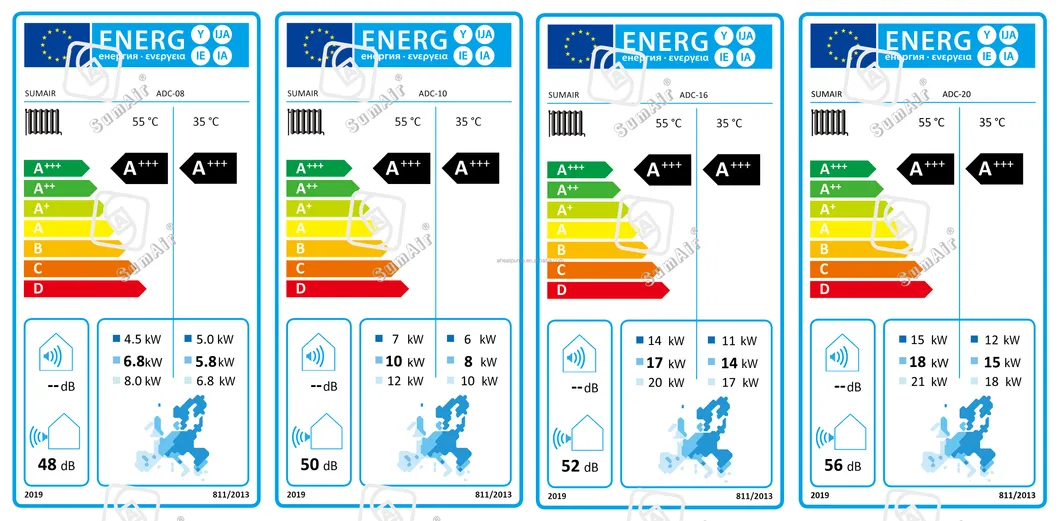

ERP Test Report and Energy Lables
Products in Line

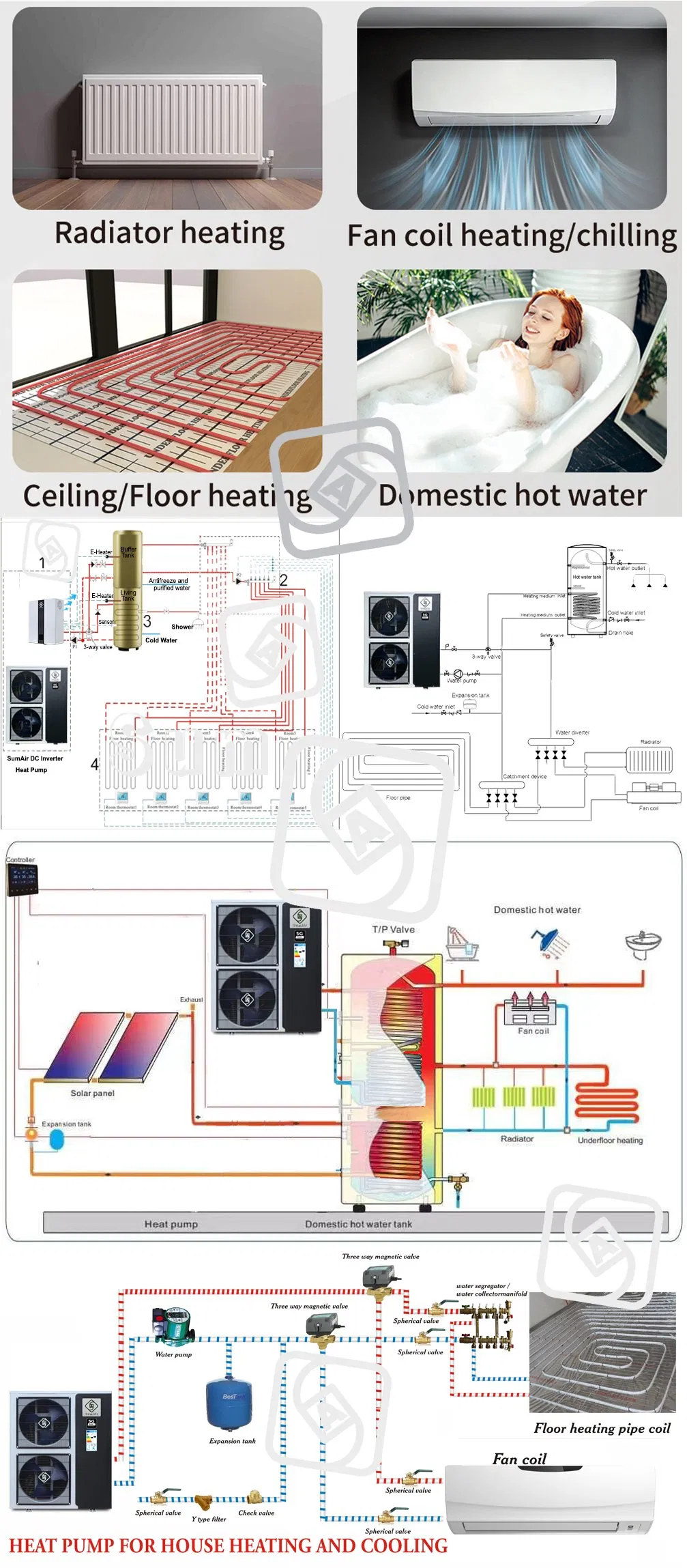

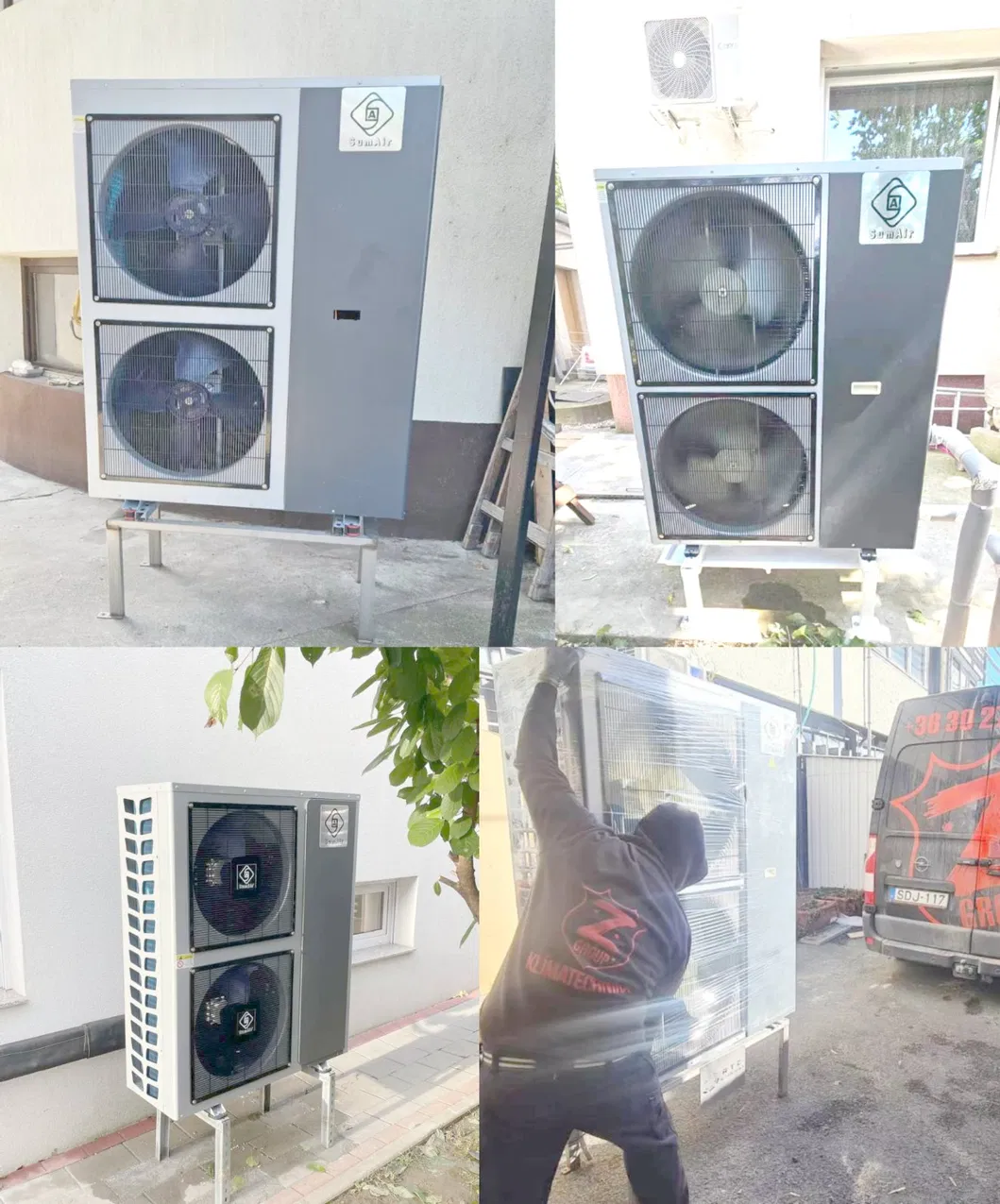

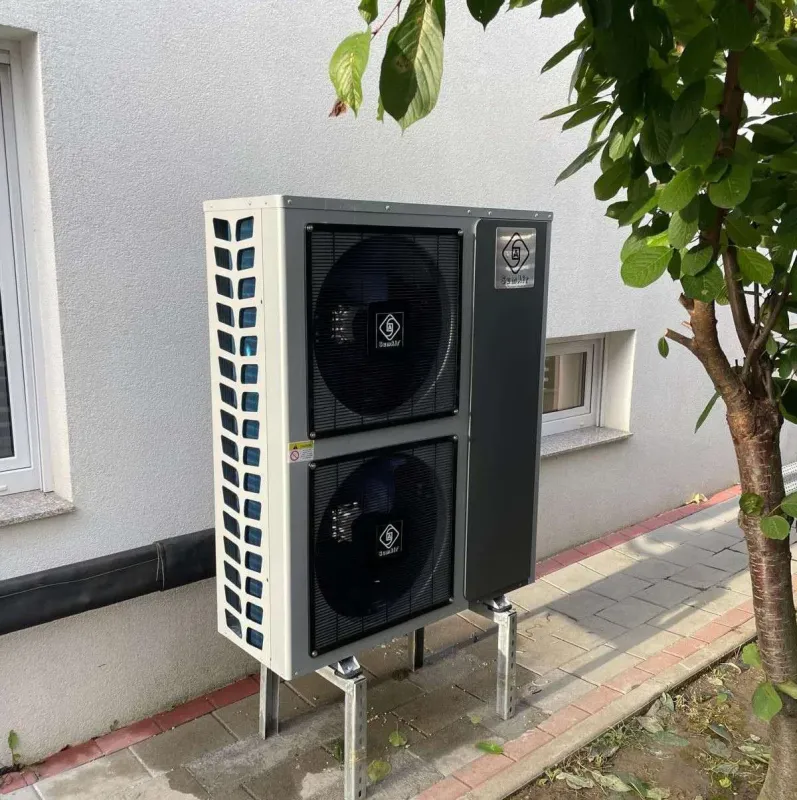

Applications & Install Reference
If any more concernings, please feel free to contact our sales engineers!
24 HOUR ON-LINE Standby for serving on Factory Supply Home Appliance a+++ 16-50kw Air Source Monoblock R32 All in One DC Inverter WiFi Functional Thermal Pump Water Heating Heat Pump
