Product Description

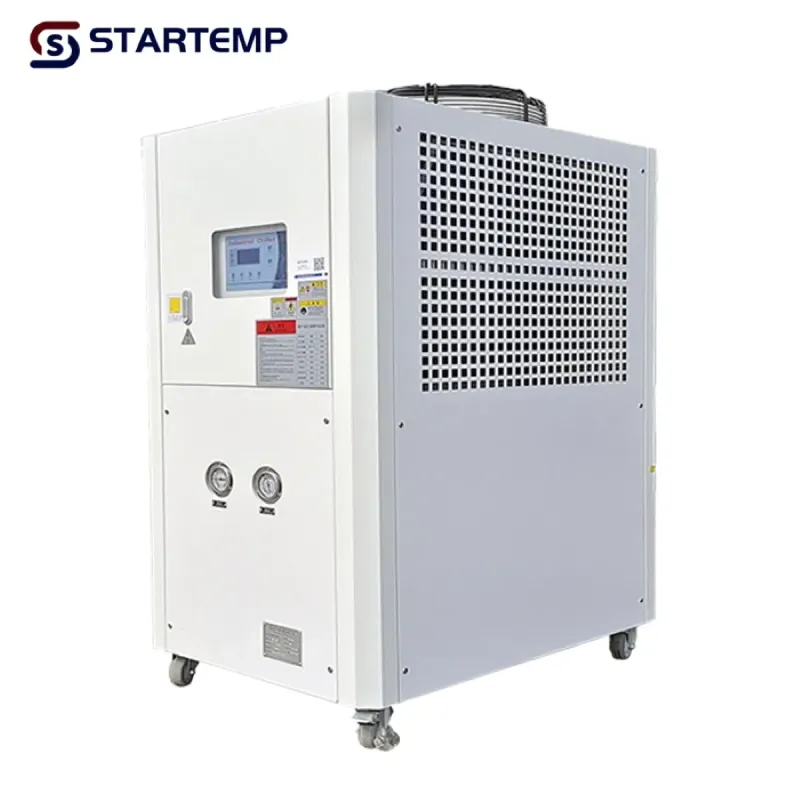

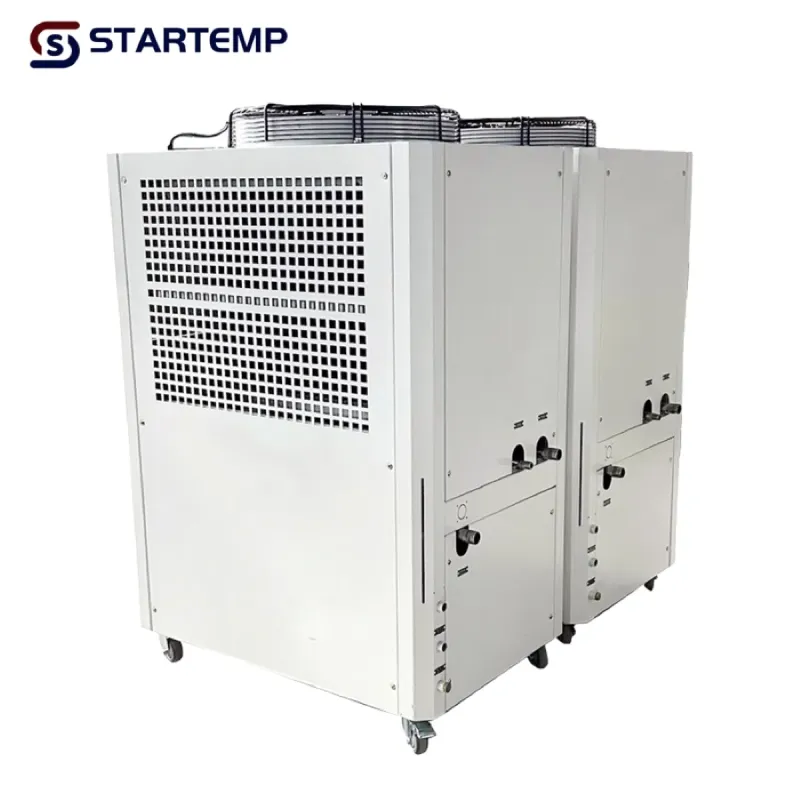

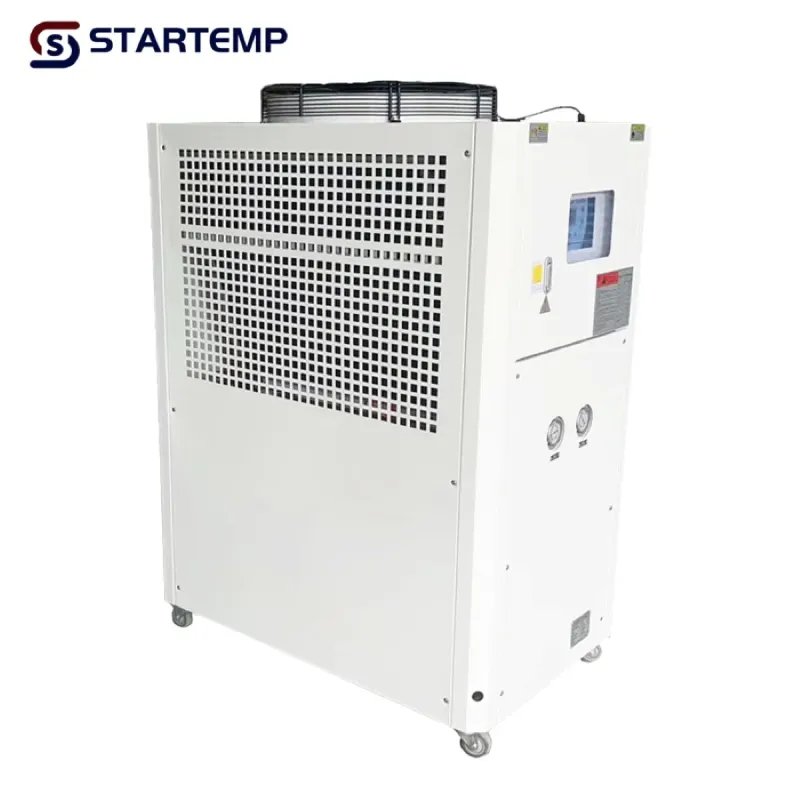

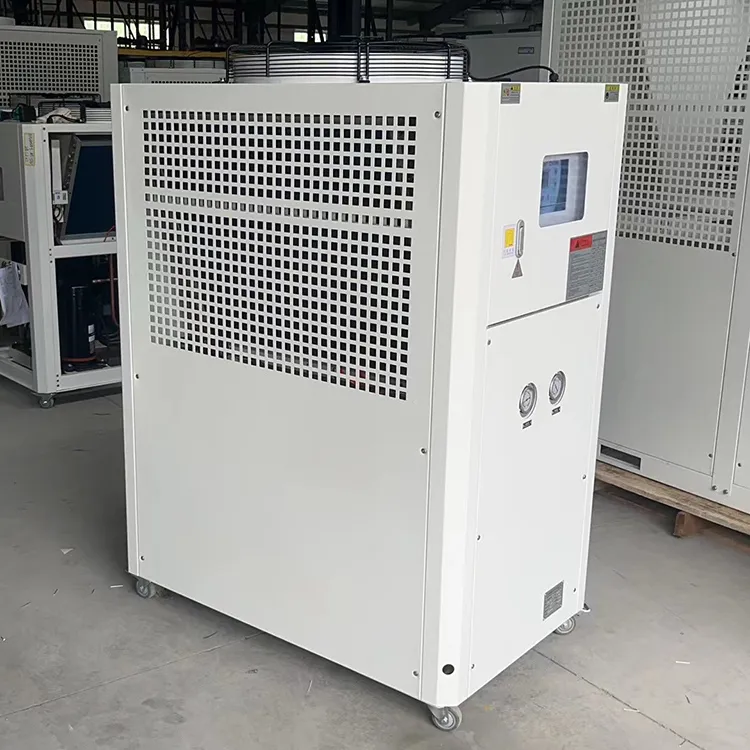

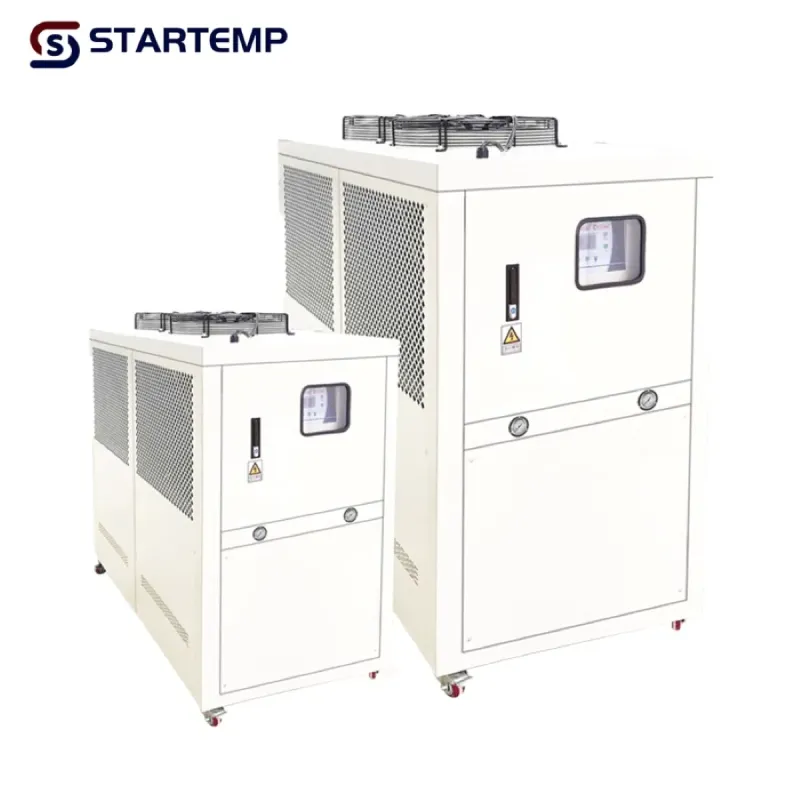

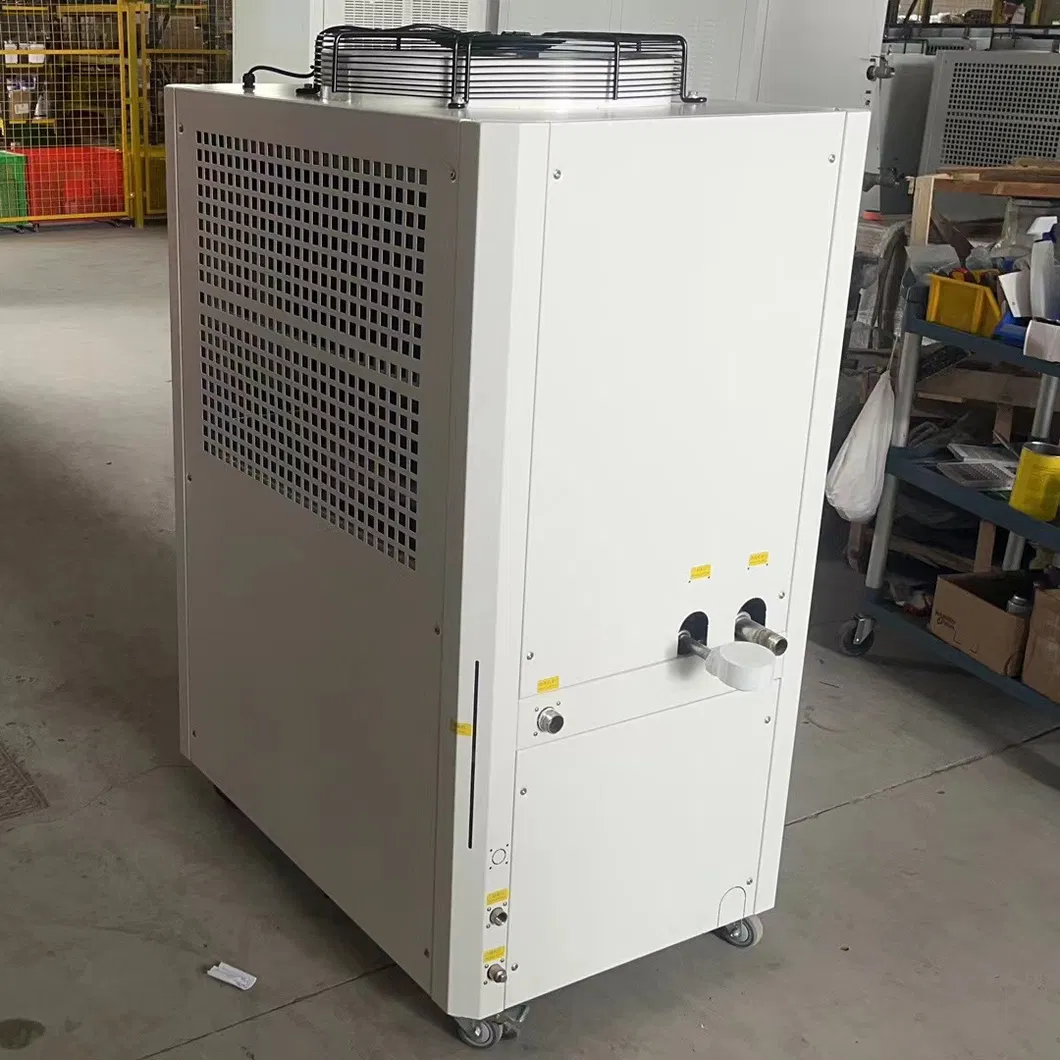

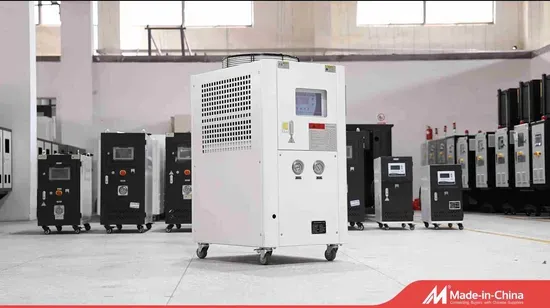

SC-03A 3HP to 150HP Industrial Air Cooled Water Chiller for Cooling System

Air Cooled Scroll Chiller, also known as air cooled type water chiller, air cooling water chiller, or air cooling water machine. The cooling capacity can be selected from 6KW to 375KW. It is recommended to use a screw compressor water chiller when the cooling capacity exceeds 150KW. The maximum cooling temperature can reach -25ºC.

Industrial chillers are refrigeration systems used to cool processes, equipment, or materials in various industrial applications. They work by removing heat from a liquid (usually water or a water-glycol mixture) through a vapor-compression or absorption refrigeration cycle. The chilled liquid is then circulated through a heat exchanger or directly to the equipment needing cooling, where the heat is absorbed and transferred to a secondary fluid.

Air cooled water chillers are mainly applied to a cooling process in molding of plastic film and PE plastics bags or other industries. The chiller will greatly improve the quality of molded products and shorten the period of injection molding cycles. The main difference is the way of heat radiation by fans compared to water cooled chillers.

There are three main interrelated systems: refrigerant circulation system, water circulation system, and electrical control system.

Working Principle

Industrial Chiller is a kind of water cooling equipment that can provide constant water or water-glycol mixture temperature, constant current, and constant pressure. Its working principle is to inject a certain amount of water into the tank of the machine first, through the refrigeration system to cool the water, and then by the pump to cool the low temperature cooling water into the equipment. The chilled water will take the heat away after the temperature rises and then return to the tank, to achieve the role of cooling. Cooling water temperature can be automatically adjusted according to requirements, long-term use can save water. Therefore, the chiller is a standard energy-saving equipment.

Product Parameters

Model NO.	SC-03A
Type	Air-Cooled
Cooling Method	Air-cooled
Unit Structure	Integral
Selected Voltage	Customized
Compressor Number	1
Noise Level	Ordinary
Application Fields	Plastic
Application Machine	Precision Machine Tool
Certification	ISO, CE, UL for Electrical
Condition	New
Chilled Circuit	Chilled Water Circulating
Compressor Power	3HP to 150HP
Cooling Capacity	9kw to 450kw
Refrigeration Capacity	7740kcal to 387000kcal
Refrigerant Gas	R22 or R410A, R407c, R134A, R404A Customized
Circulation Pump	0.55kw (304ss) to 15kw
Compressor Brand	Cope Land, Dan Foss, Bit Zer
Heat Exchanger	304ss Coiled Type
Condenser Type	V Type with Fan Motor
Evaporator Type	304ss Coiled Type or Customized
Power Supply	380V/3phase/50Hz or Customized
Key Selling Points	Accurate Temperature Control
Working Temperature Range	5 Celsius to 35 Celsius or Customized
Brand Name	Nanjing Startemp
Origin	China
HS Code	8418692090
Production Capacity	100 Pieces / Month

Product Details

The refrigerant circulation system: The liquid refrigerant in the evaporator absorbs the heat in the water and begins to evaporate. Finally, a certain temperature difference is formed between the refrigerant and the water. The liquid refrigerant also completely evaporates into the gas phase and is then inhaled and compressed by the compressor (pressure and temperature increase). After being throttled through the expansion valve (or capillary), low temperature and low pressure refrigerant enters the evaporator to complete the refrigerant circulation process.

The water circulation system: It is a cycle where chilled water from the tank enters the system via the circulation pump. The hot water from the system returns to the chiller. When the actual temperature is higher than the set temperature, the compressor starts to work. The refrigerant system absorbs the heat load of the water.

The electrical automatic control system: Includes power supply part and automatic control part. The power supply part provides power to the contactor, compressor, fan, and water pump. Automatic control includes temperature controller, pressure protection, delay device, relay, overload protection, and other mutual combinations to achieve automatic startup and stop of the root temperature, protection, and other functions. Monitors and regulates the chiller's operation to maintain desired temperatures.

Evaporator: Water or air enters the chiller system. Through the use of refrigerant, it is transformed into a low-pressure gas.

Compressor: Takes low-pressure gas and compresses it to a higher pressure, which in turn allows it to flow through to the next step, the condenser.

Condenser: The high-pressure gas is cooled by refrigerant, whereby it converts back to low-pressure liquid form.

Expansion Valve: The liquid returns to the expansion valve and is directed back to the evaporator, and the cycle is repeated.

Based on different types of the condenser:

Air-Cooled Chillers: Equipped with fans and radiator-fin type condenser. Use air to heat dissipation. Advantages: Easy installation. Disadvantages: Less efficient in high-temperature environments.
Water-Cooled Chillers: Equipped with shell and tube type condenser. Use water to heat dissipation. Advantages: Higher efficiency, better for large-scale operations. Disadvantages: Require a cooling tower and water pump for installation.

Our Advantages

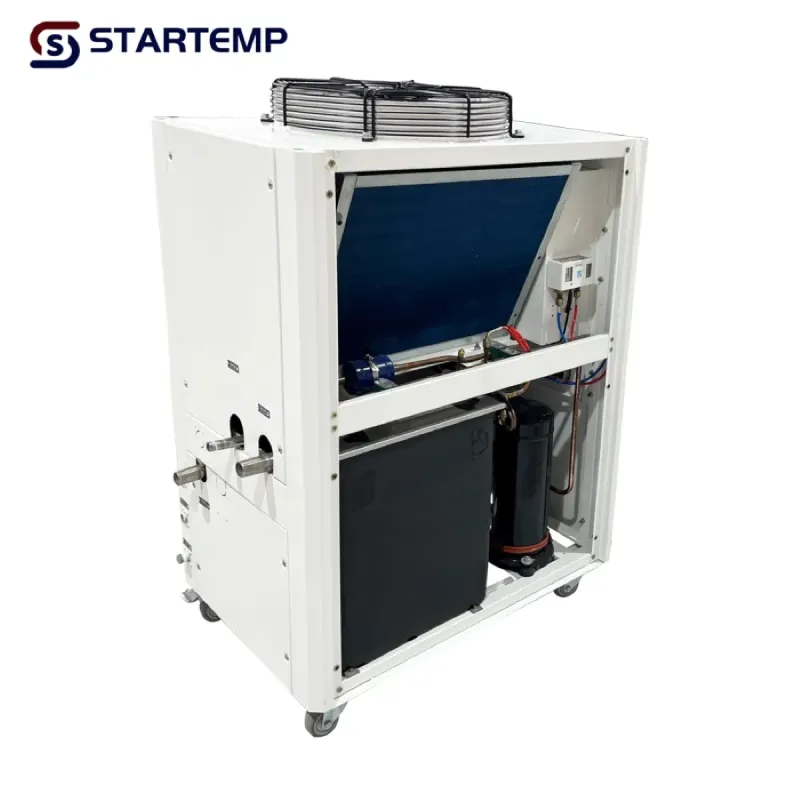

Adopt the brand scroll compressor, such as: Cope land, Panas onic, Bit zer, Dai kin.
Non-oxygen welding the internal copper pipe.

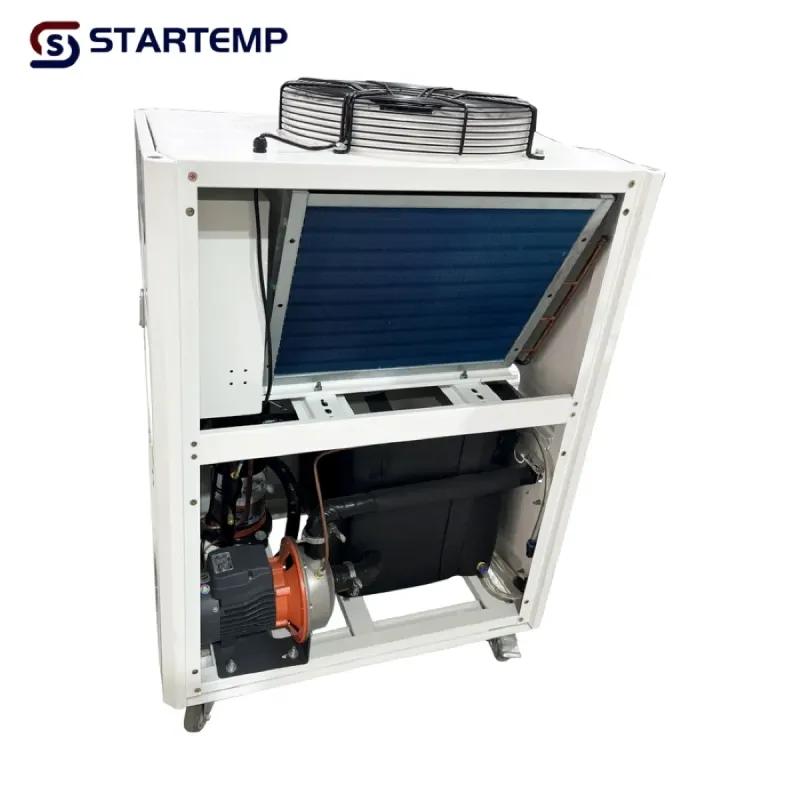

High efficiency evaporator and V type finned condenser.
Adopt the 304 SS water tank to prevent corrosion and rust.

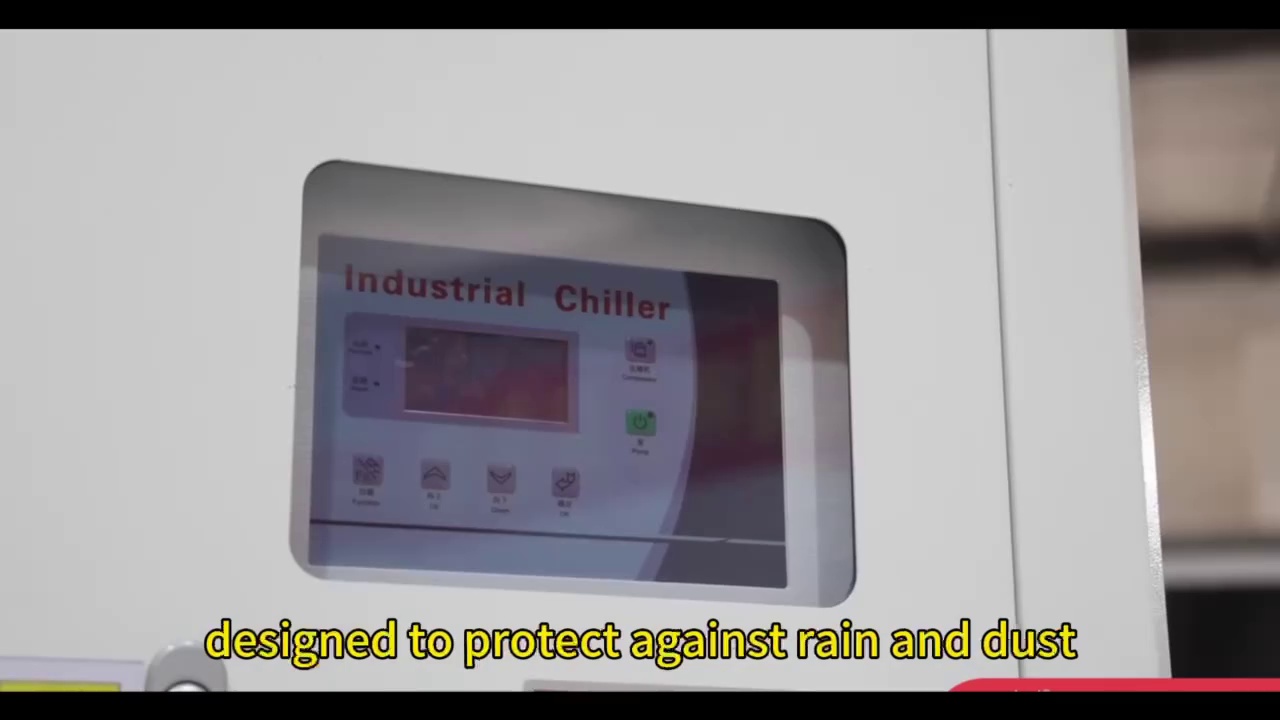

The electric control cabinet is double deck exterior materials design to protect against knock, rain and dust.
PID controller system can maintain accuracy within ±1ºC, convenient operation.
Imported electrical accessories, Om ron, LS, A B B, Sch neider, Sie mens etc.
The whole unit box type structure, beautiful appearance, compact structure, easy to check the operation of the unit at any time.
The parts of model equipped with the 304 SS water circulating pump.
No need install the water tower, convenient installation.
Multiple safety devices protection and fault display system improvement, maintenance no need the professional personnel.

FAQ

Q: May I know the status of my order?: A: We will send you information and photos at different production stages of your order. You will get the latest information in time.
Q: Do you offer shipment facilities?: A: Yes! We do. The shipment is done by a third party. The shipment cost is free inside China. For overseas, you can select shipping agents by yourself or we can support you to find reliable shipment companies.
Q: Are your products customizable?: A: Yes. Also welcomed to customized non-standard products.
Q: What's your payment term?: A: TT 100% before shipment, LC at sign, Western Union or Trade Assurance order.
Q: How do you ship the goods and lead time?: A: We usually ship by sea. Sometimes shipped by air. About 5-25 working days for delivery as per different model.
Q: Do you offer guarantee for the products?: A: Yes, we offer 12 months warranty.
