Overview

Basic Info.

• Model NO. ACW-120
• Type Water-Cooled
• Cooling Water Industrial Water
• System Type Open System
• Fans Species Frequency Fan
• Noise Level Ultra Low
• Application Fields Machinery
• Condition New
• Specification 663*653*1156
• Trademark Easycold
• Origin China
• Production Capacity 800/Year

Packaging & Delivery

• Package Size 72.00cm * 72.00cm * 125.00cm
• Package Gross Weight 175.000kg

Product Description

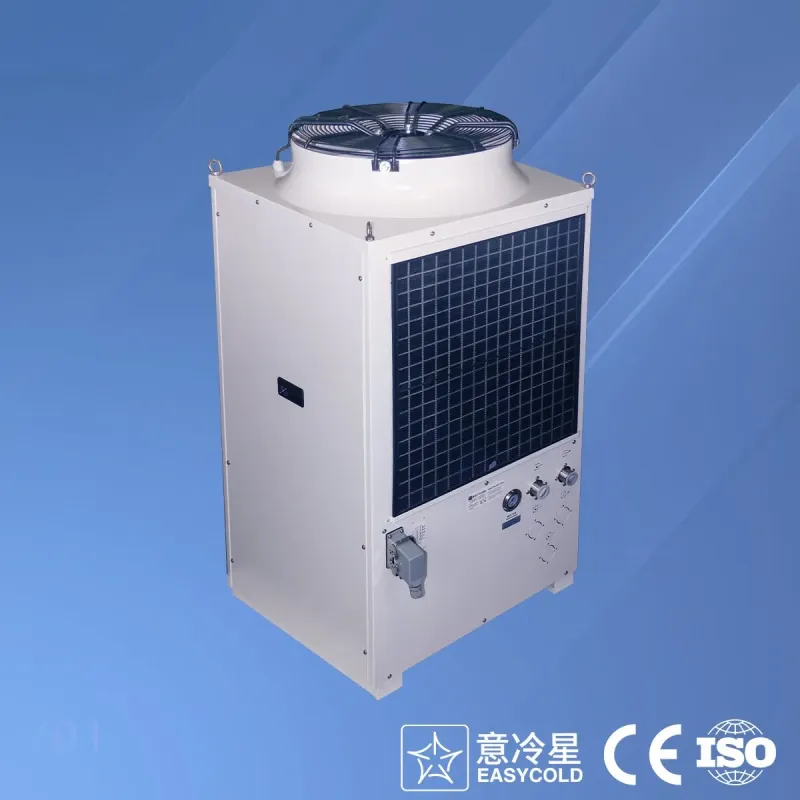

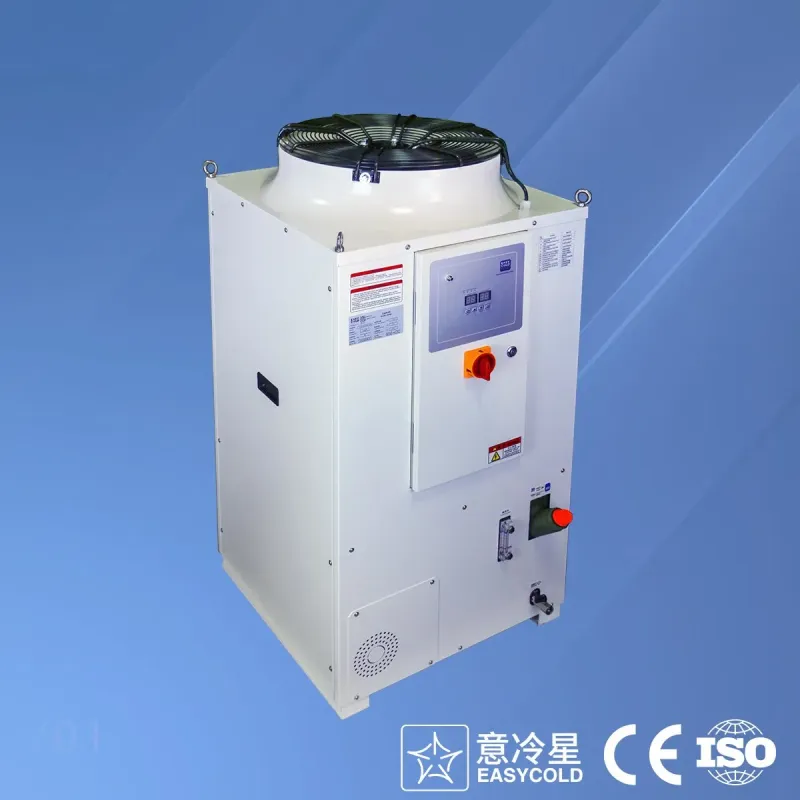

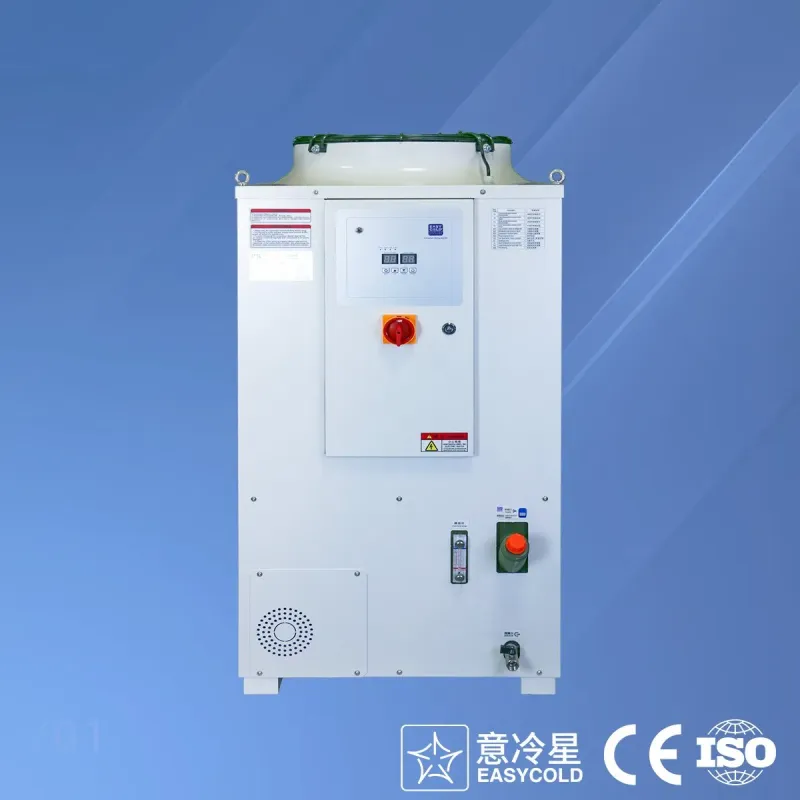

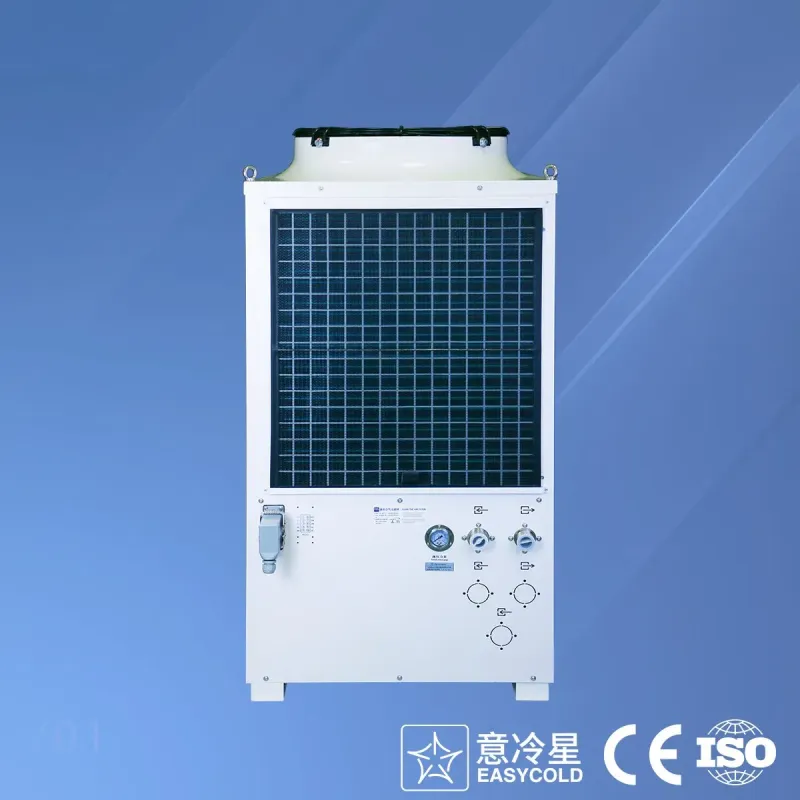

Specification - Industrial Water Chiller

Application Range

• 1. For high speed spindle in machining center, Water-cooled servo motor
• 2. CNC wire cutting machine, multi-wire sawing machine
• 3. CNC Carving Machine, High speed engraving and milling machine
• 4. CNC machine tool torque motor, linear motor
• 5. PCB drilling machine, milling machine
• 6. Garment machinery, food machinery, plastic machinery, mold, quenching machine and welding equipment
• 7. Semiconductor manufacturing, optical equipment and experimental instruments

Functions and features

• 1. Adopt high voltage electrostatic spray treatment, elegant and chic appearance, durable
• 2. Unique structure design, small size, stable performance, exquisite and beautiful
• 3. System components are adopted well-known brands at home and abroad, to ensure excellent quality and good safety and reliability of equipment
• 4. Automatic control temperature controller, simple and intuitive operation. The device has two control modes of "fixed temperature" and "room temperature coherence", which can be switched freely. According to actual needs
• 5. With the function of automatic fault diagnosis, the fault points are directly displayed on the screen, prompting the user to quickly deal with. The fault signal can be fed back to the CNC numerical control system to protect the host equipment and avoid damage to the equipment and processed parts
• 6. Provide multiple protection functions and passive alarm terminals, remote control terminals, easy to achieve CNC system centralized control and monitoring, and can be equipped with RS485 communication function, effectively ensure the safety of the host equipment to extend the service life

Items

• ACW-120
• cooling capacity (KW) 12.0
• Power (KW) 5.6
• Power source : 1/220 3/380 3/220 50HZ 60Hz
• Precision (℃) ±1.5 (±0.1 Option PID)
• Range of setting (℃) Fixed :10-30:Variable :±9
• Ambinet temperature(℃) 5-40
• P: Pump Flow rate (L/min) 33 Pressure (bar) Standard 30M/3bar Option :50M/5bar 60M/6bar
• T:Tank Volum (L) 65
• Optional item (customized) F: Flow switch(customized) L: Level switch(customized) H: Heater(customized) W: Wheel(customized)
• Inlet/Outlet Size G3/4"
• Noise(dB) 72
• Weight (KG) 170
• Refrigerant R-407C
• Shape Dimension (mm) 663*653*1156

After Sales Service

• Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
• Extended Warranty: Optional coverage up to 36 months.
• Global Support: 24/7 technical assistance and spare parts supply.
• Training: On-site or remote operation/maintenance training.

EASYCOLD (Tianjin) Refrigeration Technology Co., Ltd. is a company with European technology, dedicated to providing comprehensive temperature control solutions for industrial equipment and facilities. Our business covers high-end equipment manufacturing, electricity, food, packaging, printing, medical, and laboratory industries. We have a professional technical team that mainly offers optimal temperature control solutions for customers' main equipment, as well as maintenance, repair, and renovation services for existing refrigeration equipment. Our main products include industrial oil coolers, industrial water coolers, electrical cabinet air conditioners, spindle circulation cooling fluids, and cleaning fluids. All products are certified by the EU CE and can be exported worldwide.

Our company holds 15 utility model patents, 1 software copyright, and 1 design patent. In 2021, we obtained the trademark rights for "EASYCOLD" and in 2022, we were recognized as a "High-tech Enterprise" and an "Innovative SME in Tianjin." In 2023, we passed the ISO 9001 Quality Management System certification, ISO 14001 Environmental Management System certification, and ISO 45001 Occupational Health and Safety Management System certification.

Currently, our company has a service network across the country. We provide customers with professional technical solutions before sales, high-quality and cost-effective temperature control equipment during sales, and continuous equipment maintenance and upkeep services after sales, ensuring the smooth implementation and operation of the overall solution with lifelong support.

FAQ

Q: Are your products can be customized?

A: Yes. Also welcomed to customized non-standard products.

Q: I am not sure if this machine suitable for my work?

A: Don't worry, just contact with our sales about the details, then I will recommend you the most suitable machine for you with professional service.

Q: Do you offer guarantee for the products?

A: Yes, we offer 12 months warranty.

Q. May I know the status of my order?

A:Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.

Q. Do you test all your goods before delivery?

A: Yes, we have a 100% test before delivery and will take some short testing videos to you.

Q.Can I use our own brand logo on the products?

A:Yes. We provide OEM/ODM service to our customers. Our professional engineers having rich experience in heat pump design and manufacture. Just tell us your ideas or provide the drawing, we can help you to carry out your ideas.

Q:What is the difference between water-cooled and air-cooled units?

A:Water-cooled units use water as the cooling medium and require a cooling tower. They are more efficient but need additional water supply systems. Air-cooled units use ambient air to dissipate heat and are easier to install and maintain, making them suitable for areas with water scarcity or limited infrastructure.
