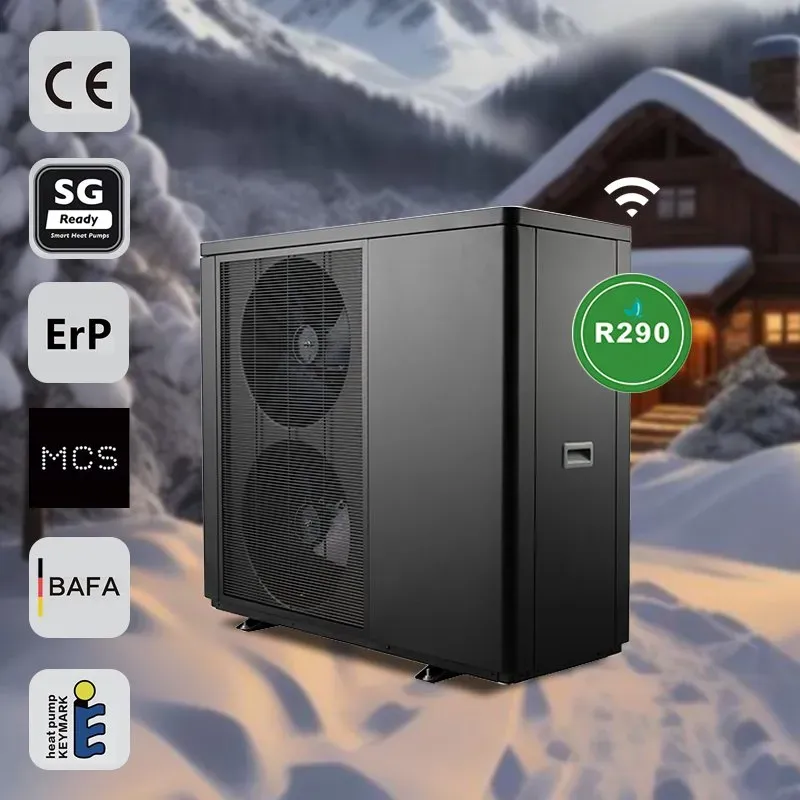

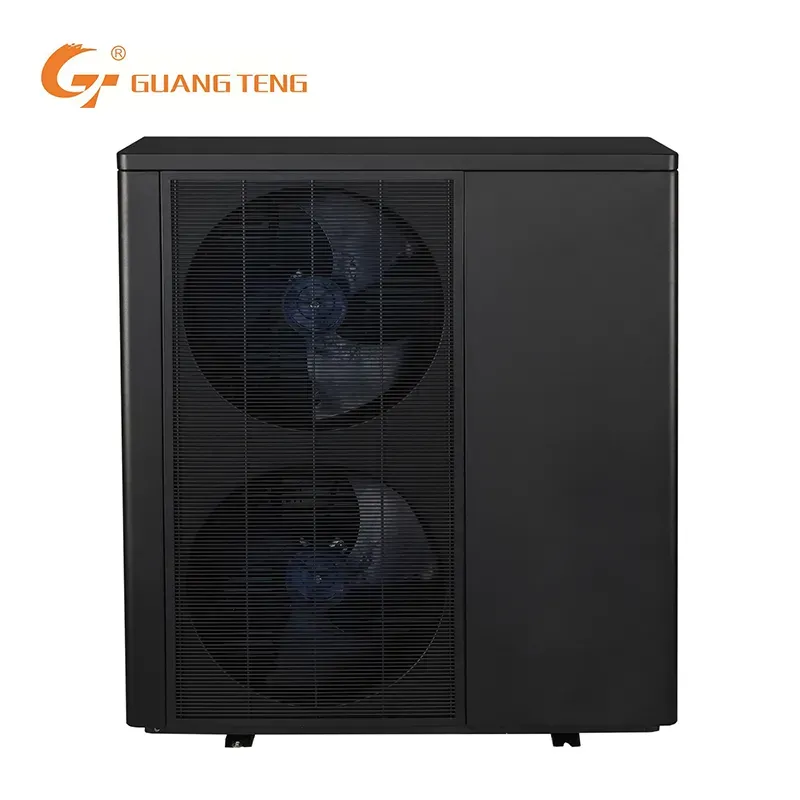

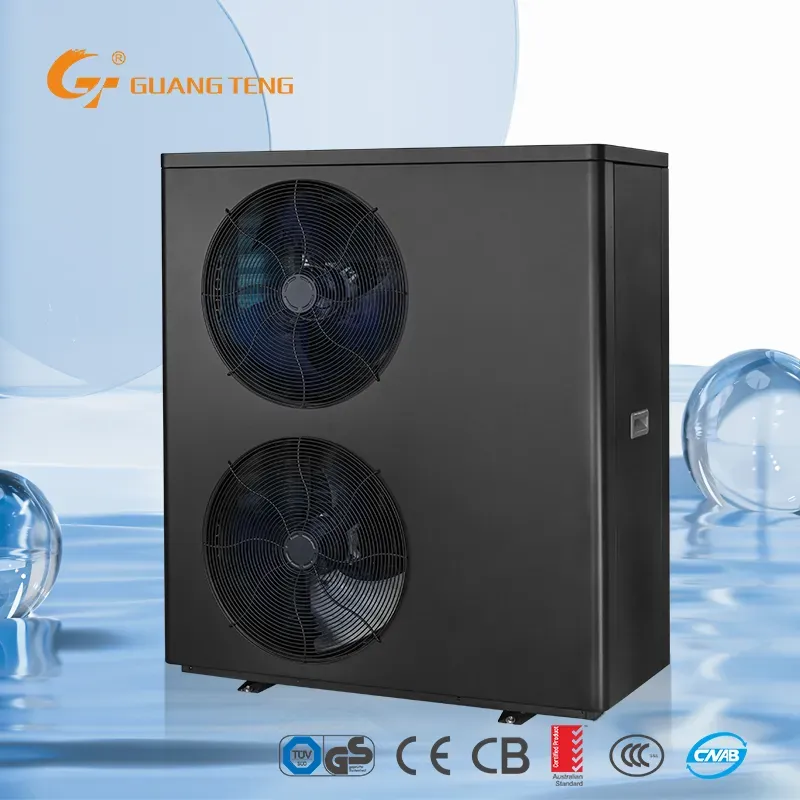

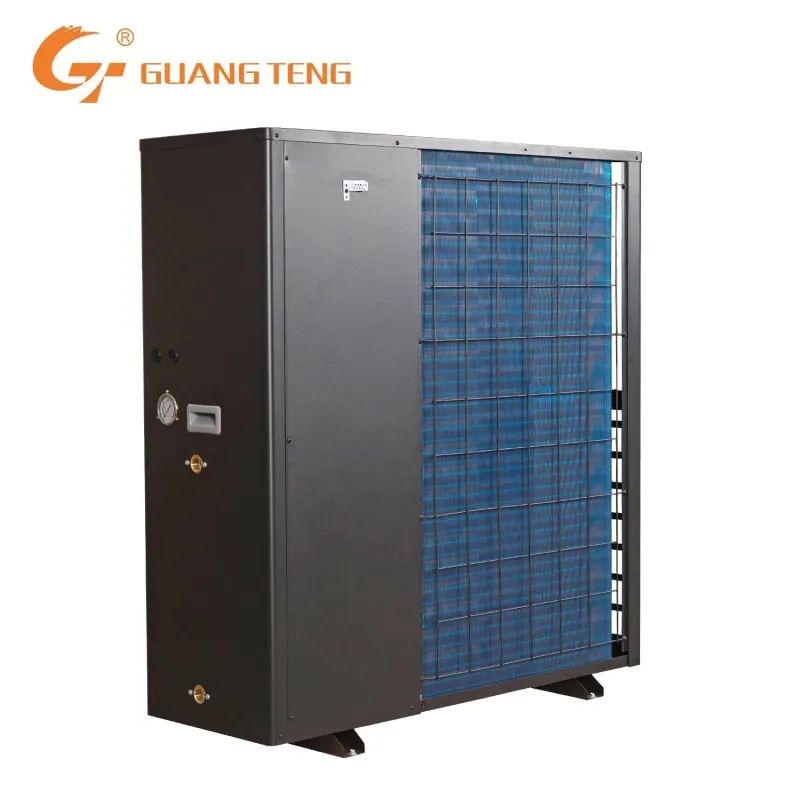

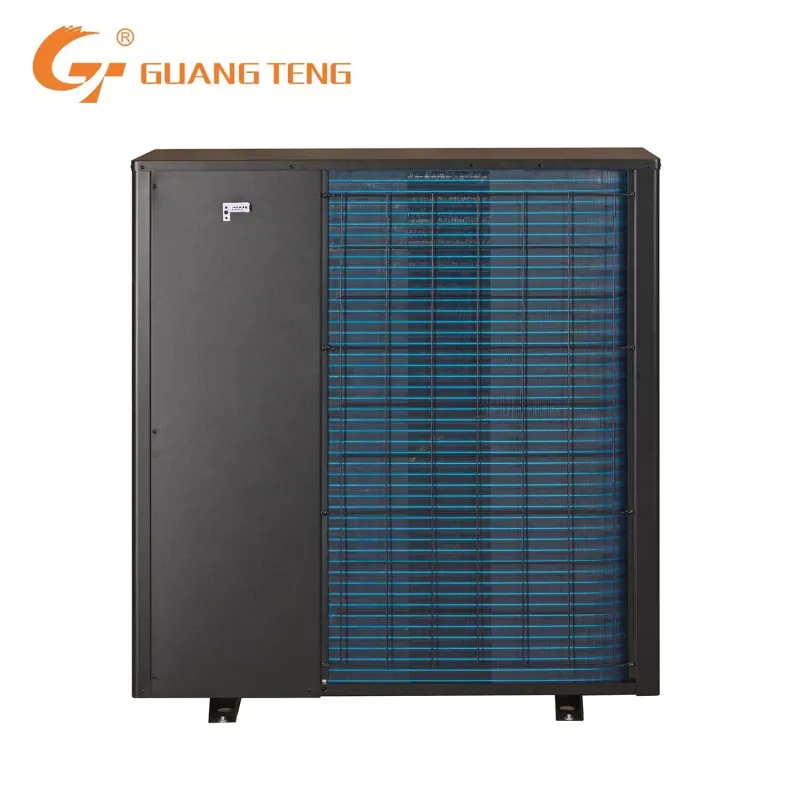

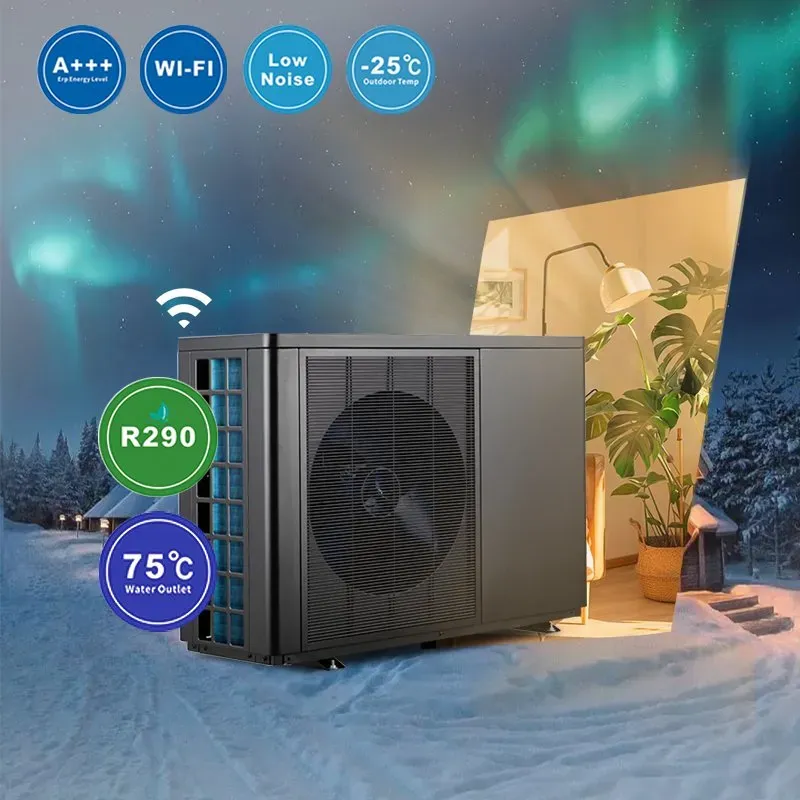

Air Source Heat Pump 22kW Air-Water R290 Monoblock DC Inverter
Description
- Overview
- Product Specification
- Hot Sale
- FAQ
Basic Info.
Packaging & Delivery
Product Description
| Model number | GT-SKR020KBDC-M290 | GT-SKR030KBDC-M290 | GT-SKR040KBDC-M290 | GT-SKR040KBDC-M290T | GT-SKR050KBDC-M290 | GT-SKR080KBDC-M290T | |
| Heating at A7 / W35 | |||||||
| Heating capacity (min~max) | KW | 6.40 (2.83~8.00) | 8.30 (3.65~10.38) | 11.60 (5.10~14.50) | 12.00 (5.28~15.00) | 16.30 (8.80~21.20) | 22.00 (9.87~24.00) |
| Power input (min~max) | KW | 1.47 (0.65~1.84) | 1.93 (0.85~2.42) | 2.75 (1.21~3.44) | 2.90 (1.28~3.63) | 3.69 (1.99~4.80) | 5.1 (2.29~5.56) |
| COP | W/W | 4.34 (3.03~5.21) | 4.30 (3.01~5.16) | 4.22 (3.03~5.10) | 4.15 (3.0~5.0) | 4.42 (3.1~5.3) | 4.31 (3.1~5.4) |
| Heating at A2 / W35 | |||||||
| Heating capacity (min~max) | KW | 5.80 (2.55~7.25) | 7.11 (3.13~8.89) | 10.43 (4.59~13.04) | 10.30 (4.53~12.88) | 14.31 (6.86~18.60) | 18.30 (7.53~20.0) |
| Power input (min~max) | KW | 1.60 (0.71~2.00) | 2.06 (0.91~2.58) | 2.76 (1.22~3.45) | 2.85 (1.25~3.56) | 3.67 (1.98~4.84) | 5.13 (2.30~5.59) |
| COP | W/W | 3.60 (2.52~4.32) | 3.45 (2.48~4.30) | 3.78 (2.65~4.54) | 3.61 (2.53~4.40) | 3.90 (2.73~4.68) | 3.6 (2.60~4.50) |
| Heating at A7 / W55 | |||||||
| Heating capacity (min~max) | KW | 5.75 (2.53~7.19) | 7.70 (3.40~9.63) | 11.08 (4.88~13.85) | 11.43 (5.03~14.29) | 14.71 (7.94~19.13) | 19.30 (9.13~22.16) |
| Power input (min~max) | KW | 2.03 (0.89~2.54) | 2.70 (1.19~3.38) | 3.82 (1.68~4.78) | 4.07 (1.79~5.09) | 5.02 (2.71~6.53) | 6.50 (3.07~7.46) |
| COP | W/W | 2.83 (2.3~3.8) | 2.85 (2.00~3.42) | 2.90 (2.03~3.48) | 2.81 (2.02~3.41) | 2.93 (2.05~3.52) | 2.97 (2.10~3.60) |
| Heating at A2 / W55 | |||||||
| Heating capacity (min~max) | KW | 5.14 (2.27~6.43) | 6.72 (2.96~8.40) | 9.61 (4.23~12.00) | 9.70 (4.59~12.63) | 13.81 (7.45~17.95) | 16.8 (7.95~19.4) |
| Power input (min~max) | KW | 2.06 (0.91~2.58) | 2.71 (1.20~3.39) | 3.74 (1.65~4.68) | 3.99 (1.76~4.84) | 4.93 (2.66~6.41) | 6.48 (3.07~7.46) |
| COP | W/W | 2.45 (2.0~3.45) | 2.48 (2.0~3.6) | 2.57 (2.2~3.7) | 2.43 (2.0~3.6) | 2.80 (2.2~3.9) | 2.6 (2.2~3.9) |
| Cooling at A35 / W7 | |||||||
| Cooling capacity (min~max) | KW | 3.70 (2.22~5.92) | 6.20 (3.40~8.10) | 9.30 (5.15~12.09) | 9.50 (5.22~12.35) | 13.30 (7.10~17.3) | 15.2 (8.3~20.1) |
| Power input (min~max) | KW | 1.32 (0.79~2.11) | 2.20 (1.21~2.86) | 3.25 (1.76~4.16) | 3.28 (1.79~4.20) | 4.60 (2.53~5.98) | 5.2 (2.84~6.91) |
| EER | W/W | 2.80 (2.02~3.36) | 2.80 ( 2.00~3.42) | 2.85 (2.05~3.42) | 2.80 (2.00~3.50) | 2.90 (2.10~3.48) | 2.92 (2.10~3.6) |
| SCOP | |||||||
| SCOP (TWW for 35ºC class) | N/A | 4.46 | 4.48 | 4.57 | 4.62 | 4.50 | 4.52 |
| Energy lable (TWW at 35 ºC) | N/A | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ |
| SCOP (TWW for 55ºC class) | N/A | 3.59 | 3.58 | 3.67 | 3.60 | 3.62 | 3.63 |
| Energy lable (TWW at 55 ºC) | N/A | A++ | A++ | A++ | A++ | A++ | A++ |
| Power supply | V/ph | 220~240/1/50 | 220~240/1/50 | 220~240/1/50 | 380~415/3N/50 | 380~415/3N/50 | 380~415/3N/50 |
| Compressor | N/A | DC Inverter | DC Inverter | DC Inverter | DC Inverter | DC Inverter | DC Inverter |
| Fan motor | N/A | DC Inverter | DC Inverter | DC Inverter | DC Inverter | DC Inverter | DC Inverter |
| Water circulation pump | N/A | DC Inverter | DC Inverter | DC Inverter | DC Inverter | DC Inverter | DC Inverter |
| Refrigerant | N/A | R290 (700g) | R290 (1100g) | R290 (1200g) | R290 (1200g) | R290 (1600g) | R290 (1800g) |
| CO2 equivalent | T | 0.0021 | 0.0033 | 0.0036 | 0.0036 | 0.0048 | 0.0054 |
| Refrigerant regulation | N/A | Electronic expansion valve | |||||
| Heat exchanger type | N/A | Brazed plate heat exchanger | |||||
| Water connection | Inch | 1 | 1 | 1 | 1 | 1 | 1 |
| Norminal water flow | m3/h | 1.4 | 1.8 | 2.7 | 2.7 | 3.6 | 4.7 |
| Operating outdoor temperature | ºC | -25~43 | -25~43 | -25~43 | -25~43 | -25~43 | -25~43 |
| Max heating water temperature | ºC | 75 | 75 | 75 | 75 | 75 | 75 |
| Min cooling water temperature | ºC | 10 | 10 | 10 | 10 | 10 | 10 |
| Sound level | dB(A) | 52.2 | 52.2 | 64 | 65 | 71 | 71 |
| Net weight | kg | 80 | 85 | 99 | 99 | 135 | 165 |
| Dimension | mm | 1100*460*795 | 1100*460*795 | 1115*470*1020 | 1115*470*1020 | 1165*470*1280 | 1260*570*1580 |
Test condition:
1. A7/W35: outdoor air temperature 7ºC DB/6ºC WB, water inlet/outlet temperature 30ºC/35ºC
2. A2/W35: outdoor air temperature 2ºC DB/1ºC WB, water inlet/outlet temperature 30ºC/35ºC
3. A7/W55: outdoor air temperature 7ºC DB/6ºC WB, water inlet/outlet temperature 47ºC/55ºC
4. A2/W55: outdoor air temperature 2ºC DB/1ºC WB, water inlet/outlet temperature 47ºC/55ºC
5. A35/W7: outdoor air temperature 35ºC, water inlet/outlet temperature 12ºC/7ºC
How does an air-to-water heat pump work?
A heat pump takes energy from the outside air, even at very low temperatures, and transfers it into heat that is then circulated around a heating and hot water circuit. A heat pump uses electricity to power a compressor that boosts the temperature of the water so that is hot enough to warm your home through under-floor heating or radiators as well as fulfill your hot water needs.
What are the main benefits of heating with heat pumps?
- Heat pumps extract up to 70% of their energy freely from the air meaning they only use a fraction of the electricity other systems use.
- Heat pumps are up to 500% efficient, compared to a traditional boiler that is 92% efficient, so significant energy savings are made which reduces energy bills.
- Heat pumps are a renewable energy source so are a great option for households looking to reduce their carbon footprint.
- Ideal for off-gas areas as users will see considerable running cost savings against oil boilers.
- Heat pumps don't use any fossil fuels or generate any fumes so won't affect the air quality in the local area.
- Maintenance is simple and low-cost.
Q1: What can you buy from us?
A1: House heating/cooling heat pump, swimming pool heat pump, domestic hot water heat pump, commercial heat pump, etc.
Q2: How about your delivery time?
A2: Generally, it will take 35 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3: What are your terms of delivery?
A3: Accepted Delivery Terms: FOB, CFR, CIF, EXW; Accepted Payment Type: T/T, L/C, Global Pay.
Q4: What are your terms of packing?
A4: Generally, we pack the heat pump in brown cartons or plywood. If you have a legally registered patent, we can pack the heat pump in your branded boxes after getting your authorization letters.
Q5: What is your sample policy?
A5: We accept the sample order, but the customers have to pay the sample cost and the courier cost.
Q6: Do you test all your goods before delivery?
A6: Yes, we have a 100% test before we pack the goods for delivery.
Q7: How long is the guaranteed time?
A7: 3 years warranty on the whole unit. The spare parts must be non-human-damaged. Usually, usually we give the customer 1.5% spare parts free of charge for maintenance according to the order cost during the warranty period.
