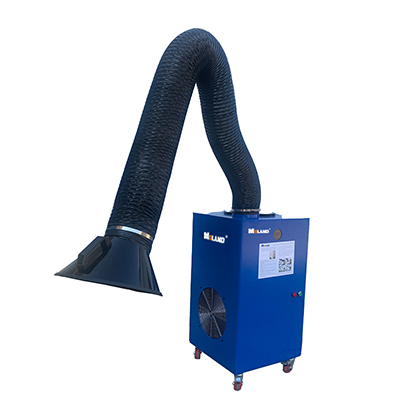

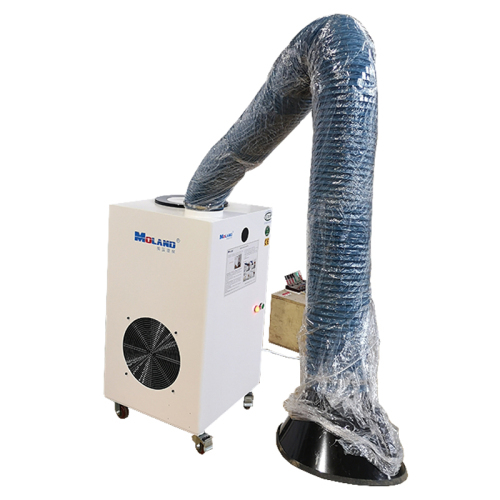

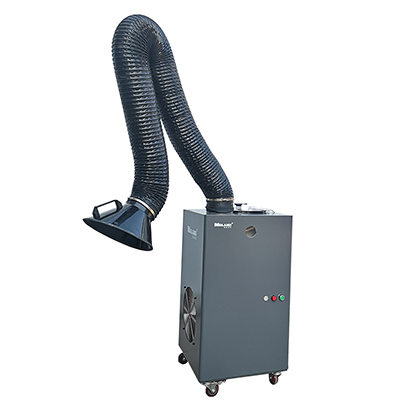

Mobile welding smoke purifier with CE certification
Description
产品描述
Mobile Fume Extractors are designed to be utilized as an engineering safety control to protect users from the occupational hazards presented with various welding applications. Given that the vast majority of the respirable particles in the airstream are under .4 microns in size, a filtered ventilation system that can filter down to that level is what is required to ensure the safety and health of the welder.
MLWF Series Mobile Fume Extractors are small Industrial Dust Collectors specially designed for small particles that harmful to human body produced during welding. It is suitable for single and double welding positions. It is light, flexible and easy to operate.The purifier consists of box, Filter Element, dust collection drawer, fan, dust cleaning device and electrical system. It uses the principle of submerged flow, the top air is filtered through a high-efficiency Filter Element and absorbed by activated carbon to meet the national environmental protection discharge standards.
Industrial Applications
Dispersed manual and small workpiece weldingProcesses
Stick (SMAW) Flux-cored (FCAW) MIG (GMAW) TIG (GTAW)
Filter Media 8 m²
Airflow 1500m³/h
Sound Level 68 dBA
Motor Specifications 3 hp
Input Power 220 V, 50 Hz
Dimensions H: 1050mm W: 550mm D: 550mm
Extraction Arm 200mm dia. 2/3m lengths
Weight 90kg
