Affordable 99.99999% 7N Nitrogen Concentrator for the Electronics Industry

Product ID: 66684712

Affordable 99.99999% 7N Nitrogen Concentrator for the Electronics Industry

Contact Now

Description

产品描述

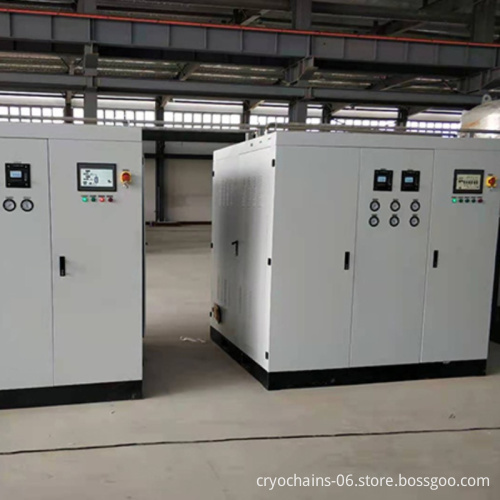

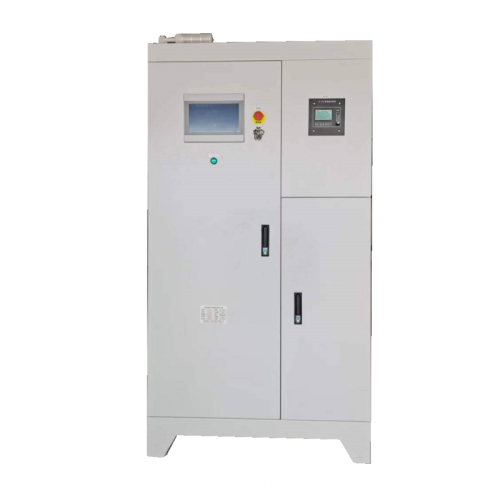

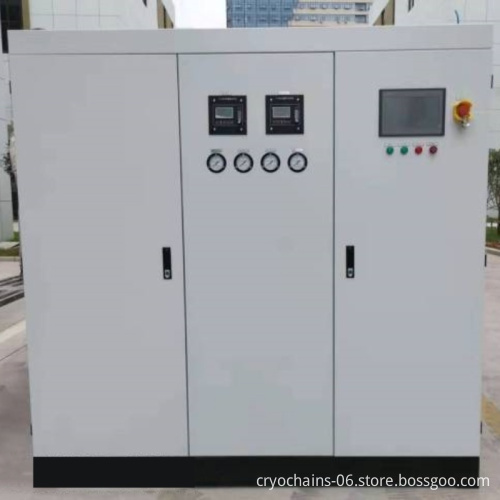

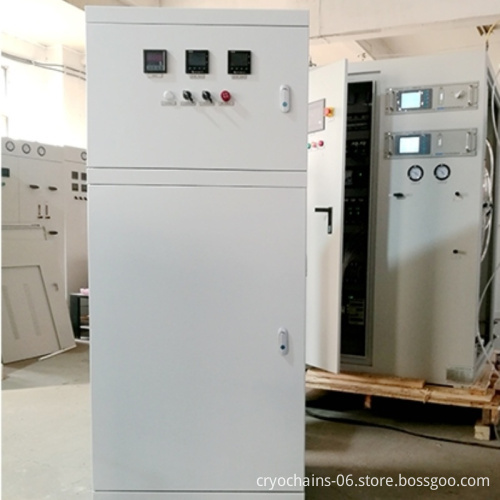

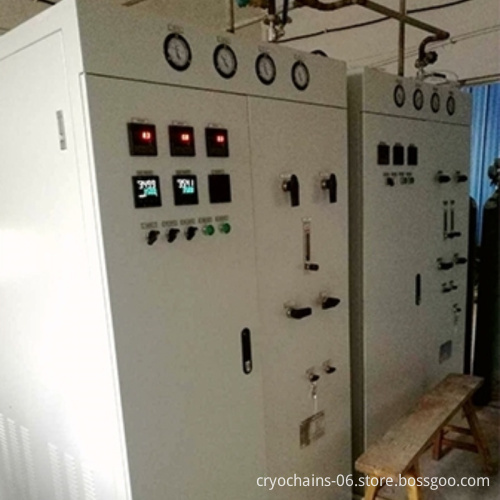

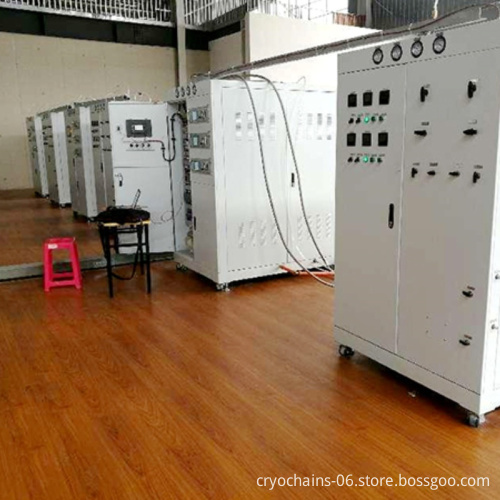

7N Inert Gas Purification System

The 7N Inert Gas Purification System consists of two main parts: the gas circuit and the electronic control. The gas circuit
includes a high-temperature catalyst purification unit, multiple parallel low-temperature catalyst purification units, a series of pneumatic valves, gas pipelines, and heat exchangers. This system combines high-temperature catalysis and low-temperature adsorption to remove impurities such as H2O, O2, CO, CO2, CH4, NMHC, and H2 from the process gas, reducing them to less than 5 parts per billion (ppb). It can be equipped with particle filters with a filtration precision of 0.003 microns.

The electronic control part includes a PLC (Programmable Logic Controller), temperature controllers, and a touch screen. This part manages the purification, regeneration, and safety alarm processes, ensuring the purification system operates continuously, safely, and stably.

Flow Range: 30-6000 Nm³/h

Impurity Levels: Less than 5 ppb for all impurities in the output gas

Methane Removal: Capable of removing methane from inert gases

Filter Option: Can be configured with 0.003-micron filters

Purification Tank Material: 316L stainless steel
Catalyst Units: One high-temperature catalyst unit and multiple low-temperature adsorption units; the initial stage does notrequire regeneration, while the later stage regenerates in situ

Operation: Fully automated and continuous gas supply
