Woodworking Machinery: Full Production Line Paper PVC Sticking Laminating Machine
Description
产品描述
Product Description

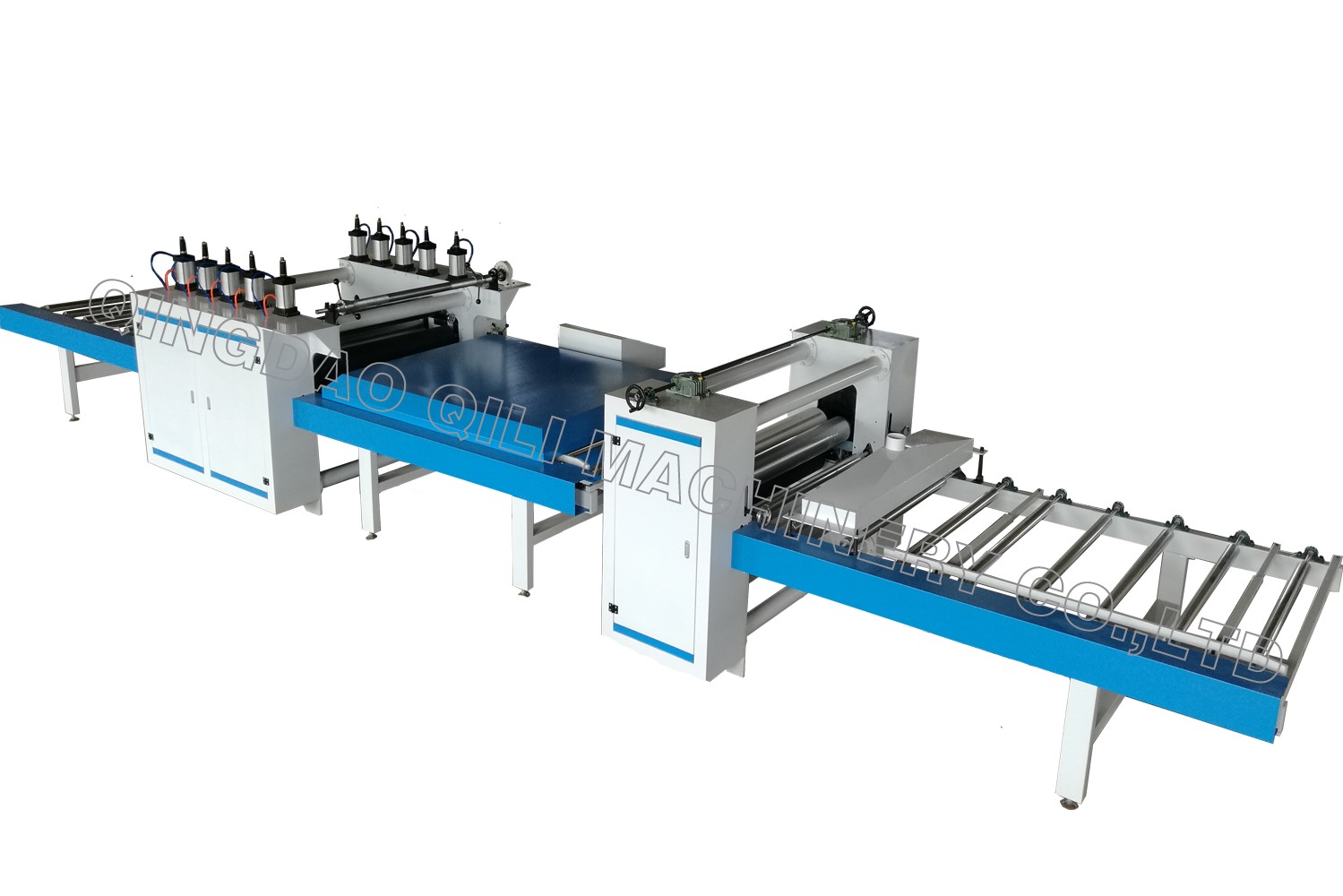

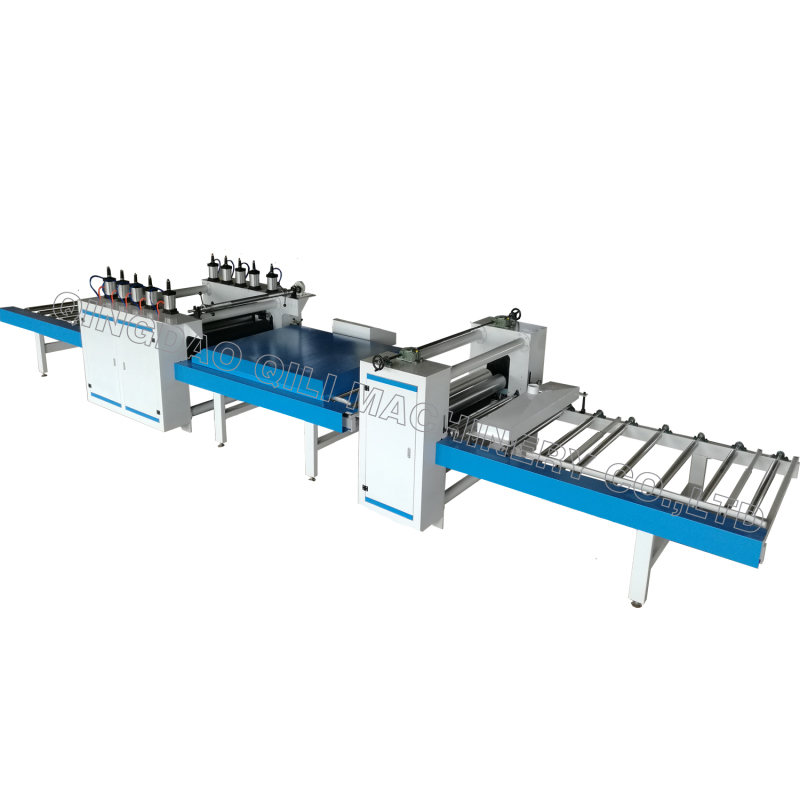

Aluminum/Plywood/MDF PVC film sticking laminating machine

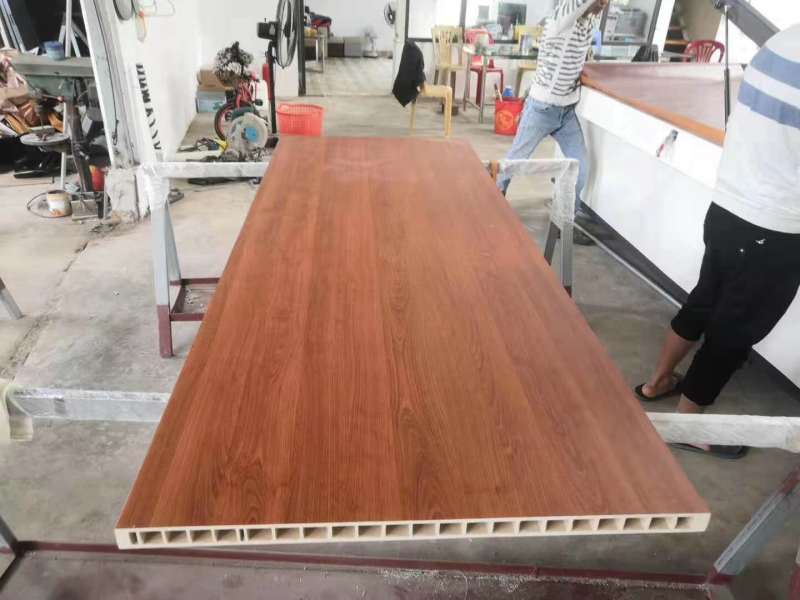

This type machine is the best choice for laminate decorative material (PVC,PE, wood grain paper etc.)on the surface of the flat board(MDF board,density board,particle board, aluminum panel,steel panel,PVC panel etc.It equipped with dust-cleaning part, glue coating machine,glue heating part,cold and hot pressure part,can finish dust-cleaning, glue coating, hot & cold pressure, material sticking.The final product has a flat surface without wrinkles
Technical parameters
Aluminum/Plywood/MDF PVC film sticking laminating machine
| Item | QL1350TZ-D1 |
| Pressing roller control | Air cylinder |
| Main body of the machine | Made by 14mm steel plate |
| Voltage | 380V/50HZ |
| Rated power | 18KW |
| Glue coating roller | φ190x1350mm( silicone ) |
| Heating steel Pressing roller | φ190x1350mmx2PCS |
| Rubber pressing roller | φ190x1350mmx2PCS |
| Max processing thickness | 50mm |
| Max.work width | 1350mm |
| working speed | 1-20m/min |
| Overall dimensions | 9600*2300*1600mm |
| Machine weight | 2800kgs |
| Delivery time | Within 20 working days |
| Terms of payment | 30%deposit, paid off the balance before delivery. |
Detail information
Aluminum/Plywood/MDF PVC film sticking laminating machine

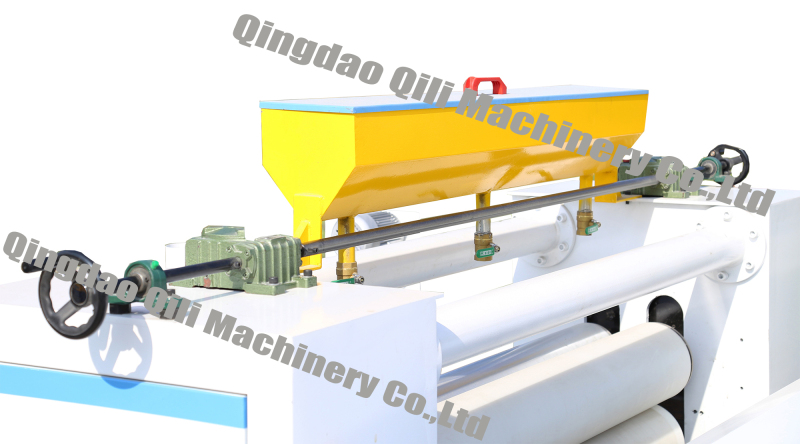

The glue coating part
1:Steel roller together with rubber roller makes the glue coating more uniform.
2:The machine adopt big glue box, adding glue will be more convenient and quick.
3:Main body made by 14mm thickness steel panel,make sure the service life of the machine longer
