Product ID: 68580787

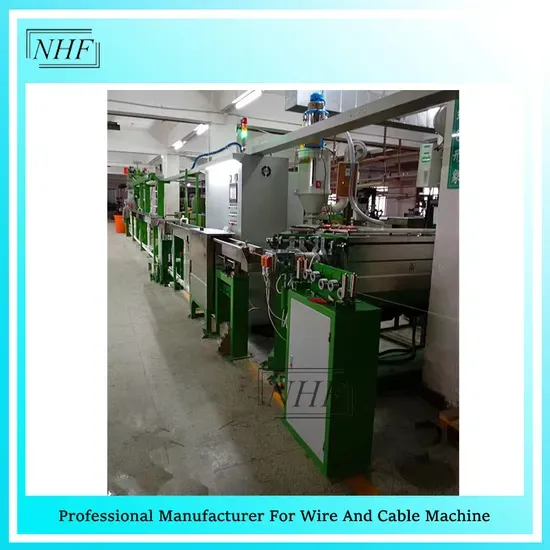

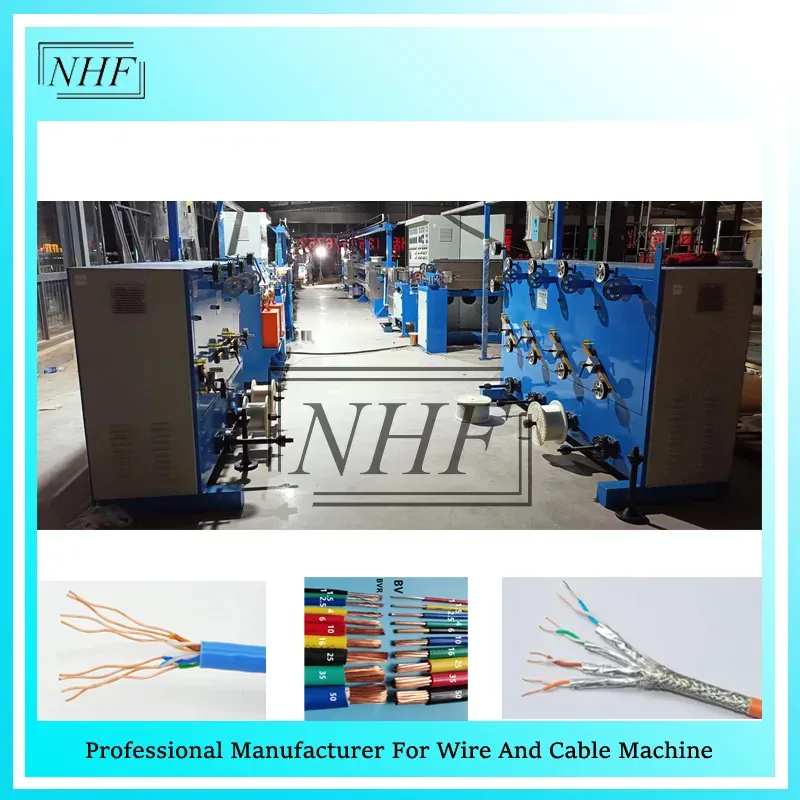

PVC Insulated Cable Production Line
Contact Now
Description
Basic Info.
Model NO.
NHF-70
Condition
New
Warranty
12 Months
Screw
Single-Screw
Precision
High Precision
Heating System
Electric
Automatic Grade
Semiautomatic
Customized
Customized
Cable Spec
0.6~4.0mm
Motor
Siemens
Material
PE/PP/PVC
Wire Speed
400/Min
Voltage
380V/or Customized
Package
Plastic or Wooden Case
Transport Package
Wooden Case
Trademark
NHF
Origin
China
HS Code
8479400000
Production Capacity
120
Product Description
Copper Wire Extrusion Production Line PVC Insulated Cable System PVC Electric Wire Making Machine PVC Cable Coating Machine
Product Description
Application

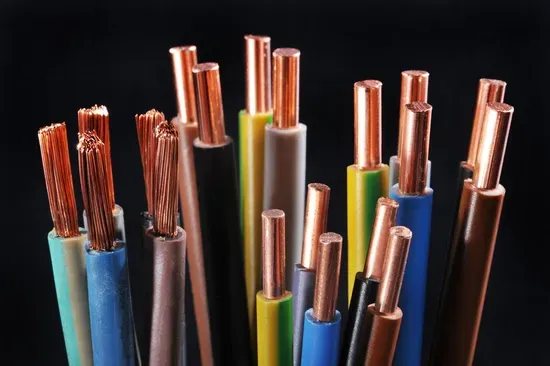

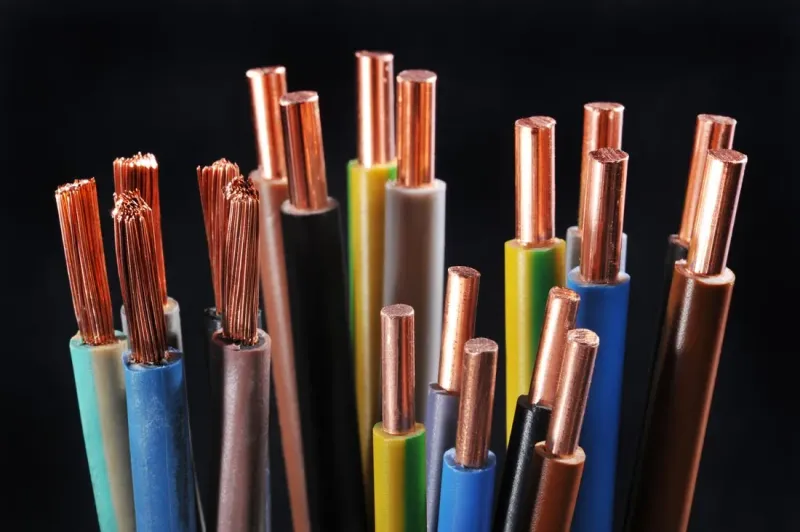

It's used for the insulation of wire&cable with PVC,LDPE,NYLON,TPU.
Also it can be equipment with triple co-extrusion crosshead and double layer.
Machine Production Line Consist:
Product Parameters
Machine Details
Technical parameters
Package
Our Services
Pre-sale Services:
1) Spot investigation and professional guiding suggestions;
2) Equipment configuration, model selection reference and technical consultation;
3) Onestop service for investment equipment, product developing, new materials researching and personnel training.
Sale Services:
1) Invite customers to inspect and take trials of finished machines;
2) Provide the training of the maintenance knowledge;
3) Improve the design to the operator's requirements.
After-sale Services:
1) Regular maintenance and product tracking service;
2) Cost price for required parts in lifelong period;
3) Provide quality and efficient after-sale service life long time.
About us
Dongguan NHF Machinery Co., Ltd. Specializes in manufacturing wire and cable machinery. We offer high quality wire & cable machinery, located in Dongguan, China, We are one of professional manufacturers and exporters of that is concerned with the design, development and production of wire and cable machinery. In the professional field, our companies is according to the actual needs of customers, continuous improvement in technology.
We produce and sale
Wire & cable extrusion lines
Wire & cable twisting machines
Wire & cable taping machines
Wire & cable coiling machines
Wire & cable complete production proposal
Wire & cable machine accessories
We have rich experience in designing and making wire and cable machinery. Especially, we are good at customized design, technical solution and manufacture.
We are a very professional and famous factory in the field of wire and cable machinery, set up by a team of excellent engineers who have experience of nearly 20 in this field. Our highly skilled professionals take the time to get to know you and your business, resulting in a comfortable working relationship with you and a clear understanding of your needs, this enables us to offer you customized, comprehensive, low cost solutions that meet your needs so you don′ T have to compromise. We are able to supply a wide range of wire and cable equipment as well as all the accessories in the industry. Our product has been recognized by customers and has a good reputation in the wire and cable machinery industry.
With an old-fashioned commitment to customer satisfaction as our main principle, NHF has been continuously laying efforts on the product development and innovation. We place our prior emphasis on customer′ S needs and technical innovation, always absorbing the advanced international technology. It enables us to provide high-quality products and services for our customers.
We will work hard and look forward to your sincere cooperation to jointly create new glories.
Our Customers
FAQ
1) Are you a manufacturer or trading company?
We are a manufacturer with more than 17 years manufacturing experience in cable machinery,
and we have production workshop and office space.
2) How can we get to your factory to see the machines works?
Address: No36Houhu road,Humen Town, Dongguan City,Guangdong Province,China
We are near to Shenzhen Baoan International airport within 40 mins;
We are close to Guangzhou Baiyun Airport for 1.5-2 hours.
Product Description
Application
It's used for the insulation of wire&cable with PVC,LDPE,NYLON,TPU.
Also it can be equipment with triple co-extrusion crosshead and double layer.

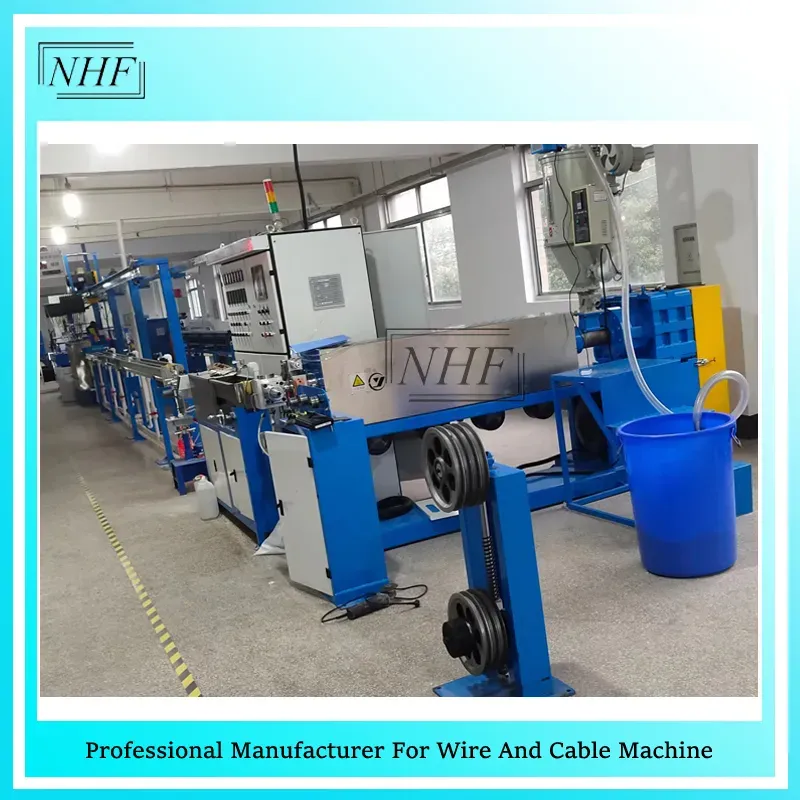

Machine Production Line Consist:
| Production line consist | Optional parts |

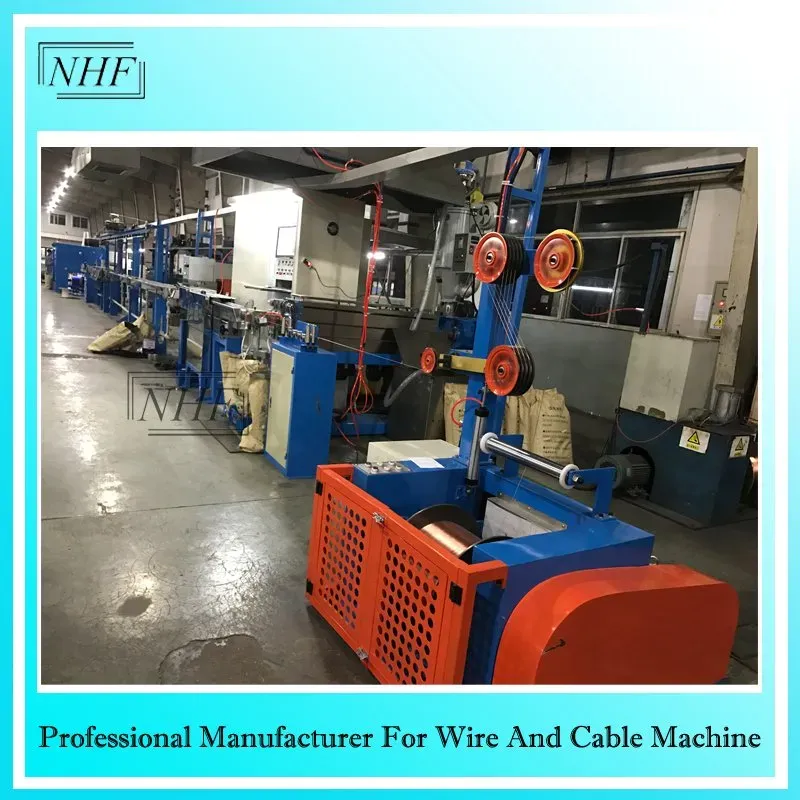

| Pay off (active or passive can be choose) | Active pay off |
| Straightener platform | Pre-heater |

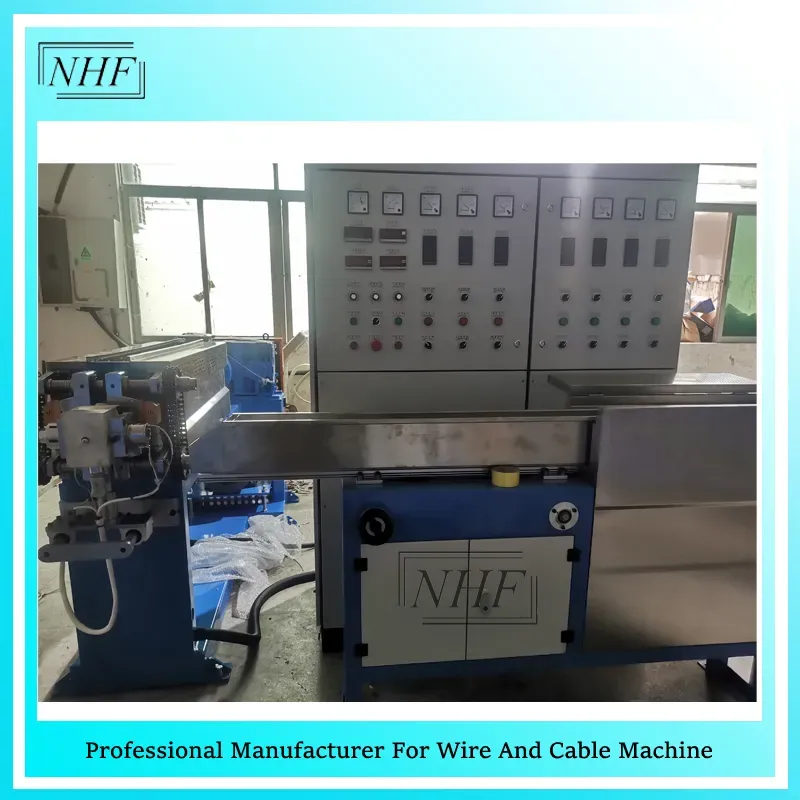

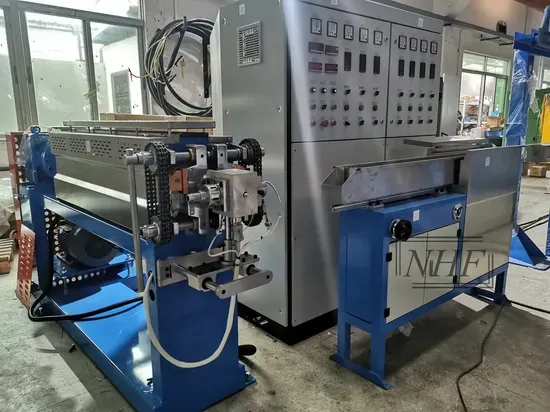

| Main extruder machine | Powder machine |
| Main Control Box | Power ink printer |
| fixed cold Water trough | Diameter-testing laser gauge |
| Single Layer Cooling movable trough | Coiling and wrapping machine |
| Horizontal Tension accumulate stand | PLC control |
| Dual Wheel Traction | Can be optional for motorized pay-off rack,high frequency sparker,etc.The concrete configuration can be adjustable according to client's requirement. |
| Dual-axis Take-up Machine | |
| Spark machine |
Product Parameters
| Type and parameter |
Screw Parameter | Extrusion Capacity | Power | Finished Dia(mm) |
Weight (about) |
||||
| Dia(mm) | L/D Ratio |
PVC | LDPE | pp | Main Motor Power |
Total Power |
|||
| NHF-30 Extrusion |
φ30 | 25:1 | 25 | 16 | 13 | 5.5 | 21 | 0.2-1 | 5 |
| NHF-40 Extrusion |
φ40 | 25:1 | 40 | 20 | 17 | 7.5 | 24 | 0.4-3 | 6 |
| NHF-50 Extrusion |
φ50 | 25:1 | 80 | 40 | 34 | 11 | 28 | 0.8-5 | 8 |
| NHF-60 Extrusion |
φ60 | 25:1 | 100 | 53 | 41 | 18.5 | 42 | 1-8 | 8 |
| NHF-70 Extrusion |
φ70 | 25:1 | 130 | 86 | 68 | 22-37 | 50 | 2-12 | 8.5 |
| NHF-80 Extrusion |
φ80 | 25:1 | 200 | 122 | 96 | 30-55 | 65 | 3-25 | 7-9 |
| NHF-90 Extrusion |
φ90 | 25:1 | 240 | 133 | 124 | 37-75 | 75-113 | 5-35 | 9-12 |
Technical parameters
| Machine type | NHF-65 | NHF-70 | NHF-80 | NHF-90A | NHF-90B | NHF-120 | NHF-150 | NHF-200 |
| Pay-off shaft | double-shaft type | 800-1600 | 1000-2000 | 1600-2500 | 1600-3150 | |||
| Screw diameter | ø65 | ø70 | ø80 | ø90 | ø120 | ø150 | ø200 | |
| Screw L/D | 25:01:00 | |||||||
| MAX. extrusion output | 130kg/h | 150kg/h | 200kg/h | 250kg/h | 280kg/h | 400kg/h | 650kg/h | 900kg/h |
| Motor power | 25HP | 30HP | 40HP | 50HP | 60HP | 70HP | 100HP | 150HP |
| Wire diameter | ø1.2-10mm | ø1.5-12mm | ø2.0-20mm | ø3.0-25mm | ø10-40mm | ø15-60mm | ø30-120mm | above ø40mm |
| Cooling device | single layer/double layers U type | single layer U type | ||||||
| MAX. line speed | 500m/min | 450m/min | 400m/min | 200m/min | 100m/min | 60m/min | 60m/min | |
| Take-up type/power | double-shaft bundle packaging | ø1000mm-2000mm | ø1600mm-2500mm | ø1600mm-3150mm | ø2000mm-3500mm | |||
Package
Our Services
Pre-sale Services:
1) Spot investigation and professional guiding suggestions;
2) Equipment configuration, model selection reference and technical consultation;
3) Onestop service for investment equipment, product developing, new materials researching and personnel training.
Sale Services:
1) Invite customers to inspect and take trials of finished machines;
2) Provide the training of the maintenance knowledge;
3) Improve the design to the operator's requirements.
After-sale Services:
1) Regular maintenance and product tracking service;
2) Cost price for required parts in lifelong period;
3) Provide quality and efficient after-sale service life long time.
About us
Dongguan NHF Machinery Co., Ltd. Specializes in manufacturing wire and cable machinery. We offer high quality wire & cable machinery, located in Dongguan, China, We are one of professional manufacturers and exporters of that is concerned with the design, development and production of wire and cable machinery. In the professional field, our companies is according to the actual needs of customers, continuous improvement in technology.
We produce and sale
Wire & cable extrusion lines
Wire & cable twisting machines
Wire & cable taping machines
Wire & cable coiling machines
Wire & cable complete production proposal
Wire & cable machine accessories
We have rich experience in designing and making wire and cable machinery. Especially, we are good at customized design, technical solution and manufacture.
We are a very professional and famous factory in the field of wire and cable machinery, set up by a team of excellent engineers who have experience of nearly 20 in this field. Our highly skilled professionals take the time to get to know you and your business, resulting in a comfortable working relationship with you and a clear understanding of your needs, this enables us to offer you customized, comprehensive, low cost solutions that meet your needs so you don′ T have to compromise. We are able to supply a wide range of wire and cable equipment as well as all the accessories in the industry. Our product has been recognized by customers and has a good reputation in the wire and cable machinery industry.
With an old-fashioned commitment to customer satisfaction as our main principle, NHF has been continuously laying efforts on the product development and innovation. We place our prior emphasis on customer′ S needs and technical innovation, always absorbing the advanced international technology. It enables us to provide high-quality products and services for our customers.
We will work hard and look forward to your sincere cooperation to jointly create new glories.
Our Customers
FAQ
1) Are you a manufacturer or trading company?
We are a manufacturer with more than 17 years manufacturing experience in cable machinery,
and we have production workshop and office space.
2) How can we get to your factory to see the machines works?
Address: No36Houhu road,Humen Town, Dongguan City,Guangdong Province,China
We are near to Shenzhen Baoan International airport within 40 mins;
We are close to Guangzhou Baiyun Airport for 1.5-2 hours.
