High-Quality Steel Coil Processing Machine
Contact Now
Description
Overview
After Sales Service
FAQ
Overview
Basic Info.
| Model NO. | Slitting Line |
| Drive Mode | CNC |
| Warranty | One Year |
| Function | Steel Coil Cutting |
| Transport Package | Standard Export Package |
| Trademark | Raintech |
| Origin | China Shandong |
| HS Code | 841900091 |
| Production Capacity | 20 sets/Year |
Packaging & Delivery
| Package Size | 10000.00cm * 60000.00cm * 10000.00cm |
| Package Gross Weight | 24.000kg |
Product Description

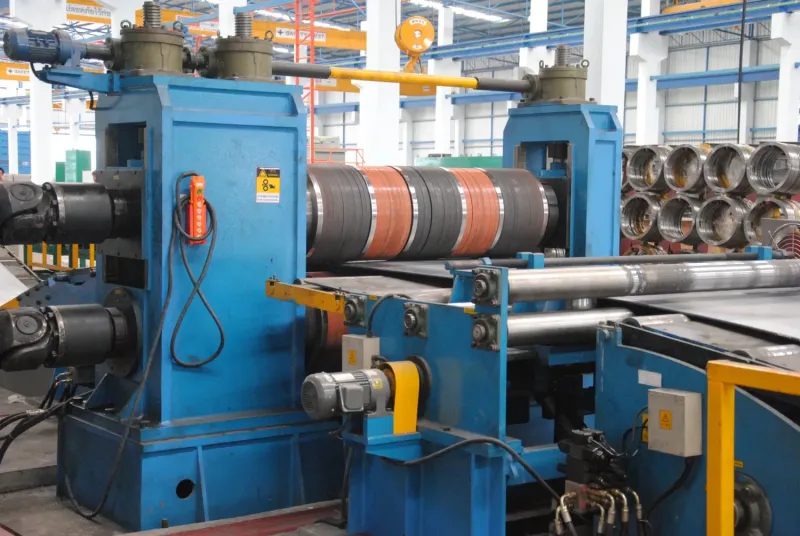

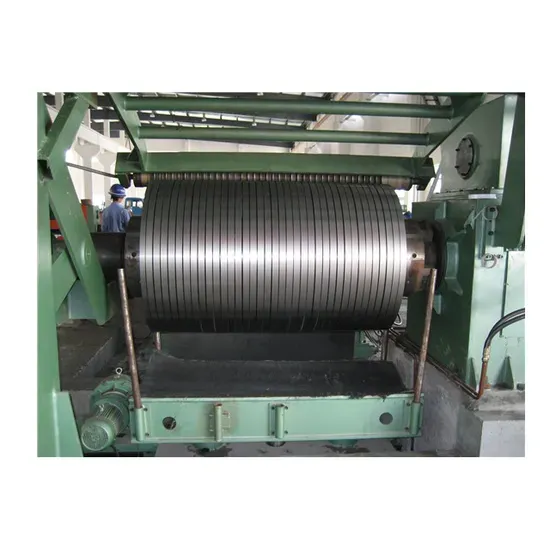

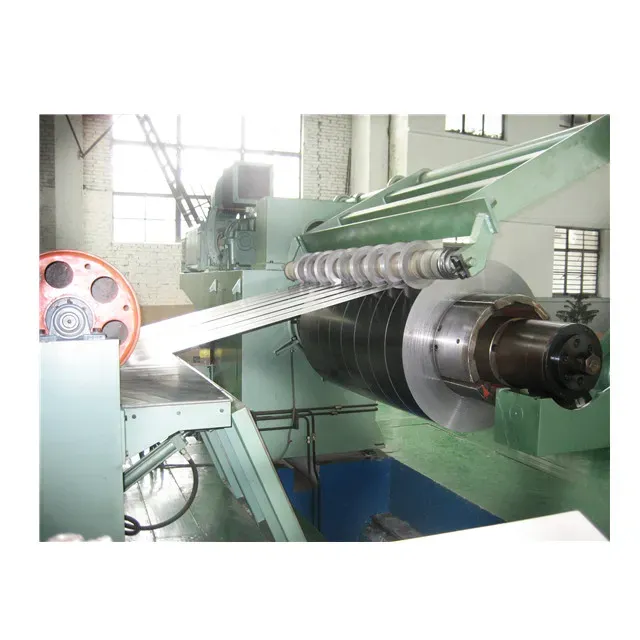

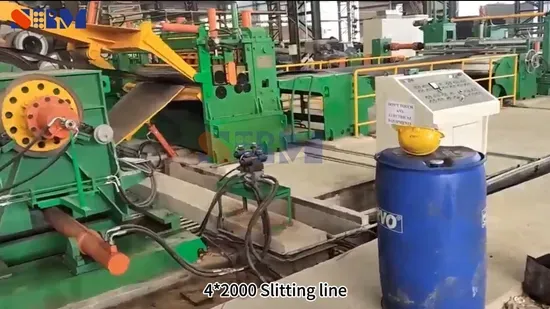

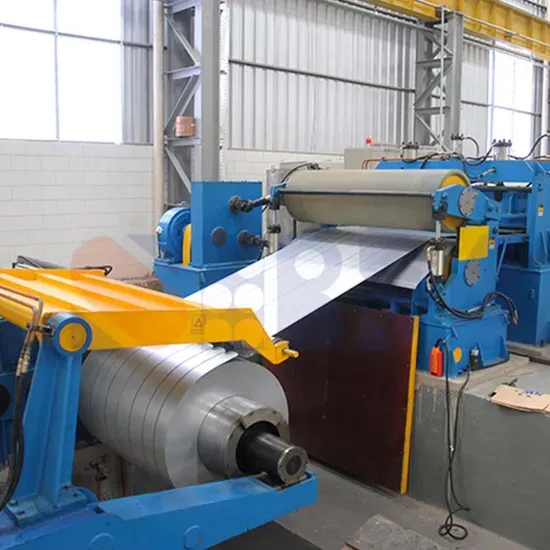

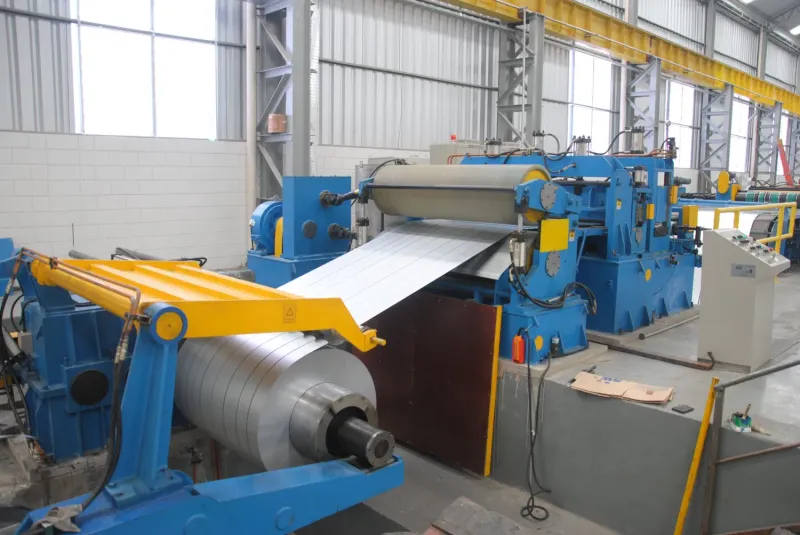

High Quality Steel Coil Processing Machine Sheet Metal Coils Slitting Line
MAIN COMPONENTS
- COIL SKID - V type, main body welded by steel plate
- COIL CAR - Pit type, main body welded by steel plate
- PAPER WINDER - Pneumatic expanded operated mandrel type. The paper winder will rewind the interleaving paper, as the strip is paid off.
- UNCOILER WITH SNUBBER ROLL - Cantilever with four segments type
- COIL OPENER - Telescopic and swing type
- HI LEVELER - 4-Hi, 15 rolls type
- LOOP TABLE - Swing type
- SIDE GUIDE - Vertical roll guide type
- FEEDER ROLL WITH MEASURING ROLL AND PVC COATER - 2+3 rolls type
- SHEAR - Mechanical type
- BELT CONVEYOR - Belt type
- PILER ,LIFTER ,CONVEYOR CAR
- HYDRAULIC UNIT - 1 set
- PNEUMATIC UNIT - Pneumatic source: by buyer
- ELECTRICAL EQUIPMENT - Adjustment, manually, automatic operation mode. One key start-up, multi-machine synchronization. Speed adjustment. Line stop to cuts specified. Fault information display and diagnosis. Maintenance help. Emergency stop, fast stop Start alarm caution.
Raintech design and produce the coil cut to length line according to different requirements from our customers. Also we can make small and compact cut to length line is suitable for the baby coils which max. Thickness 2mm, and coil width less than 600mm. Specially used for small coils cut into short steel plates. The whole line only 16 meters length, take very small space at your workshop. It's the most economic and humane design.
SPECIFICATION
| ModelParameter | MaterialThicknes(mm) | Max.Coil Width(mm) | CuttingAccuracy(mm) | Max. Speed(m/min.) | Max.CuttingFrequency(spm) | UncoilingWeight(Tons) | |
|---|---|---|---|---|---|---|---|
| SCL-6*1600 | 1-6 | 800-1600 | ±0.5 | 40 | 40 | 25 | |
| SCL-6*1850 | 1-6 | 900-1850 | ±0.5 | 40 | 40 | 30 | |
| SCL-6*2000 | 1-6 | 900-2000 | ±0.5 | 40 | 40 | 30 | |
| SCL-8*1600 | 2-8 | 900-1600 | ±0.5 | 35 | 30 | 25 | |
| SCL-8*1850 | 2-8 | 900-1850 | ±0.5 | 35 | 30 | 30 | |
| SCL-8*2000 | 2-8 | 900-2000 | ±0.5 | 35 | 30 | 30 | |
| SCL-12*2000 | 3-12 | 900-2000 | ±1.5 | 30 | 15 | 35 | |
| SCL-16*2000 | 4-16 | 900-2000 | ±2.0 | 20 | 10 | 35 | |
| SCL-20*2000 | 8-20 | 900-2000 | ±2.0 | 20 | 10 | 35 |
After Sales Service
- 1. OEM Design & Production - Our active engineer and design team can make the special machine according to customer's special requirements.
- 2. Delivery in Time Assurance - We assure the machines your ordered will delivered at promised time.
- 3. Free Installation & Training - We provide the installation and training by online video support; local installation and training service team; send engineer for installation and training; installation operation video provided.
- 4. Your Payment Protection - You can pay through to protect your advance payment.
- 5. Online Factory Inspection Service - The factory inspection before your order, will be provided online by video meeting app, like room, wechat, skype etc..
- 6. Long Life Maintenance of Machine - We keep provide the maintenance for all machine life.
- 7. International Third Party Inspection Supported - You can appoint the international third party party, such as TUV, SGS, BV, do inspection before shipment.
FAQ
- Q: Are you a Manufacturer or a trading company? A: We are a professional manufacturer with more than 15 experience in manufacturing, assembling and selling in this field. We have our own factories as well as trading companies.
- Q: How long have your factory been in this field? And how many staff do you have? A: We have been in this field mode than 12 years since the year of 2008, total staff more than 100.
- Q: Where are you and how can I visit you? A: Our factory located in Jinan City, Shandong Province China, contact us before your visit in order that we can arrange the good reception.
- Q: Can you provide a customized solutions? A: Yes, our engineers are pleased to listen your idea and customized design is available.
- Q: What about the warranty? A: We provide 12 months warranty since the machine arrival. free charge of spare parts and regularly maintenance service.
- Q: How about the delivery time ? A: The delivery time is different on different products. We never receive any complain from our customers for the delivery time.
- Q: What about the package and shipment, worry about damage in shipping . A: The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.
- Q: What kind of payment does your company support? A: T/T, 100% L/C at sight, Cash, Western Union are generally accepted.
- Q: Do u support on installation and training? A: Yes, we provide engineers to your site for installation and training, if conditions not allowed, we provide team work by video conference for installation gaudiness on line.
