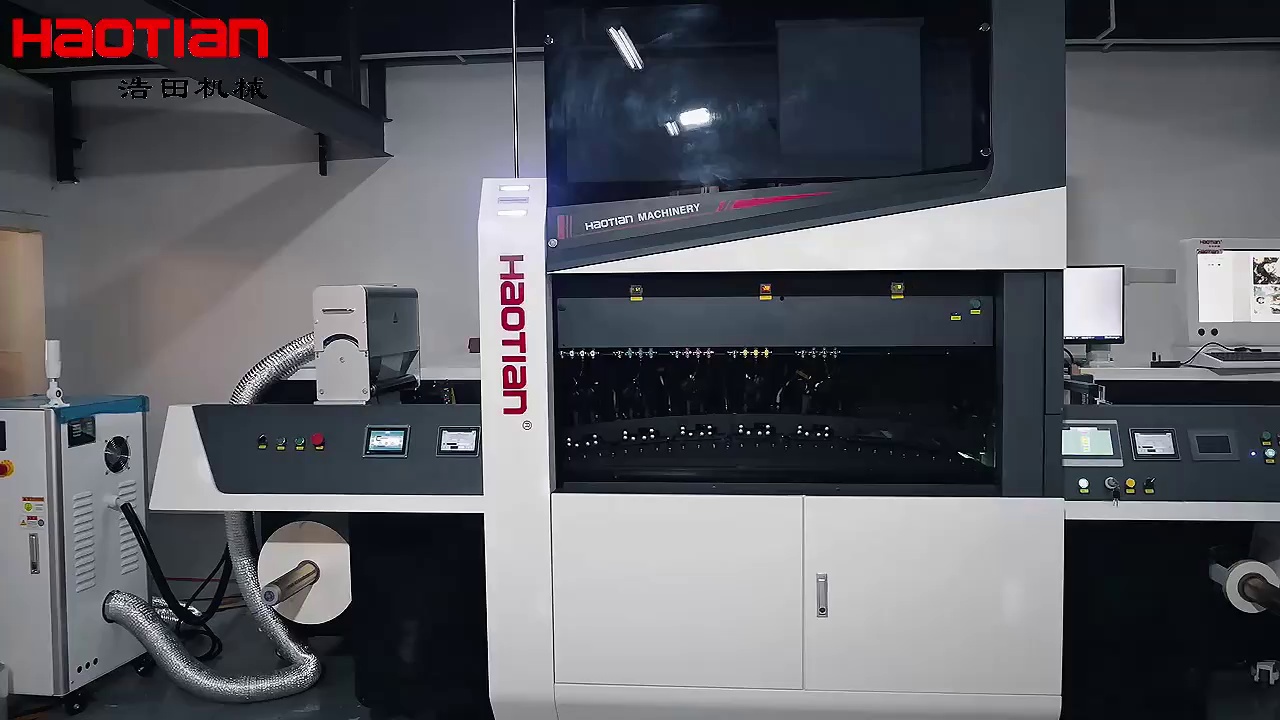

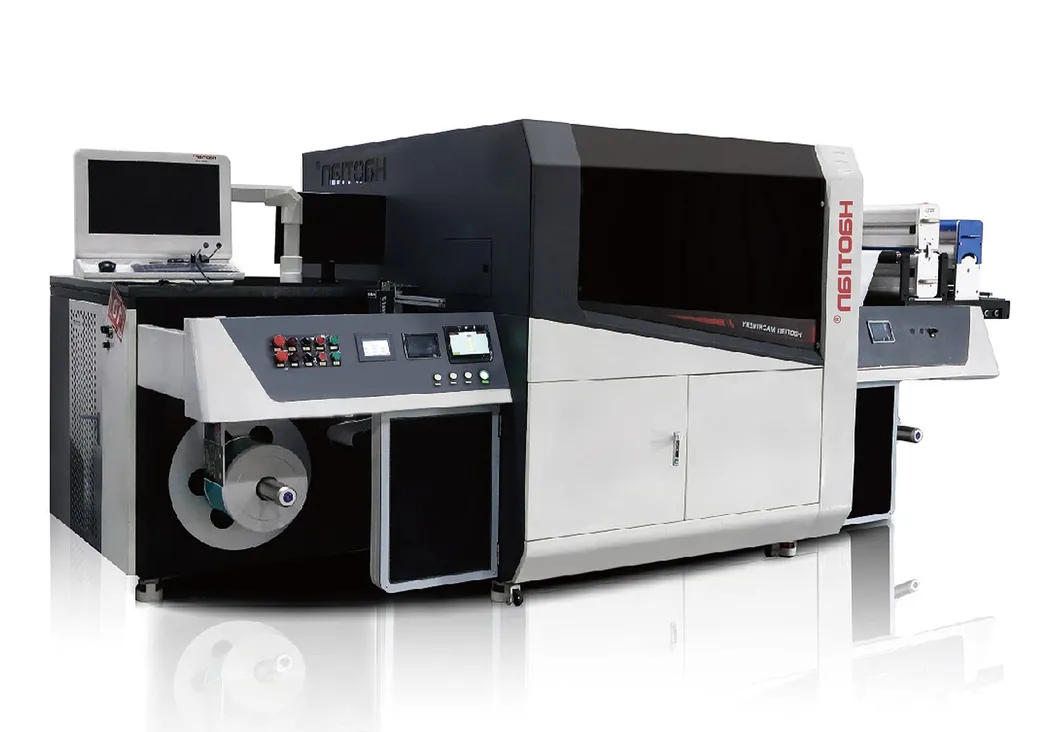

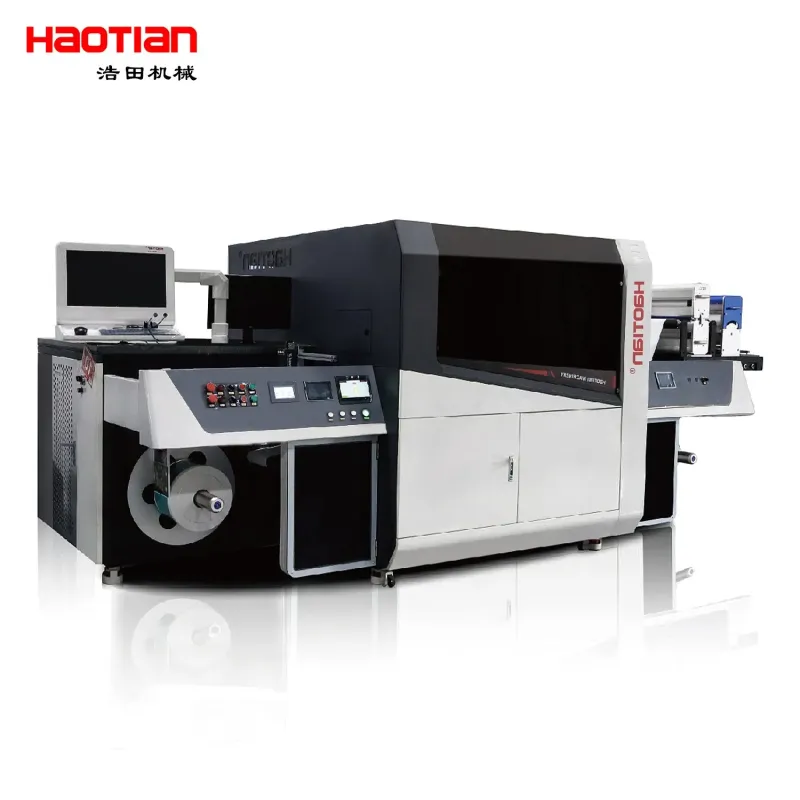

High-Speed Inkjet Brushing Digital Printer
Contact Now
Description
Overview
Basic Info.
| Model NO. | HTS-220/330-7C |
|---|---|
| Printing Color Group | Cmyk+W+O+V |
| Applicable Materials | Semigloss, Film, Universal Label Roll PAC |
| Paper Feed Width | 220mm/345mm (Maximum) |
| Actual Printing Width | 216mm/324mm (Maximum) |
| Transport Package | Packing in Non-Air Wooden Case |
| Specification | Approximately 3.5 tons |
| Trademark | HAOTIAN |
| Origin | Baiyun District, Guangzhou City, Guangdong Province |
| HS Code | 8443322190 |
| Production Capacity | 50m/Min |
Packaging & Delivery
| Package Size | 430.00cm * 204.00cm * 182.00cm |
|---|---|
| Package Gross Weight | 3500.000kg |
Product Description
THE MAIN TECHNICAL PARAMETERS
| Model | HTS-200/300-7C |
|---|---|
| Thickness of printing stock | Roll material sin 0.4-0.8mm. |
| Printing speed/min(max) | 50m/min |
| Roll diameter of charging or discharging | Maximum diameter:650mm |
| Temperature range | 18-30°C |
| Machine size (L*W*H) | 4300mm x 2040mm x 1820mm |
| Storage temperature for ink | 16-32°C |
| N put power | Three-phase 380VAC 50/60HZ 10KW. |
| Humidty range | 40-60% |
| Accepted file format | PDF,JPEG,BMP and other common file formats |
| N put gas supply | 0.6-0.8 Mp |
| Material type | Semigloss, Film, Universal Label Roll PAC |
| Width of paper feeding | 216mm/324mm |
| Computer hardware | Main board with HTS-PRIMEZ370-A: graphics card with HT5-GTX1070-08G. |
| Printing width | 220mm/330mm |
| Resolution | DP1600x600dpi or 600x1200dpi DPI/rate1200dpi25m/min,240dpi 12.5m/min |
| Machine weigh | 3.5tunsapproimately |
| Printing technology | Single PASS UV ink-jet technology,DDD technical.grade nozzle and 4-grade grade scale |
| Ink | Cured UV printing ink |
| mage processor | RiP bundle,and synchronous printing and RiP for big data files are supported,saving RiP time |
| Color cell of printing | CMYK+W+O+V |
| Drying mode | t consists of 4 sets of LEDS and a set of 10KW UV amps to ensure that the material does not deform during curing |
PERFORMANCE AND FEATURES
- 1.cmyk+w+o+v Color Group, The Self-developed 7-color Separation System Has A Wider Printing Color Gamut,More Vivid Colors,And More Delicate Color Harmony Which Further Expands The Scope Of Printing Adaptation,And At The Same Time Saves On Printing Consumption.the Material Cost Also Greatly Reduces Its Ink Cost And it is Easy To Realize Full-color Printing Of Transparent And Non-transparent Materials.
- 2.Variable Data Processing System, Easily Realize Variable Data Printing Such As Bar Code,QR Code,Serial Number, Dot Matrix Code,Etc.To Needs Of Anti-counterfeiting Traceability Orders.
- 3.The Patented Technology Of Automatic Nozzle Cleaning And Maintenance System (e-clean) Can Effectively Clean And Maintain The Nozzle Module reduce The Waste Of Maintenance Print head Ink And Human Factors To Damage The Print head ,Prolong The Service Life Of The Print head.
- 4.Mature And Stable Circulation ink Supply System, Modular Independent Positive And Negative Pressure Control, Segmented Filter Technology Shi nan's Top lnk Degassing Technology, To Ensure The Stability And Reliability of Ink Supply.
- 5. The Printing Section Adopts Dual-servo Tension Control, Front And Rear Feeding And Unwinding Tension Control, Stable And Reliable Tension Control System To Ensure Smooth Paper Feeding And Registration Accuracy.

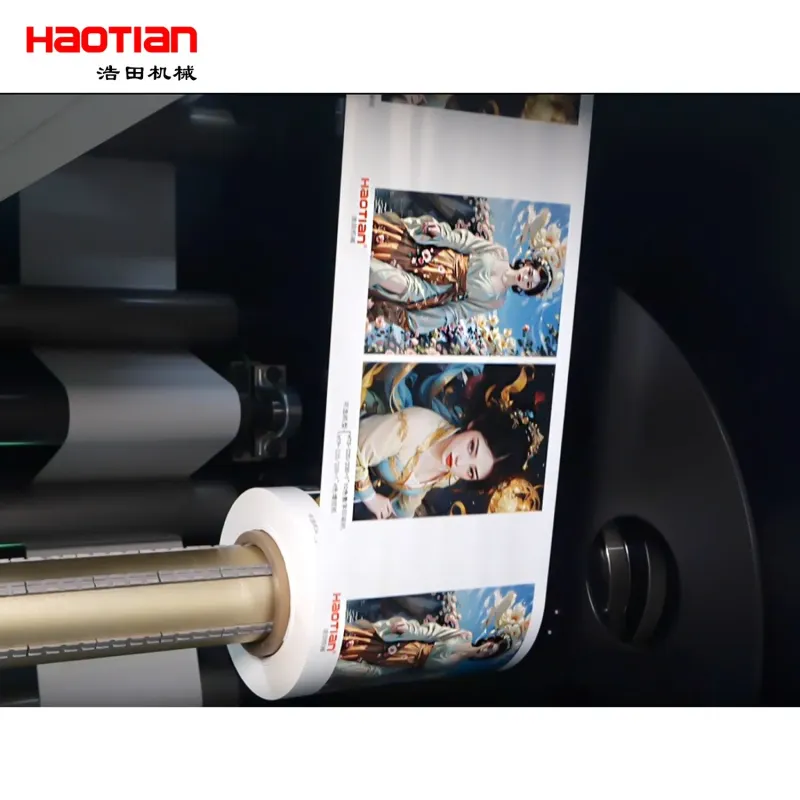

Print samples

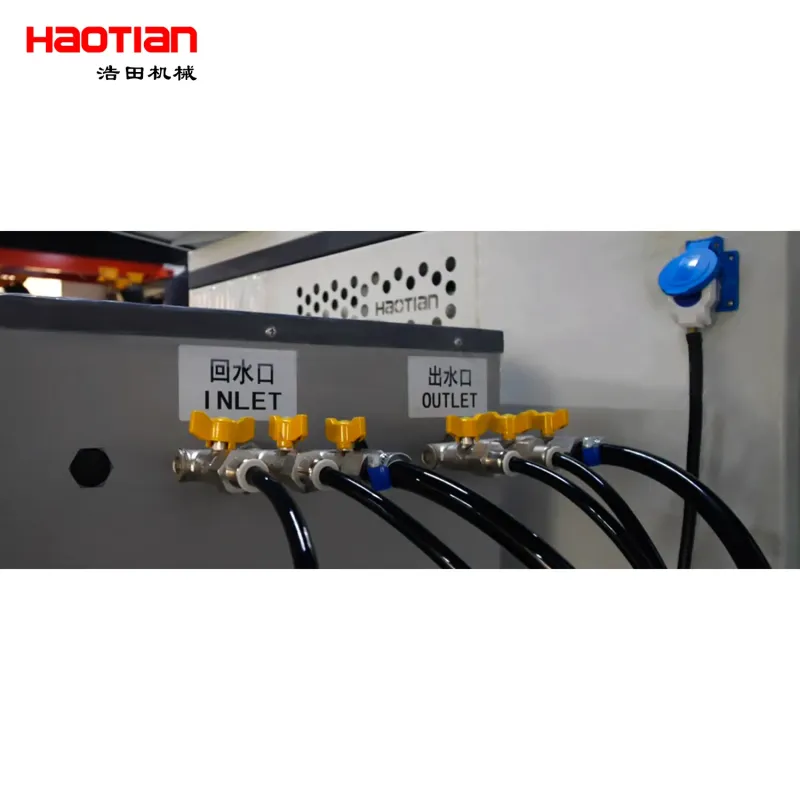

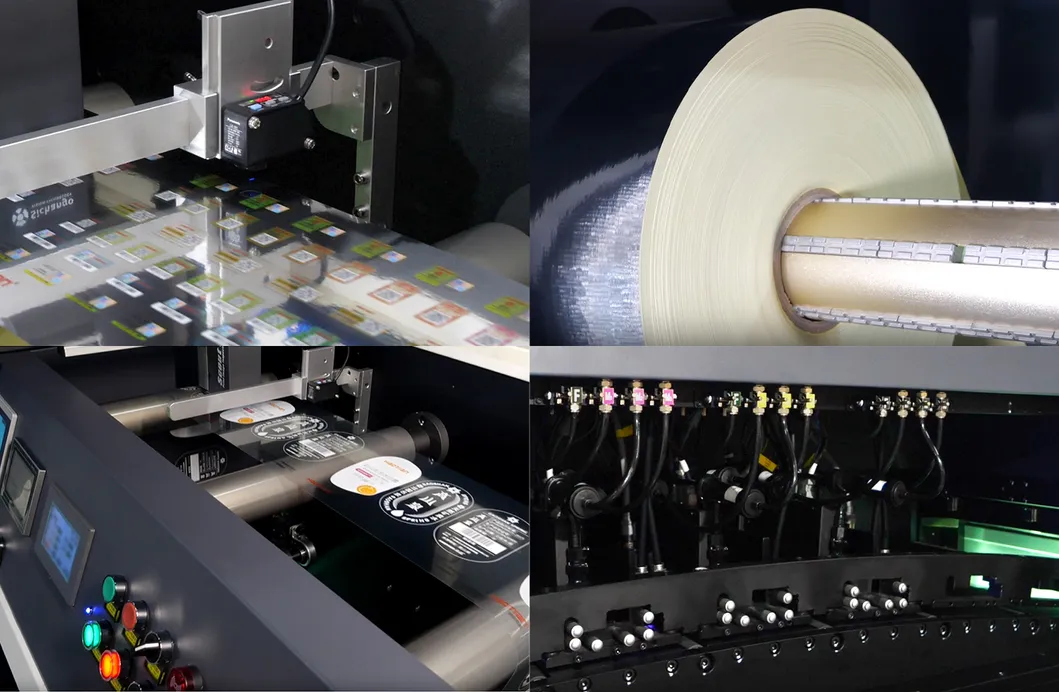

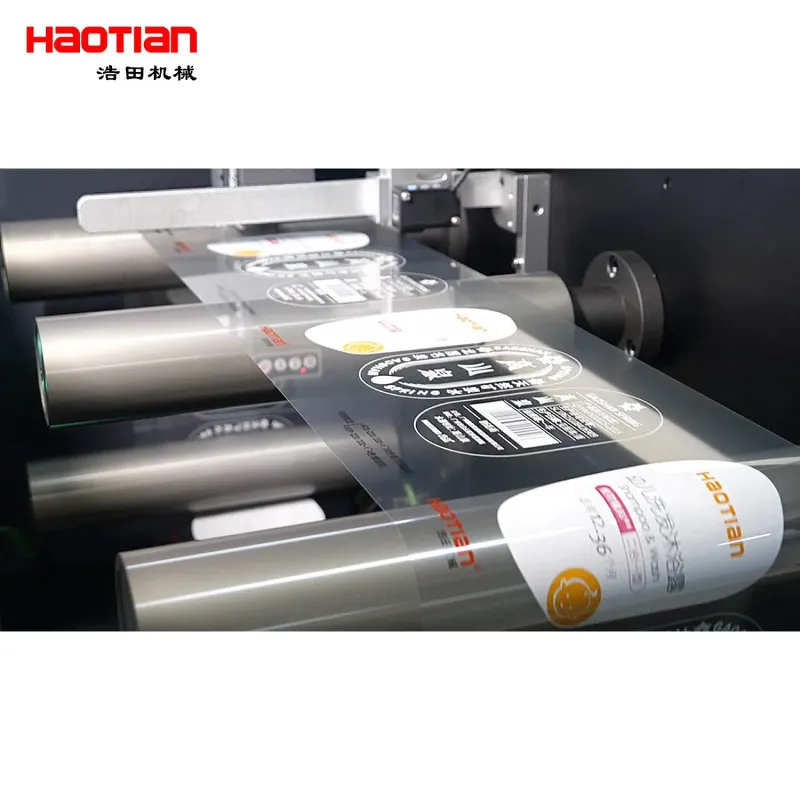

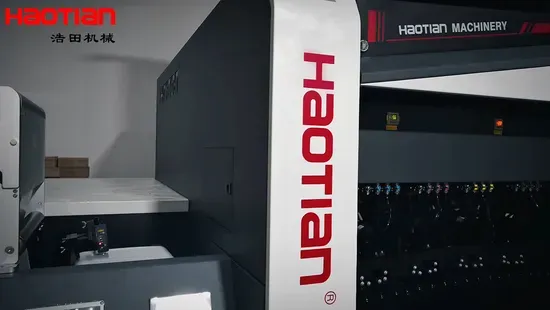

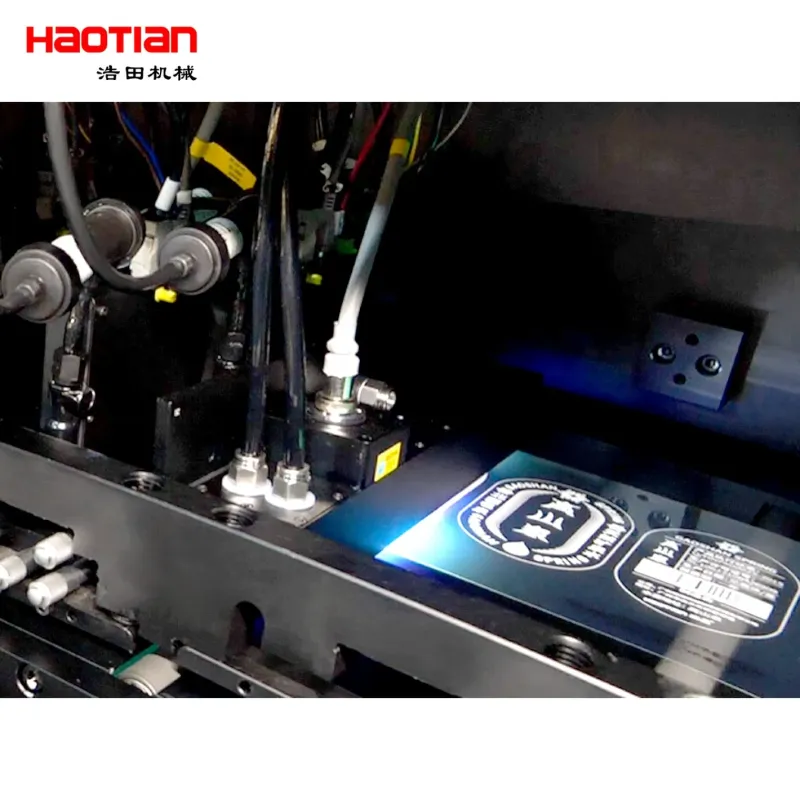

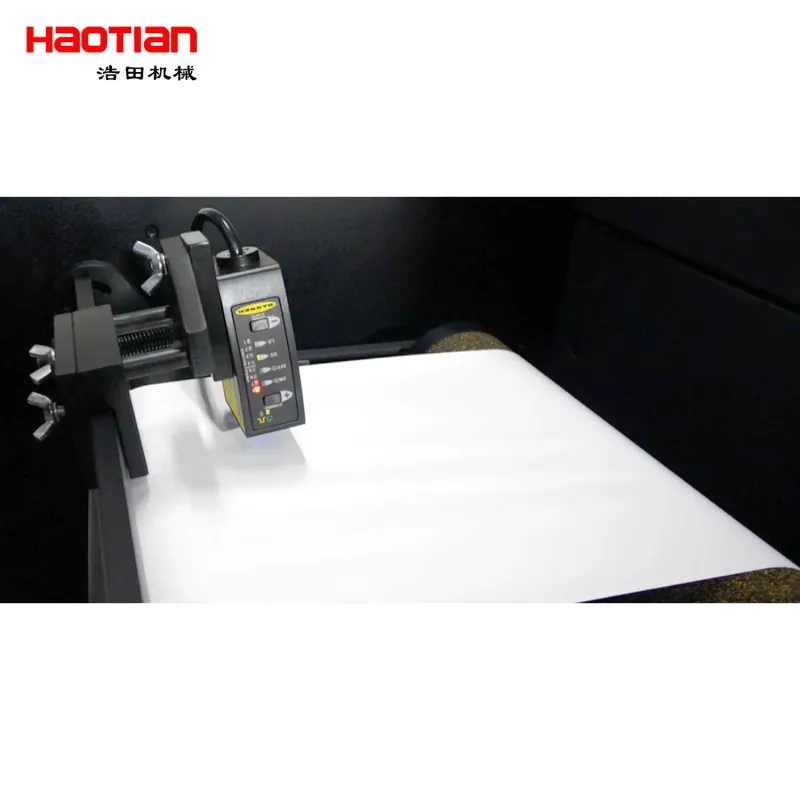

Machine details
Enterprise certificate

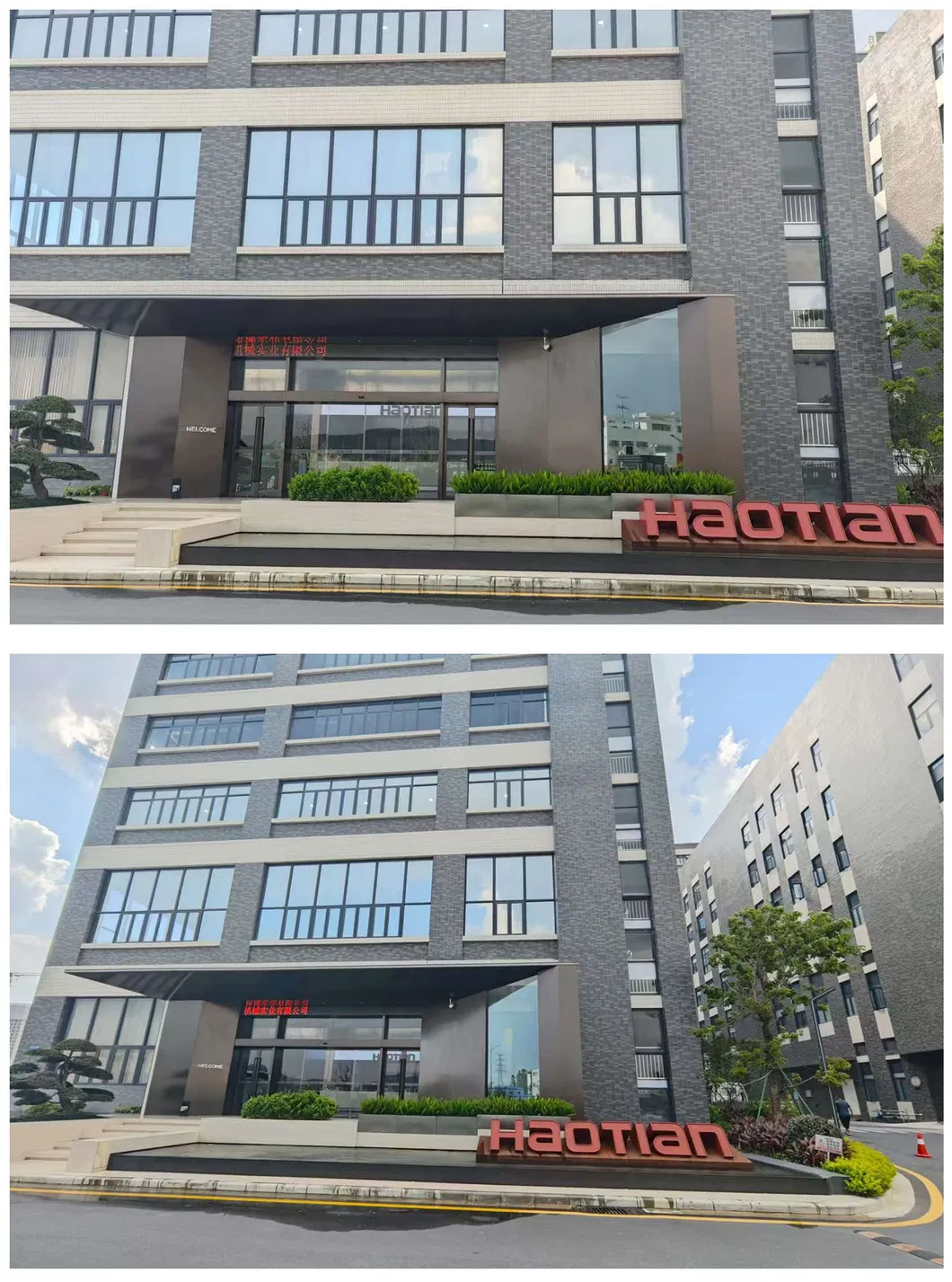

Our company

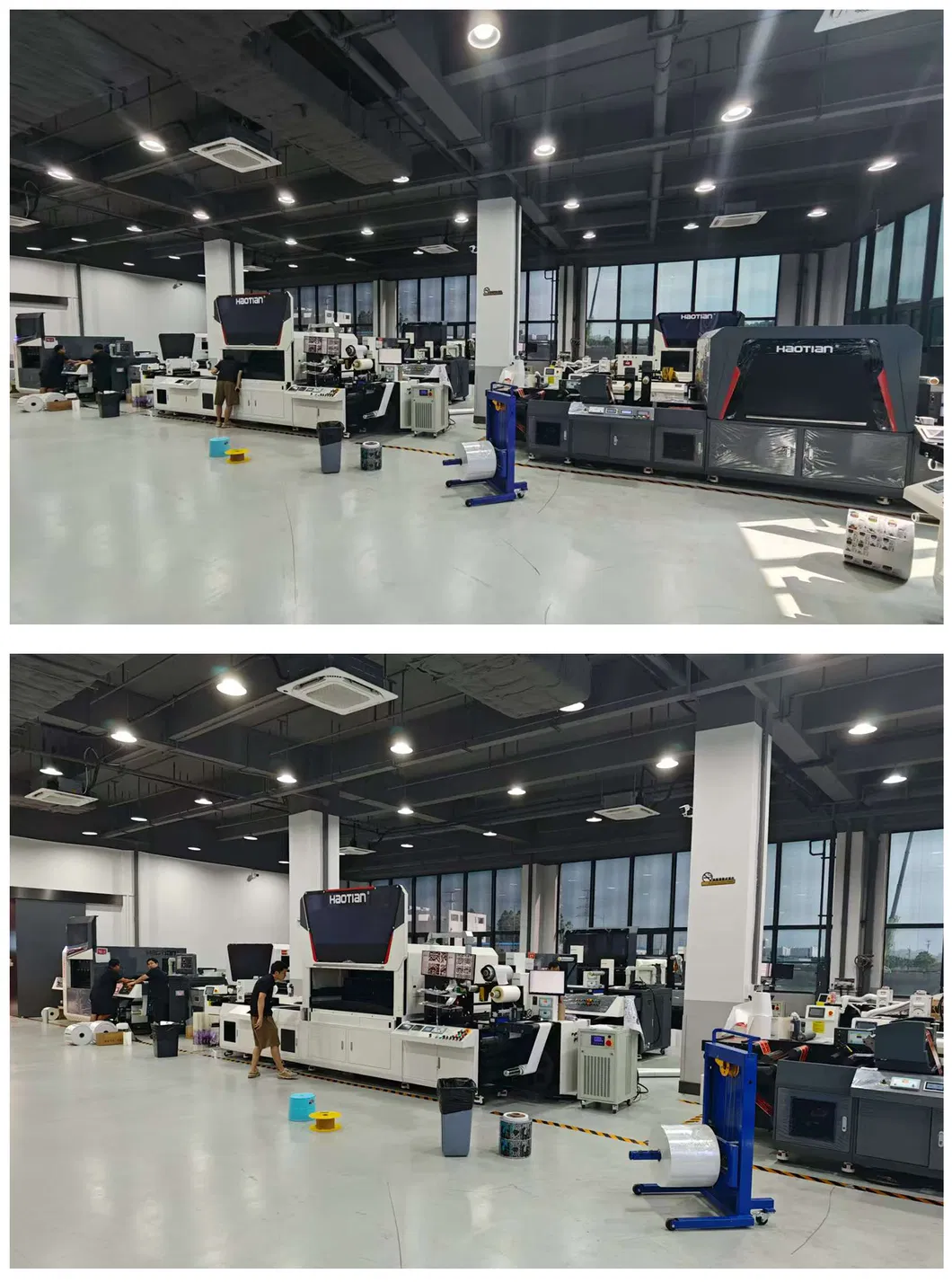

Our workshop
Packaging and Shipping
Our exhibition
FAQ
- 1.Are you a manufacturer? Yes, we have been in making printing machine over 20 years.
- 2.machine adjustment and installation We can send technicians go to customers' country for machine installation and adjustment.
- 4. Quantity and quality guarantee Quantity/Quality Discrepancy to destination port during transportation: In case of quality/quantity discrepancy to destination port in transportation, customer should file claim within 30 days after the arrival of the goods at port of destination. Guarantee period and after-sales services: 12 months since installation finish and machine normal working. During this guarantee period, We will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide spare parts at cost price. Long-term service: We will charge the buyer the cost price of spare parts beyond guarantee time and provide long-term technical guide.
- 5. Validity: 60 days since the quote date Thanks for your attention! Sincerely hope to work with you in near future!
