Large capacity industrial vacuum bowl cutter
Description
产品描述

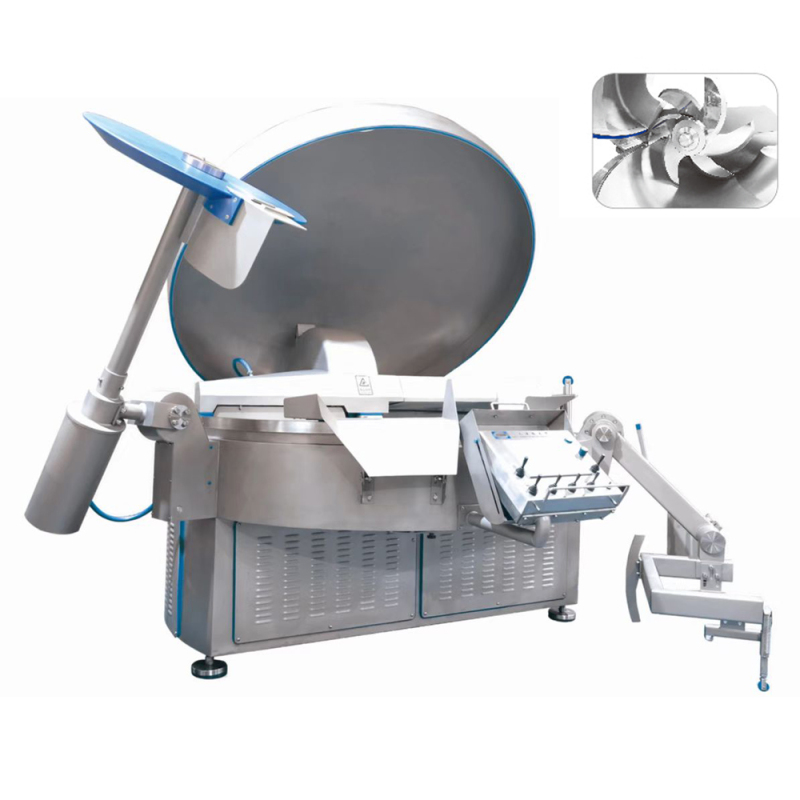

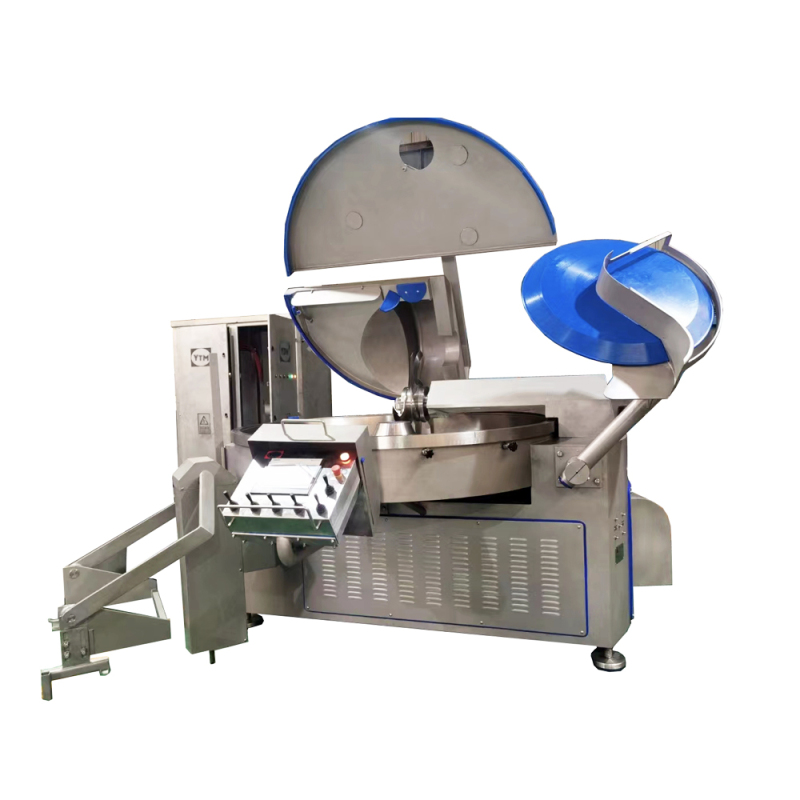

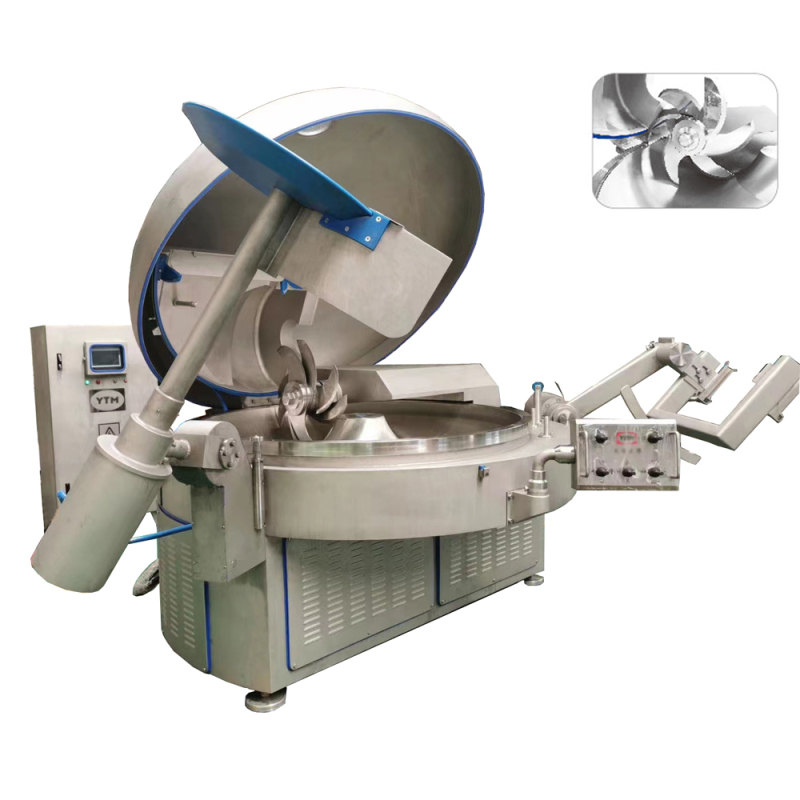

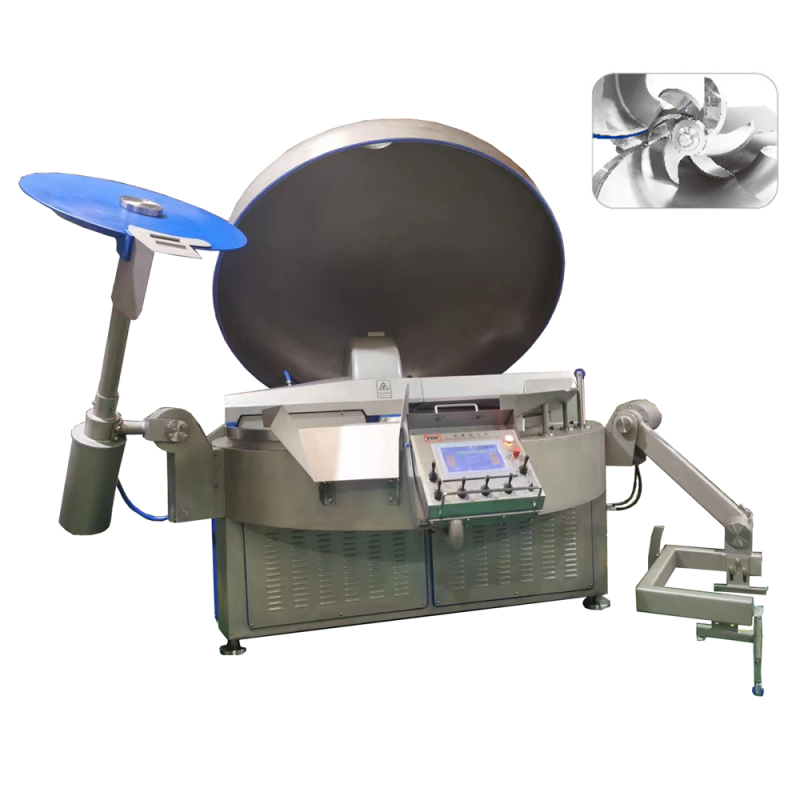

Sainless steel Large capacity industrial vacuum bowl cutter
The vacuum cutter is used to produce products with various densities upon customers’ demands. It also has the function of mixing.
Our Vacuum Meat Chopper knife speed, bowl speed, cutting knife and turning bowl reaches the best combination, so that make sure the products are fine, the temperature is small, and the chopping time is short, especially for emulsification treatment, so that intestinal products make intestinal products The fineness and elasticity are greatly enhanced, and the grew of the emulsion, elasticity and delicateness of the meat products is improved. The main bearing of our Bowl Cutter uses SKF bearing, and it is equipped with an automatic lubrication system, automatic oil injection, convenient maintenance, and improved the operation rate of the whole machine. The motors are controlled by frequency conversion to ensure the smooth operation of the equipment, safe and reliable.
Function:
- ZKZB-750with the function of cutting meat block into grains with different sizes, or meat mud. Vegetable, mushroom, agarics, shallot and ginger etc.can also be cutted, mixed, emulsified.
- Mixing minced meat,seasoning, additive together.
- Ideal combination of knife rolling speed, bowl rolling speed, the reasonable 2mm distance between knife and bowl, good degree of fitness, little tempreture rising and reduced cut time.
- Rubber bar to prevent material leaking during cutting and washing.
- The machine is made by stainless steel, easy to clean, good-looking, endurable, meeting the requirement of food sanitation
Technical parameter of Vacuum bowl cutter
|
型 |
Volume |
能力 |
Knife speed |
Bowl speed |
权力 |
重量 |
尺寸 |
|
ZKZB-200 |
200L |
170kg/batch |
200/1500/3000/3600r/min |
Frequency |
84kw |
4000kgs |
2950*3060*3130mm |
|
ZKZB-330 |
330L |
260kg/batch |
200/1500/3000/3600r/min |
Frequency |
104kw |
5500kgs |
3240*2870*2650mm |
|
ZKZB-550 |
550L |
450kg/batch |
200/1500/3000/3600r/min |
Frequency |
130kw |
6500kgs |
3710*3060*3130mm |
|
ZKZB-750 |
750L |
650kg/batch |
200/1500/2700/3000r/min |
Frequency |
184Kw |
9000kgs |
3900*3150*1950mm |
|
ZKZB-850 |
850L |
750kg/batch |
200/1500/2700/3000r/min |
Frequency |
224kw |
10000kgs |
3950*3220*3360mm |
